Compulocks Apex Enclosure Rise Stand for Galaxy Tab S9, S9 FE, S10 FE, S10 Lite and S11, 8-Inch, Black

MPN TCDP01109GAPXB
  • Countertop

Fits Galaxy Tab S9, Galaxy Tab S9 FE, Galaxy Tab S10 FE, Galaxy Tab S11

$228.17$254.00Save $25.83

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

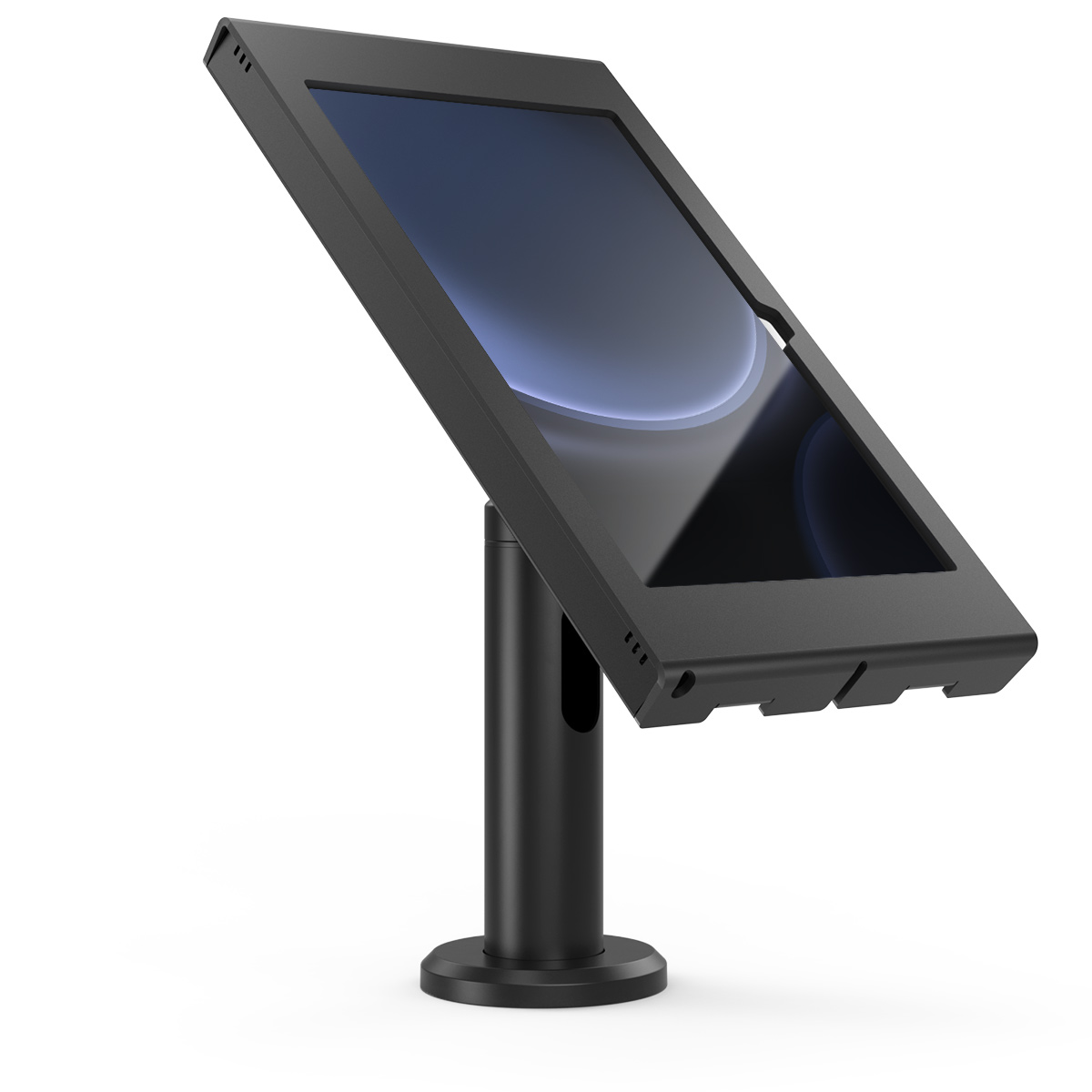

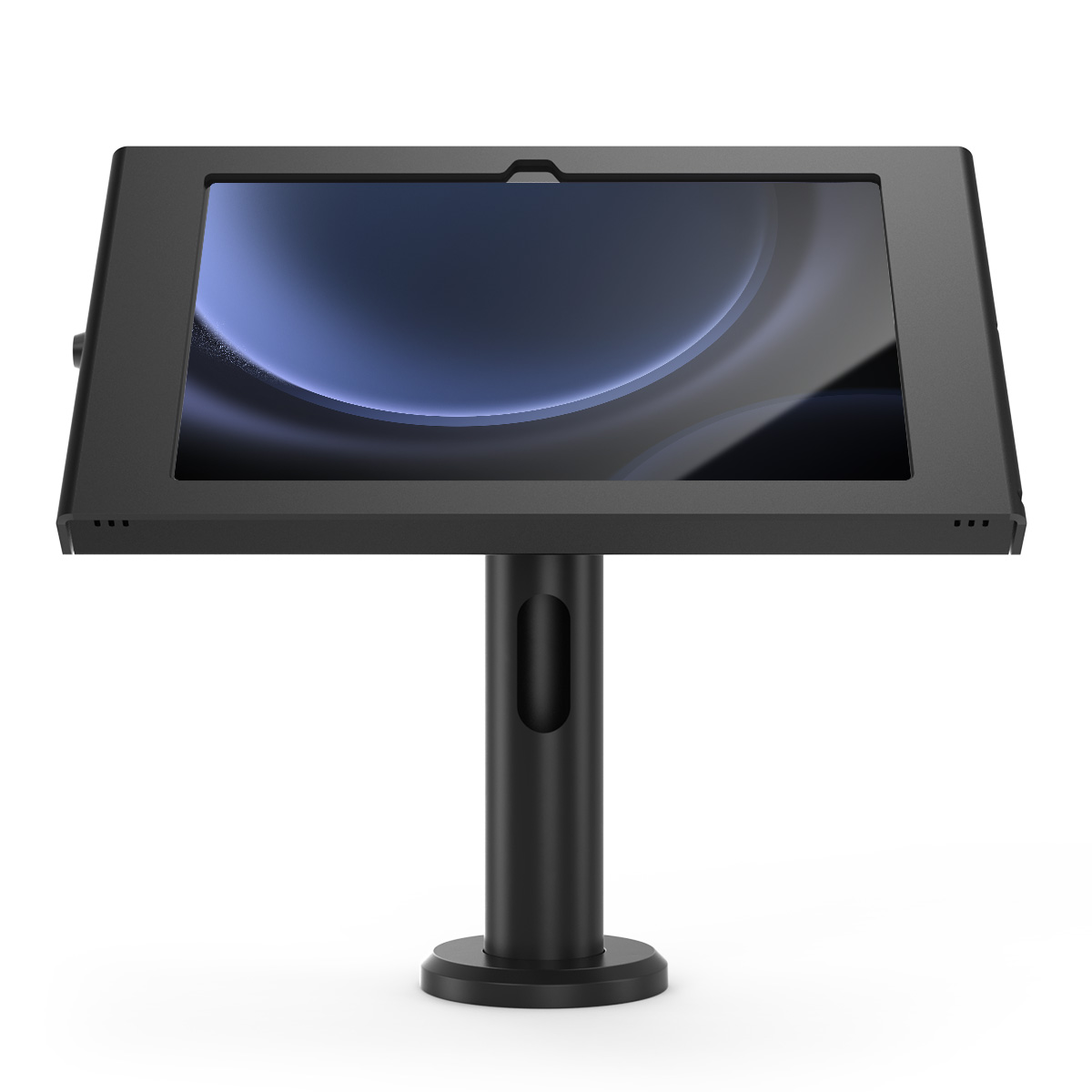

The Compulocks TCDP01109GAPXB pairs the 8-inch (20 cm) Rise tilting stand with the Apex secured enclosure for the Samsung Galaxy Tab S9, S9 FE, S10 FE, S10 Lite and S11. Together they form a lockable countertop display for retail, hospitality and office use. The metal-framed Apex enclosure uses a quick keyed lock and keeps the front and rear cameras and sensors exposed. The charging cable runs through the stand, so the tablet can charge while mounted.

  • Bundle of Rise stand 8 in / 20 cm (TCDP01) and Apex Secured Enclosure (109GAPXB), both in black
  • Fits Galaxy Tab S9 FE, S10 FE, S10 Lite, S9 and S11

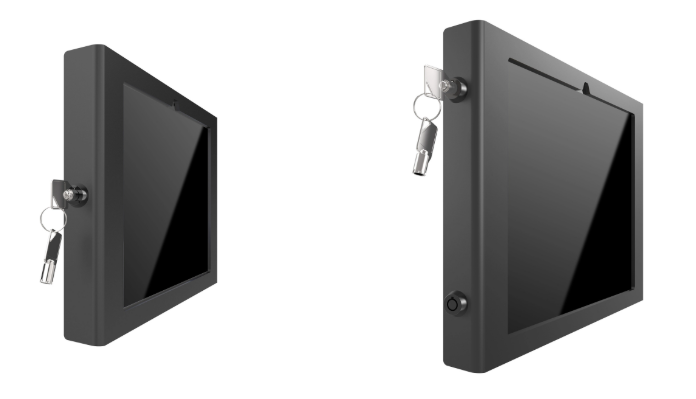

  • Metal-frame enclosure with quick keyed lock and T-bar lock slot
  • Front and rear cameras and sensors remain exposed

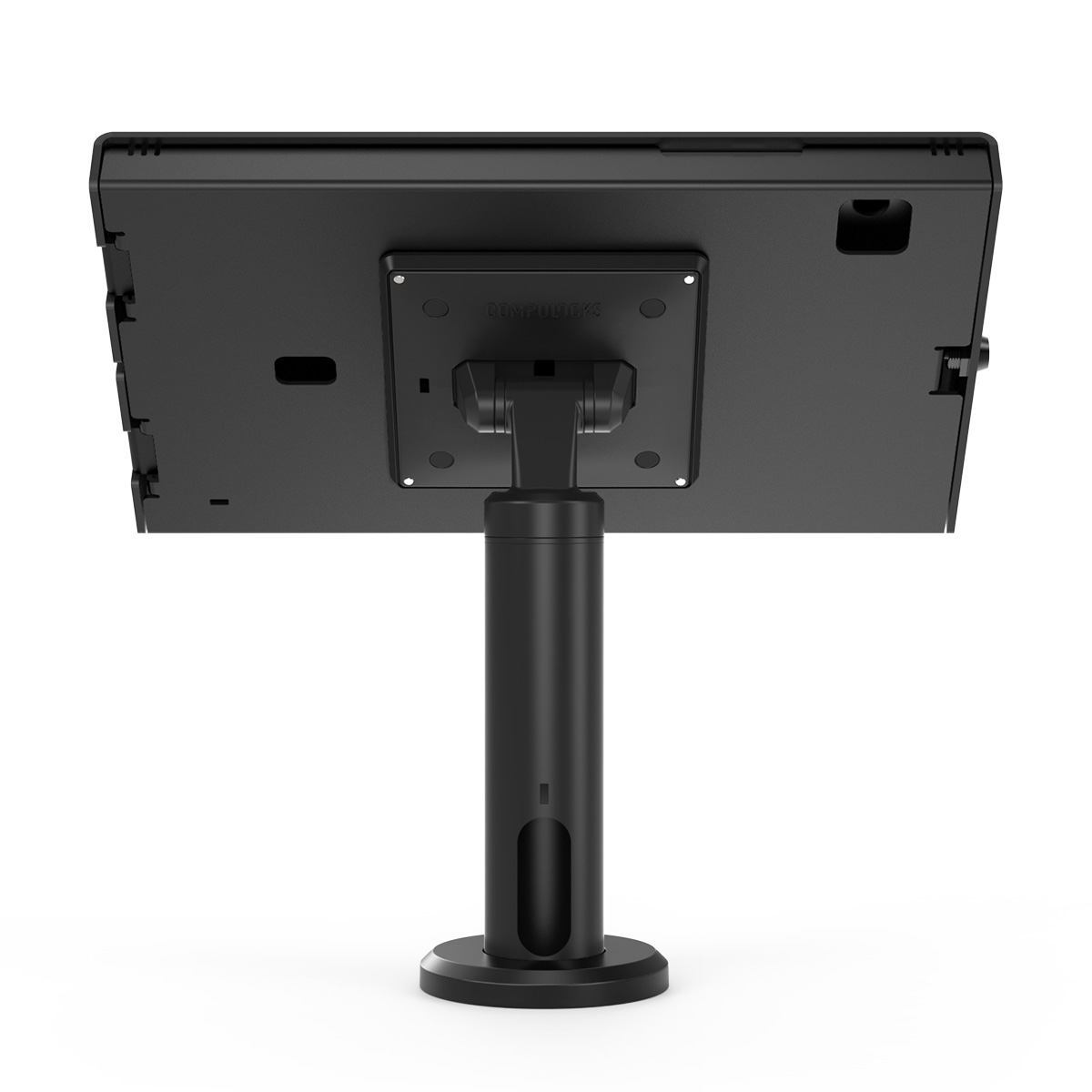

  • 100 x 100 mm and 75 x 75 mm VESA patterns; enclosure also wall-mountable

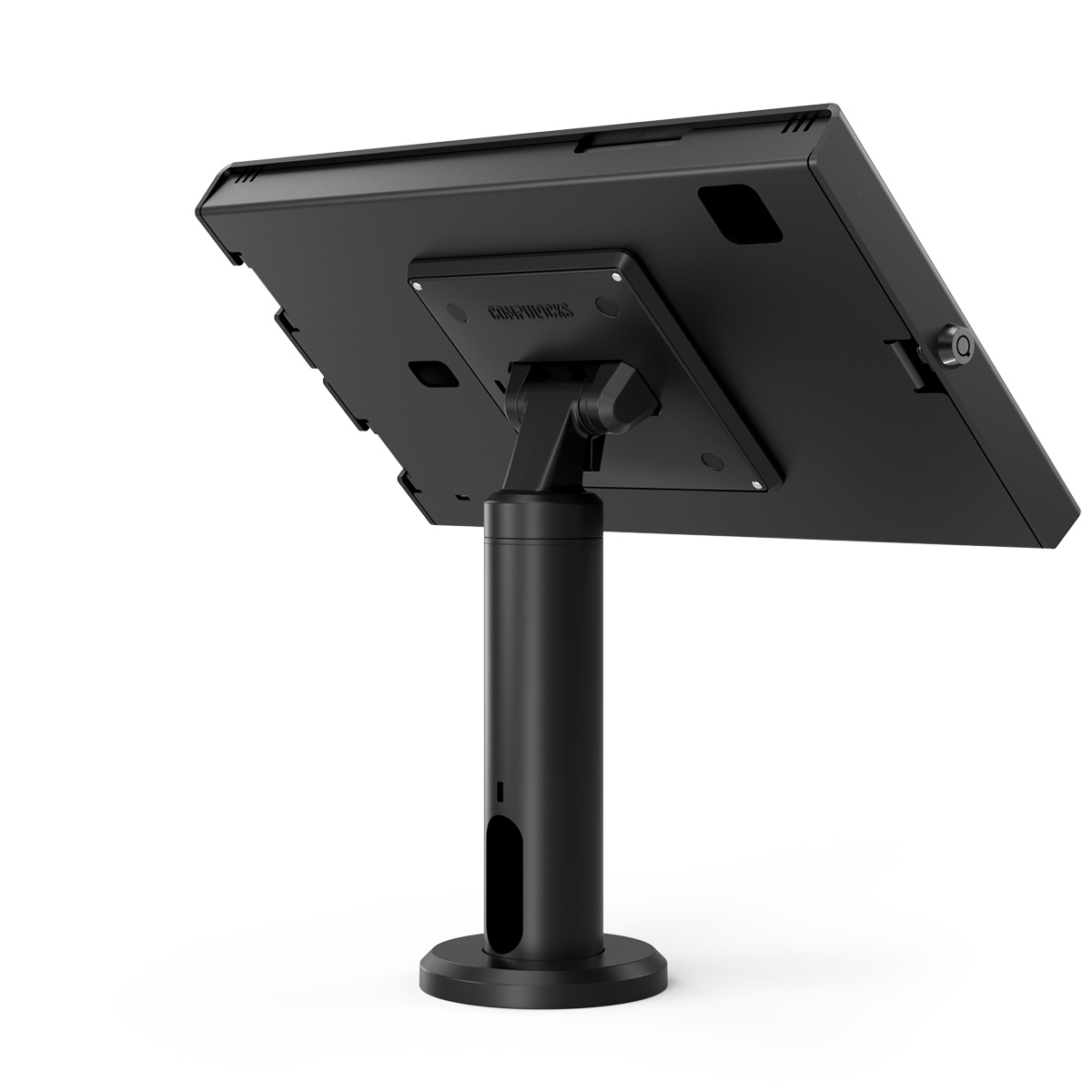

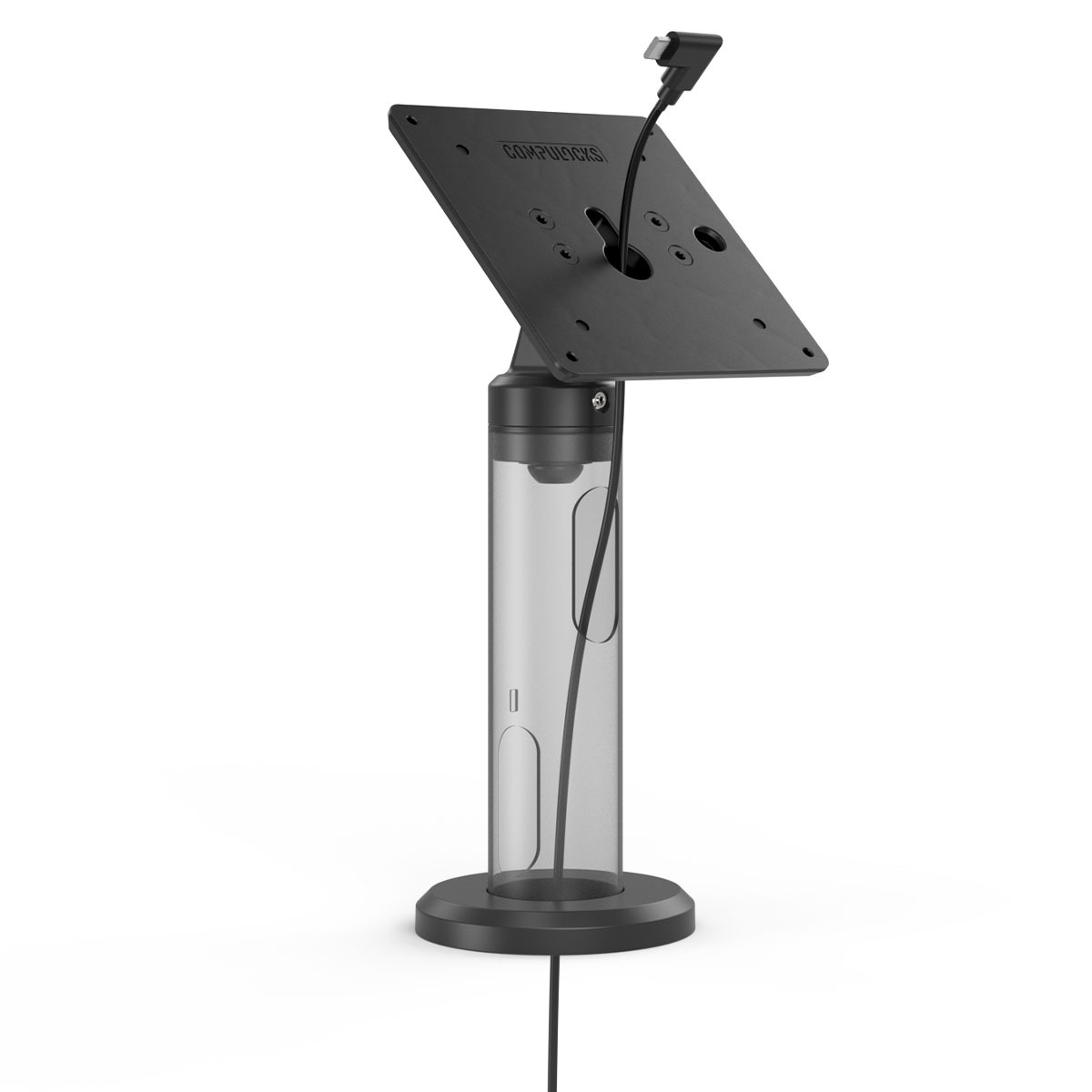

  • Swivel-and-tilt head with through-pole cable management for continuous charging
  • Stand rated for screens up to 20 in and loads up to 10 lb (4.5 kg)
  • One enclosure covers five current Galaxy Tab models, which simplifies mixed fleets

The Compulocks TCDP01109GAPXB bundles the Rise stand (TCDP01, 8 in / 20 cm, black) with the Apex Secured Enclosure (109GAPXB, black). The enclosure fits five 10.9- and 11-inch Samsung tablets: Galaxy Tab S9 FE (2023), S10 FE (2025), S10 Lite (2025), S9 (2023) and S11 (2025). It is a single enclosure SKU for fleets that mix these models across stores, lobbies or meeting rooms.

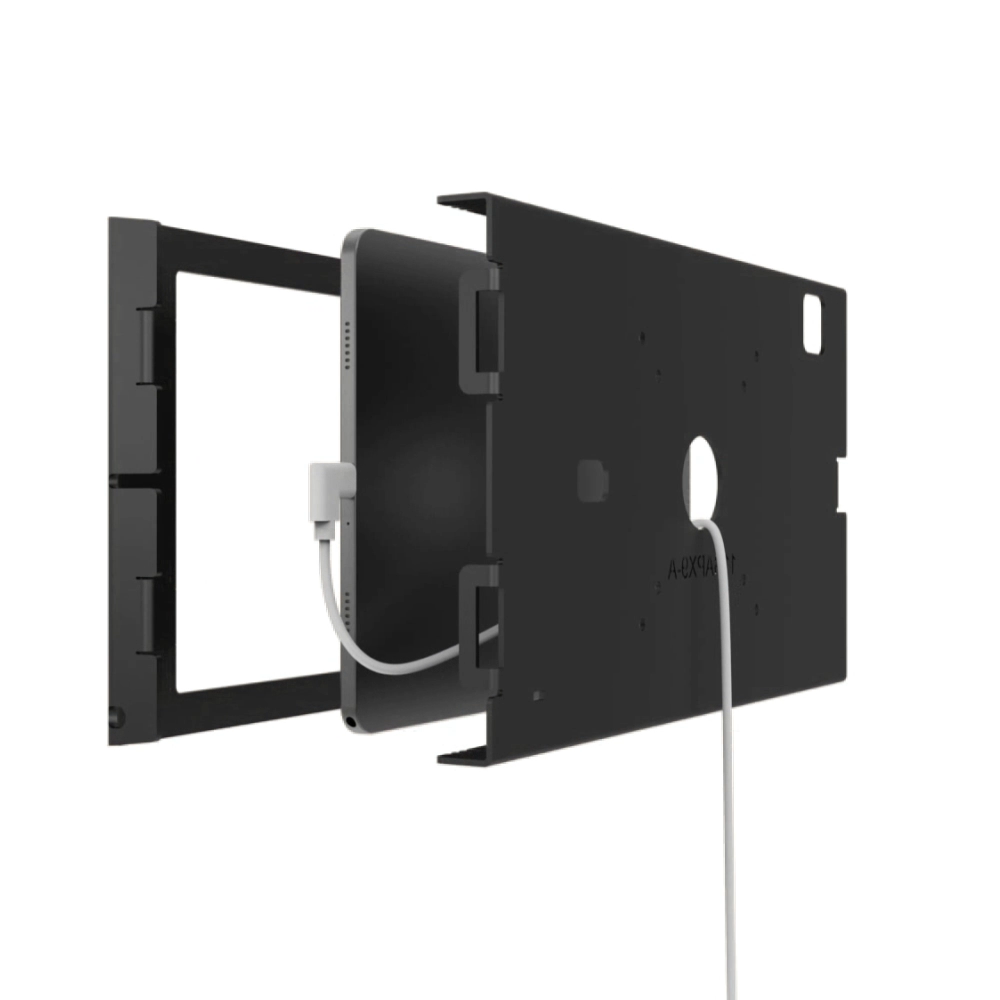

The Apex enclosure has a metal frame and a quick keyed lock, and each mount has its own key. It keeps the tablet's front and rear cameras and sensors fully exposed, so check-in, badge-scanning and video apps keep working. Cable management inside the enclosure allows continuous charging while mounted. It carries a T-bar lock slot and both 100 x 100 mm and 75 x 75 mm VESA patterns. Because it is also sold as a wall mount, the enclosure can move to a wall later if your layout changes.

The Rise stand's swivel-and-tilt head provides tilt, flip and swivel positioning for customer-facing or staff-facing use. Power runs through the pole, keeping the counter clear. The stand is rated for screens up to 20 in and loads up to 10 lb (4.5 kg). It works with the Compulocks Cable Lock and has bolt holes for fixing it to a desk or counter.

Product sheets for both components and Rise stand installation instructions are available for this bundle.

Ideal for

  • Retail self-service and product-lookup kiosks
  • Hotel, restaurant and hospitality host stands
  • Clinic and office reception check-in
  • Meeting-room booking and visitor sign-in displays

Specifications

General

MPN
TCDP01109GAPXB
UPC
810157340689
Brand
Compulocks
Color
Black
Warranty
2-year manufacturer's warranty
Manufacturer
Compulocks Brands Inc.
Bundle Contents
Rise stand (TCDP01) + Apex enclosure (109GAPXB)
Shipping Weight
4.50 lb
Enclosure Family
Apex

Package

Documents
Product sheets (109GAPXB, TCDP01) and installation instructions

Stand Tcdp01

Sku
TCDP01 (Black)
UPC
854340005023
Name
Rise stand, 8 in / 20 cm - Black
Max Load
10 lb (4.5 kg)
Security
Lock slot, Cable Lock compatible, bolt-down holes
Max Screen
20 in
Positioning
Tilt, flip and swivel
Stand Height
8 in / 20 cm
Weight Listed
2.50 lb (as listed on compulocks.com)
Cable Management
Through-pole cable management
Vesa Compatibility
VESA 75 x 75 mm and 100 x 100 mm
Weight Product Sheet
1.7 lb (product sheet)
Product Sheet Version
REV: D

Compatibility

Galaxy Tab S9
SM-X716B, SM-X710
Galaxy Tab S11
SM-X730, SM-X736, SM-X736B
Galaxy Tab S9 FE
SM-X516B, SM-X510
Galaxy Tab S10 FE
SM-X520, SM-X526, SM-X526B
Galaxy Tab S10 Lite
SM-X400, SM-X406, SM-X406B

Enclosure 109gapxb

Sku
109GAPXB (Black)
UPC
810157340214
Lock
Quick lock & unlock keyed lock
Name
Galaxy Tab S9/S9FE/S10FE/S10 Lite/S11 Apex Secured Enclosure Wall Mount - Black
Frame
Metal frame
Cameras
Front and rear cameras and sensors exposed
Lock Slot
T-bar lock slot
Vesa Pattern
VESA 100 x 100 mm and 75 x 75 mm
Weight Listed
1.60 lb (as listed on compulocks.com)
Cable Management
Cable management for continuous charging
Weight Product Sheet
1.25 lb (product sheet)
Product Sheet Version
REV A
Compatible Stand Heights
4 in / 10 cm, 8 in / 20 cm

Questions buyers ask

Which Galaxy Tab models fit this enclosure?

Galaxy Tab S9 FE (SM-X516B, SM-X510), S10 FE (SM-X520, SM-X526, SM-X526B), S10 Lite (SM-X400, SM-X406, SM-X406B), S9 (SM-X716B, SM-X710) and S11 (SM-X730, SM-X736, SM-X736B).

Are the cameras usable in the enclosure?

Yes. The Apex design keeps the front and rear cameras and sensors fully exposed.

Is each enclosure keyed differently?

Yes, each mount is individually keyed. Compulocks offers a keyed-alike upgrade, and a master key is available to bulk customers on request.

Can the tablet charge while mounted?

Yes. Cable management in the enclosure and through the Rise pole allows continuous charging.

Can I use the enclosure on a wall instead?

Yes. The Apex enclosure supports direct wall mounting and carries 75 x 75 mm and 100 x 100 mm VESA patterns.
