Eaton Tripp Lite Series U280-W03-100-G 3-Port 100W GaN USB Wall Charger, 2 USB-C and 1 USB-A, White

MPN U280-W03-100-G
  • 46–100 W
  • USB-C & USB-A
$239.95

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

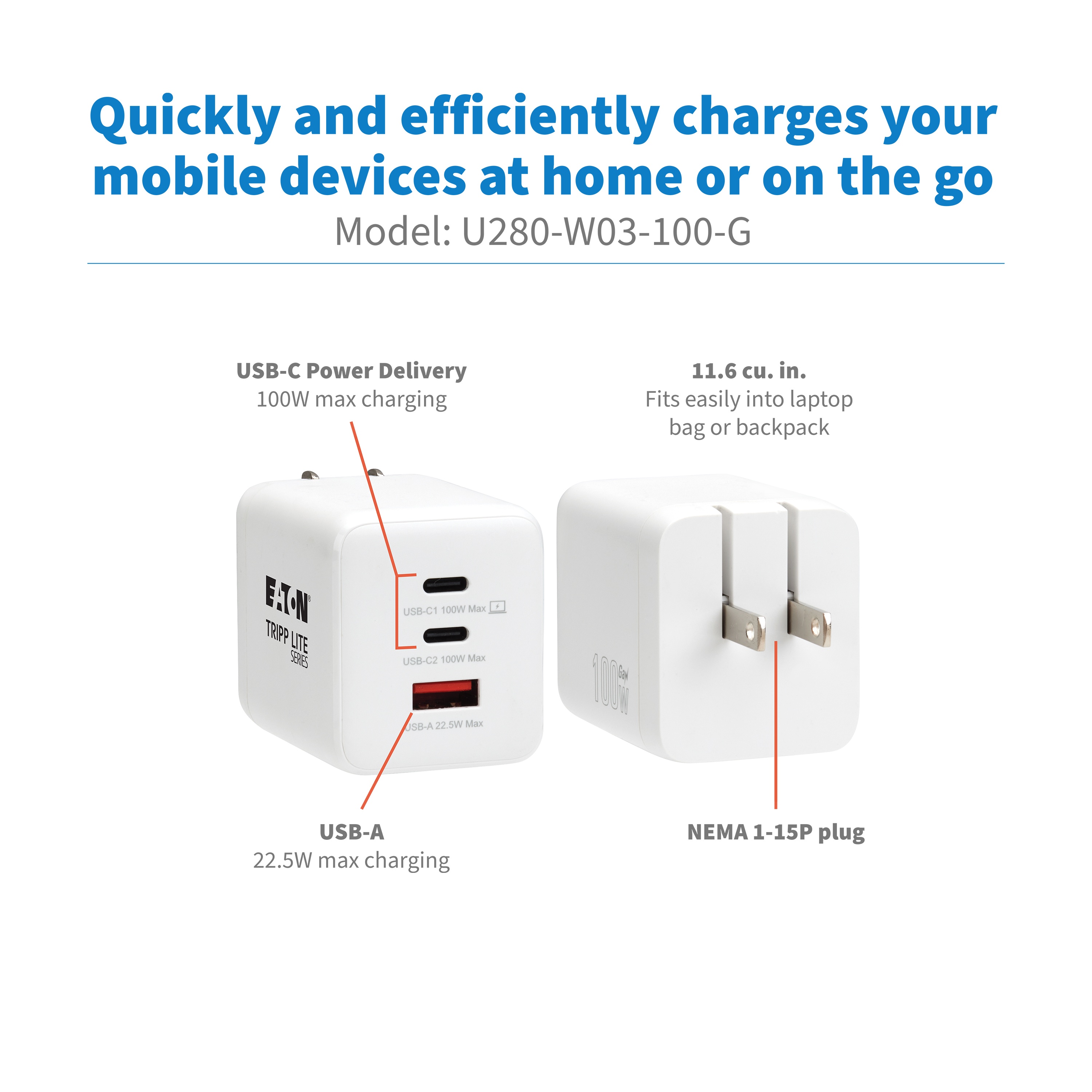

The Eaton Tripp Lite Series U280-W03-100-G is a compact, UL-listed 3-port wall charger built with gallium nitride (GaN) technology. It has two USB-C Power Delivery 3.0 ports that each support up to 20V/5A (100W), plus one USB-A port rated at 22.5W. That is enough to charge a laptop, Chromebook, tablet or smartphone from one outlet. The folding NEMA 1-15P plug and under-12 cu. in. body make it easy to pack.

  • 100W total charging capacity across 3 ports
  • 2 USB-C PD 3.0 ports, each up to 20V/5A (100W)
  • 1 USB-A port up to 10V/2.25A (22.5W)
  • GaN technology for high-efficiency, cooler charging
  • Folding NEMA 1-15P plug; under 12 cu. in.
  • Overcurrent, overvoltage, overheat, overcharge and short-circuit protection
  • UL Listed; 2-year limited warranty (worldwide)

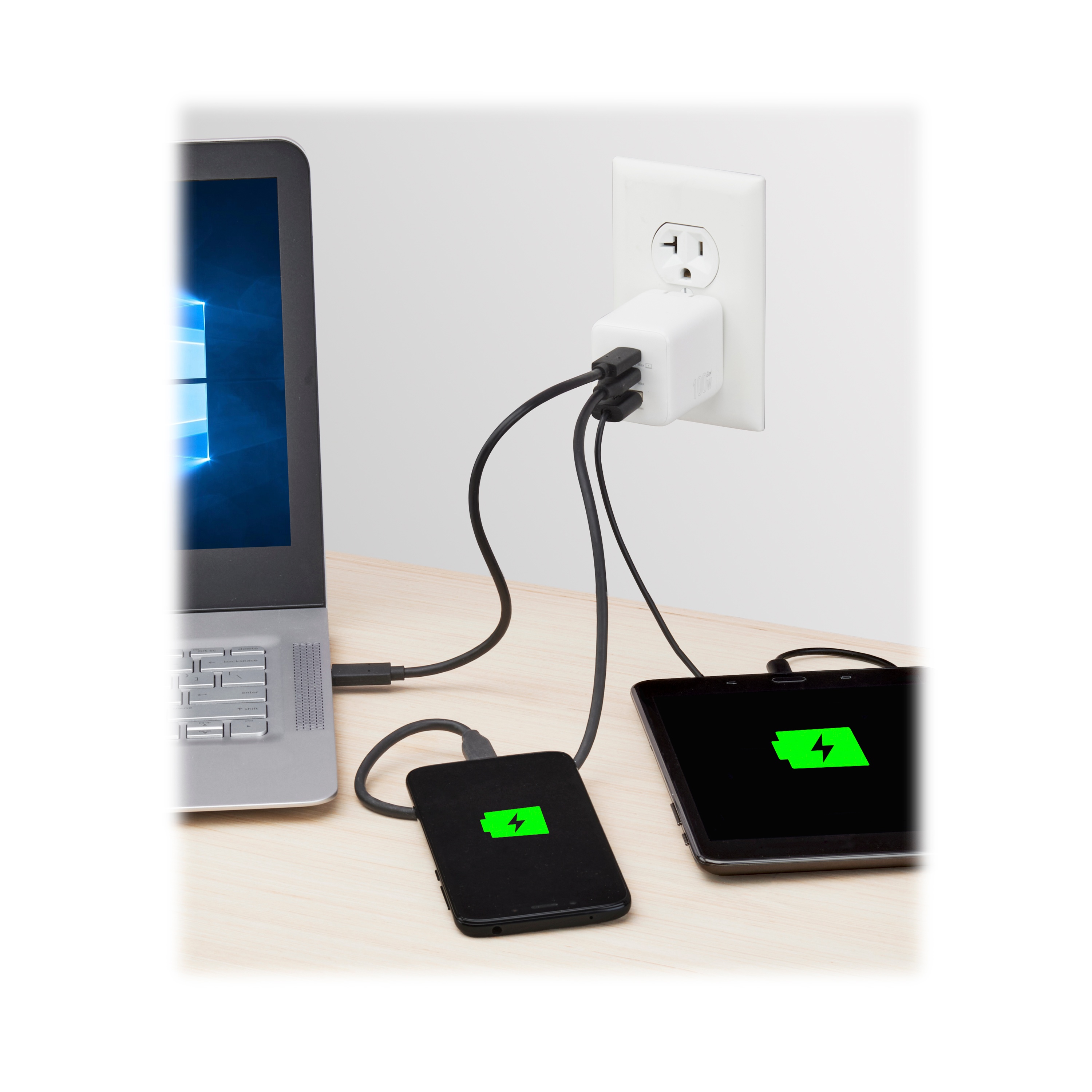

  • Charge a laptop, tablet and phone from a single outlet

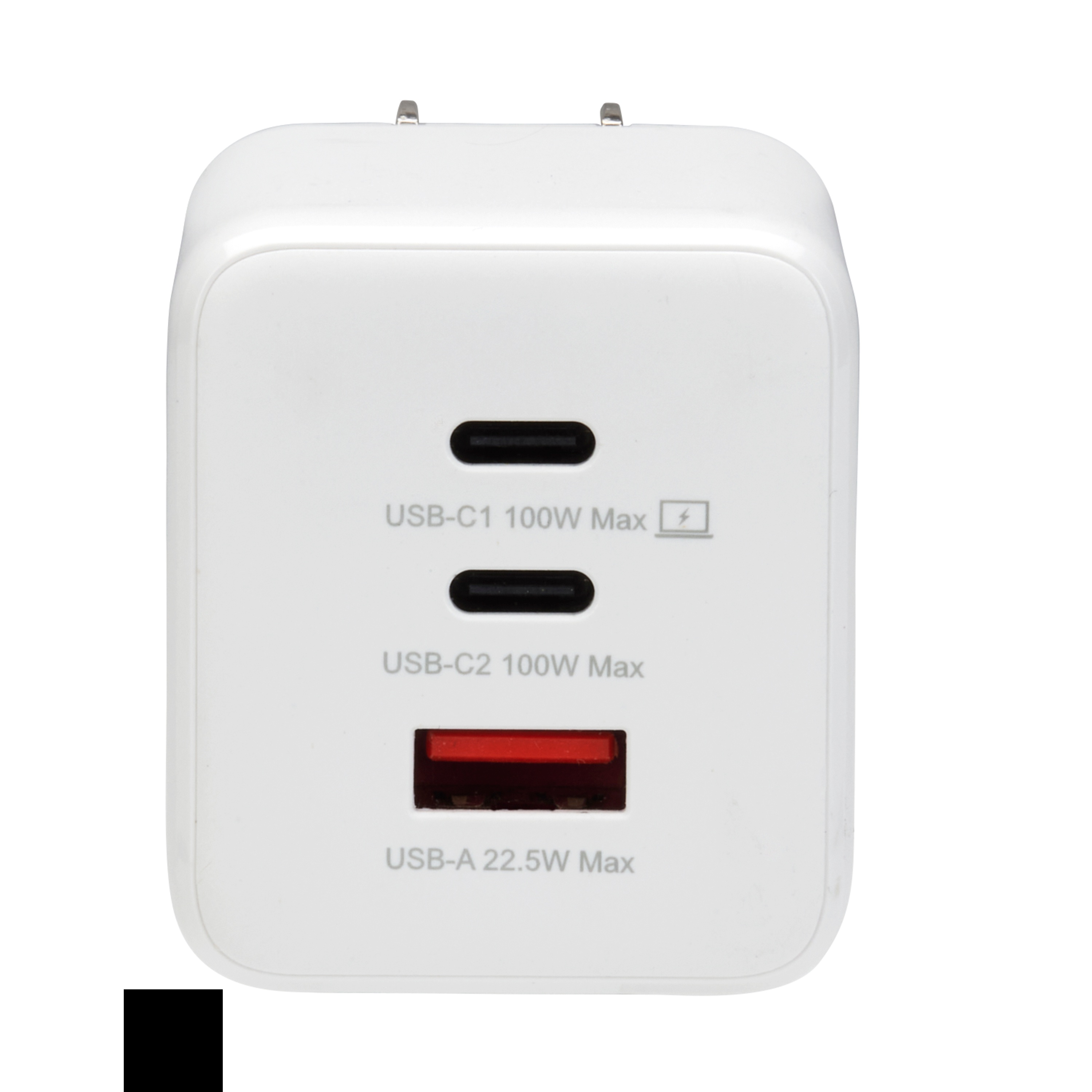

The Eaton Tripp Lite Series U280-W03-100-G packs 100W of USB charging into a white wall charger smaller than 12 cubic inches. It offers two USB-C ports and one USB-A port. The USB-C ports support USB Power Delivery 3.0 at up to 20V/5A (100W), enough to power nearly any mobile device, including a MacBook or Chromebook. The USB-A port delivers up to 10V/2.25A (22.5W) for phones, earbuds, smartwatches and other accessories. Total charging capacity is 100W.

GaN technology has a higher power density than silicon, so the charger stays efficient and runs cooler than standard USB-C fast chargers of similar output. It protects connected devices against overheating, overcurrent, overvoltage, overcharging and short circuits. A blue LED indicates power.

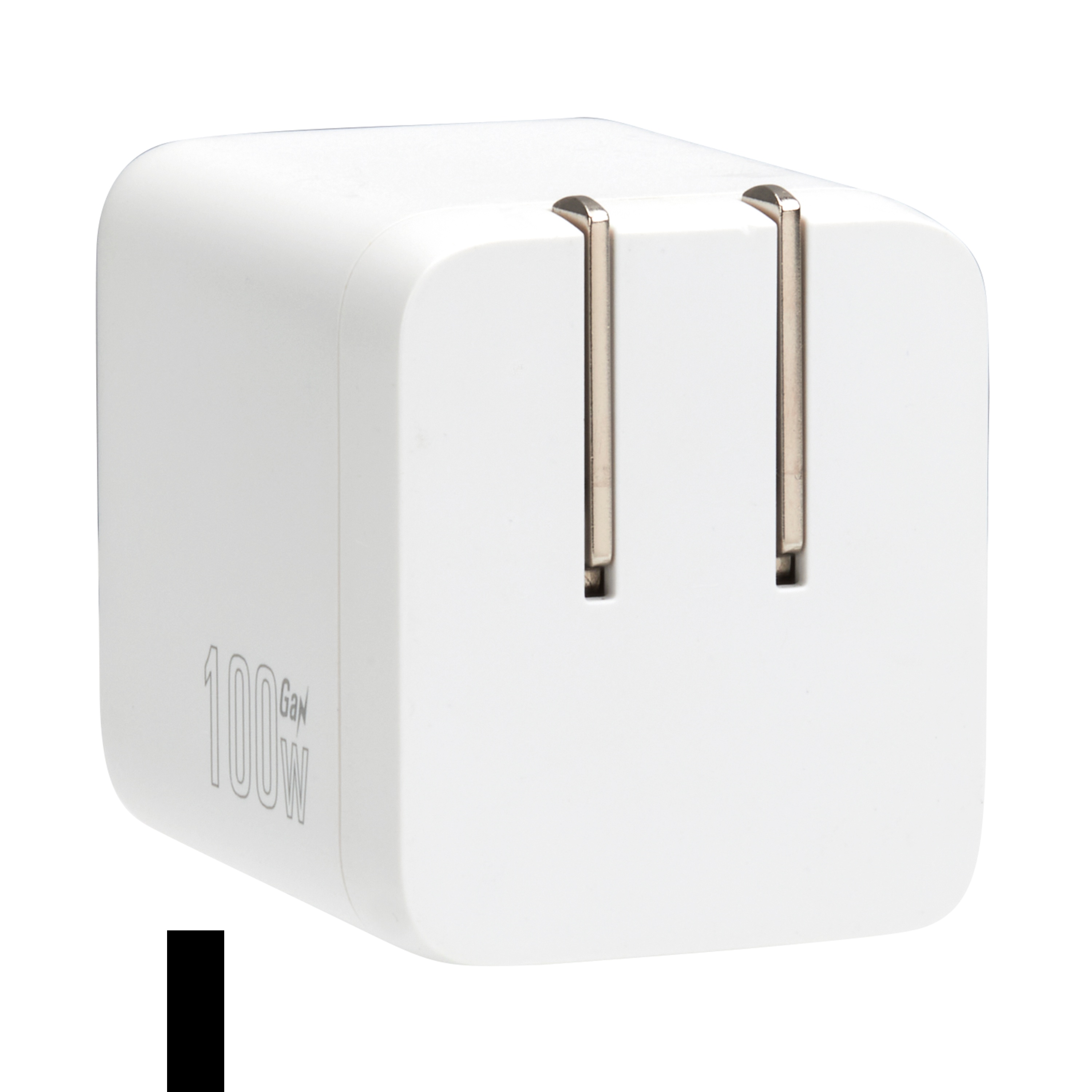

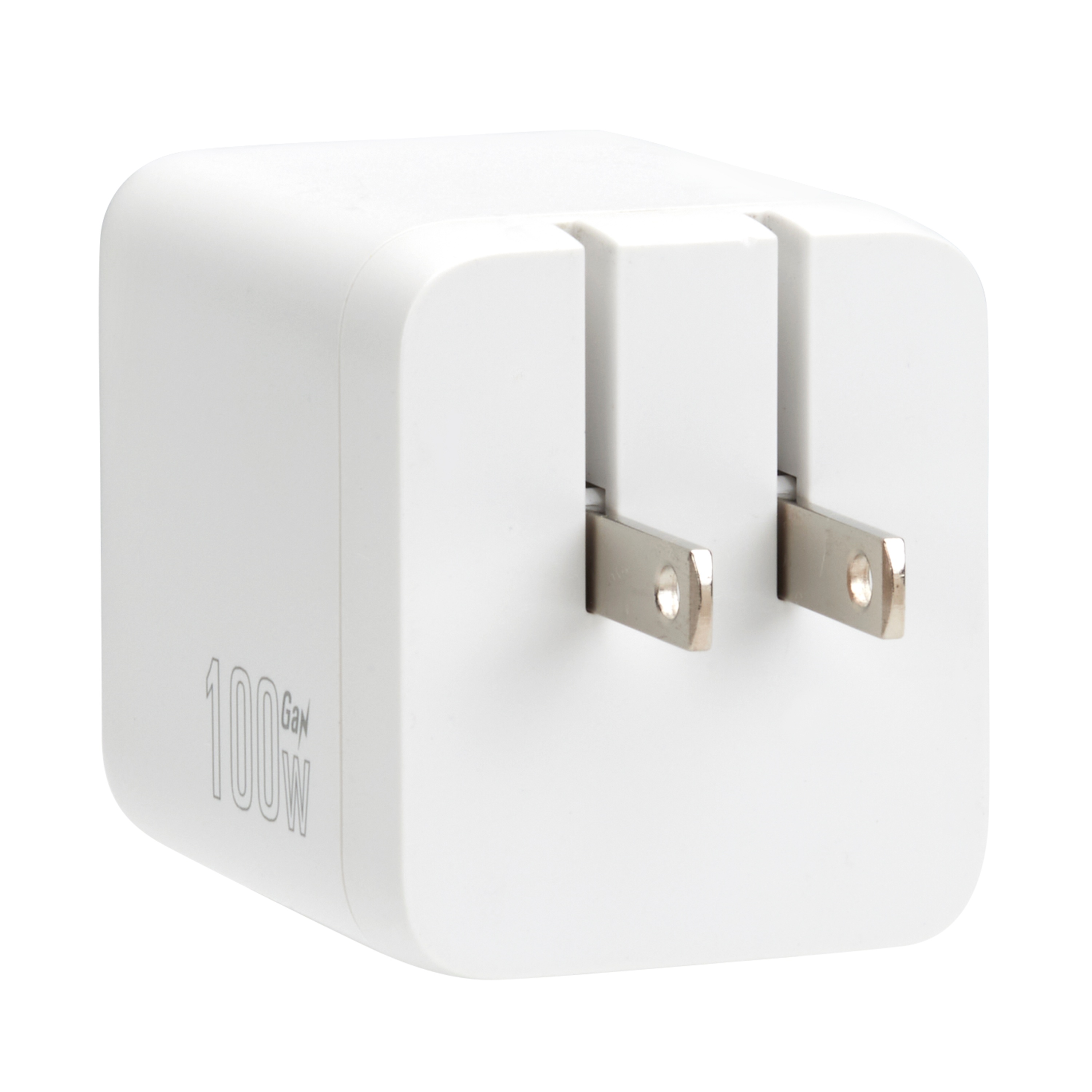

The NEMA 1-15P non-polarized plug fits any NEMA 1-15R, 5-15R or 5-15/20R outlet and folds into the housing when not in use, protecting the prongs and your bag's contents. Input is rated at 120 VAC or 240 VAC, 50/60 Hz, with a 5A maximum input current. The charger measures 3.169 x 3.149 x 1.165 in and weighs 0.81 lb. It is UL Listed and NOM certified, and it is RoHS, REACH, WEEE and FCC compliant. Eaton rates operation from 32° to 77°F (0° to 25°C) and backs the charger with a 2-year limited warranty (worldwide). A specification sheet is available for this model.

Ideal for

  • Single-outlet charging for a laptop, cellular tablet and smartphone while traveling
  • Field kits for technicians carrying a USB-C laptop plus mobile devices
  • Hot-desk and hoteling stations with limited outlets
  • Charging a mobile hotspot, phone and earbuds overnight from one plug

Specifications

General

UPC
037332294609
Brand
Eaton (Tripp Lite series)
Warranty
2-year limited
Compliances
RoHS; REACH; WEEE Directive; FCC Compliant
Product Name
Eaton Tripp Lite series wall charger
Product Type
Wall charger
Product Width
3.169 in
Catalog Number
U280-W03-100-G
Certifications
NOM; UL Listed
Global Catalog
U280-W03-100-G
Product Height
1.165 in
Product Weight
0.81 lb
Product Length Depth
3.149 in

Product

Type
Wall charger
Color
White
Material
PC (polycarbonate)
Technology
USB
Input Current
5 A (max)
LED Indicators
Blue = power
Packaging Type
Box
Charging Method
USB
Input Frequency
50/60 Hz
Input Plug Type
NEMA 1-15P (non-polarized)
Number OF Ports
3
Product Features
NEMA 1-15P; overcurrent protection; overvoltage protection; GaN technology
Power Consumption
100 W
Charging Port Type
USB-A (female); USB-C (female)
Compatible Devices
Chromebook; laptop; smartphone; tablet
Side A Connector 1
USB-C (female)
Side A Connector 2
USB-C (female)
Side B Connector 1
USB-C (female)
Charging Ports Amps
1.5 A; 2 A; 2.25 A; 3 A; 5 A
Overload Protection
Yes
Total Charging Amps
USB-C1/C2: 20V/5A (100W); USB-A: 10V/2.25A (22.5W)
Charging Form Factor
Direct plug-in
Total Charging Watts
100 W
Input Connection Type
NEMA 1-15P
Input Nominal Voltage
120 VAC; 240 VAC
Total Number OF Ports
3
Voltage Compatibility
100; 110; 120; 125; 127; 200; 208; 220; 230; 240 VAC
Storage Humidity Range
10 to 90% RH, non-condensing
Over Current Protection
Yes
USB PD Charging Support
Yes
Number OF Charging Ports
3
Operating Humidity Range
10 to 90% RH, non-condensing
Storage Temperature Range
-22°F to 158°F (-30°C to 70°C)
Operating Temperature Range
32°F to 77°F (0°C to 25°C)
USB PD Charging Specification
USB PD 3.0, 100W (20V/5A)
Power Provided TO Connected Devices
USB-C1/C2: 20V/5A (100W); USB-A: 10V/2.25A (22.5W)

Questions buyers ask

Can the U280-W03-100-G charge a laptop?

Yes. Each USB-C PD 3.0 port supports up to 20V/5A (100W), enough for a MacBook, Chromebook or other USB-C laptop.

How many devices can it charge at once?

Three: two via USB-C and one via USB-A, with 100W of total charging capacity.

What outlets does it plug into?

Its folding NEMA 1-15P plug fits NEMA 1-15R, 5-15R and 5-15/20R AC outlets, and input is rated for 120 VAC or 240 VAC at 50/60 Hz.

What protections are built in?

It protects connected devices against overheating, overcurrent, overvoltage, overcharging and short circuits, and it is UL Listed.

What is the warranty?

Eaton provides a 2-year limited warranty (worldwide).
