Eaton Tripp Lite U280-W04-145C4G 145W 4-Port USB-C GaN Wall Charger with PD 3.1, Black

MPN U280-W04-145C4G
  • Over 100 W
  • USB-C
$87.39$275.00Save $187.61

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

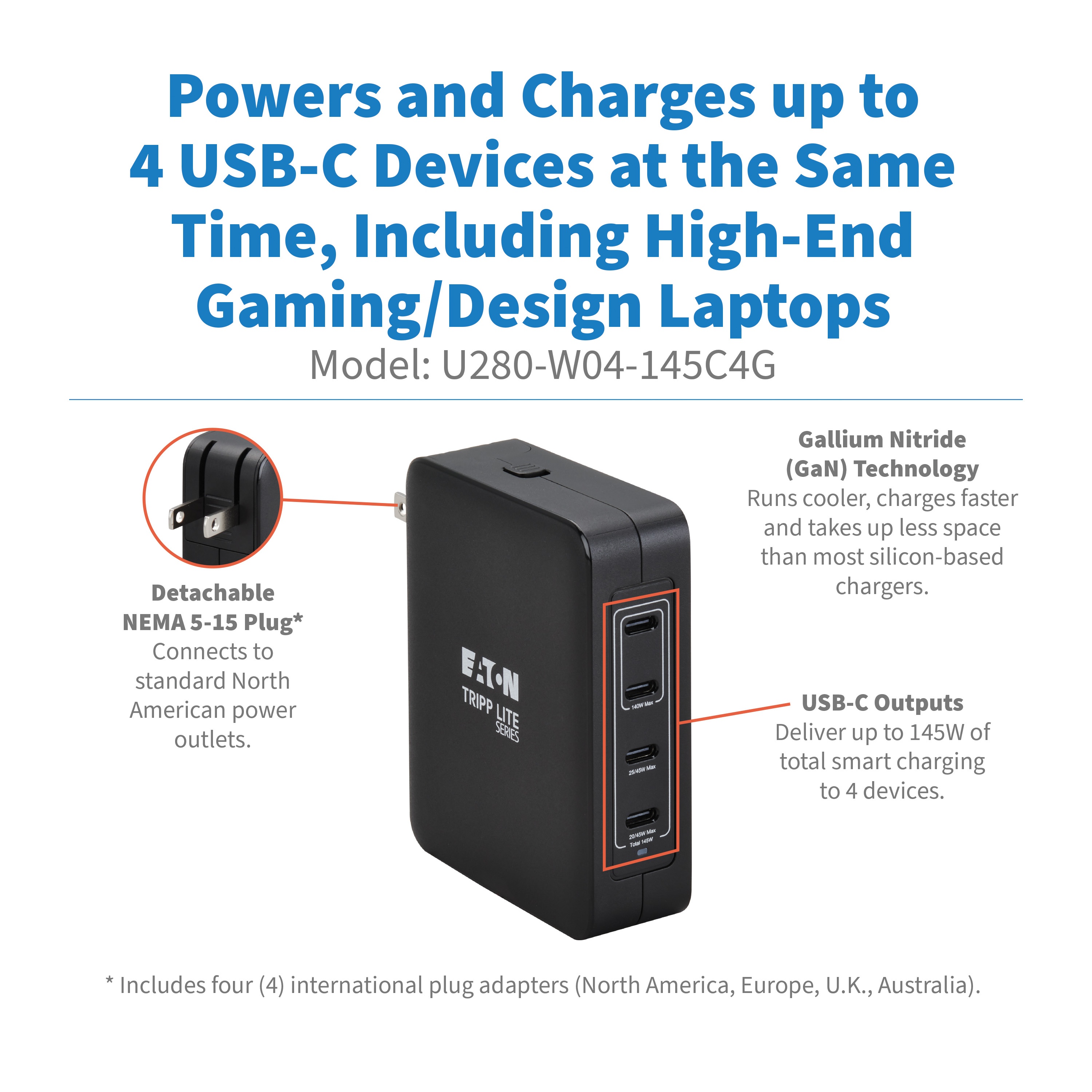

The Eaton Tripp Lite series U280-W04-145C4G is a 4-port USB-C GaN wall charger with 145W total output and USB Power Delivery 3.1. One port can deliver up to 140W (28V 5A) to a laptop such as a MacBook Pro, and the charger automatically divides power across up to four connected devices. Plug adapters for North America, Europe, the UK and Australia are included, so a single charger covers a laptop, phone and tablet at home or abroad.

  • 145W total output across four USB-C ports
  • USB Power Delivery 3.1: up to 140W (28V 5A) from C1 or C2 to a single device
  • Automatic power allocation across two, three or four connected devices
  • GaN (gallium nitride) technology for compact, efficient charging
  • Includes North America, Europe, UK and Australia plug adapters; 100-240V, 50/60 Hz input
  • Overcurrent, overvoltage, overcharge, overheating and short-circuit protection
  • 2-year limited worldwide warranty
  • Charge a 140W-class laptop such as a MacBook Pro from one port

The U280-W04-145C4G is a direct plug-in wall charger from the Eaton Tripp Lite series, built for people who carry a laptop, smartphone and tablet and want one power brick for all of them. Four USB-C ports share 145W of total output, and USB Power Delivery 3.1 support lets the C1 or C2 port supply up to 140W (28V 5A) to a single high-power laptop.

When more devices are connected, output is reallocated automatically. With two devices, one C1/C2 port can deliver 100W while a C3/C4 port supplies 45W, or C1 and C2 can each deliver 65W. With three devices, combinations reach 145W, and with all four ports in use the charger delivers 65W, 30W, 25W and 20W (140W total). GaN (gallium nitride) technology keeps the charger compact and efficient.

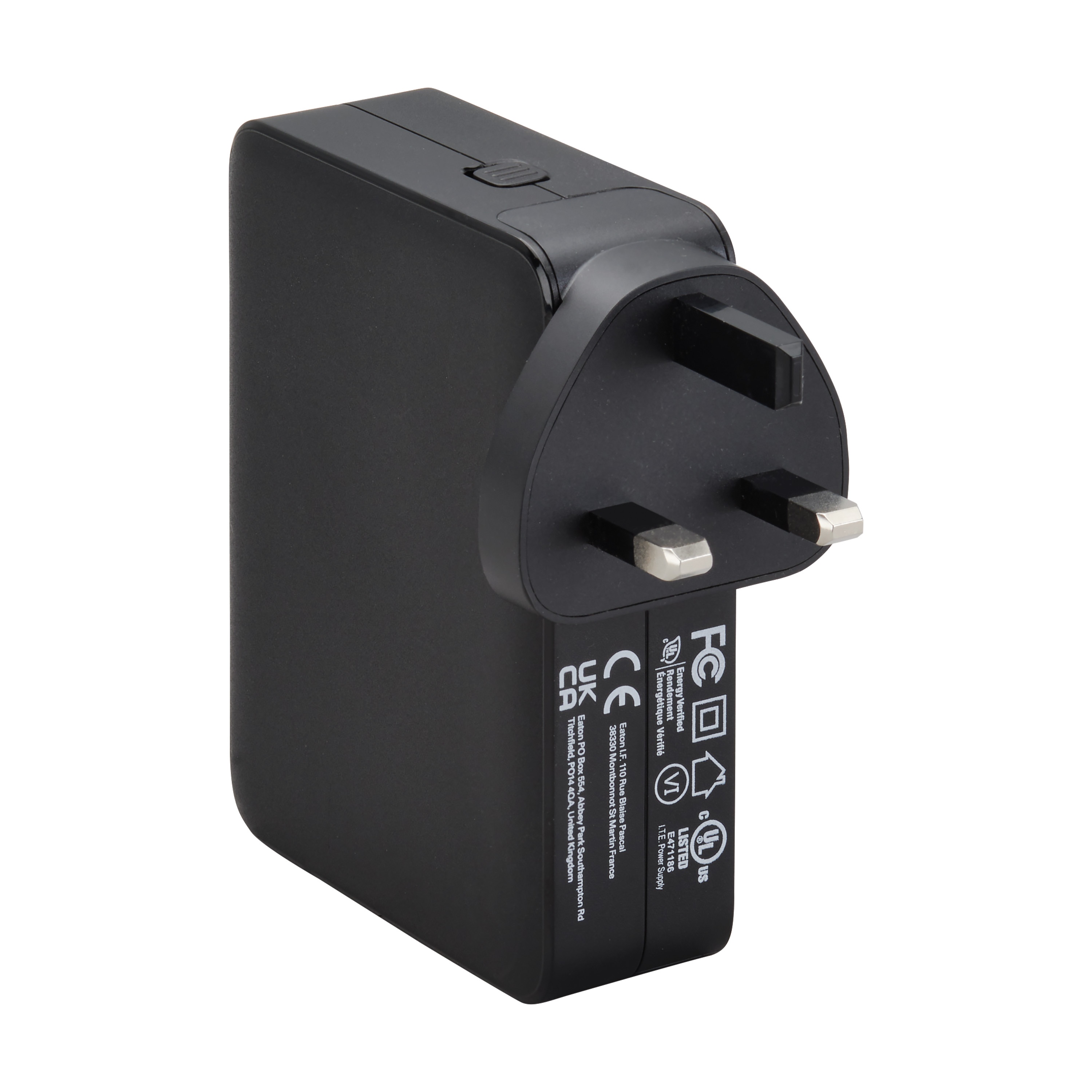

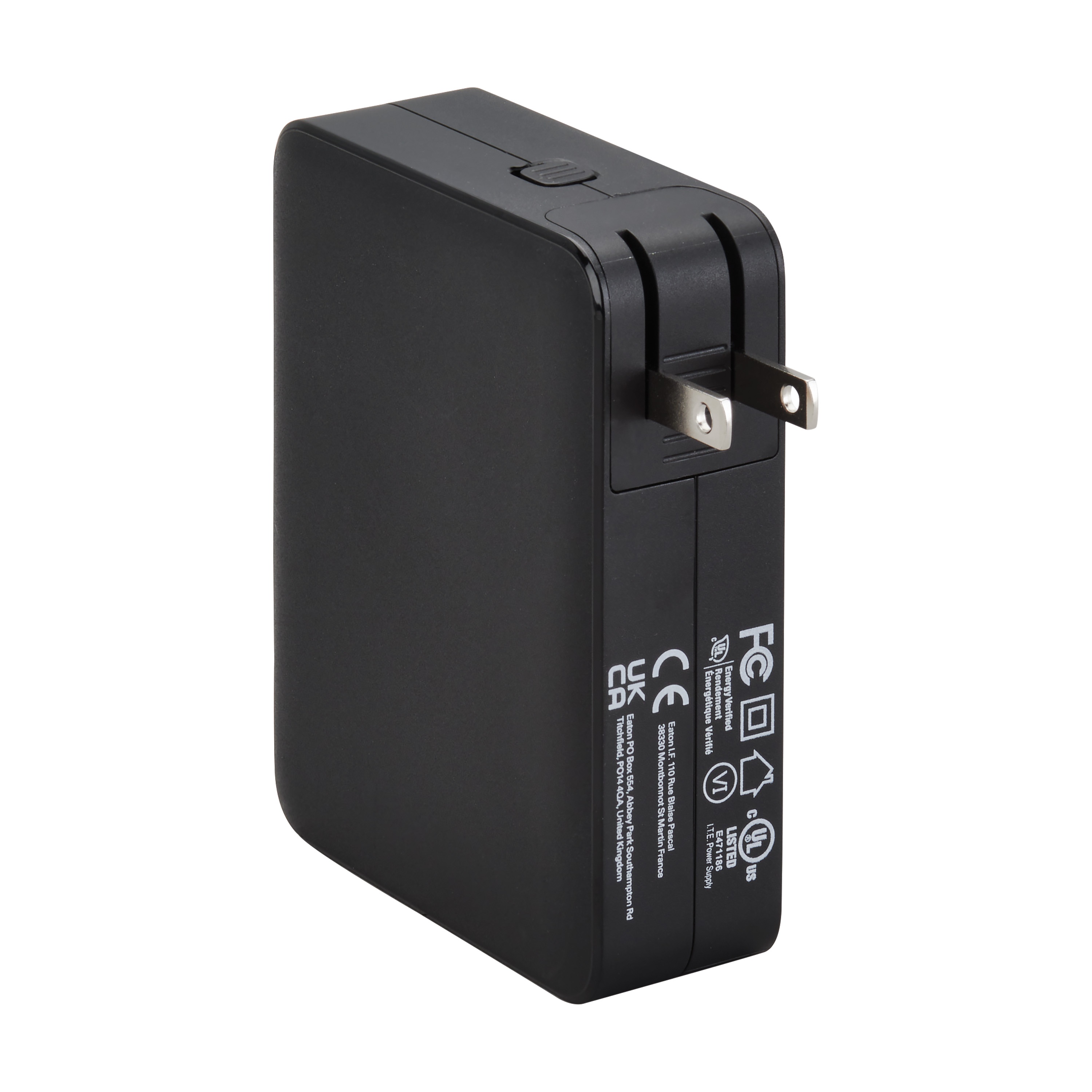

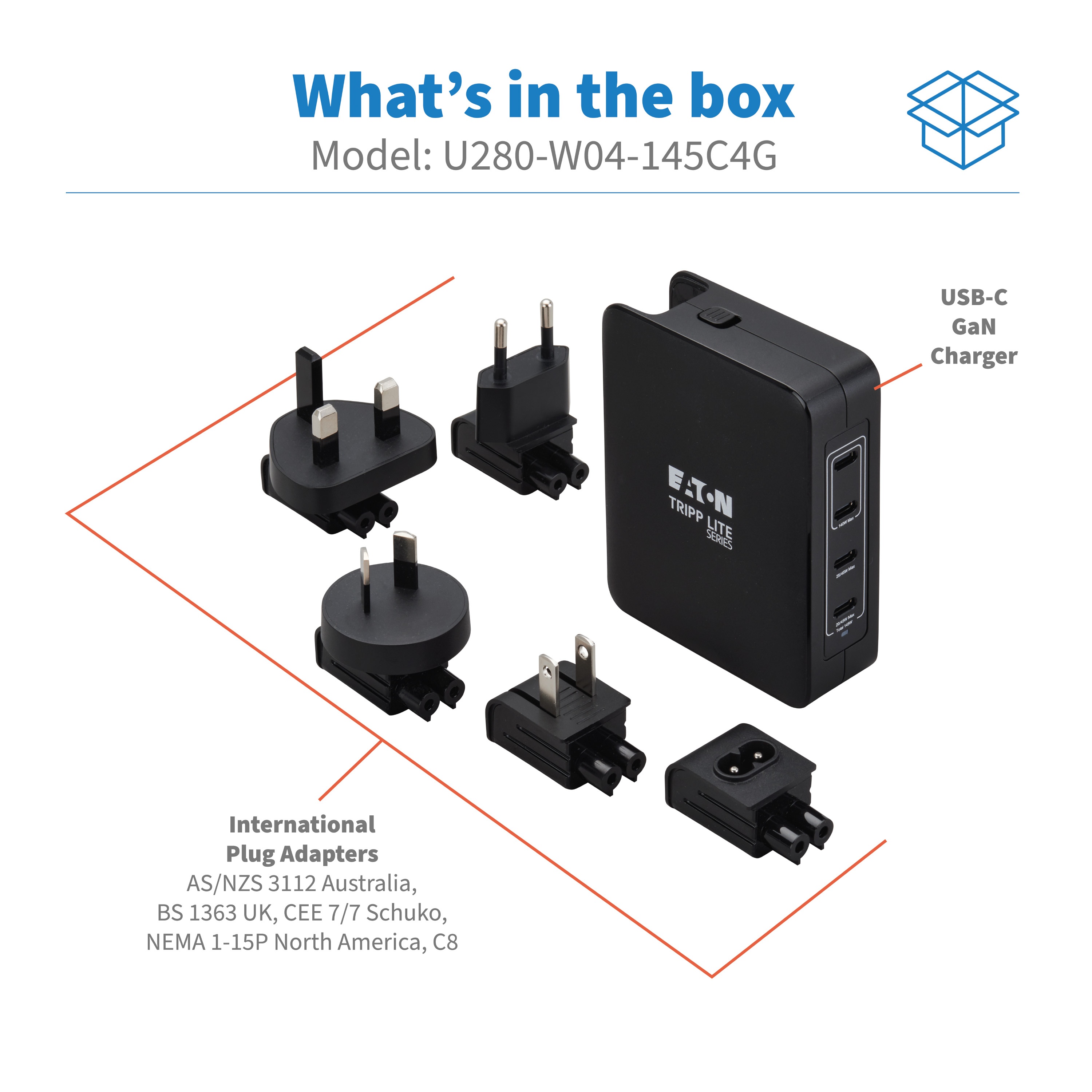

The input accepts 100-240V at 50/60 Hz, and the box includes NEMA 1-15P, CEE 7/7 Schuko, BS 1363 and AS/NZS 3112 plug adapters for North America, Europe, the UK and Australia. Built-in protection guards against overheating, overcurrent, overvoltage, overcharging and short circuits. The charger carries UL 62368-1 and CSA C22.2 certifications, meets FCC Class B, CE, UKCA and RoHS requirements, and is covered by a 2-year limited worldwide warranty. A manufacturer specification sheet is available for this model.

Ideal for

  • Single charger for a field technician's laptop, smartphone and tablet
  • International business travel with the included four-region plug adapters
  • Charging a 140W-class laptop such as a MacBook Pro

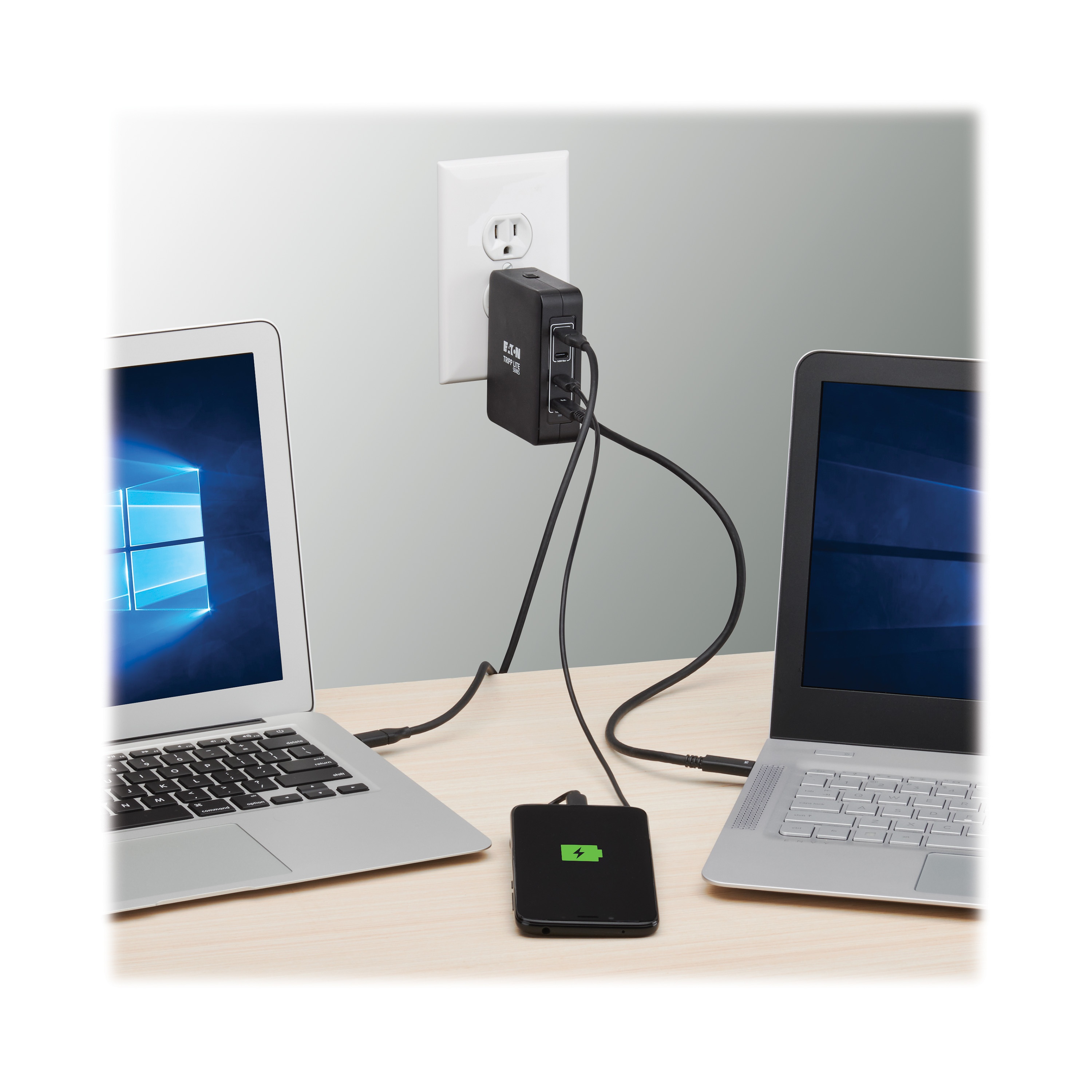

  • Shared charging point at a desk, job-site trailer or hotel room for up to four USB-C devices

Specifications

General

UPC
037332291233
Brand
Eaton (Tripp Lite series)
Warranty
2-year limited
Compliances
FCC Class B, ICES-003, WEEE, CE, RoHS, UKCA
Product Name
Eaton Tripp Lite series wall charger
Product Type
Wall charger
Product Width
6.93 in
Catalog Number
U280-W04-145C4G
Certifications
CSA Std. C22.2, ICES, UL 62368-1
Global Catalog
U280-W04-145C4G
Product Height
0.984 in
Product Weight
0.145 lb
Product Length Depth
4.17 in

Product

Type
Wall Charger
Color
Black
Material
PC (plastic)
Technology
USB
Input Current
100-240V, 50/60 Hz, 2.2A
Charging Ports
USB-C: 140W (28V 5A) Power Delivery (PD 3.1)
Packaging Type
Box
Charging Method
USB
Input Frequency
50/60 Hz
Input Plug Type
AS/NZS 3112, BS1363, CEE 7/7 Schuko, NEMA 1-15P (non-polarized)
Number OF Ports
4
Product Features
NEMA 1-15P, CEE 7/7 Schuko, AS/NZS 3112 and BS1363; overcurrent, overvoltage and overcharge protection; GaN technology
Sidea Connector1
USB-C (female)
Power Consumption
145 W
Power Source Type
AC adapter
Charging Port Type
USB-C (female)
Compatible Devices
Chromebook, laptop, portable speaker, smartphone, tablet, video game console
Charging Ports Amps
1.5A, 2.25A, 3A, 5A, 2.22A, 2.77A
Overload Protection
Yes
Total Charging Amps
5A
Charging Form Factor
Direct plug-in
Total Charging Watts
145W
Input Connection Type
NEMA 1-15P, CEE 7/7 Schuko, AS/NZS 3112 and BS1363
Input Nominal Voltage
120 VAC, 240 VAC
Total Number OF Ports
4
Voltage Compatibility
100, 110, 120, 125, 127, 200, 208, 220, 230, 240 VAC
AC Power Adapter Plugs
AS/NZS 3112 (Australia), BS 1363 (UK), CEE 7/16 Schuko, NEMA 1-15P (North America)
Charging Method Detail
Power Delivery 3.1, GaN Technology
Charging Ports Details

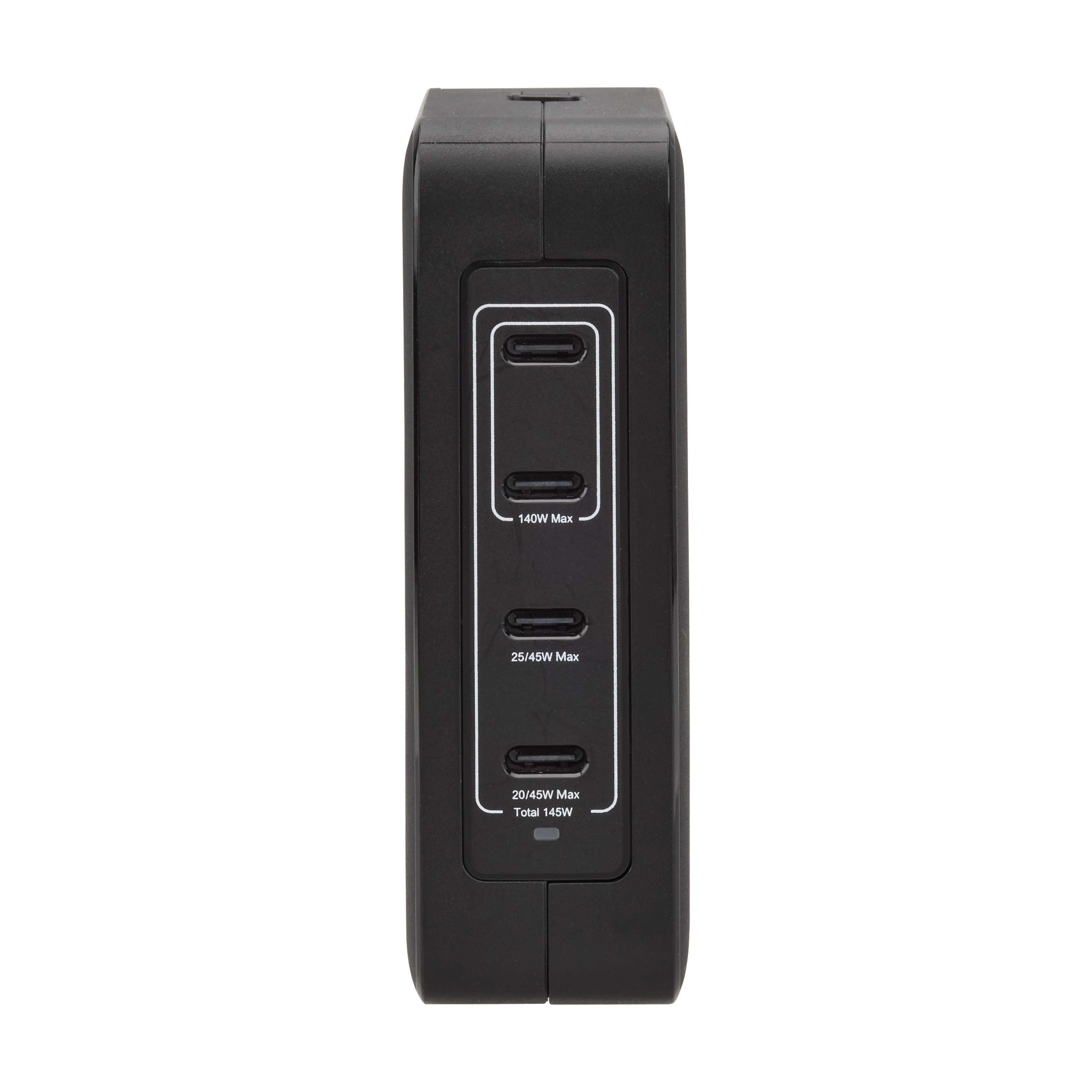

Single: C1/C2 140W max, C3/C4 45W max; Dual: up to 145W; Triple: up to 145W; Quad: 65W + 30W + 25W + 20W (140W max)
Storage Humidity Range
5 to 95% RH, non-condensing
USB PD Charging Support
Yes
Number OF Charging Ports
4
Operating Humidity Range
20 to 90% RH, non-condensing
Storage Temperature Range
-4° to 185°F (-20° to 85°C)
Operating Temperature Range
32° to 86°F (0° to 30°C)
Charging Station Form Factor
Direct plug-in
USB PD Charging Specification
USB PD 3.1
Power Provided TO Connected Devices
145W max
External Power Supply Certifications
DOE, FCC, UL, WEEE, cUL

Questions buyers ask

How much power can one device draw from this charger?

Used alone, the C1 or C2 port delivers up to 140W (28V 5A) via USB Power Delivery 3.1. The C3 or C4 port delivers up to 45W on its own.

What happens when all four ports are in use?

With four devices connected, output is split as 65W (C1), 30W (C2), 25W (C3) and 20W (C4), for 140W total.

Can I use it outside North America?

Yes. It accepts 100-240V at 50/60 Hz and includes NEMA 1-15P, CEE 7/7 Schuko, BS 1363 and AS/NZS 3112 plug adapters for North America, Europe, the UK and Australia.

What protection features does it have?

The charger protects connected devices against overheating, overcurrent, overvoltage, overcharging and short circuits.

What warranty does it carry?

Eaton provides a 2-year limited worldwide warranty.
