Eaton Tripp Lite U280-WF2-65C2-G 65W 2-Port USB-C GaN Wall Charger, Ultra Slim, PD 3.0, White

MPN U280-WF2-65C2-G
  • 46–100 W
  • USB-C
$52.62$148.50Save $95.88

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Eaton Tripp Lite series U280-WF2-65C2-G is an ultra-slim, white 2-port USB-C GaN wall charger. The USB-C1 port supports USB Power Delivery 3.0 up to 65W for laptops, tablets and phones, while USB-C2 adds up to 20W. Charging two devices at once, it delivers up to 45W plus 18W. A folding US NEMA 1-15P plug and bottom-facing ports make it easy to pack and easy to use behind furniture.

  • USB-C1 with USB PD 3.0 up to 65W (20V 3.25A)
  • USB-C2 up to 20W (9V 2.22A)
  • Simultaneous output of 45W (USB-C1) plus 18W (USB-C2)
  • GaN technology in an ultra-slim 0.75 in profile

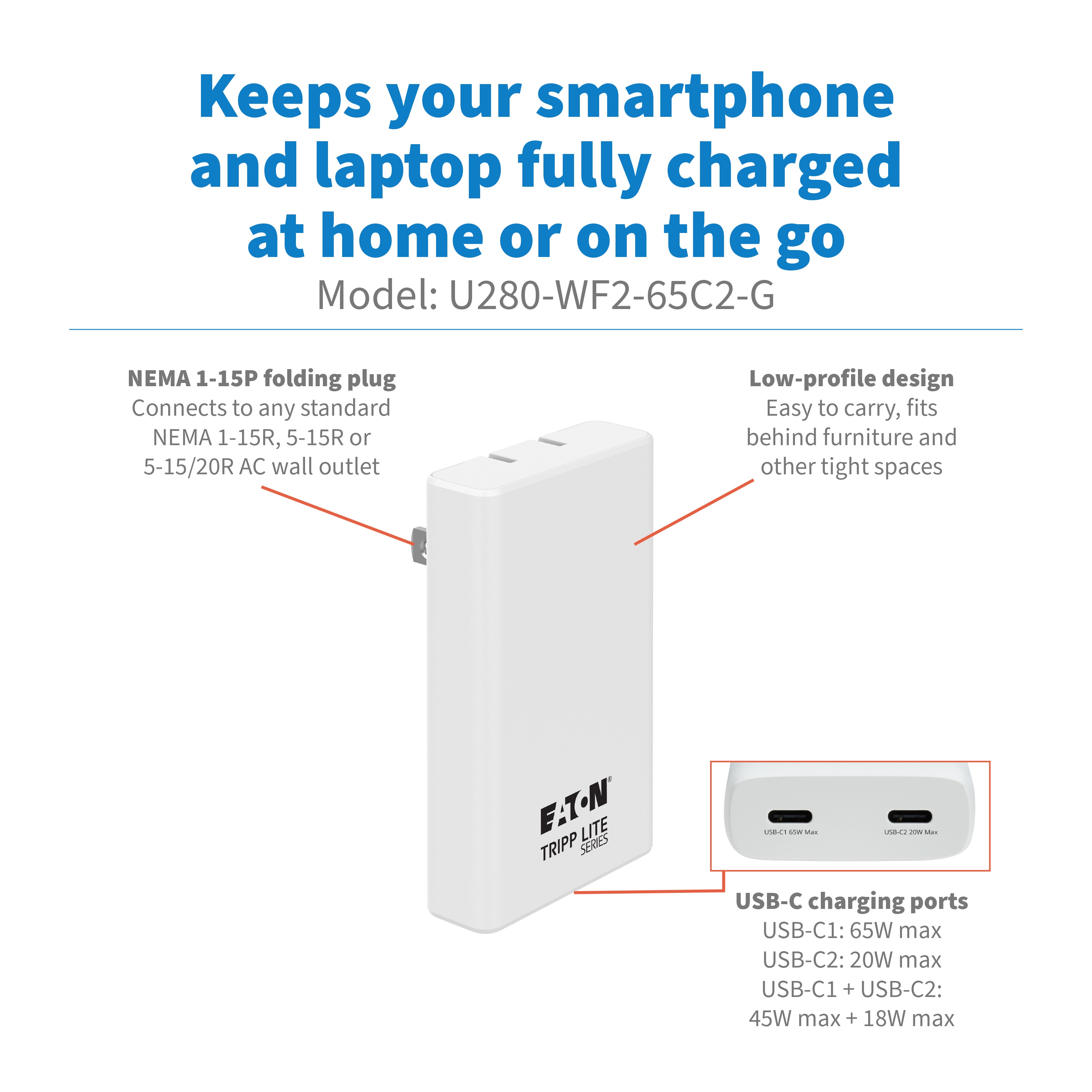

  • Folding NEMA 1-15P plug with bottom-mounted USB-C ports
  • Overcurrent, overvoltage, overheating, overcharge and short-circuit protection
  • 2-year limited worldwide warranty
  • Power a USB-C laptop or Chromebook at up to 65W from a pocket-sized charger

The U280-WF2-65C2-G is a compact USB-C wall charger from the Eaton Tripp Lite series for users who want laptop-class power in a flat, travel-ready package. Measuring 3.33 x 1.91 x 0.75 in and weighing 0.14 lb, it plugs into standard NEMA 1-15R, 5-15R and 5-15/20R outlets found in offices, homes, hotel rooms and airports.

The USB-C1 port supports USB PD 3.0 at 5V 3A, 9V 3A, 15V 3A or 20V 3.25A, for up to 65W to a single laptop, Chromebook or tablet. The USB-C2 port supplies 5V 2A or 9V 2.22A (20W max) for a smartphone or accessory. When both ports are in use, the charger provides up to 45W on USB-C1 and 18W on USB-C2. Auto-sensing adjusts output to each device and stops charging once the device is full.

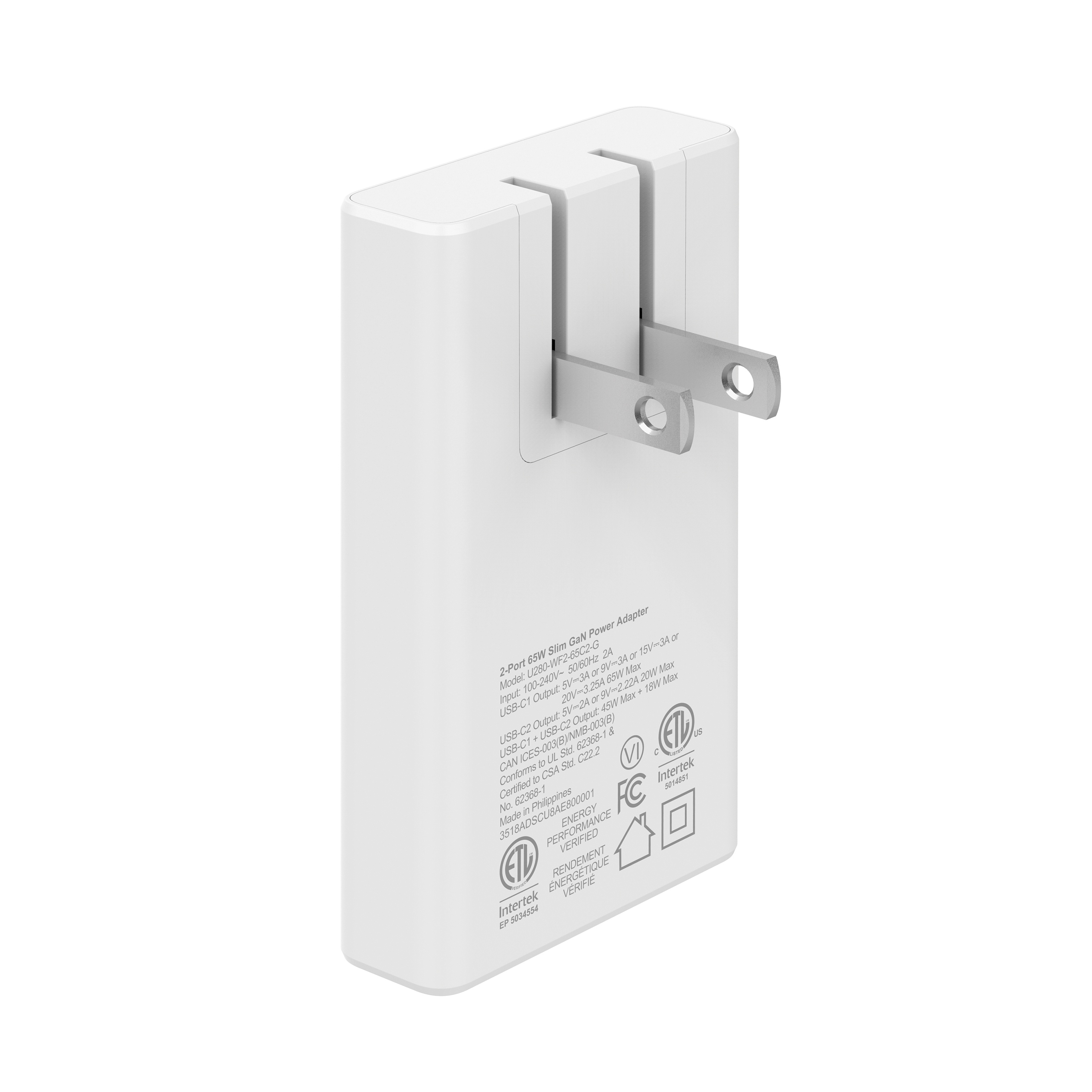

GaN (gallium nitride) technology keeps the charger small, efficient and cool-running. The USB-C ports sit on the bottom of the unit, which helps when outlets are tucked behind desks or furniture, and the NEMA 1-15P plug folds away to protect it and your bag's contents. Protection covers overheating, overcurrent, overvoltage, overcharging and short circuits, and a blue LED indicates power. The charger is UL Listed, certified to UL 62368-1 and CSA C22.2, meets FCC Class B, and is backed by a 2-year limited worldwide warranty. A manufacturer specification sheet is available for this model.

Ideal for

  • Compact laptop charger for road warriors and field staff
  • Charging a laptop and phone together from a single hotel or airport outlet
  • Outlets behind desks or furniture where a bulky charger won't fit
  • Spare charger for a USB-C tablet or Chromebook deployment

Specifications

General

UPC
037332294630
Brand
Eaton (Tripp Lite series)
Warranty
2-year limited
Compliances
FCC Compliant, FCC Class B
Product Name
Eaton Tripp Lite series wall charger
Product Type
Wall charger
Product Width
1.91 in
Catalog Number
U280-WF2-65C2-G
Certifications
UL Listed, CSA Std. C22.2, UL 62368-1
Global Catalog
U280-WF2-65C2-G
Product Height
3.33 in
Product Weight
0.14 lb
Product Length Depth
0.75 in

Product

Type
Wall Charger
Color
White
Material
PC (plastic)
Technology
USB
Input Current
100-240V, 2A (max)
LED Indicators
Blue - Power
Packaging Type
Box
Charging Method
USB
Input Frequency
50/60 Hz
Input Plug Type
NEMA 1-15P (non-polarized)
Number OF Ports
2
Output Capacity
65 W
Product Features
NEMA 1-15P; overcurrent protection; overvoltage protection; GaN technology
Sidea Connector1
NEMA 1-15P (non-polarized)
Sideb Connector1
USB-C (female)
Sideb Connector3
USB-C (female)
Power Consumption
0.08 W
Charging Port Type
USB-C (female)
Compatible Devices
Chromebook, laptop, smartphone, tablet
Charging Ports Amps
3.25A, 2A, 3A, 2.22A
Overload Protection
Yes
Total Charging Amps
USB-C1: 5V 3A, 9V 3A, 15V 3A, 20V 3.25A (65W max); USB-C2: 5V 2A, 9V 2.22A (20W max)
Charging Form Factor
Direct plug-in
Total Charging Watts
65W
Input Connection Type
NEMA 1-15P
Input Nominal Voltage
120 VAC, 240 VAC
Total Number OF Ports
2
Voltage Compatibility
100, 110, 120, 125, 127, 200, 208, 220, 230, 240 VAC
Charging Method Detail
Power Delivery, GaN Technology
Storage Humidity Range
10 to 90% RH, non-condensing
Over Current Protection
Yes
USB PD Charging Support
Yes
Number OF Charging Ports
2
Operating Humidity Range
10 to 90% RH, non-condensing
Storage Temperature Range
-22° to 158°F (-30° to 70°C)
Continuous Output Capacity
65 W
Operating Temperature Range
23° to 77°F (-5° to 25°C)
Power Provided TO Connected Devices
USB-C1: 65W max; USB-C2: 20W max; both: 45W max + 18W max

Questions buyers ask

Can this charger power a laptop?

Yes. The USB-C1 port supports USB PD 3.0 up to 20V 3.25A (65W), suitable for USB-C laptops and Chromebooks that charge at up to 65W.

How is power split when two devices are connected?

With both ports in use, USB-C1 provides up to 45W and USB-C2 up to 18W.

What outlets does it fit?

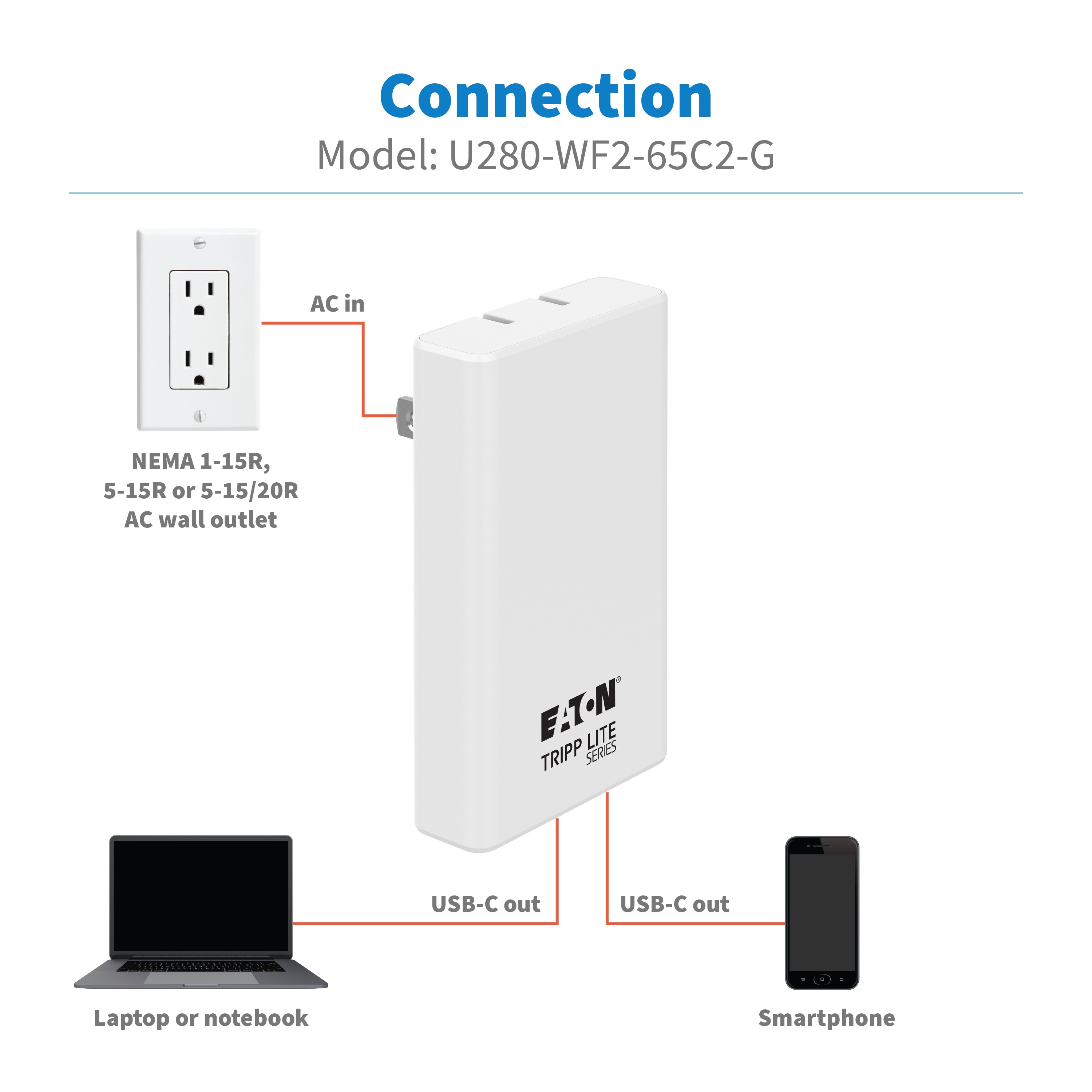

It has a folding NEMA 1-15P plug that fits standard NEMA 1-15R, 5-15R and 5-15/20R wall outlets, as found in most North American offices, homes, hotels and airports.

Does it stop charging when my device is full?

Yes. Auto-sensing adjusts to each device's power level and stops charging once the device reaches full capacity.

What warranty is included?

Eaton provides a 2-year limited worldwide warranty.
