Eaton Tripp Lite U280M-005-10-BK 10W Magnetic Wireless Charging Pad for iPhone 16/15/14/13/12, Black

MPN U280M-005-10-BK
  • Up to 20 W
  • MagSafe
$29.78$84.06Save $54.28

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

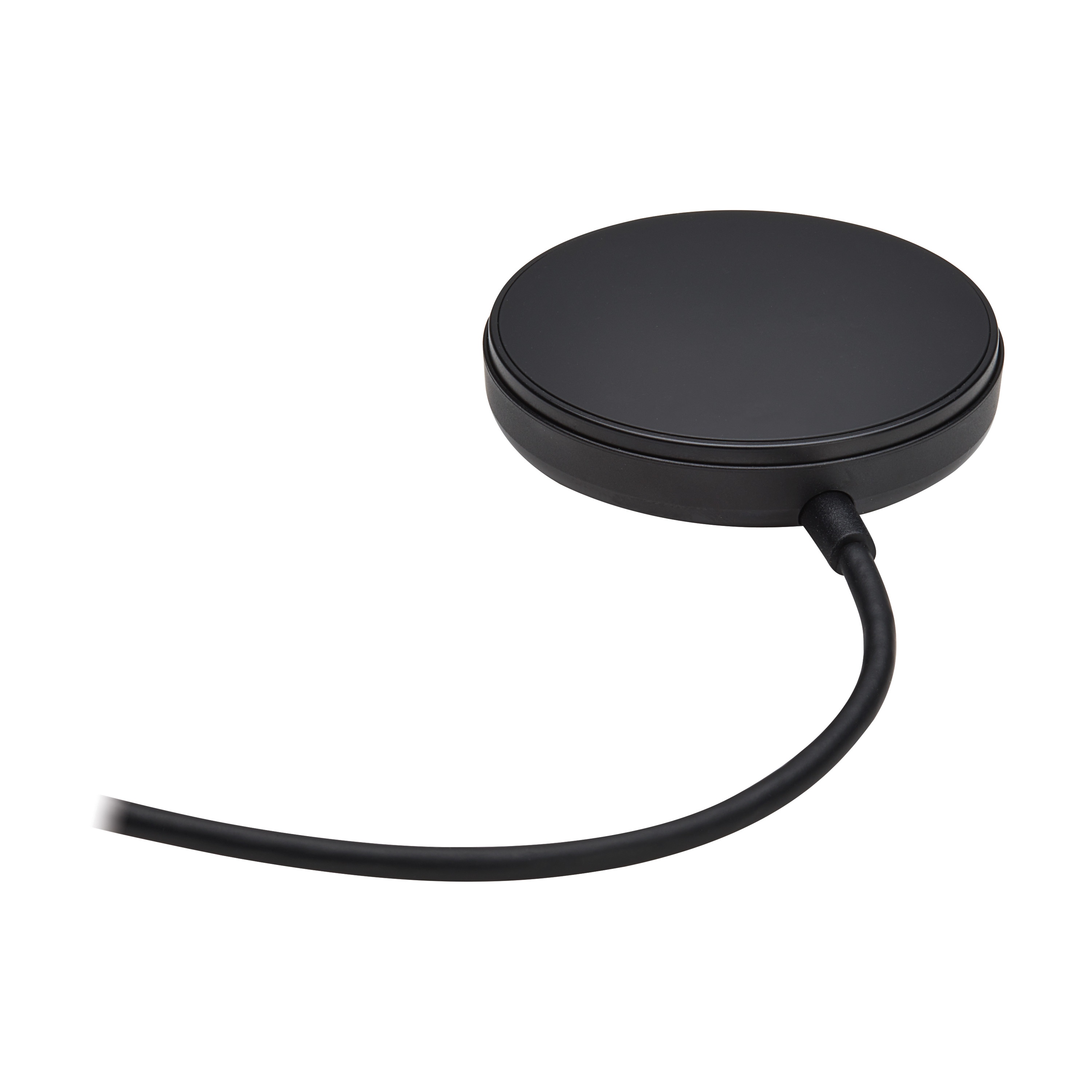

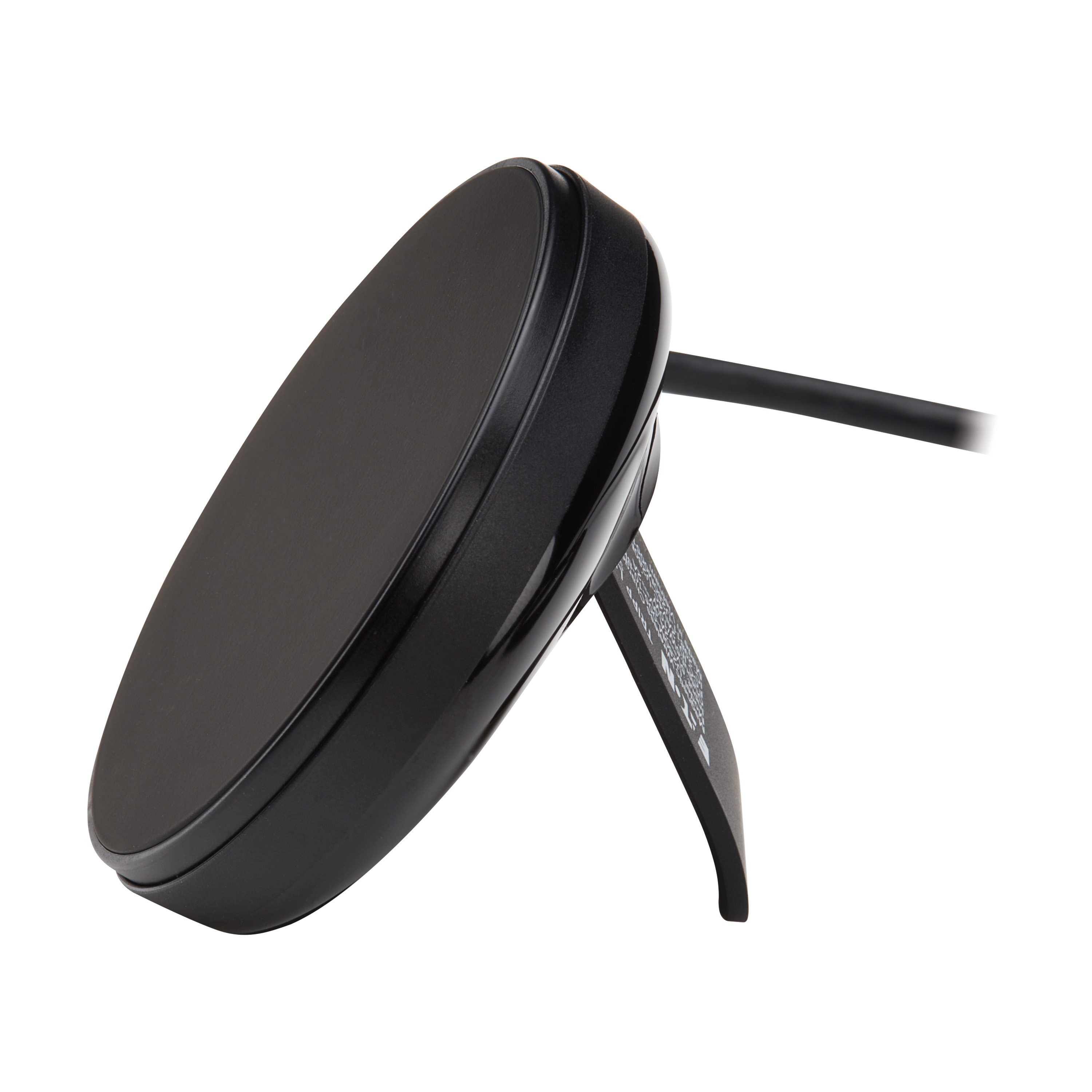

The Eaton Tripp Lite series U280M-005-10-BK is a 10W magnetic wireless charging pad with an adjustable stand for iPhone 16, 15, 14, 13 and 12 models and other Qi-compliant smartphones. It charges through most protective cases up to 5 mm thick, snaps the phone into place magnetically, and connects to power over a 5 ft USB-C cable. Overcurrent, overvoltage and short-circuit protection guard the phone while it charges.

  • Up to 10W wireless charging output to a compatible smartphone, including iPhone 12 or newer
  • Magnetic pad snaps the phone into place for consistent alignment
  • Charges through most protective cases up to 5 mm thick

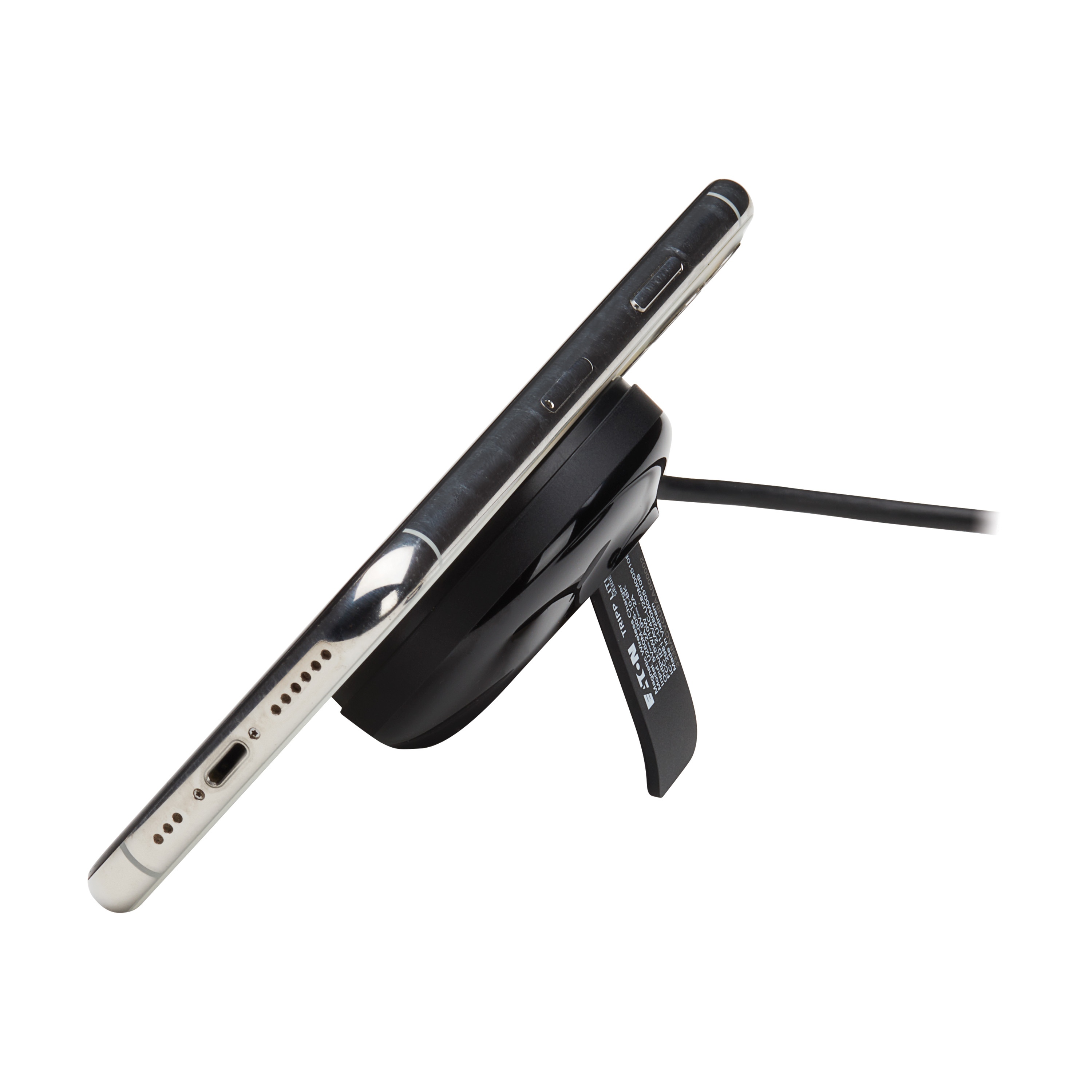

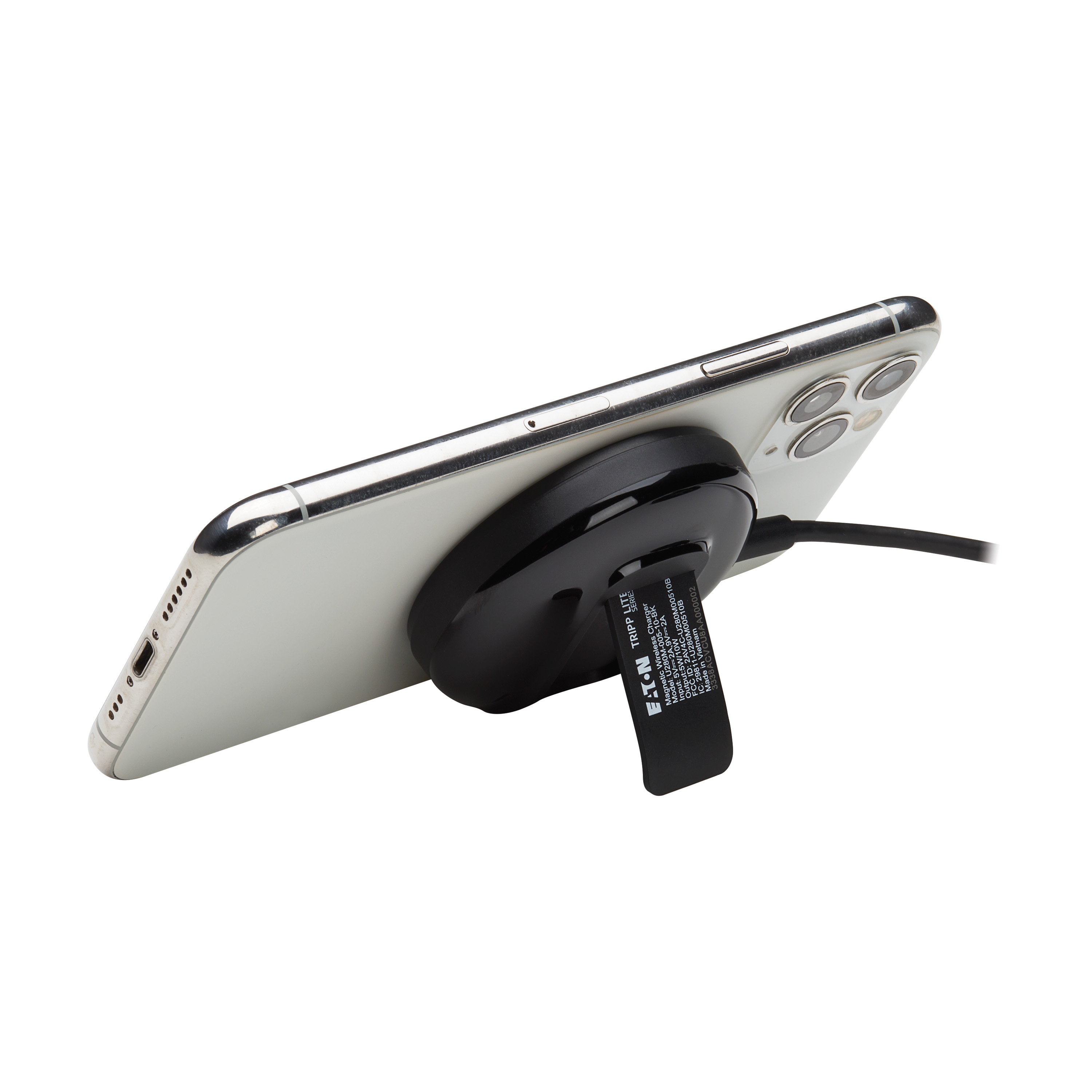

  • Adjustable stand for portrait or landscape viewing while charging
  • 5 ft attached cable with USB-C (male) input, 5 VDC / 9 VDC
  • Overcurrent, overvoltage, overcharge and short-circuit protection
  • Charging status LED: green for normal charging, flashing red for a charging error

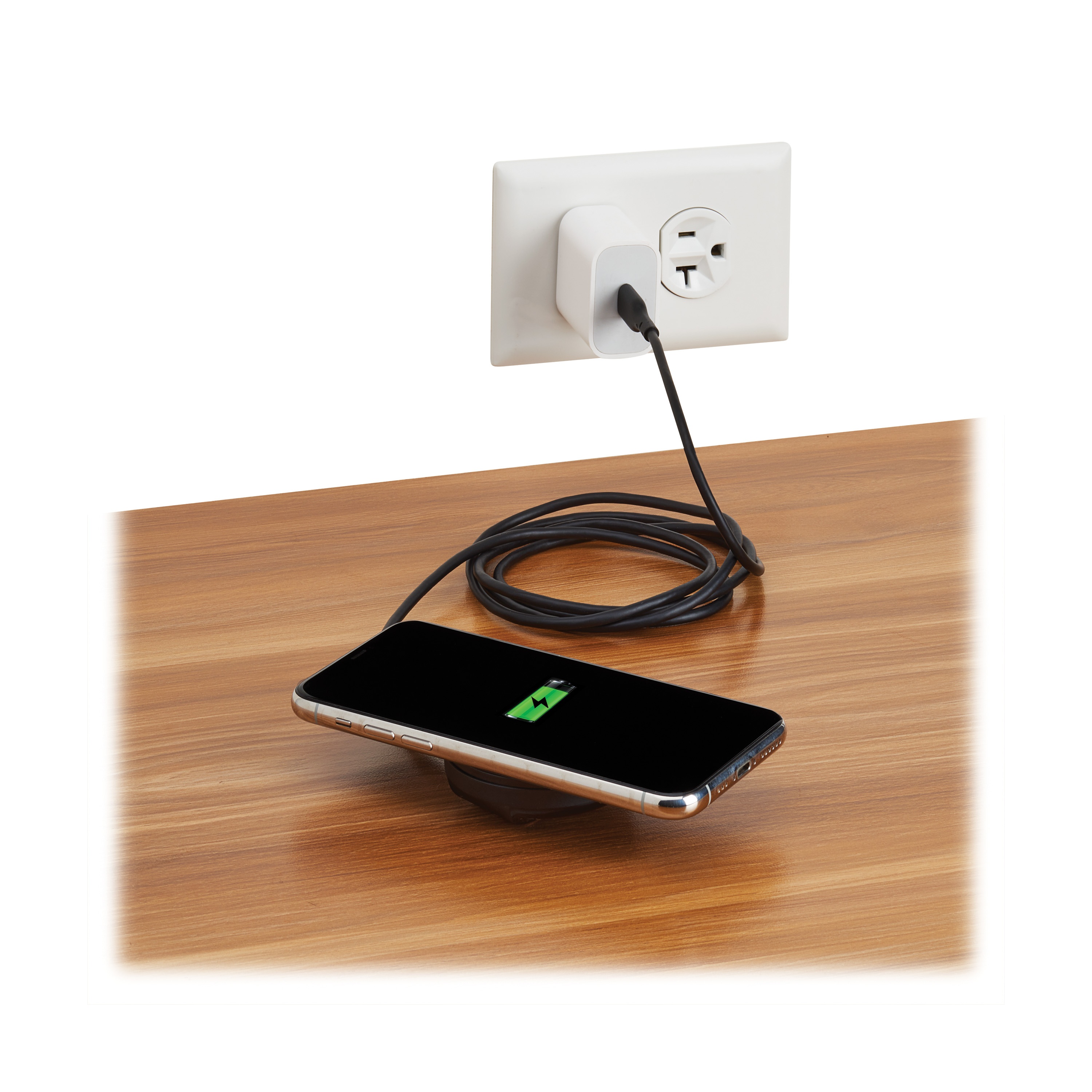

  • Set the phone down and it starts charging, with no cable to plug in and out through the day

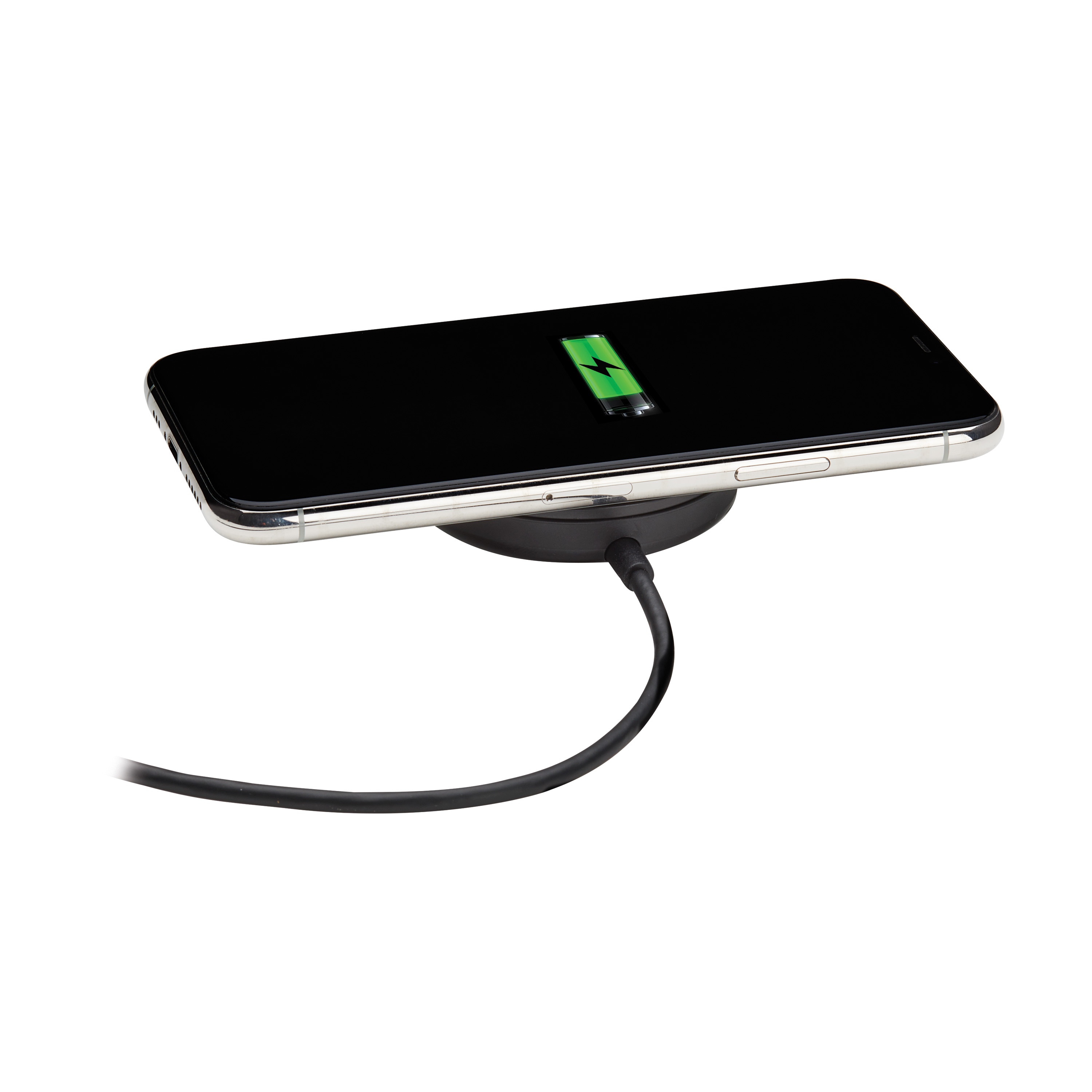

The Eaton Tripp Lite series U280M-005-10-BK is a compact magnetic wireless charger built for desks, workstations and travel bags. It delivers up to 10W of wireless charging output to a compatible smartphone, including Apple iPhone 12 or newer, and works with Qi smartphones from Apple, Samsung, Sony, LG, Nokia and other brands. The magnetic pad snaps the phone into place for consistent alignment, so charging starts as soon as the device is set down.

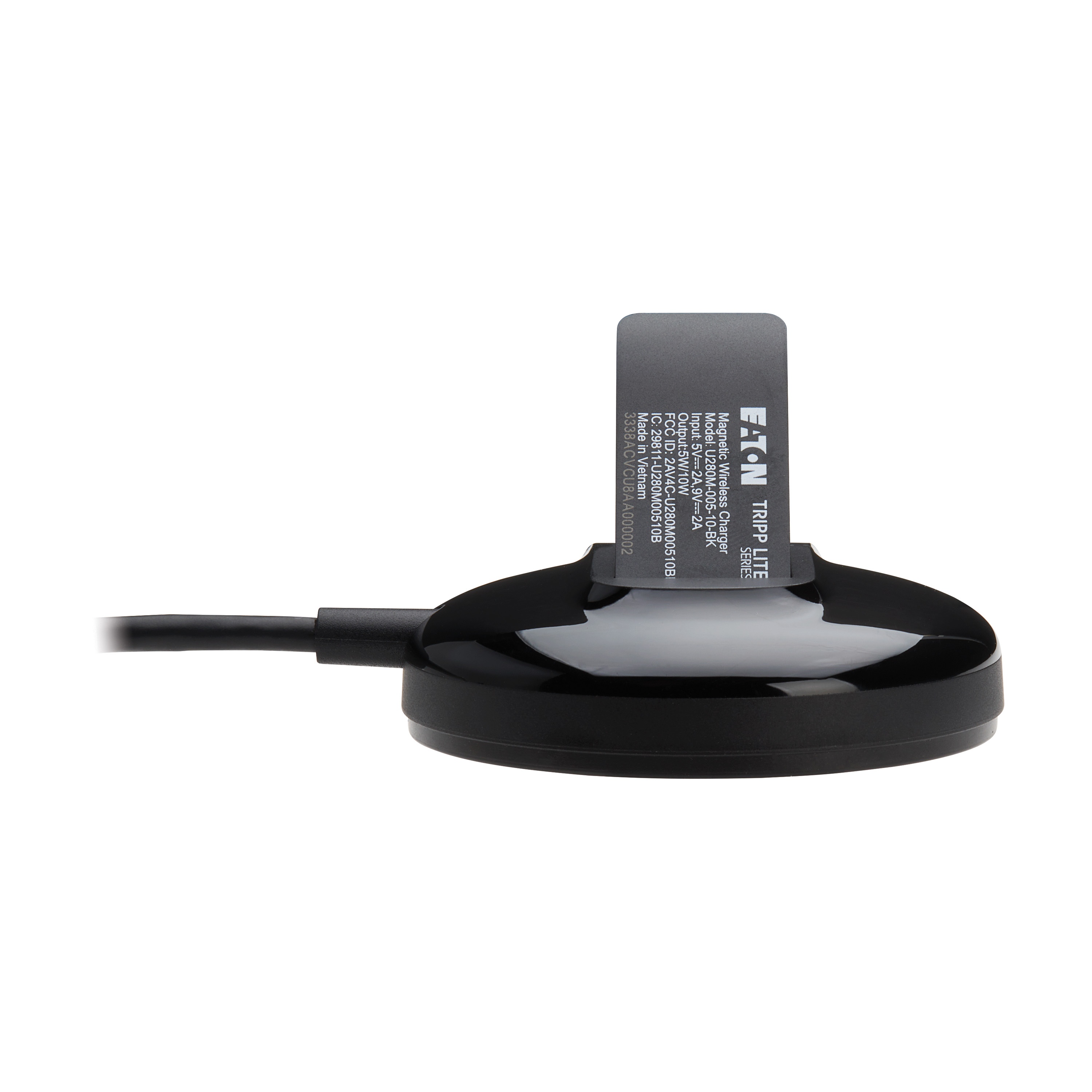

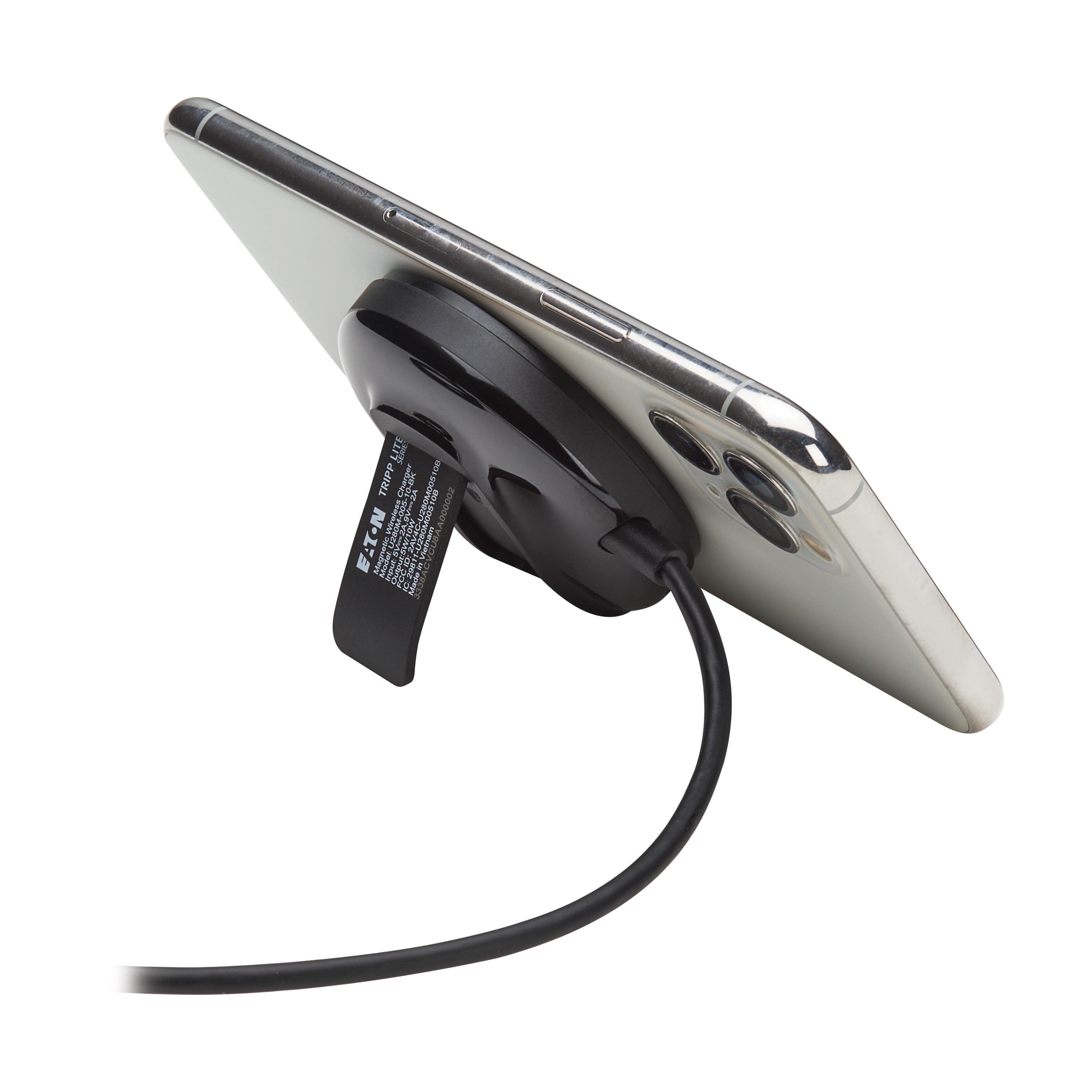

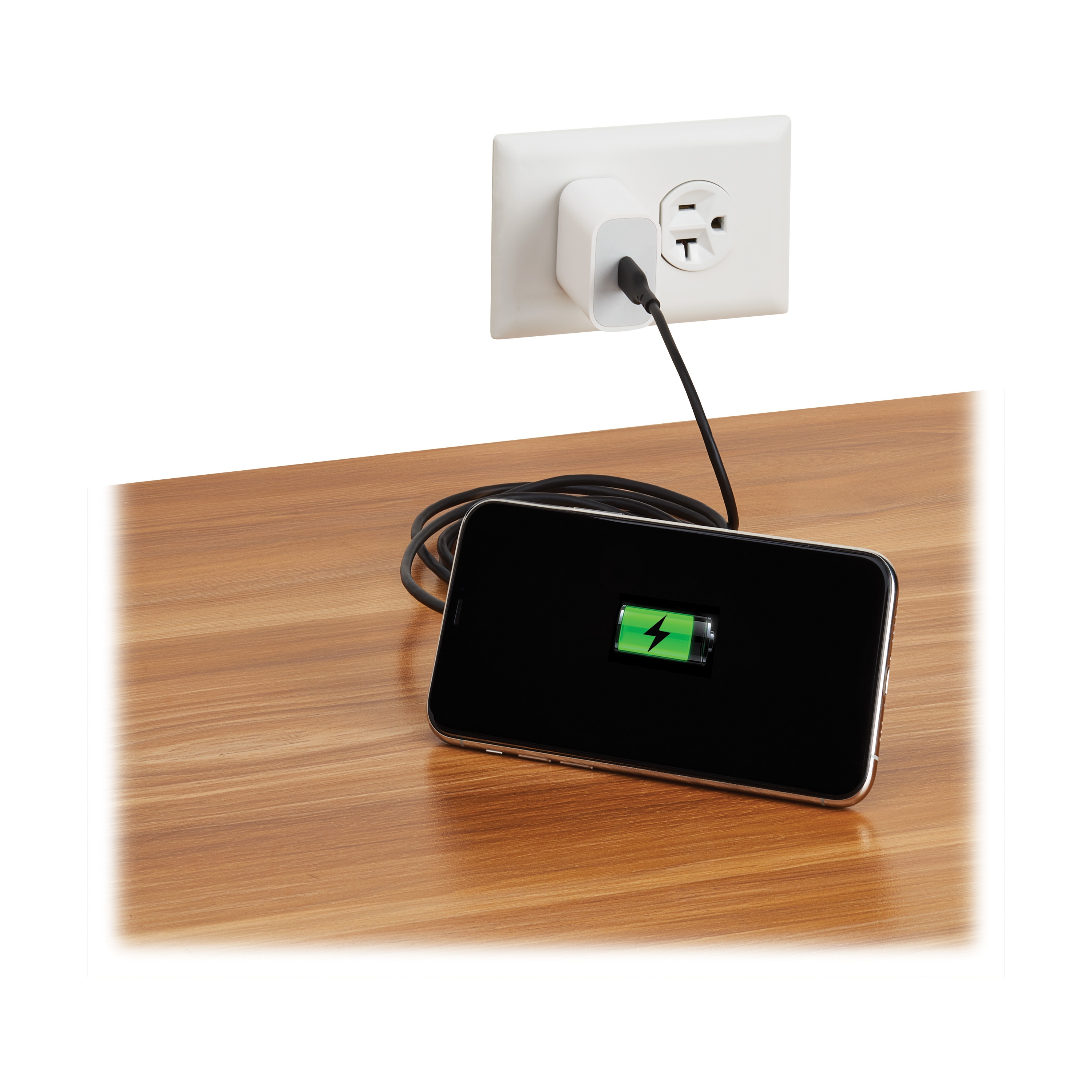

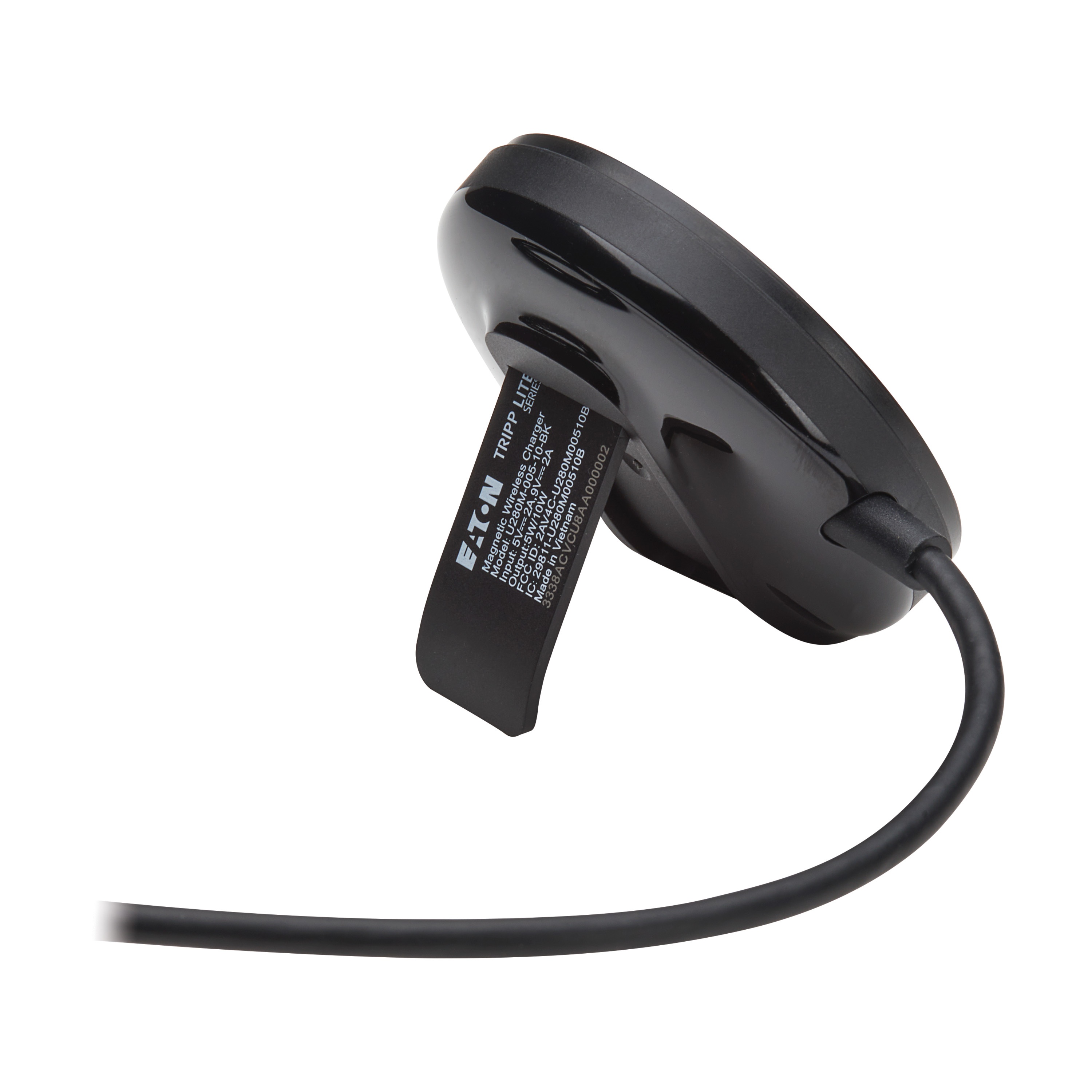

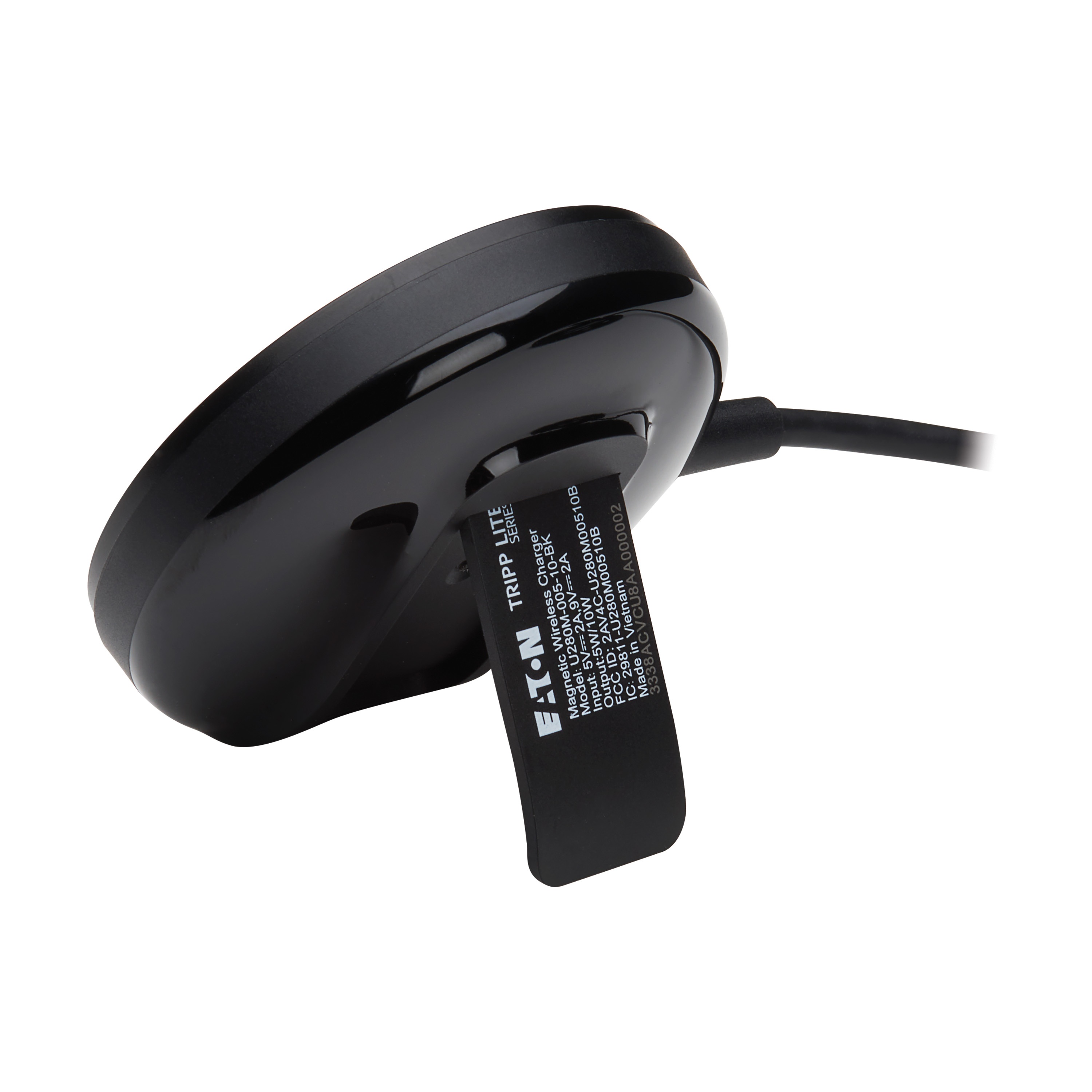

The adjustable stand holds the phone upright in portrait or landscape orientation, so users can scroll, text or watch video while the battery tops up. It charges through most protective cases up to 5 mm thick; magnetic or metal objects should be removed from the phone or case before charging. A single green or red status LED shows at a glance whether the phone is charging normally or has hit a charging error.

Power comes in through an attached 5 ft black PVC cable ending in a straight USB-C (male) connector, with 5 VDC and 9 VDC input and 2 A total charging current. Overcurrent, overvoltage, overcharge and short-circuit protection help prevent the kind of electrical stress that can damage a phone's battery or internals.

The pad measures 2.36 x 2.36 x 0.67 in and weighs 0.3 lb. It is CE marked, FCC compliant, UKCA, REACH, RoHS3 and WEEE compliant, with ICES and NOM certifications. The box contains the charging pad and a Quick Start Guide, and Eaton backs it with a 1-year limited warranty. A specification sheet is available from Eaton.

Ideal for

  • Desk charging for office staff who need their iPhone visible and upright during the workday
  • Hot-desking and shared workstations where a single USB-C powered pad serves any Qi phone
  • Travel kits for field staff who want a compact charger with a long cable
  • Video calls and media viewing in landscape orientation while the phone charges
  • Reception, front-desk or point-of-service stations using a company smartphone

Specifications

Compatibility

Other Phones
Qi-compliant Android and Windows smartphones
Iphone Models
iPhone 16, 15, 14, 13 and 12 models (MagSafe-charging iPhones)
Case Thickness
Charges through most cases up to 5 mm

General Specifications

UPC
037332279293
Brand
Eaton (Tripp Lite series)
Warranty
1 year limited
Compliances
CE Marked, REACH, WEEE Directive, UKCA, RoHS3, FCC Compliant
Product Name
Eaton Tripp Lite series wireless charger
Product Type
Wireless charger
Product Width
2.36 in
Catalog Number
U280M-005-10-BK
Certifications
ICES, NOM
Global Catalog
U280M-005-10-BK
Product Height
0.67 in
Product Weight
0.3 lb
Product Length Depth
2.36 in

Product Specifications

Type
Magnetic Charger
Color
Black
Features
Flex Center
Material
Plastic
Connector
USB-C (male)
Technology
Wireless
Wire Gauge
24 AWG
Cable Length
5 ft
Connector Type
USB/Thunderbolt/Lightning
Host Connector
USB-C (male)
LED Indicators
1 charging status LED: green = charging normally, flashing red = charging error
Packaging Type
Box
Charging Method
Magnetic Charger
Connector Color
Black
Connector Group
USB-C
Connector Style
Straight
Input Plug Type
USB-C (Male)
Number OF Ports
1
Output Capacity
10 W
Input Cord Gauge
24 AWG

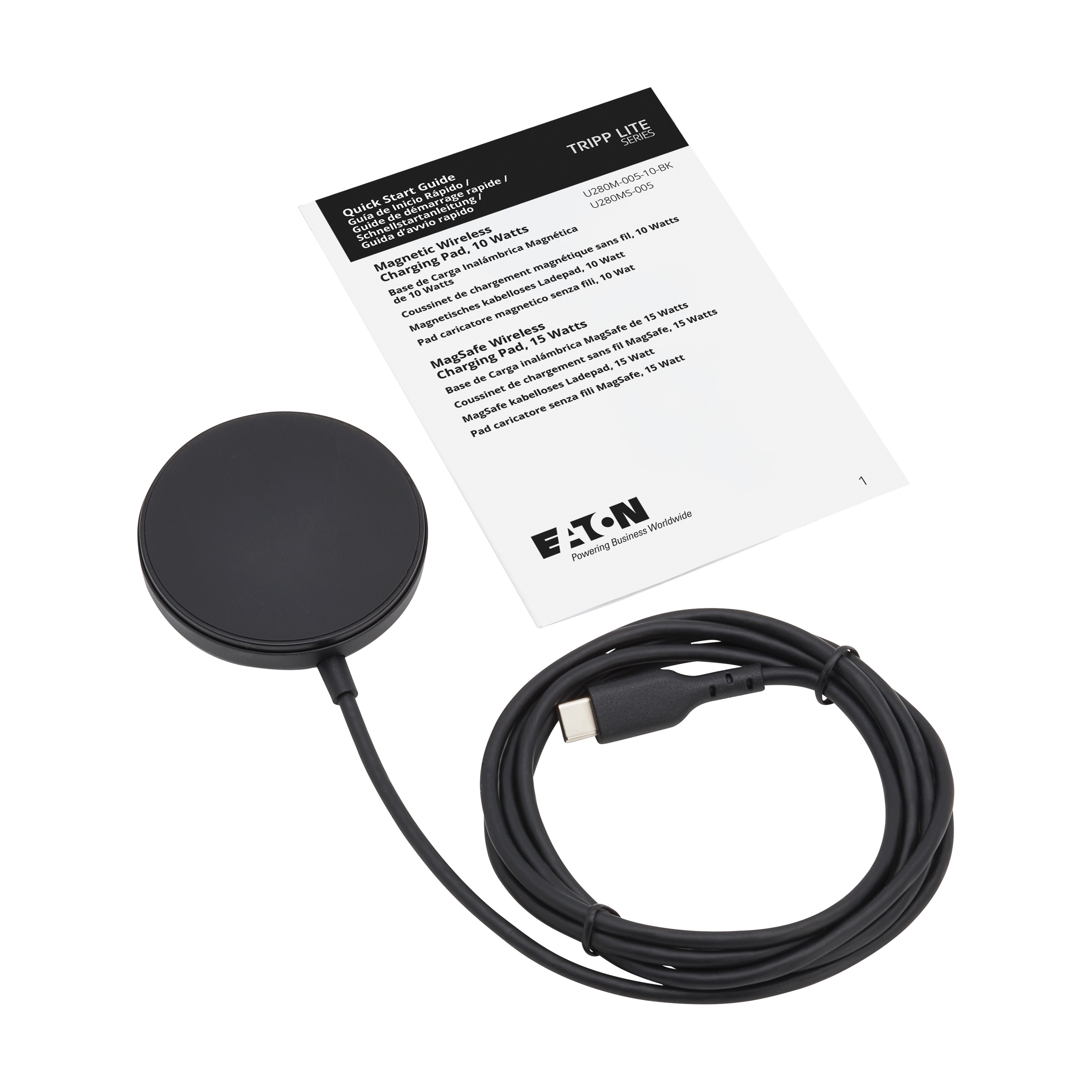

Package Contents
Quick Start Guide, U280M-005-10-BK 10W Magnetic Wireless Charging Pad
Product Features
Magnetic Charging, USB Type-C, Wireless Charging, Overcurrent Protection, Overcharge Protection, Overvoltage Protection, Qi Compliant
Power Source Type
USB
Cable Jacket Color
Black
Cable Length Range
5 - 8 ft (1 - 2 m)
Charging Port Type
Magnetic Charger
Compatible Devices
Smartphone
Side A Connector 1
USB-C (male)
Side B Connector 1
Magnetic Charger
Side B Connector 3
Magnetic Charger
Overload Protection
No
Total Charging Amps
2 A
Cable Outer Diameter
3.5 mm
Charging Form Factor
Pad / stand
Device Compatibility
Phone
Total Charging Watts
10 W
Cable Jacket Material
PVC
Input Connection Type
USB Type-C
Input Nominal Voltage
5 VDC; 9 VDC
Total Number OF Ports
1
Charging Method Detail
Up to 10W wireless output to a compatible smartphone, including Apple iPhone 12 or newer
Charging Ports Details
Wireless magnetic pad supports up to 10 watts of charging power
Storage Humidity Range
5% to 95% RH
Number OF Charging Ports
1
Operating Humidity Range
10% to 80% RH
Storage Temperature Range
-4° to 104°F (-20° to 40°C)
Operating Temperature Range
32° to 104°F (0° to 40°C)
Charging Station Form Factor
Pad / stand

Questions buyers ask

Which phones does the U280M-005-10-BK charge?

It is designed for iPhone 16, 15, 14, 13 and 12 models that support MagSafe charging, and it also works with Qi smartphones from Apple, Samsung, Sony, LG, Nokia and other brands, including Android and Windows phones.

Do I need to remove my phone case?

No. It charges through most protective cases up to 5 mm thick. Remove any magnetic or metal objects from the phone or case before charging.

How is the charger powered?

It has an attached 5 ft cable ending in a USB-C (male) connector and accepts 5 VDC or 9 VDC input.

What does the LED indicate?

A single status LED glows green when the phone is charging normally and flashes red when there is a charging error.

What is included in the box?

The U280M-005-10-BK 10W magnetic wireless charging pad and a Quick Start Guide.
