Eaton Tripp Lite UPB-04K0-1CM 4,000mAh Magnetic Wireless Power Bank for iPhone 16/15/14/13/12, Black

MPN UPB-04K0-1CM
  • Up to 20 W
  • Under 5,000 mAh
  • USB-C
  • MagSafe
$57.19$161.37Save $104.18

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

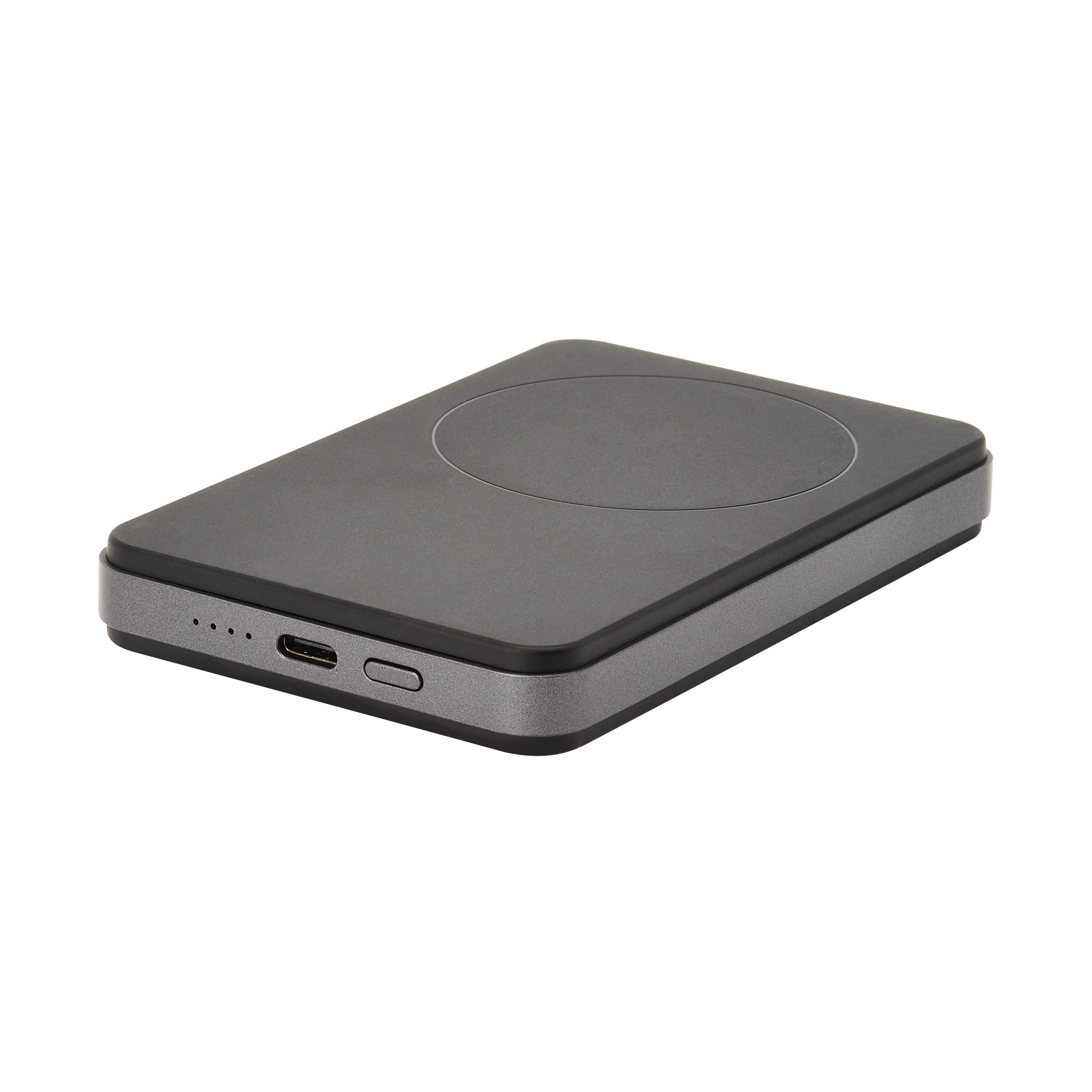

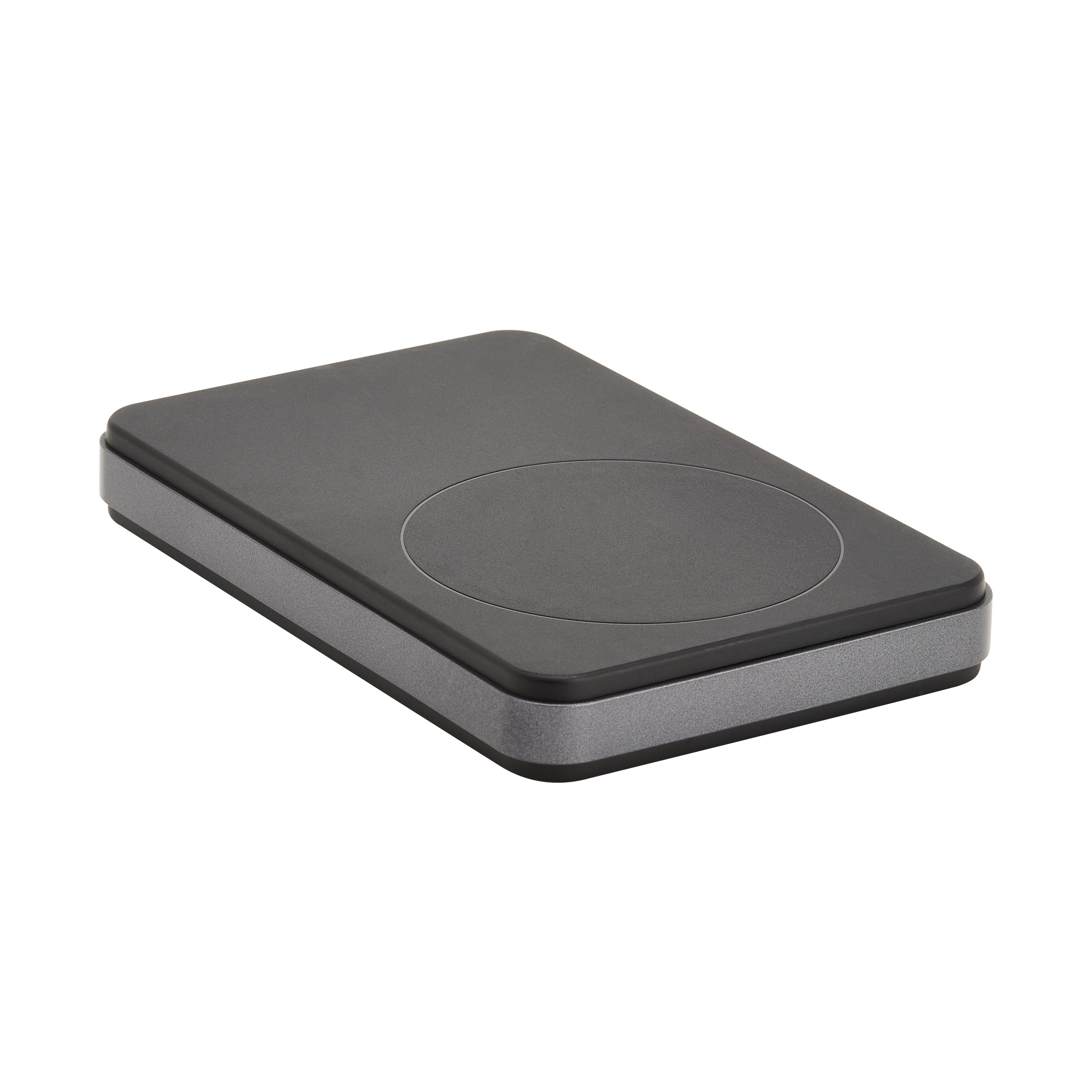

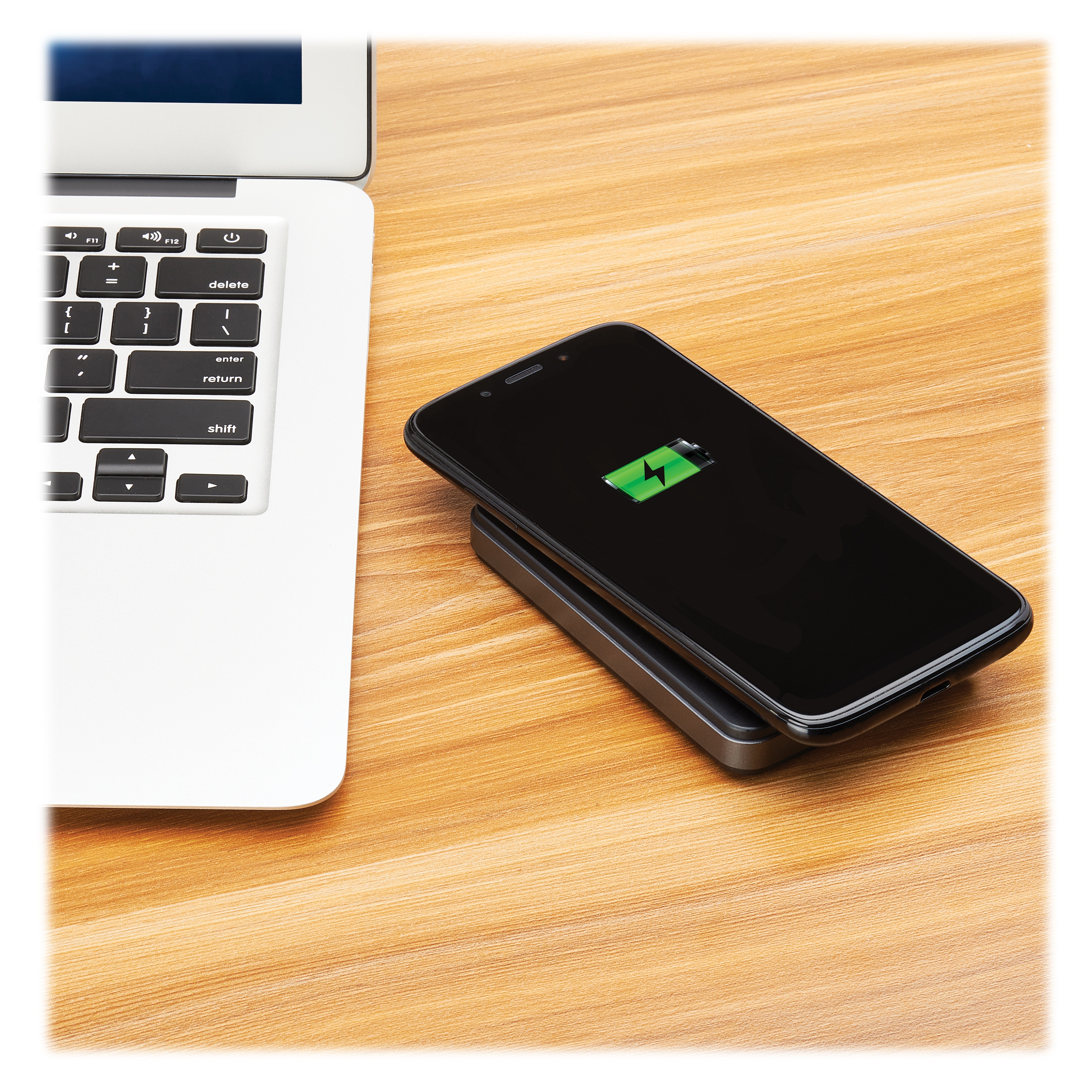

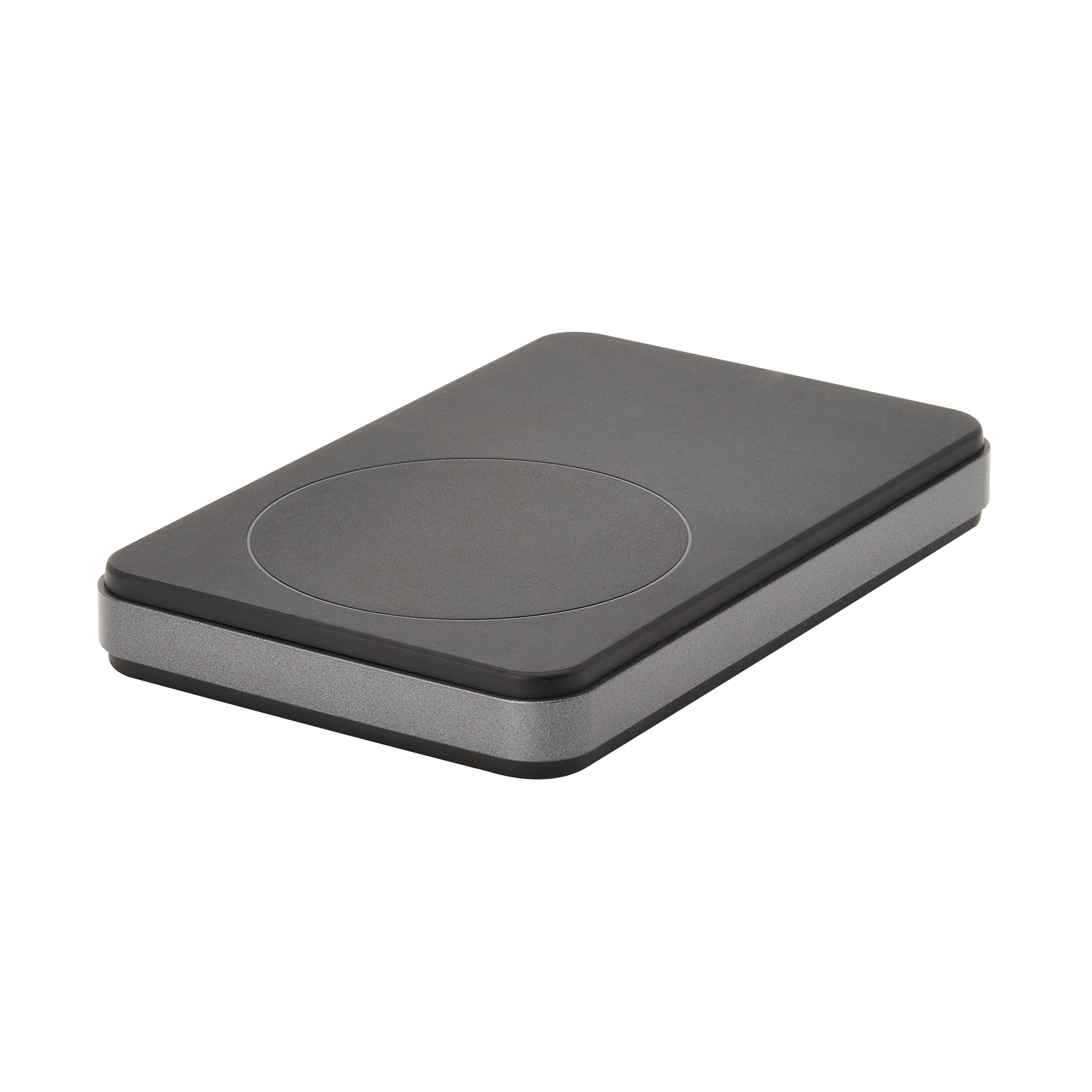

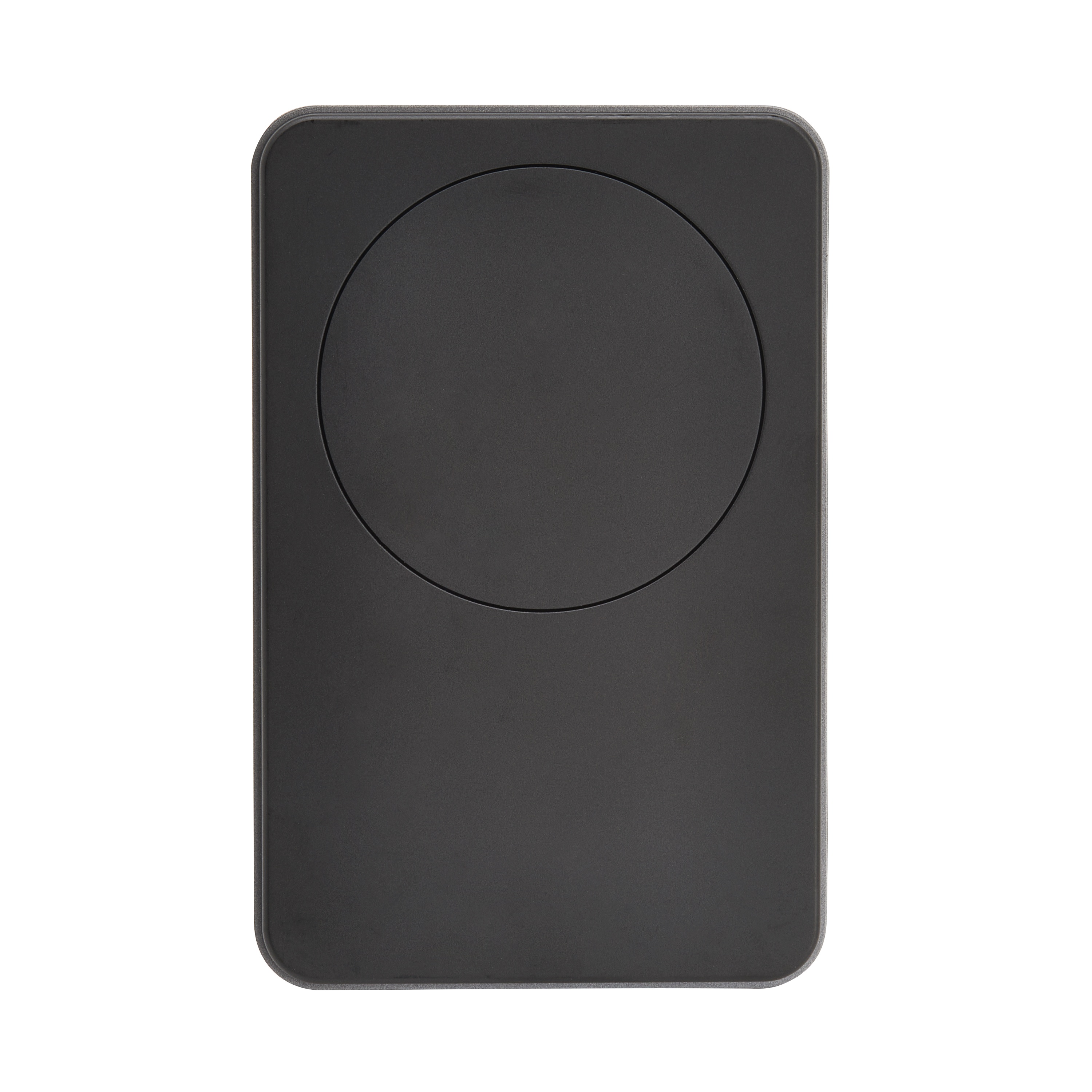

The Eaton Tripp Lite series UPB-04K0-1CM is a 4,000mAh lithium-ion power bank with a magnetic wireless charging pad compatible with MagSafe, built for iPhone 16, 15, 14, 13 and 12. It snaps onto the back of the phone and charges wirelessly at up to 10W, or through its USB-C port at up to 18W. An adjustable stand holds the phone upright or sideways while it charges, and four LEDs show remaining capacity.

  • 4,000mAh lithium-ion battery
  • Magnetic wireless charging pad compatible with MagSafe, up to 10W
  • USB-C port with 5V/3A or 9V/2A (18W) output and 5/9 VDC recharge input

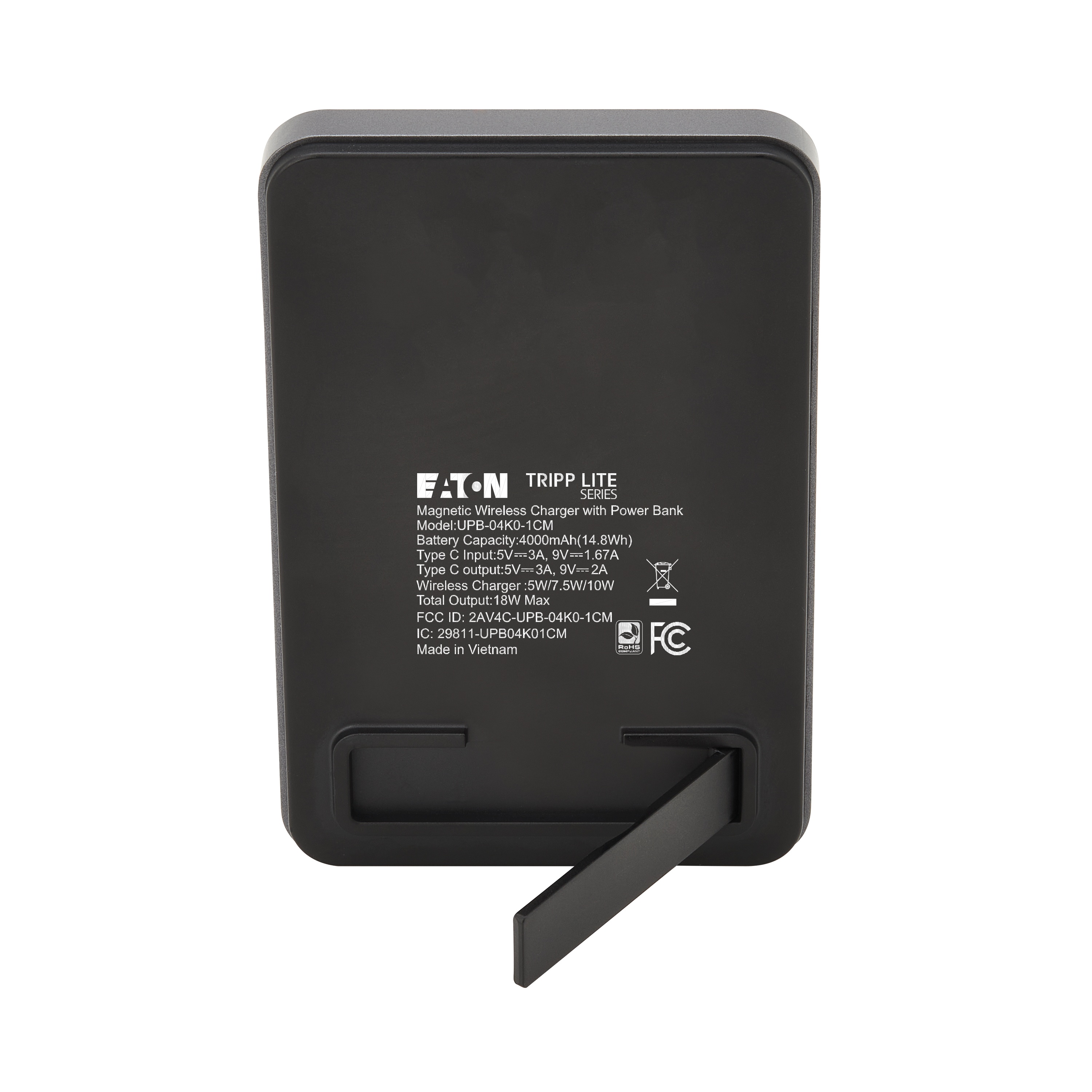

  • Adjustable stand for vertical or horizontal viewing
  • Four-LED battery status indicator
  • Short-circuit, over-voltage, over-current, over-charge and over-discharge protection
  • Includes 3 ft USB-A to USB-C charging cable and owner's manual
  • Keep an iPhone 16, 15, 14, 13 or 12 charged without carrying a cable

The UPB-04K0-1CM is a pocket-sized backup battery from the Eaton Tripp Lite series for iPhone 16, 15, 14, 13 and 12 users who need extra runtime on the move. Its magnetic charging pad is compatible with MagSafe and other wireless-compatible devices, so it attaches to the phone and charges without a cable at up to 10W.

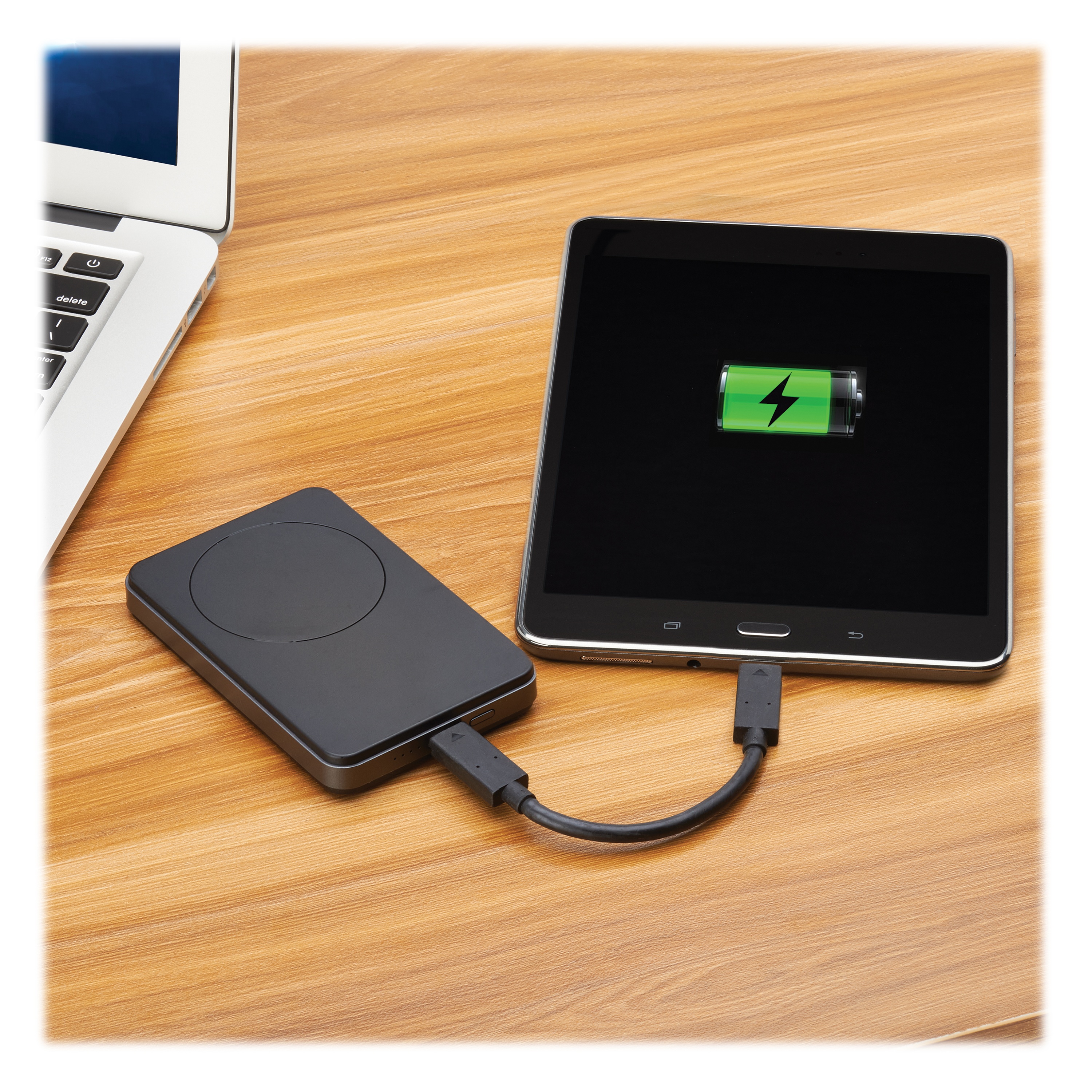

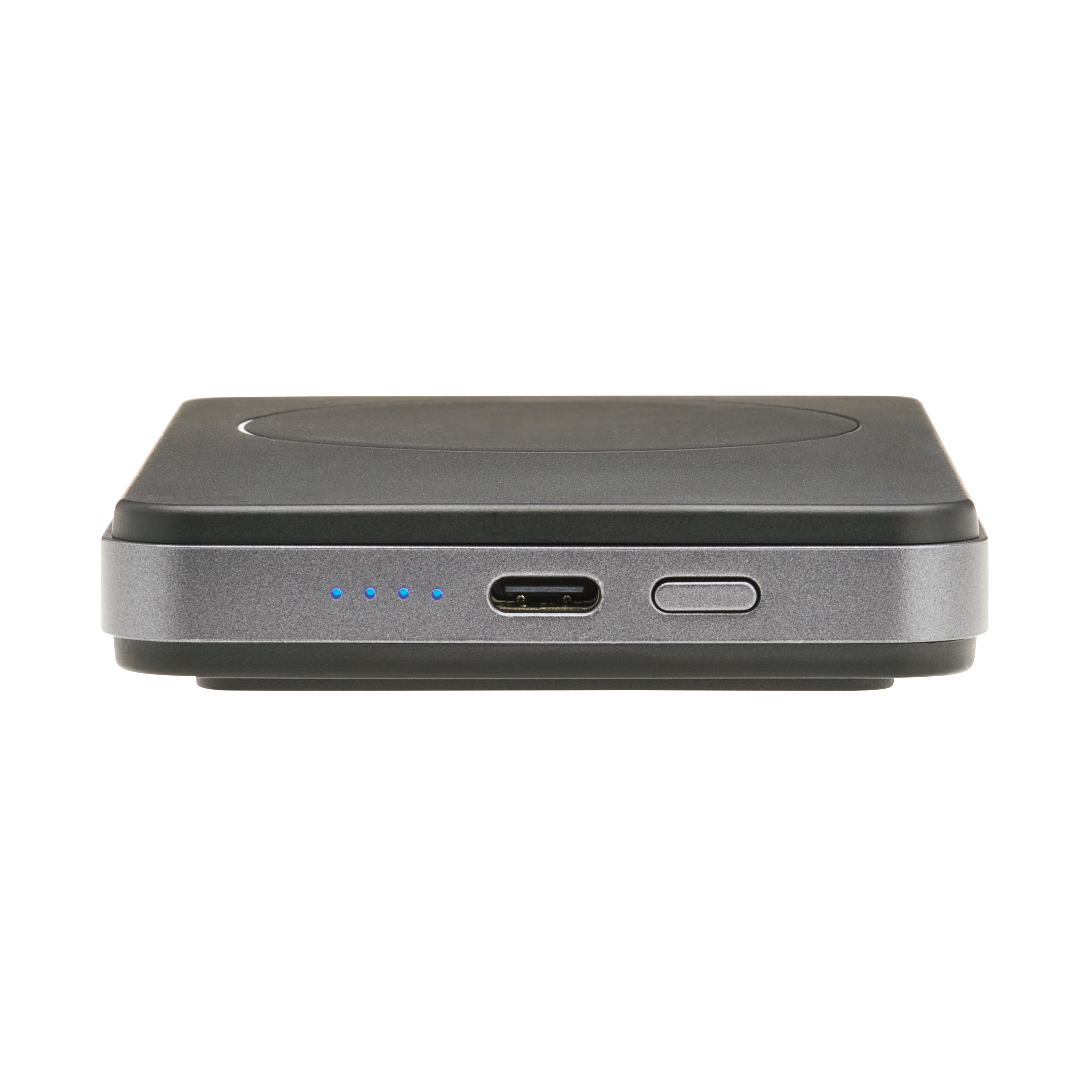

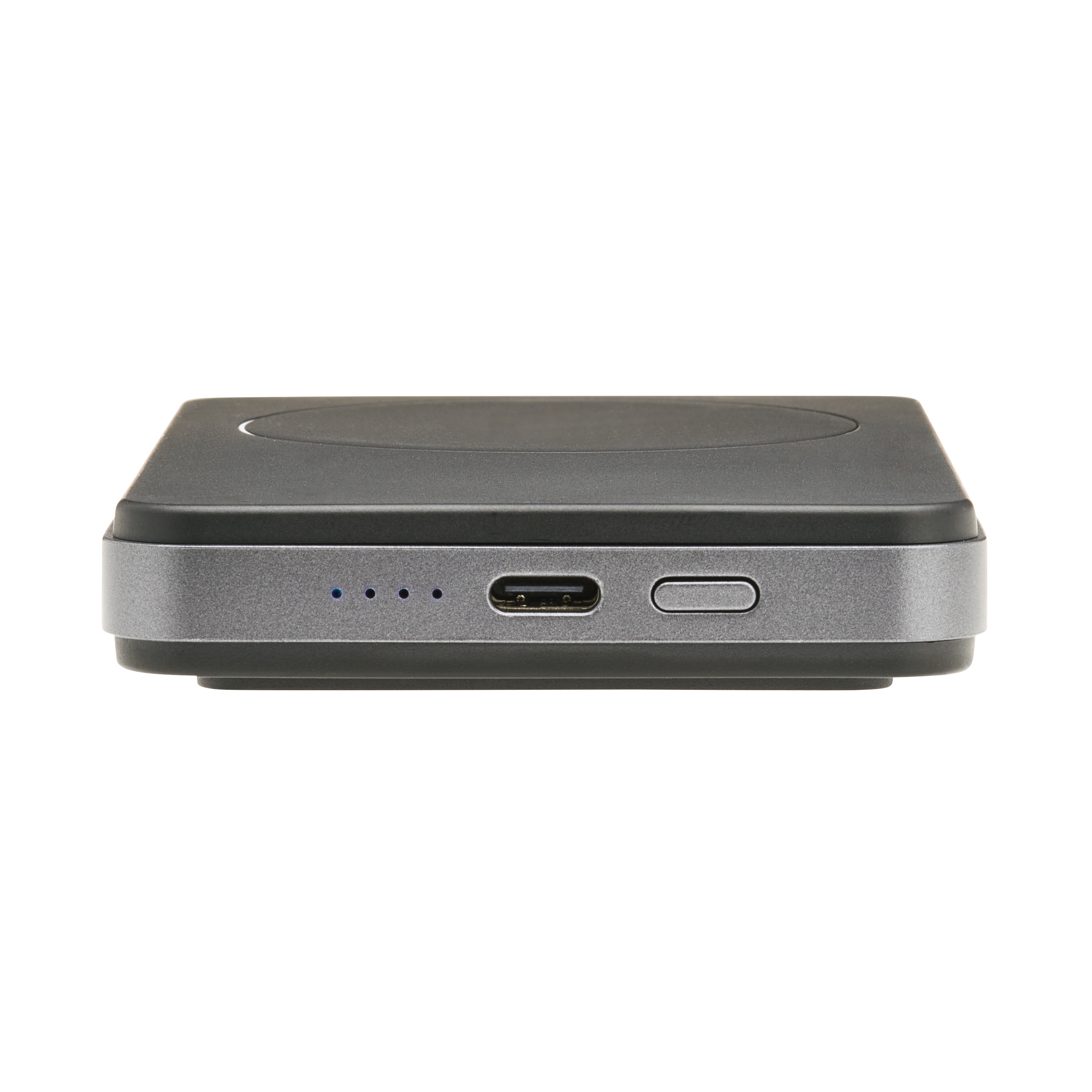

For wired charging, the USB-C port provides 5V/3A or 9V/2A (18W). Only one charging method can be used at a time; when switching between wireless and USB-C, remove the device and wait 60 seconds. The same USB-C port recharges the 4,000mAh lithium-ion battery at 5 or 9 VDC using the included 3 ft USB-A to USB-C cable or your own USB-C to USB-C cable. Four LEDs light left to right as the power bank charges and step down as capacity is used.

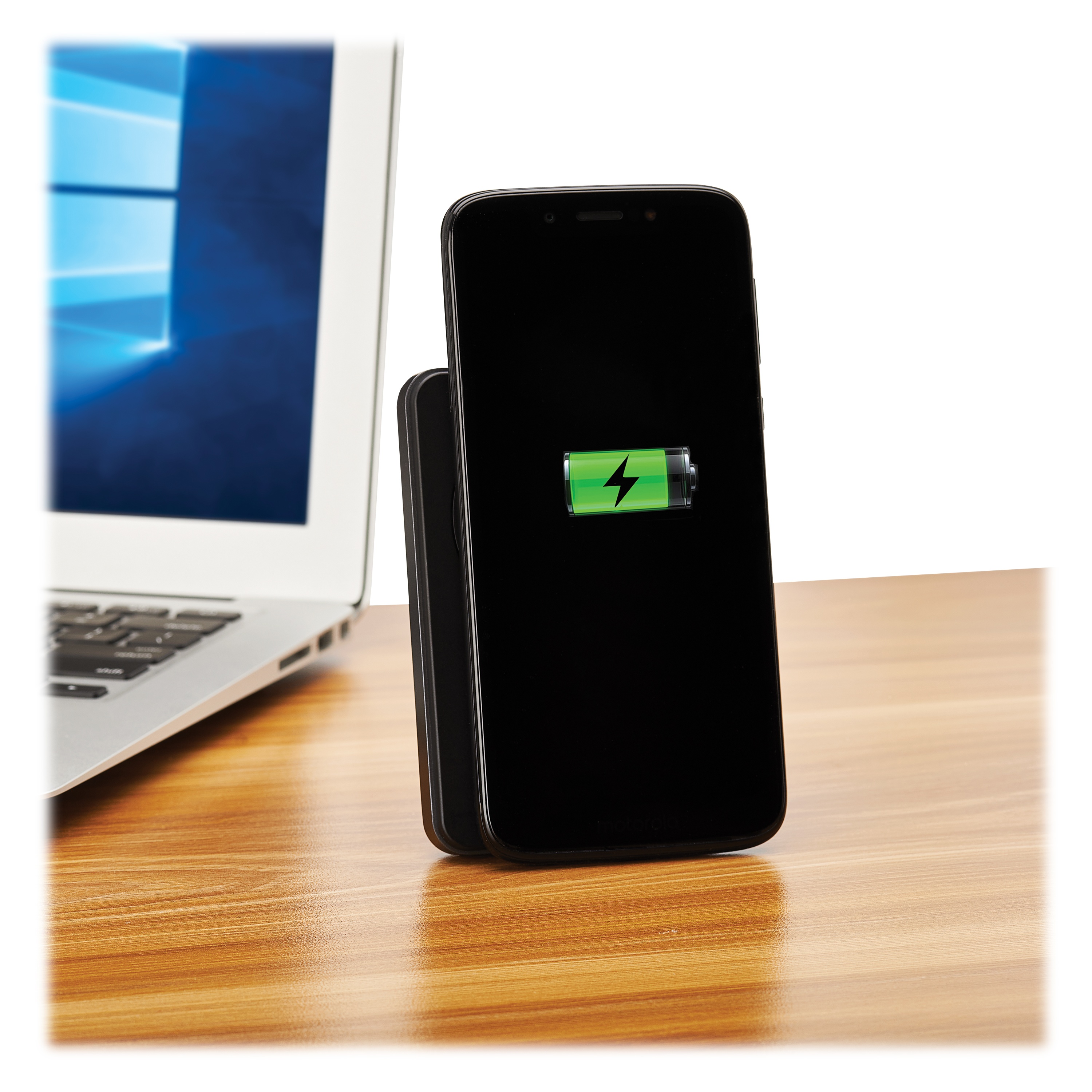

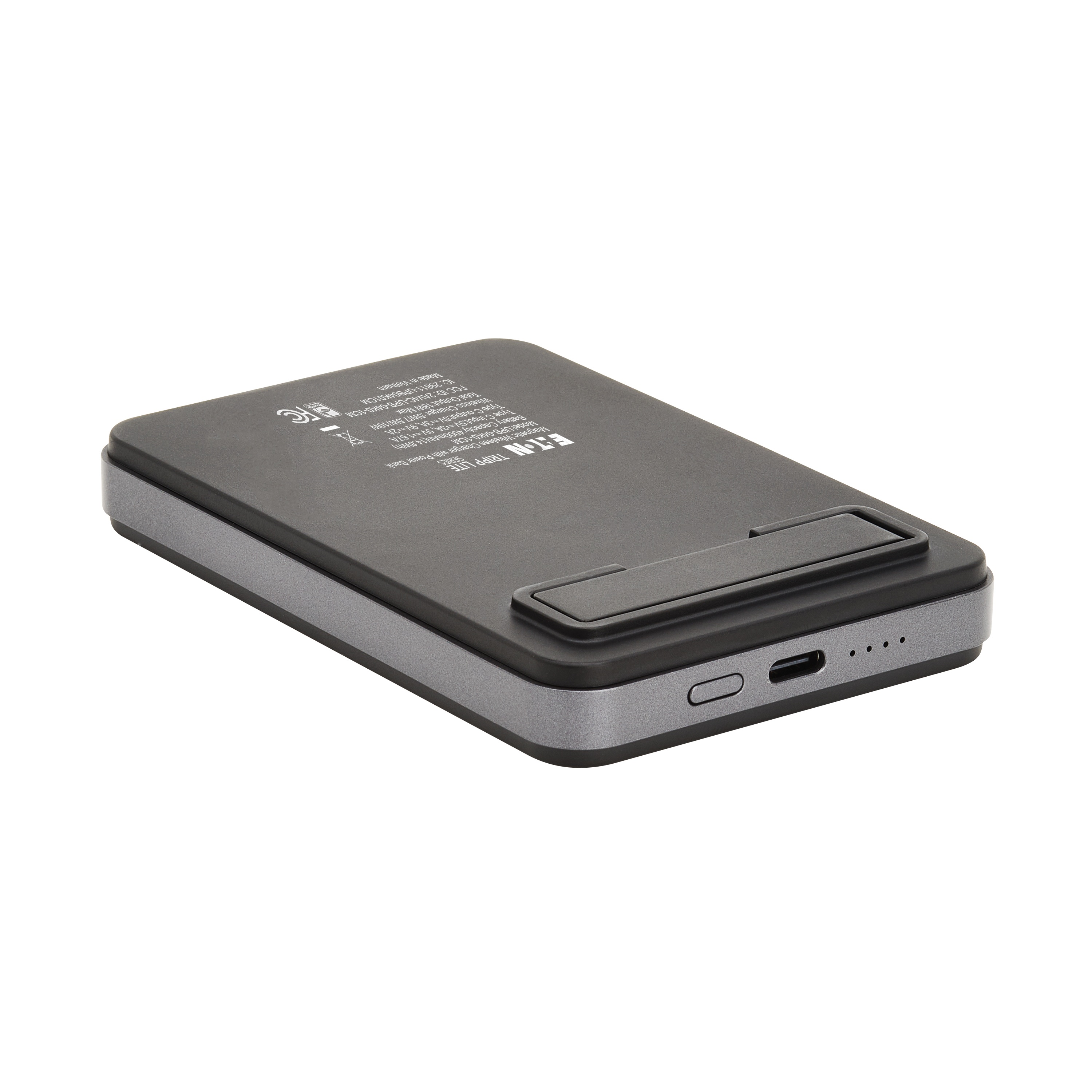

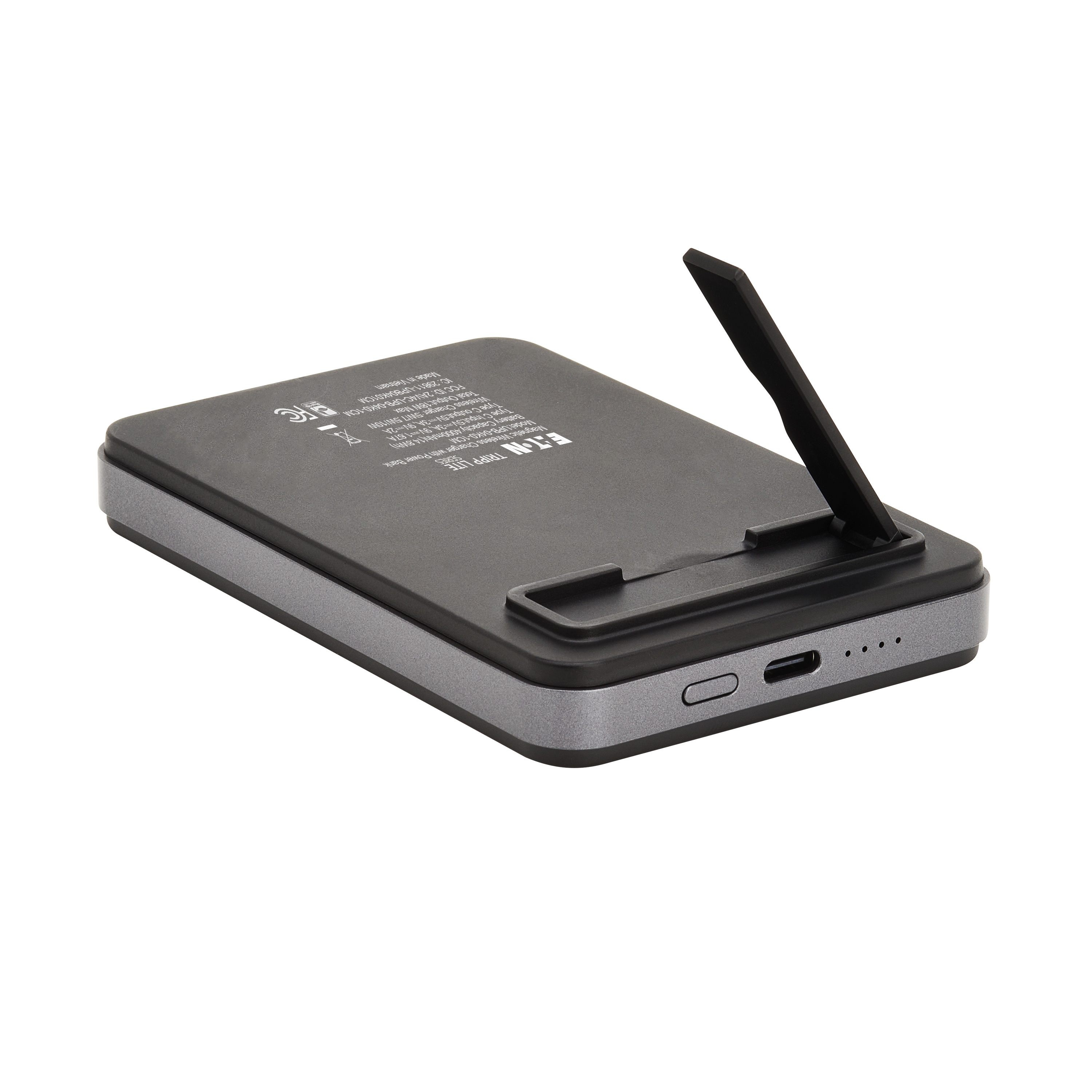

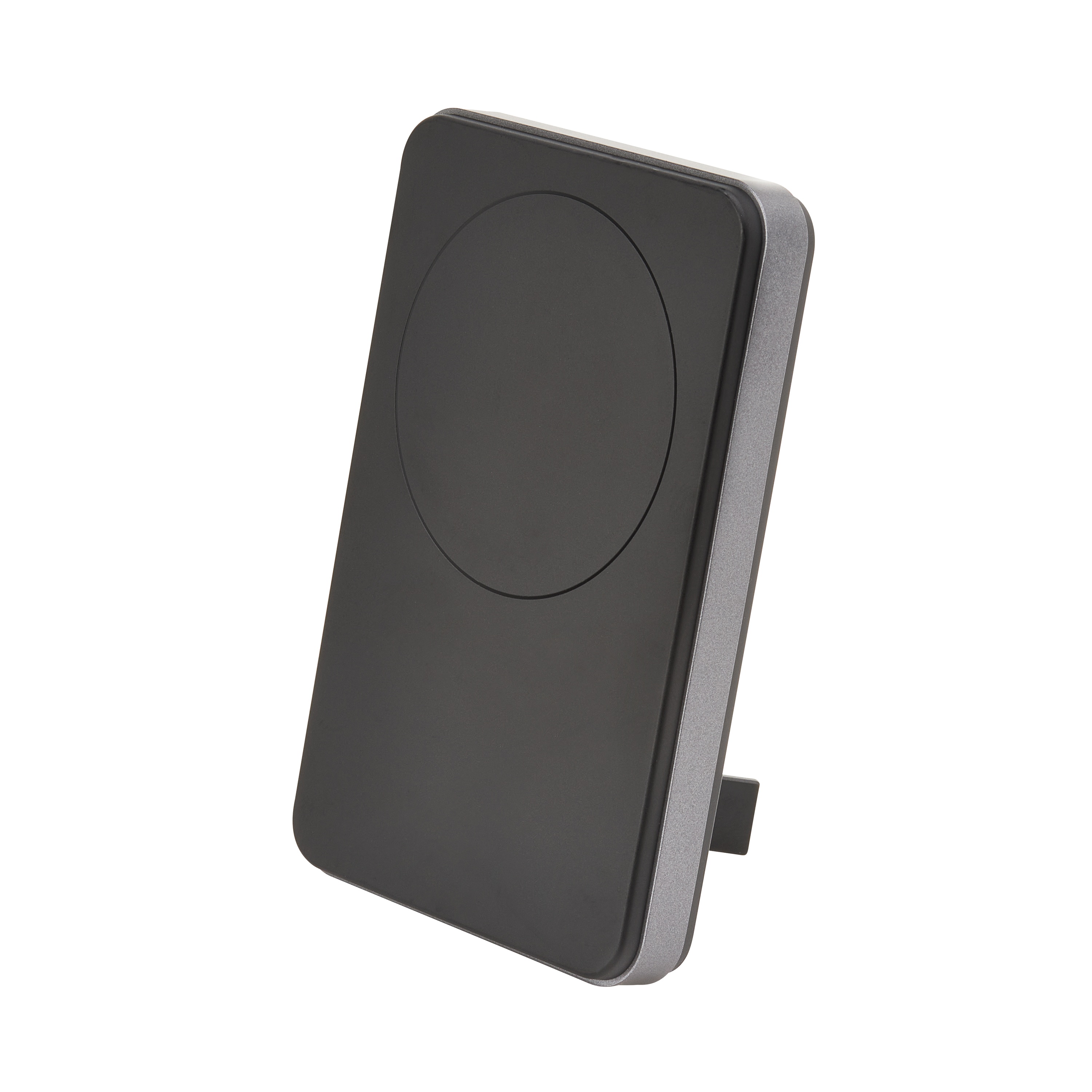

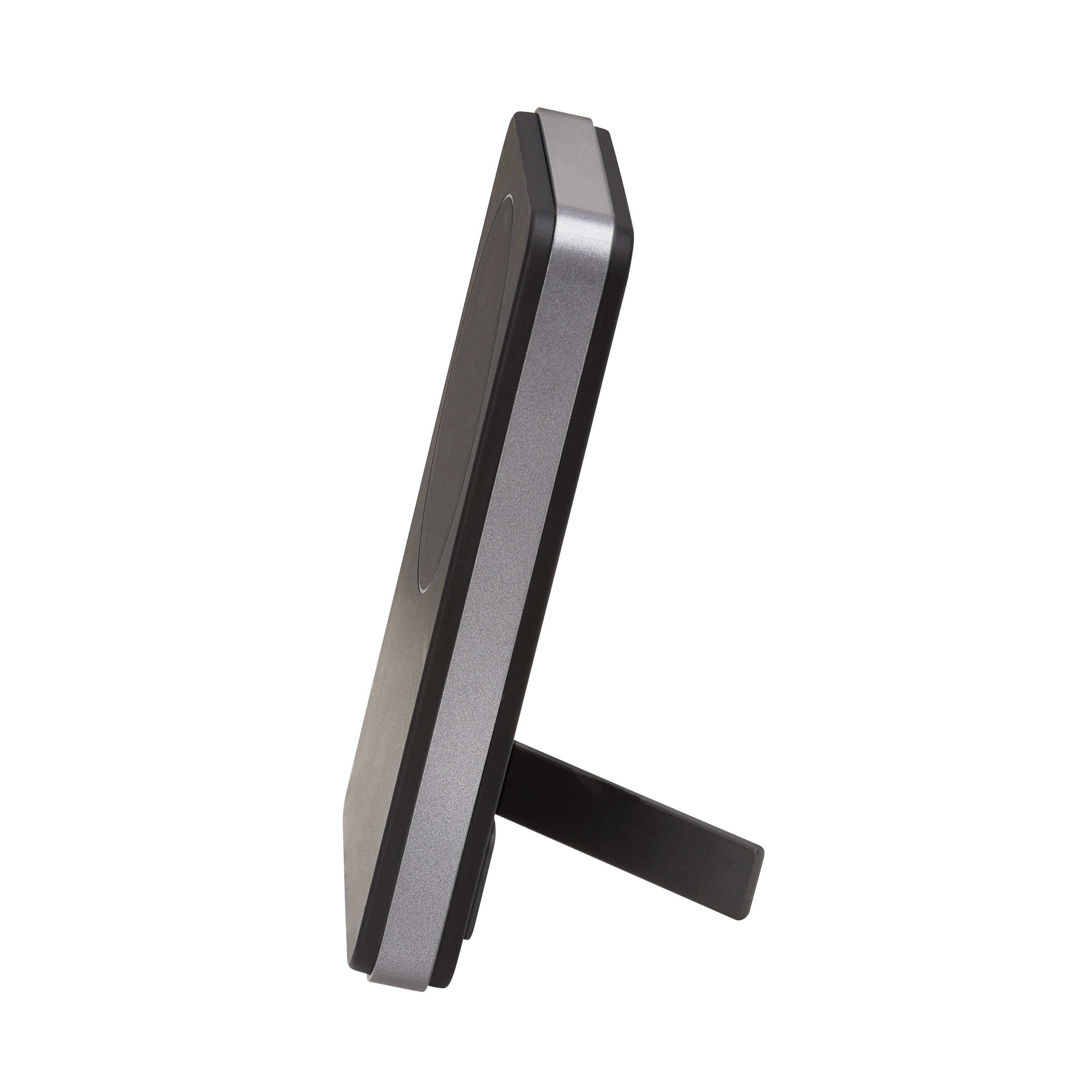

An adjustable stand lets you scroll, text or watch video with the phone vertical or horizontal while it charges. Protection against short circuits, over-voltage, over-current, over-charge and over-discharge keeps the phone and battery safe. The PC+ABS housing measures 4.21 x 2.74 x 0.531 in and weighs 0.553 lb. The package includes the power bank, charging cable and owner's manual, and the unit carries a 1-year limited worldwide warranty. A manufacturer specification sheet is available for this model.

Ideal for

  • Cable-free backup power for iPhone 16, 15, 14, 13 or 12 users on long field days
  • Hands-free video calls or navigation using the built-in stand
  • Emergency phone power during outages and travel delays
  • Compact charger for commuters and conference attendees

Specifications

General

UPC
037332279323
Brand
Eaton (Tripp Lite series)
Warranty
1-year limited
Compliances
RoHS, WEEE, FCC Compliant
Product Name
Eaton Tripp Lite series power bank
Product Type
Power bank
Product Width
2.74 in
Catalog Number
UPB-04K0-1CM
Certifications
NOM, ICES
Global Catalog
UPB-04K0-1CM
Product Height
4.21 in
Product Weight
0.553 lb
Product Length Depth
0.531 in

Product

Type
Portable battery bank with wireless magnetic charging
Color
Black
Capacity
4,000 mAh
Features
Flex Center
Material
PC+ABS
Technology
USB
Cable Length
3 ft
LED Indicators
4 LEDs: light left to right while charging 0-100%, decrease right to left during use
Packaging Type
Box
Charging Method
USB, wireless, magnetic charger
Input Plug Type
USB-C (female)
Number OF Ports
1
Output Capacity
18 W
Battery Capacity
4,000mAh
Package Contents
Owner's manual; USB-A to USB-C charging cable, 3 ft (0.9 m); UPB-04K0-1CM power bank
Product Features
Overvoltage, overcharge and overcurrent protection; USB, wireless and magnetic charging
Sidea Connector1
USB-C (female)
Sideb Connector1
Magnetic charger
Sideb Connector3
Magnetic charger
Battery Chemistry
Lithium-ion
Power Source Type
USB
Cable Jacket Color
Black
Cable Length Range
Up to 4 ft (up to 1 m)
Charging Port Type
USB-C (female), wireless charging coil
Compatible Devices
Tablet, smartphone
Product Highlights
Cable-free charging; 1-year limited worldwide warranty; overcharge, over-voltage, over-current and short-circuit protection; MagSafe-compatible magnetic pad; portable backup power; adjustable stand
Cable Jacket Rating
VW-1
Charging Ports Amps
2A, 3A
Overload Protection
Yes
Total Charging Amps
3A
Cable Outer Diameter
3.5
Charging Form Factor
Pad / stand, portable
Device Compatibility
Phone, tablet
Total Charging Watts
18W
Cable Jacket Material
PVC
Input Nominal Voltage
9 VDC, 5 VDC
Total Number OF Ports
1
Charging Method Detail
4,000 mAh
Charging Ports Details
Magnetic wireless pad up to 10W; USB-C 5V/3A or 9V/2A; one charging method at a time (wait 60 seconds when switching)
Storage Humidity Range
45% to 85% RH
Input Plug Type Details
USB-A to USB-C charging cable, or user-supplied USB-C to USB-C cable
Over Current Protection
Yes
Number OF Charging Ports
1
Operating Humidity Range
20% to 90% RH
Storage Temperature Range
-13° to 113°F (-25° to 45°C)
Continuous Output Capacity
18 W
Operating Temperature Range
32° to 104°F (0° to 40°C)

Questions buyers ask

Which iPhone models is it designed for?

It is designed for iPhone 16, 15, 14, 13 and 12. The magnetic charging pad is compatible with MagSafe and other wireless-compatible devices.

How fast does it charge?

The magnetic wireless pad charges at up to 10W, and the USB-C port delivers 5V/3A or 9V/2A (18W).

Can I charge wirelessly and by cable at the same time?

No. Only one charging method works at a time. When switching between wireless and USB-C, remove the device and wait 60 seconds.

How do I recharge the power bank?

Connect its USB-C port to a USB power source using the included 3 ft USB-A to USB-C cable or your own USB-C to USB-C cable. Four LEDs show charging progress.

What is in the box?

The UPB-04K0-1CM power bank, a 3 ft (0.9 m) USB-A to USB-C charging cable and an owner's manual.
