Eaton Tripp Lite UPB-05K0-1C 5,000mAh USB-C Mobile Power Bank with 20W PD Charging, White

MPN UPB-05K0-1C
  • Up to 20 W
  • 5,000–9,999 mAh
  • USB-C
$23.03$65.00Save $41.97

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

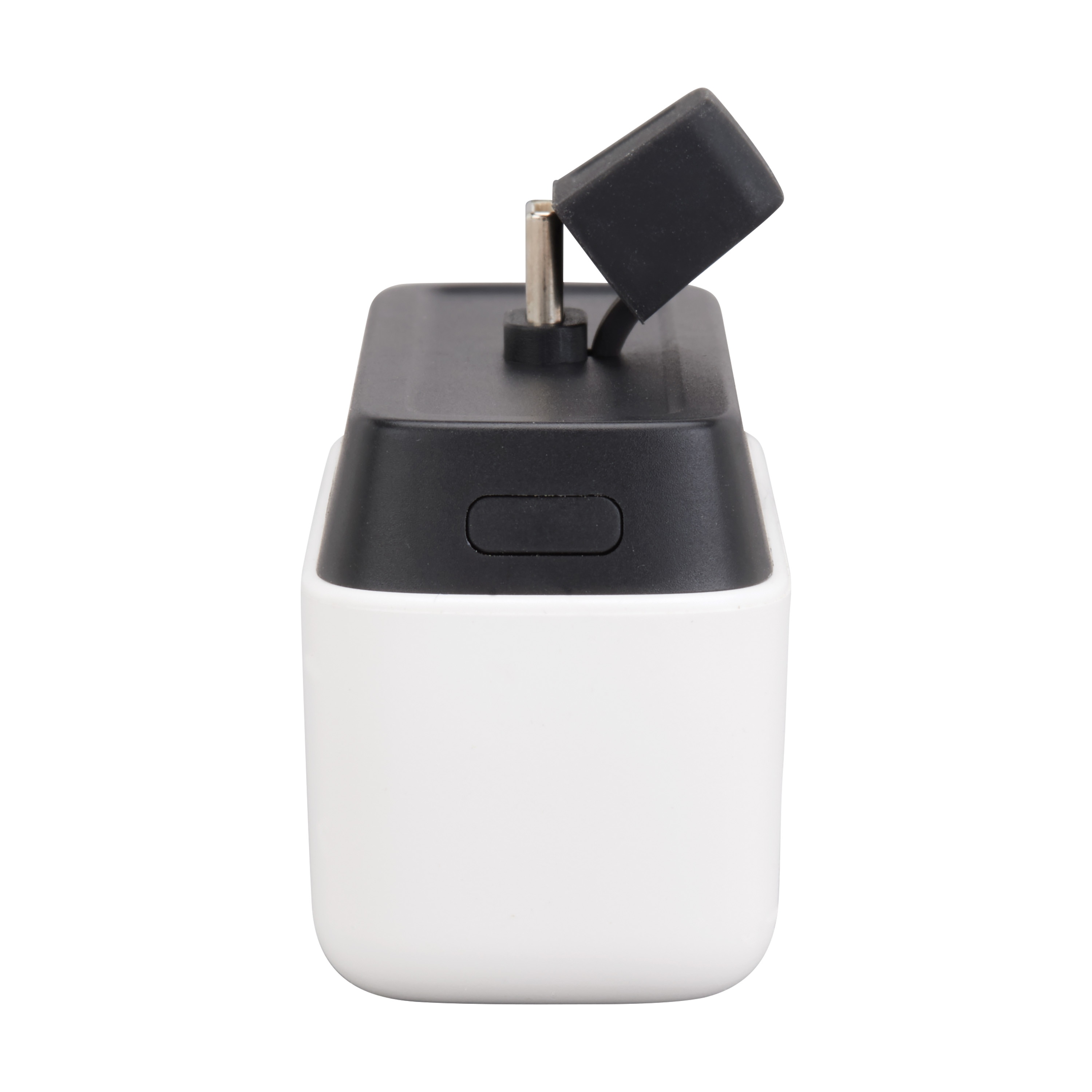

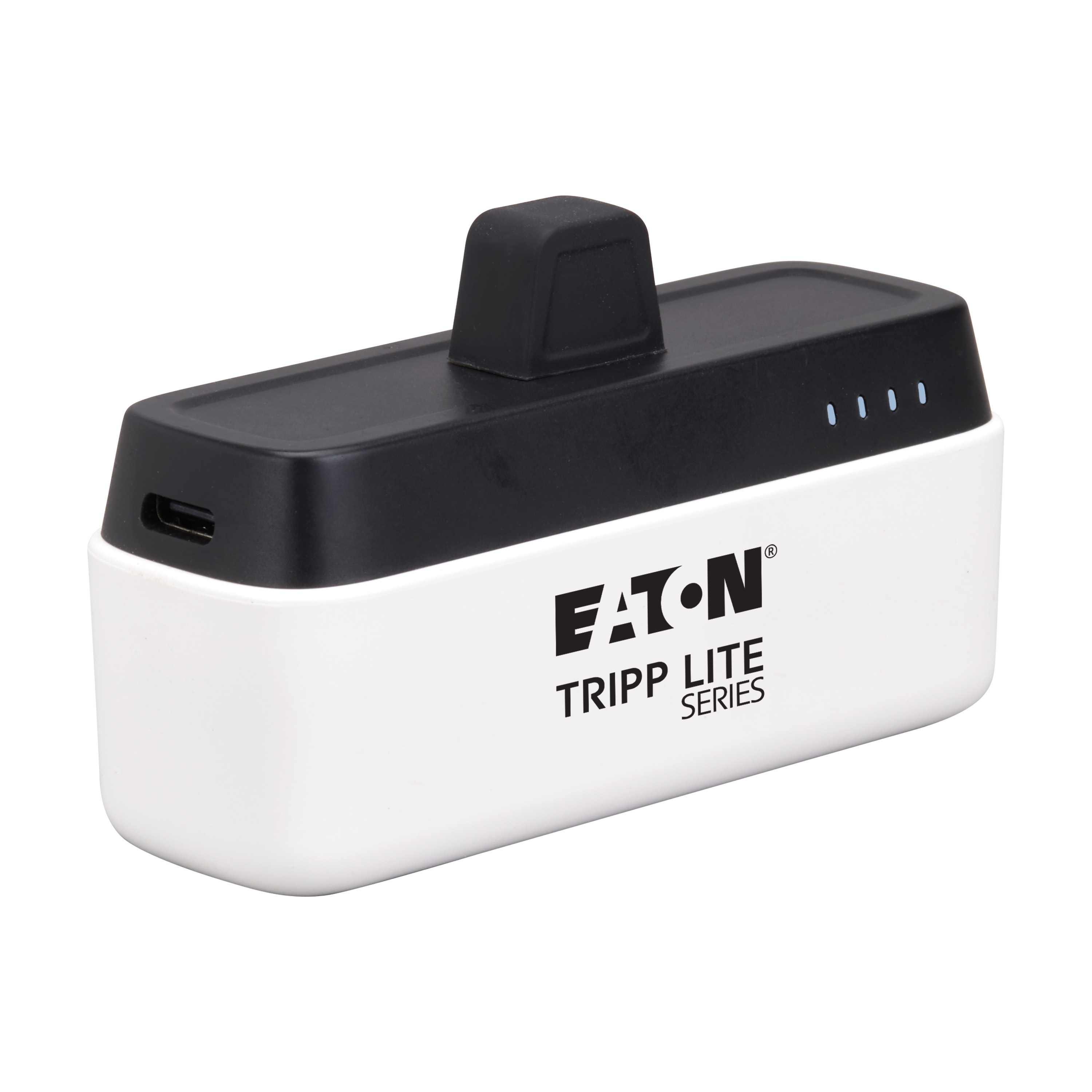

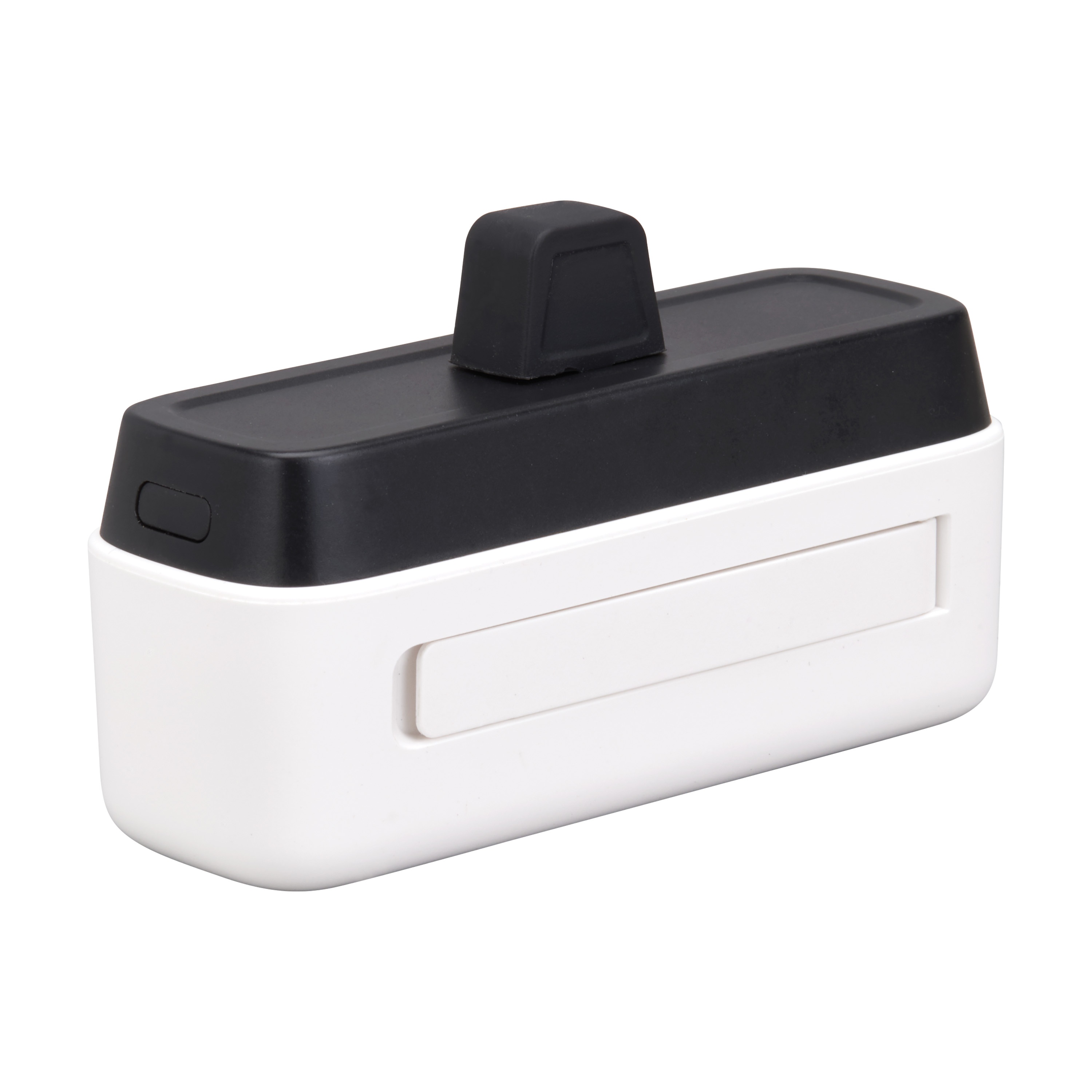

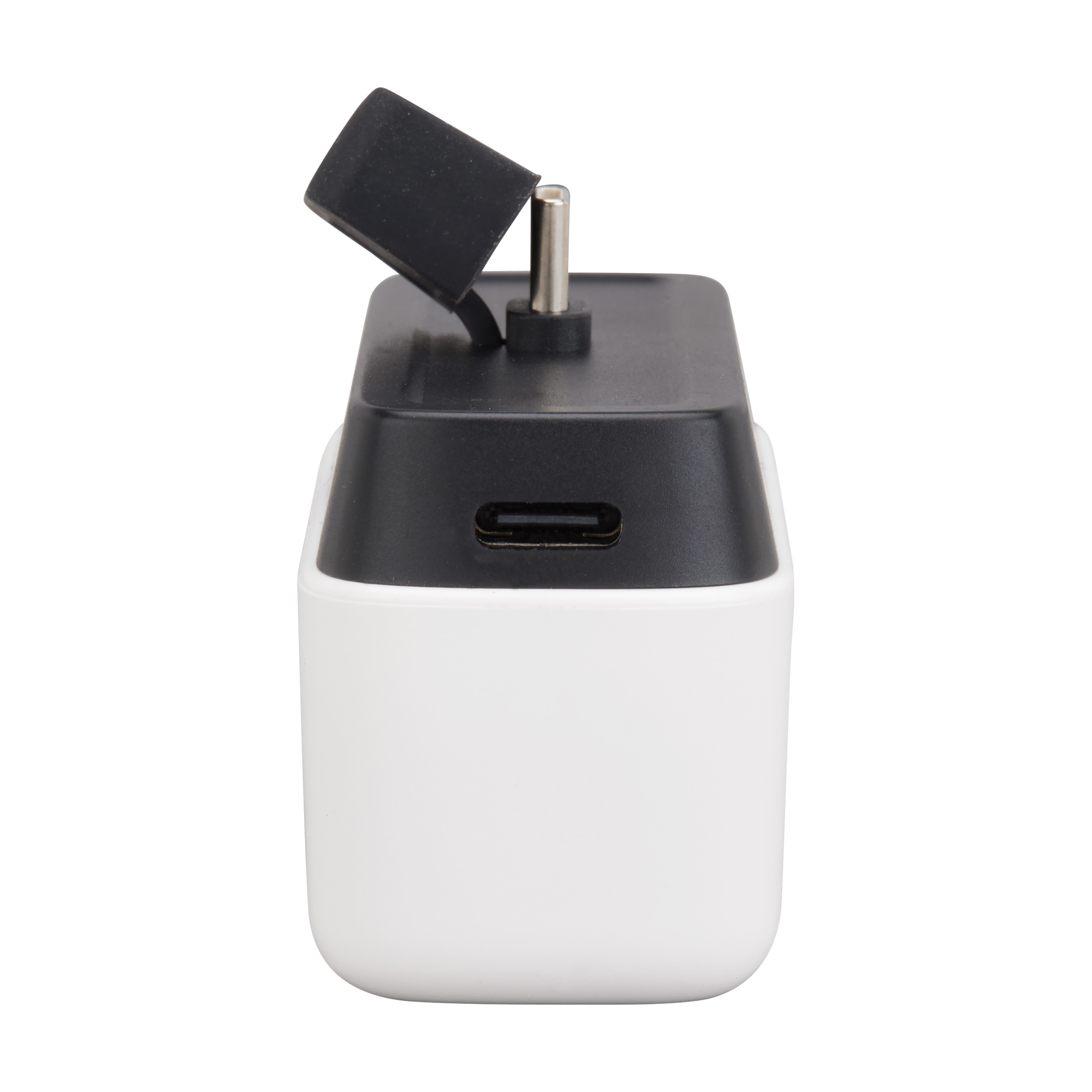

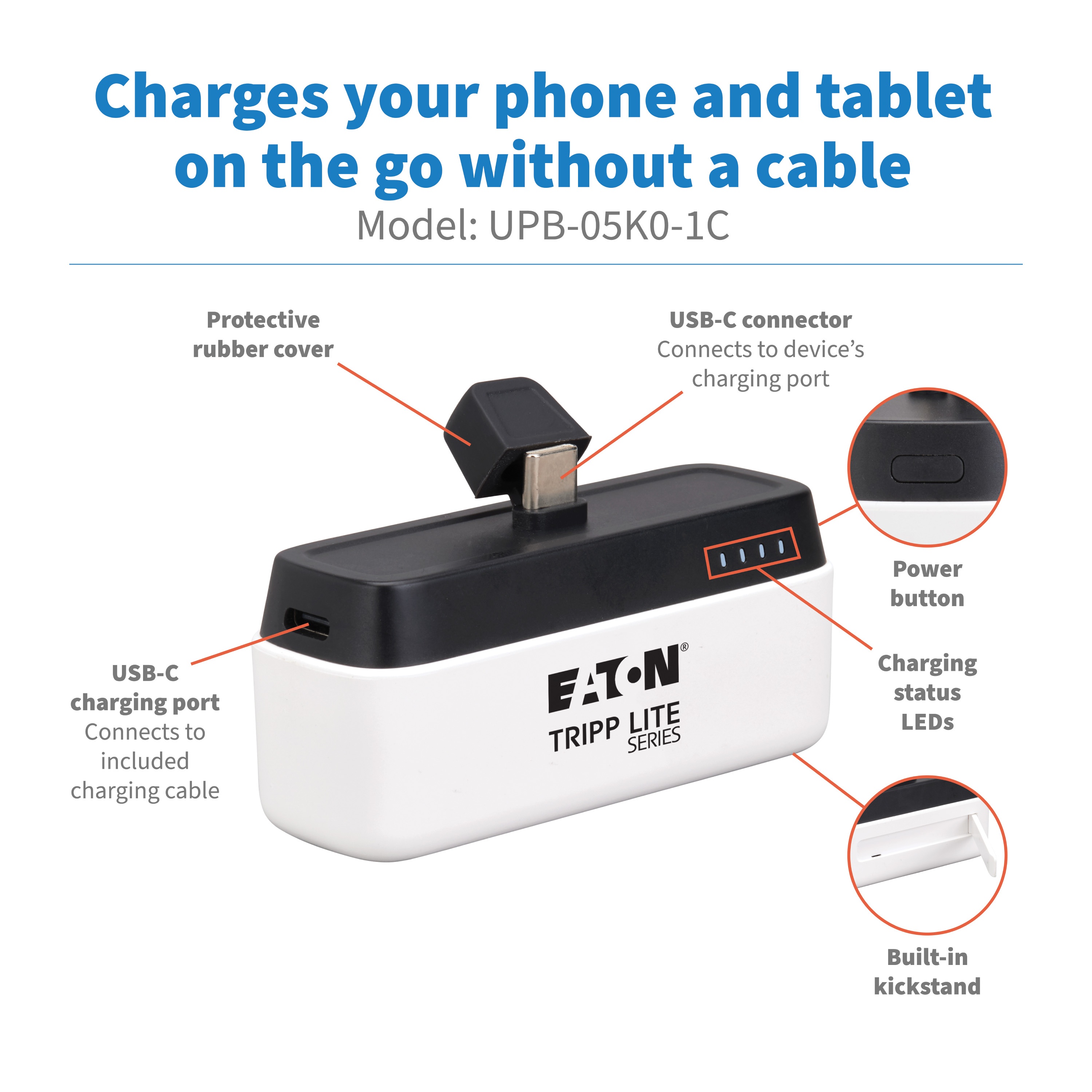

The Eaton Tripp Lite series UPB-05K0-1C is a pocket-sized 5,000mAh lithium-ion power bank with a built-in USB-C connector that plugs directly into your phone, tablet or handheld game console. It supports up to 20W USB Power Delivery charging for iPhone 15 or newer, Samsung Galaxy and other USB-C devices. An adjustable kickstand keeps the screen usable while charging, and four LEDs show remaining capacity.

  • 5,000mAh lithium-ion battery
  • Built-in USB-C connector plugs directly into the device, with a rubber protective cover
  • USB PD output up to 20W (5V 3A, 9V 2A, 12V 1.5A)
  • USB-C port for 5/9 VDC recharging, with a USB-C to USB-C cable included
  • Adjustable kickstand for portrait or landscape viewing
  • Four-LED battery indicator with green fast-charge light
  • Short-circuit, over-voltage, over-current, over-charge, over-discharge and over-temperature protection
  • Charge a USB-C phone without carrying or untangling a cable

The UPB-05K0-1C is a compact, cable-free backup battery from the Eaton Tripp Lite series. Its built-in male USB-C connector plugs straight into the charging port of iPhone 15 or newer, Samsung Galaxy and other smartphones with USB-C inputs, as well as tablets, e-readers and handheld gaming consoles that charge at up to 20W over USB PD. A rubber cover protects the connector when it is not in use.

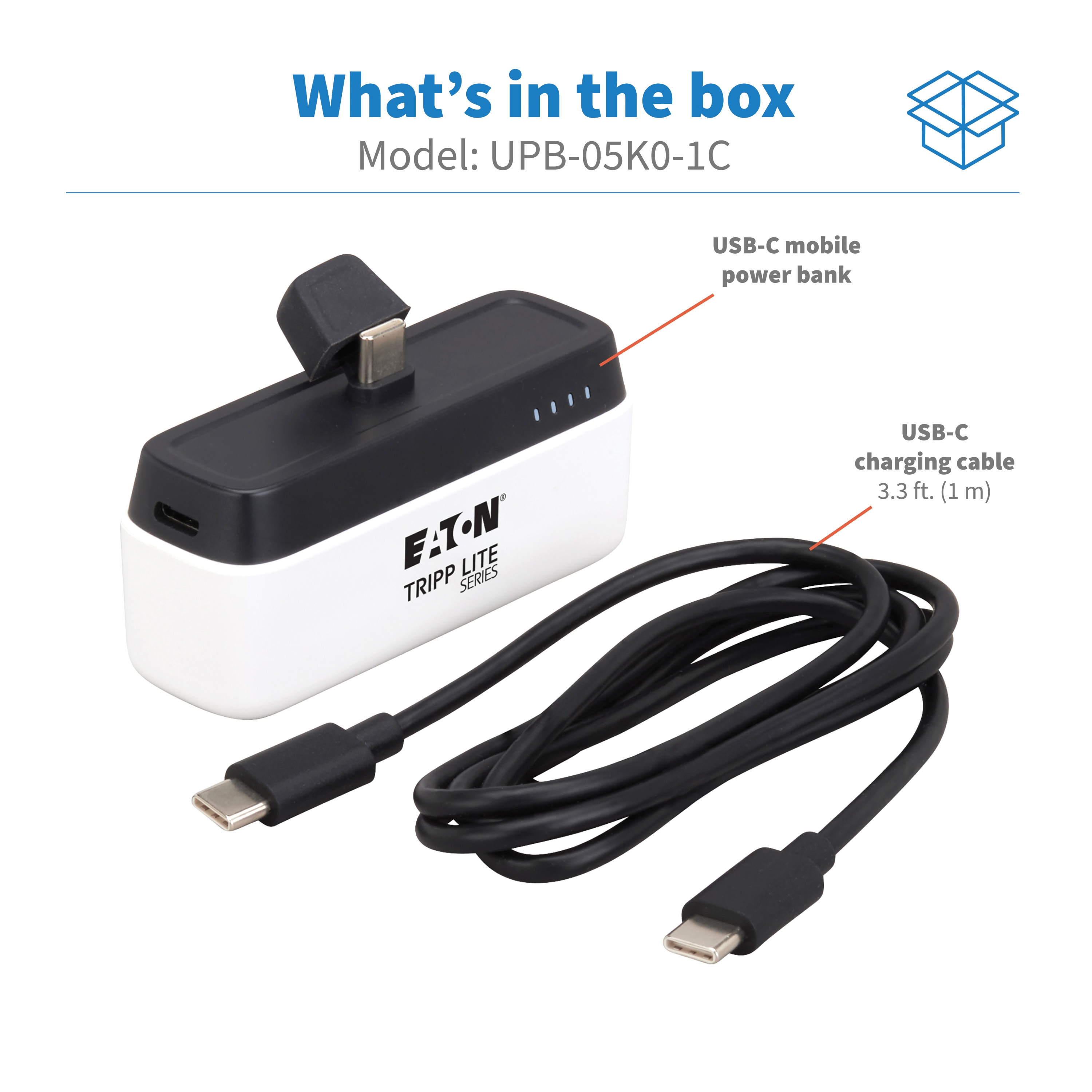

The built-in connector provides 5VDC 3A, 9VDC 2A or 12VDC 1.5A, for up to 20W of output, and the power bank switches off automatically when the connected device is fully charged. Its USB-C port recharges the internal 5,000mAh lithium-ion battery at 5 or 9 VDC from a computer or wall charger, using the included USB-C to USB-C cable or a USB-A to USB-C cable that supports 20W charging. The same port can also charge a device when paired with a USB-C device cable.

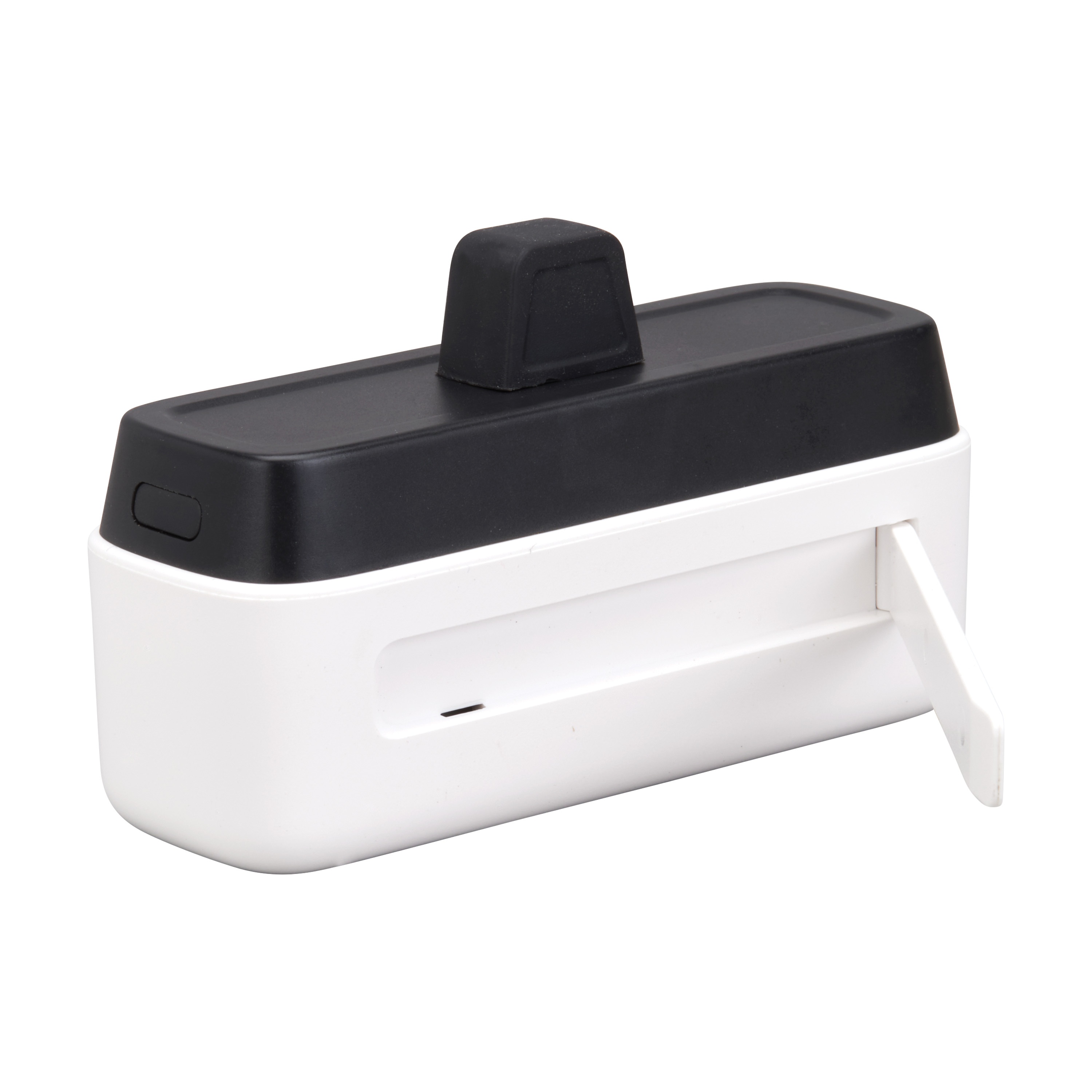

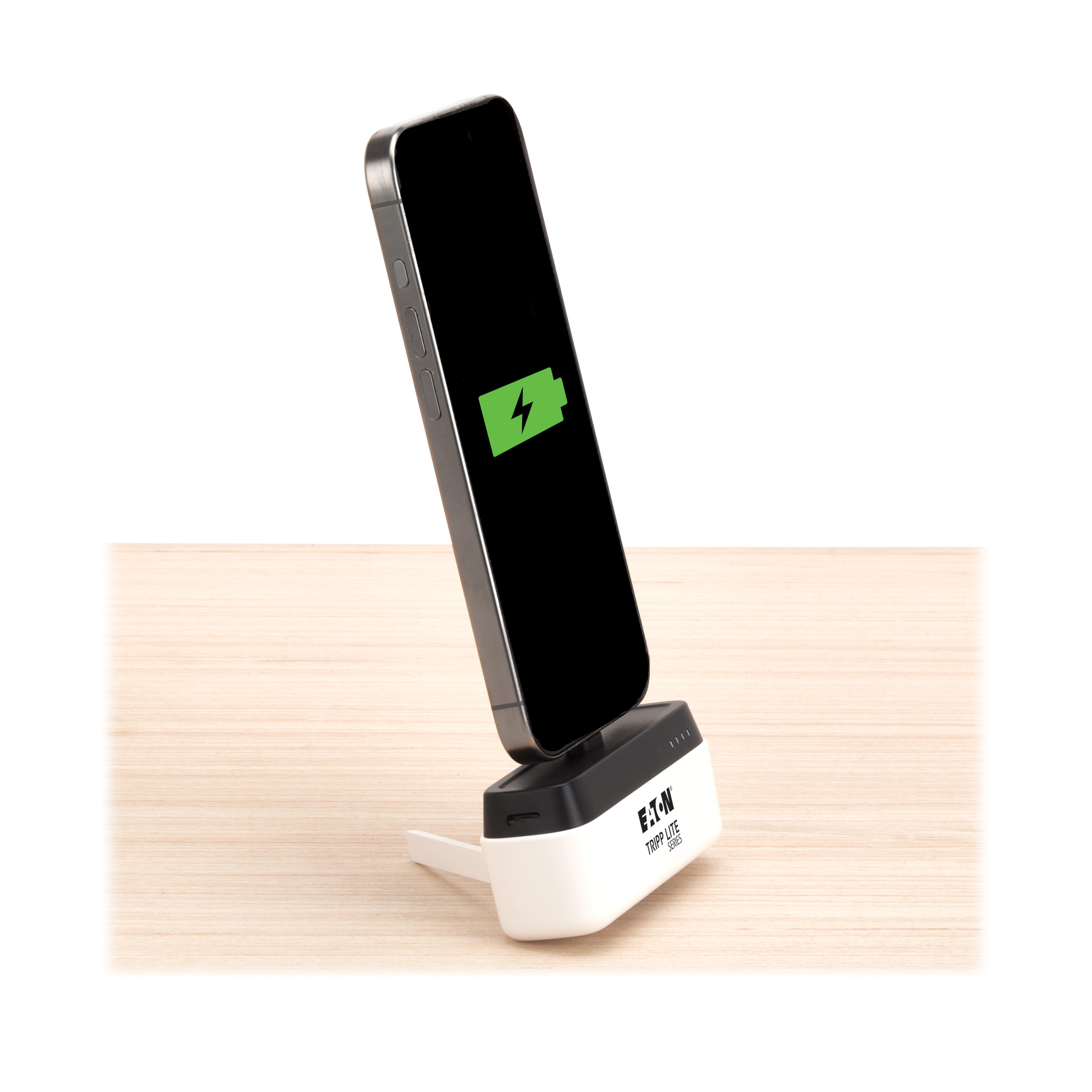

An adjustable kickstand lets you keep the phone vertical for messages or horizontal for video while it charges. Press the button to see remaining capacity on four white LEDs; a green light indicates fast charging. Protection against short circuits, over-voltage, over-current, over-charge, over-discharge and over-temperature keeps devices safe. At 3.19 x 1.38 x 1.1 in and 0.23 lb, it slips easily into a pocket, purse or laptop bag. The unit is certified to UL 62368-1 and CSA C22.2 and meets FCC, CE and RoHS requirements. A manufacturer specification sheet is available for this model.

Ideal for

  • Pocket backup power for iPhone 15 or newer and Samsung Galaxy users
  • Cable-free top-ups for field staff, commuters and travelers
  • Emergency charging for USB-C phones, tablets and e-readers during outages
  • Powering a handheld gaming console on the go

Specifications

General

UPC
037332290588
Brand
Eaton (Tripp Lite series)
Compliances
CE, FCC Compliant, REACH, RoHS, WEEE
Product Name
Eaton Tripp Lite series power bank
Product Type
Power bank
Product Width
1.1 in
Catalog Number
UPB-05K0-1C
Certifications
CSA Std. C22.2, EN 55032, CISPR 35/EN 55035, ICES, UL 62368-1
Global Catalog
UPB-05K0-1C
Product Height
1.38 in
Product Weight
0.23 lb
Product Length Depth
3.19 in

Product

Type
Power Bank
Color
Black; White
Capacity
5,000 mAh
Material
ABS
Connector
USB-C (male)
Technology
Lightning; USB
Cable Length
3.28 ft
Connector Type
USB/Thunderbolt/Lightning
LED Indicators
4 LEDs: white battery level on button press; green during fast charge; power light flashes 5 times before protective shutoff
Packaging Type
Box
Charging Method
USB; Wireless
Connector Group
USB-C
Input Plug Type
USB-C (female)
Number OF Ports
1
Output Capacity
20 W
Battery Capacity
5,000mAh
Product Features
Overcurrent Protection; Overvoltage Protection; Overcharge Protection; Wireless Charging
Sidea Connector1
USB-C (male)
Sideb Connector1
USB-C (female)
Sideb Connector3
USB-C (female)
Battery Chemistry
Lithium-ion
Cable Jacket Color
White
Charging Port Type
USB-C (female)
Compatible Devices
Portable speaker, smartphone, tablet, video game console
Product Highlights
Plugs directly into devices with no cable; portable backup power; 5,000mAh capacity; adjustable kickstand; pocket-sized design
Charging Ports Amps
1.5A, 2A, 3A
Overload Protection
Yes
Total Charging Amps
3A
Charging Form Factor
Portable
Total Charging Watts
20W
Cable Jacket Material
PVC
Input Nominal Voltage
5 VDC, 9 VDC
Total Number OF Ports
1
Charging Method Detail
5,000 mAh
Charging Ports Details
Built-in USB-C male connector for devices charging at up to 20W PD; USB-C port recharges the bank or charges a device via cable; Type-C1: 5VDC 3A, 9VDC 2A, 12VDC 1.5A; Type-C2: 5VDC 2A, 9VDC 2A
Storage Humidity Range
10% to 90% RH
Input Plug Type Details
USB-C to USB-C charging cable, or user-supplied USB-A to USB-C cable supporting 20W charging
USB PD Charging Support
Yes
Number OF Charging Ports
1
Operating Humidity Range
20% to 80% RH
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Continuous Output Capacity
20 W
Operating Temperature Range
32° to 95°F (0° to 35°C)

Questions buyers ask

Which phones does it work with?

It plugs directly into iPhone 15 or newer, Samsung Galaxy and other smartphones with USB-C charging inputs, as well as tablets, e-readers and handheld gaming consoles that charge at up to 20W PD.

How fast does it charge?

The built-in USB-C connector provides 5VDC 3A, 9VDC 2A or 12VDC 1.5A, for up to 20W.

How do I recharge it?

Connect its USB-C port to a computer or wall charger using the included USB-C to USB-C cable, or a USB-A to USB-C cable that supports 20W charging.

How do I check the remaining battery?

Press the button to show battery level on four white LEDs. A green light indicates fast charging.

Does it stop charging when my phone is full?

Yes. The power bank turns off automatically when the connected device reaches full charge.
