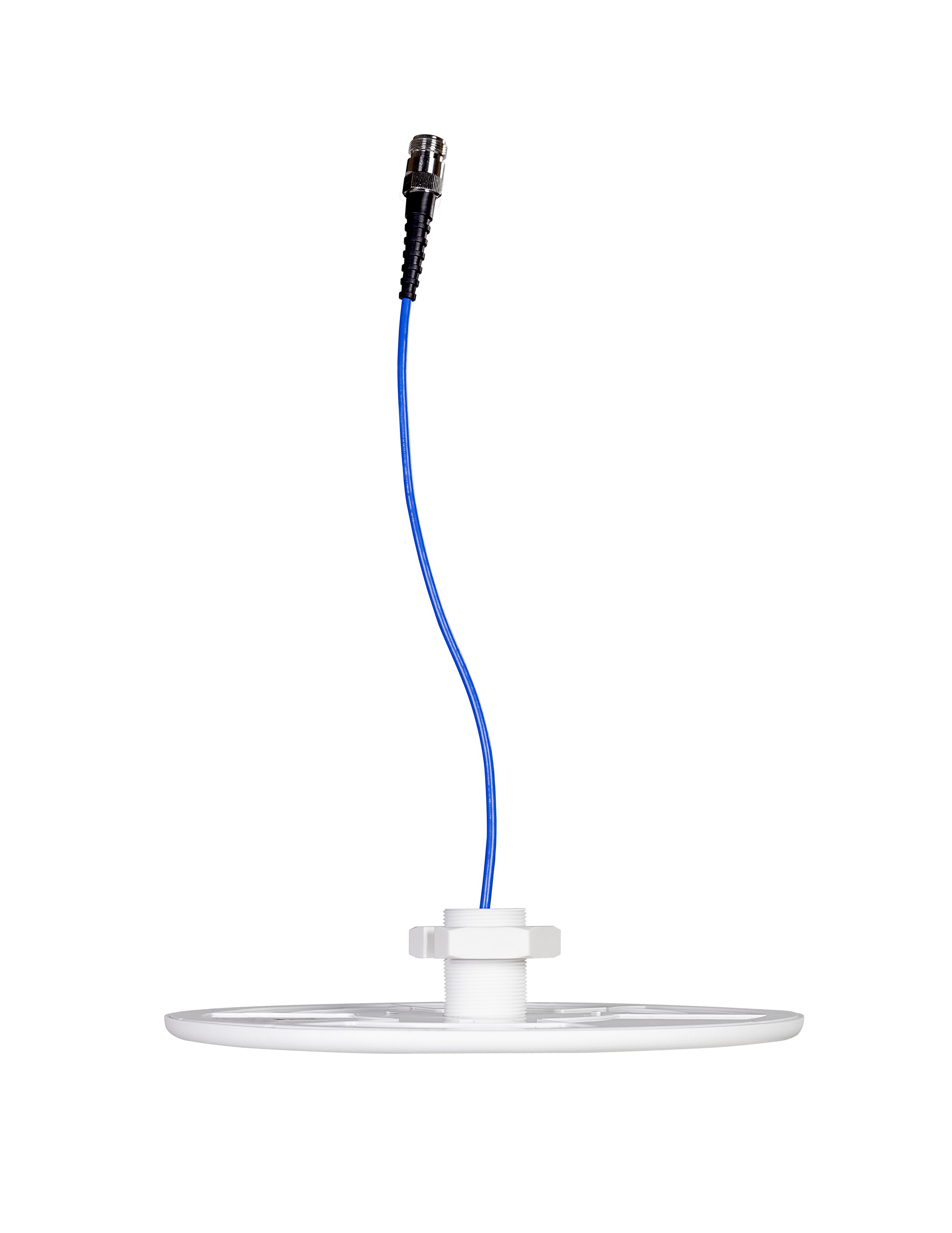

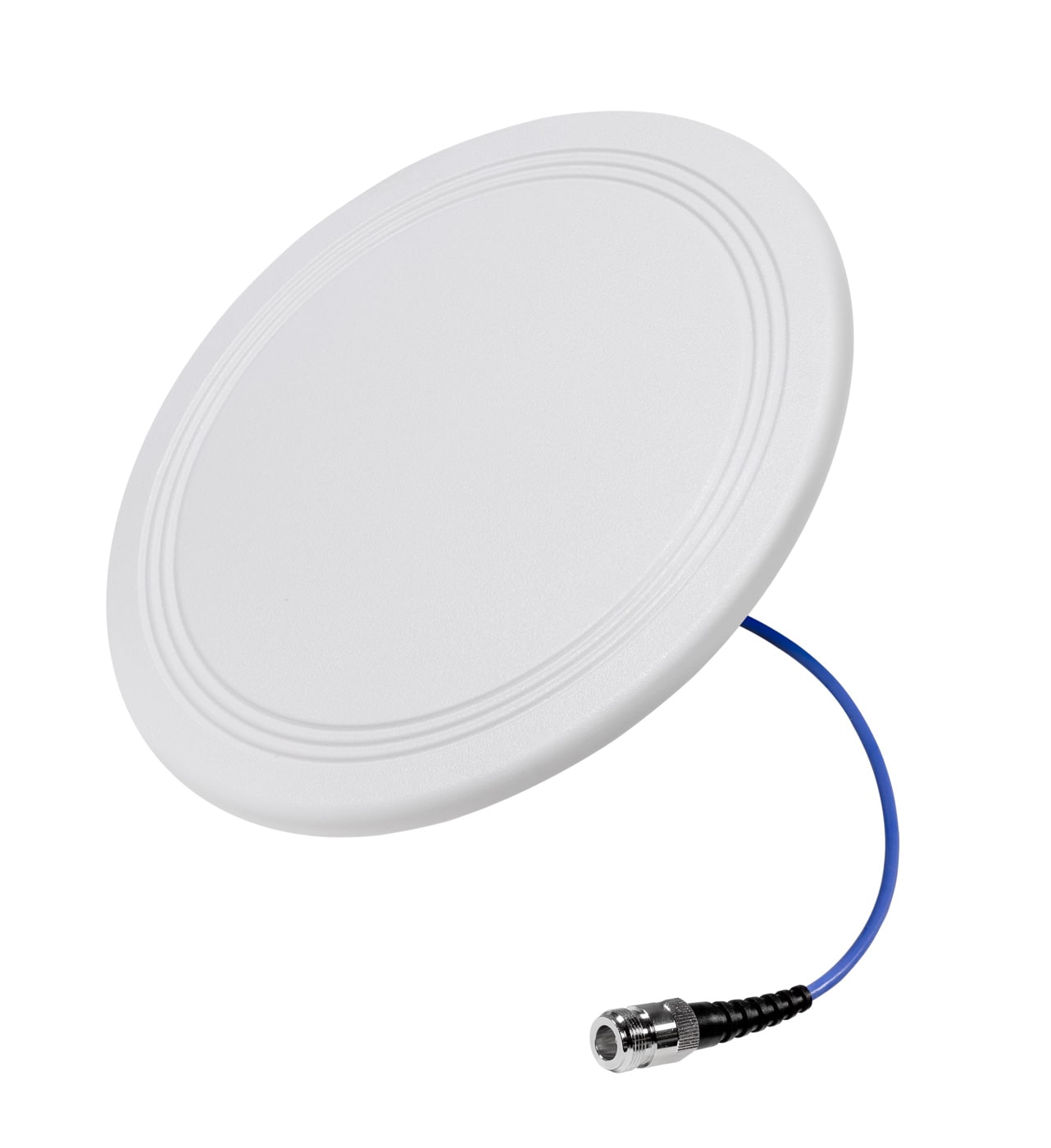

Wilson Electronics 310005 Omni Indoor Ultra Low Profile Ceiling Antenna, 600-6000 MHz, N-Female

5GMPN 310005
  • Single (SISO)
$58.59$109.99Save $51.40

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Wilson Electronics 310005 is an ultra-thin, white omni-directional ceiling antenna for in-building cellular systems. It covers cellular bands and Wi-Fi from 600 through 6000 MHz with 4 to 7 dBi typical gain, and it connects through a plenum-rated pigtail with an N-Female connector. This low-PIM SISO antenna handles 50 W and comes with a mounting nut and a 3-year warranty.

  • Omni-directional, ultra-thin ceiling antenna covering 600-6000 MHz
  • Typical gain from 4 dBi (low band) to 7 dBi (4800-6000 MHz)
  • Plenum-rated pigtail cable with N-Female connector
  • Low PIM, SISO design at 50 Ohm, 50 W maximum power
  • White ABS radome, 9.8 in. diameter, 0.8 lb
  • Mounting nut included; RoHS compliant
  • One antenna covers low-band cellular, mid-band and Wi-Fi frequencies
  • The ultra-thin profile keeps ceilings clean in offices and retail spaces

The Wilson Electronics 310005 Omni Indoor Ultra Low Profile Ceiling SISO NF Antenna is built for modern in-building booster and distributed antenna installations. Its ultra-thin, 9.8-inch (250.8 mm) white ABS radome sits close to the ceiling, and the plenum-rated pigtail cable suits commercial ceiling spaces. It is a single-input (SISO), low-PIM design with an N-Female connector.

The antenna covers 600 through 6000 MHz with typical gain that rises with frequency: 4 dBi at 617-698 and 698-960 MHz, 5 dBi at 1695-2700 MHz, 6 dBi at 3300-4200 MHz and 7 dBi at 4800-6000 MHz. Its horizontal pattern is 360-degree omni-directional, and vertical beamwidth ranges from 70 to 30 degrees across the bands. Impedance is 50 Ohm, VSWR is ≤2.0/≤1.5 and maximum power is 50 W.

The antenna weighs 0.8 lb (0.4 kg), has a 12-inch (30 cm) pigtail and is rated from -40 to 60 °C at 5-95% humidity. It is RoHS compliant. It installs with the included mounting nut through the ceiling. A spec sheet is available, and the manufacturer provides a 3-year warranty from purchase.

Ideal for

  • Commercial in-building cellular booster systems
  • Offices, retail and hospitality ceilings
  • Plenum ceiling spaces that require rated cabling
  • Upgrading older dome antennas to wider frequency coverage

Specifications

General

MPN
310005
UPC
810005965323
Brand
Wilson Electronics
Warranty
3 Years from Purchase
Product Name
Omni Indoor Ultra Low Profile Ceiling SISO NF Antenna
Configuration
SISO, Low PIM

Package

Contents
In the Box: Ceiling Antenna with Mounting Nut

Electrical

Vswr
≤2.0 / ≤1.5
Impedance
50 Ohm
Gain 617 698
4 dBi
Gain 698 960
4 dBi
Polarization
Linear, Horizontal
Maximum Power
50 W
Gain 1695 2700
5 dBi
Gain 3300 4200
6 dBi
Gain 4800 6000
7 dBi
Frequency Range
600-6000 MHz
Vertical Beamwidth
70° / 68° / 50° / 60° / 30°
Horizontal Beamwidth
360°, Omni-Directional

Mechanical

Rohs
Compliant
Weight
0.8 lb / 0.4 kg
Connector
N-Female
Cable Length
12 in / 30 cm (Plenum Rated)
Packing Size
10.4 x 10.4 x 3.4 in / 265 x 265 x 90 mm
Radome Material
ABS (White)
Antenna Diameter
Antenna Size: 9.8 in / 250.8 mm
Operating Humidity
5-95%
Operating Temperature
-40 to 140 °F / -40 to 60 °C

Questions buyers ask

What frequencies does the 310005 cover?

It covers 600 through 6000 MHz, including cellular bands and Wi-Fi, with typical gain from 4 dBi to 7 dBi depending on the band.

Is the cable plenum rated?

Yes. The pigtail is plenum rated and ends in an N-Female connector.

What is included?

The 310005 ceiling antenna with its mounting nut.

What warranty does it carry?

The manufacturer provides a 3-year warranty from purchase.
