Wilson (weBoost)Antennas & Signal

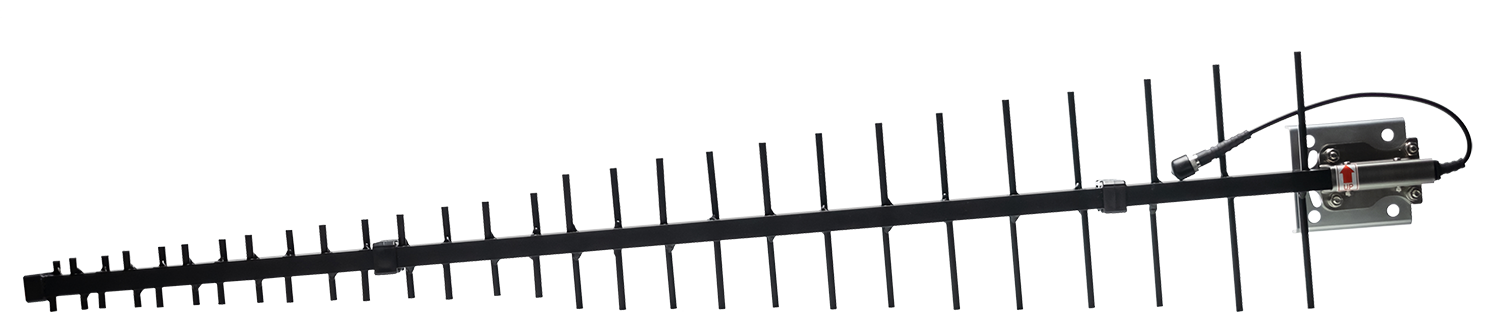

WilsonPro 311228 High Gain LPDA Directional Cellular Antenna, 698-2700 MHz, N-Female

4G LTEMPN 311228
  • Single (SISO)
  • 9 dBi and up
$133.16$249.99Save $116.83

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Wilson Electronics WilsonPro 311228 High Gain LPDA Antenna is a 44-inch, all-weather directional antenna made for commercial-grade WilsonPro amplifiers. It covers 698-2700 MHz with peak gain up to 13.1 dBi for LTE, CDMA, GSM, UMTS and AWS voice and data. It mounts on a 1.5- to 2-inch pipe or mast with the included tilt/swivel bracket, has an N-Female connector and carries a 2-year warranty.

  • Directional LPDA design covering 698-2700 MHz
  • Peak gain up to 13.1 dBi (1900-2200 MHz)
  • Supports LTE, CDMA, GSM, UMTS and AWS for voice and data
  • Rugged, waterproof aluminum construction rated for 130 mph wind

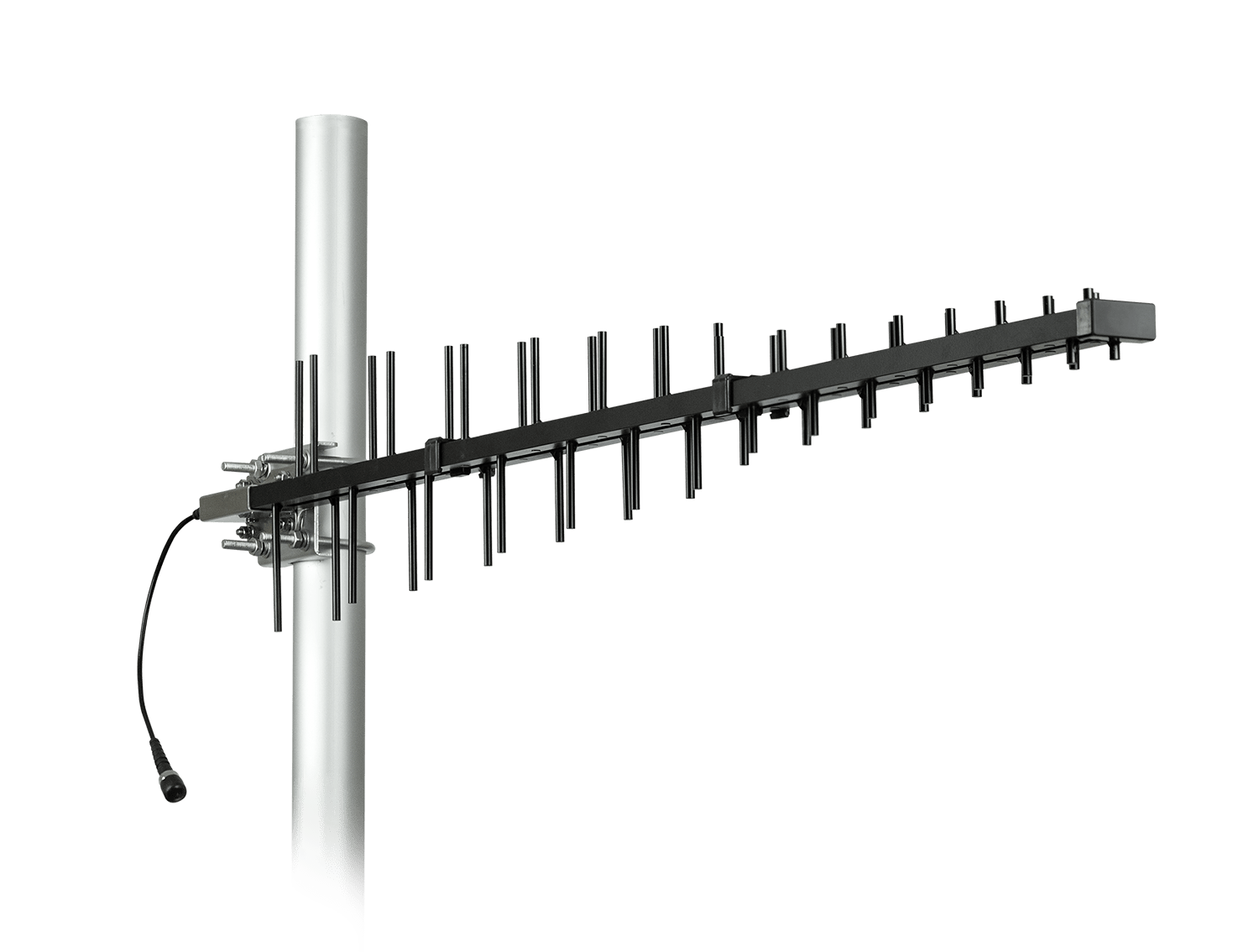

  • Tilt/swivel bracket for 1.5-2.0 in. pipe or mast
  • N-Female connector, 50 Ohm, 50 W maximum power
  • Pulls in stronger donor signal for commercial WilsonPro boosters
  • The tilt/swivel bracket makes precise tower aiming straightforward

The WilsonPro 311228 High Gain LPDA (log-periodic dipole array) Antenna is the outdoor donor antenna for commercial WilsonPro signal booster systems. It mounts on a building exterior and points at the nearest cell tower, concentrating gain in that direction to pull in the strongest possible signal for the amplifier. It works on worldwide cellular bands for voice and data, including LTE, CDMA, GSM, UMTS and AWS.

Peak gain is 12.0 dBi at 698-806 MHz, 12.0 dBi at 806-960 MHz, 12.9 dBi at 1710-1880 MHz, 13.1 dBi at 1900-2200 MHz and 11.2 dBi at 2200-2700 MHz. Half-power azimuth beamwidth ranges from 60° down to 38°, and elevation beamwidth from 46° to 30°. The antenna has linear polarization, VSWR below 2:1, a 50 Ohm impedance and a 50 W maximum power rating.

It is built to last outdoors. The aluminum radiators are rugged and waterproof for all-weather operation, and the antenna is rated for 130 mph wind. It is 44.0 inches (111.7 cm) long and weighs 3.5 lb (1.5 kg). The included tilt/swivel bracket fits 1.5-2.0 in. (3.8-5.0 cm) pipe or mast for precise aiming. The connector is N-Female, and a spec sheet is available. The manufacturer provides a 2-year warranty.

Ideal for

  • Outdoor donor antenna for WilsonPro commercial boosters
  • Office buildings and warehouses far from towers
  • Rural commercial and industrial sites
  • Mast-mounted installations aimed at a specific tower

Specifications

General

MPN
311228
UPC
810005961639
Brand
WilsonPro by Wilson Electronics
Warranty
2 Years
Antenna Type
Directional (LPDA)
Product Name
High Gain LPDA Antenna

Package

Contents
In the Box: Antenna with Mounting Hardware
Package Weight
4.82 lb
Package Dimensions
47.38 L x 3.5 W x 9.5 H in

Electrical

Vswr
<2:1
Impedance
50 Ohm
Peak Gain
12.0 / 12.0 / 12.9 / 13.1 / 11.2 dBi
Polarization
Linear
Maximum Power
50 W
Frequency Bands
698-806, 806-960, 1710-1880, 1900-2200, 2200-2700 MHz
Supported Technologies
LTE, CDMA, GSM, UMTS, AWS
Half Power Azimuth Beamwidth
60° / 60° / 38° / 46° / 44°
Half Power Elevation Beamwidth
46° / 42° / 30° / 34° / 34°

Mechanical

Length
44.0 in / 111.7 cm
Weight
3.5 lb / 1.5 kg
Connector
N-Female
Pole Mount
1.5-2.0 in / 3.8-5.0 cm
Radiator Material
Aluminum
Rated Wind Velocity
130 mph

Compatibility

Compatible With
WilsonPro Cellular Amplifiers

Questions buyers ask

Which amplifiers is the 311228 designed for?

It is made for commercial-grade WilsonPro amplifiers and cellular repeaters.

What mast size does it fit?

The included tilt/swivel bracket fits a 1.5 to 2.0 in. (3.8-5.0 cm) diameter pipe or mast.

What is the peak gain?

Peak gain is 12.0 dBi at 698-960 MHz, 12.9 dBi at 1710-1880 MHz, 13.1 dBi at 1900-2200 MHz and 11.2 dBi at 2200-2700 MHz.

Is it suitable for outdoor use?

Yes. It is rugged and waterproof for all-weather operation and rated for 130 mph wind velocity.
