WilsonPro 311233 Wideband Directional Antenna 50 Ohm 617-2700 MHz with Band 71

5GMPN 311233
  • Single (SISO)
  • 6–8 dBi
$48.35$89.99Save $41.64

In stock · only 3 leftFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

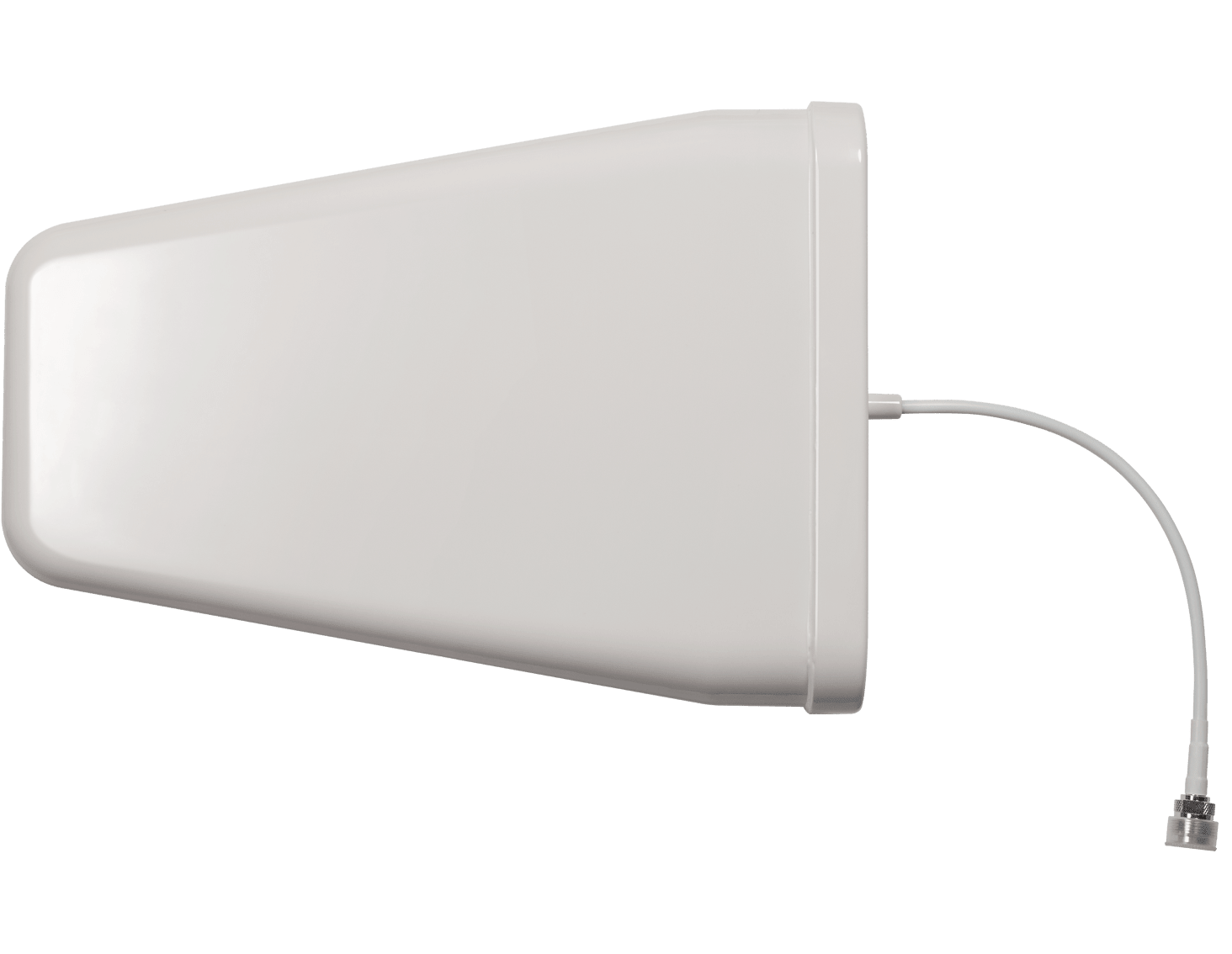

The Wilson Electronics 311233 Wideband Directional Antenna 50 Ohm is an outdoor donor antenna for WilsonPro and weBoost cellular boosters, including the Pro 710i. It covers 617-960 MHz and 1710-2700 MHz, including low-band 5G Band 71, with peak gain up to 8.3 dBi. Its waterproof, UV-stable white radome and tilt/swivel mast bracket let you aim it at the nearest tower from a building exterior.

  • Covers 617-960 MHz and 1710-2700 MHz, including low-band 5G Band 71
  • Works on worldwide LTE, CDMA, GSM, UMTS and AWS bands for voice and data
  • Peak gain from 4.8 dBi to 8.3 dBi across seven frequency segments
  • 50 Ohm impedance, N-Female connector, vertical polarization, 20 W max power
  • Sealed, UV-stable white ABS radome over an aluminum radiator; rugged and waterproof
  • Tilt/swivel mast bracket and installation hardware included
  • Engineered for the WilsonPro Pro 710i; 2-year manufacturer warranty
  • Aim at a specific tower to pull in a stronger, cleaner donor signal

The Wideband Directional Antenna 50 Ohm (311233) is the building-exterior donor antenna Wilson engineered for the WilsonPro Pro 710i industrial-grade cell signal amplifier. It is also rated for high performance with weBoost cellular boosters. It covers seven segments from 617 MHz to 2700 MHz, including low-frequency 5G Band 71. It also works on the LTE, CDMA, GSM, UMTS and AWS cellular bands worldwide for voice and data.

Because it is directional, the antenna focuses on the tower you point it at. Peak gain ranges from 4.8 dBi in the 617-698 MHz band to 8.3 dBi at 1710-1880 MHz. Front-to-back ratio reaches 20 dB in the mid bands, and efficiency is above 68% and 75%. The antenna uses vertical polarization, 50 Ohm impedance and an N-Female connector, and handles 20 W of maximum power.

The antenna is built for year-round outdoor use. An aluminum radiator sits inside a sealed, UV-stable white ABS radome that is rugged and waterproof. At 11.5 x 8.2 x 2.5 in and 1.76 lb, it is compact enough for rooftop and wall-mast installs. The included tilt/swivel mast bracket clamps to pipe up to 2 in in diameter and lets you point the antenna toward nearby Band 71 towers.

The kit contains the antenna plus a pole mount and hardware. The unit is assembled in the USA and carries Wilson's 2-year warranty. A manufacturer spec sheet with radiation patterns is available for RF planning.

Ideal for

  • Outdoor donor antenna for a WilsonPro Pro 710i commercial booster
  • Pulling Band 71 low-band coverage into warehouses and offices
  • Rooftop or wall-mast donor for weBoost building booster systems
  • Rural sites where the nearest tower is far away and in a known direction

Specifications

General

UPC
810005962438
Brand
Wilson Electronics (WilsonPro / weBoost)
Model
311233
Warranty
2-year manufacturer warranty
Product Name
Wideband Directional Antenna 50 Ohm 617-2700 MHz
Supported Technologies
Band 71 / LTE / CDMA / GSM / UMTS / AWS

Package

Origin
Assembled in the USA
Kit Includes
Antenna, pole mount & hardware
Master Carton
17.7 x 17.7 x 13.7 in, 23.1 lbs, 10 units
Package Weight
2.0 lbs
Package Dimensions
13 x 8.5 x 3.3 in

Electrical

Vswr
<2.2:1 / <2.0:1 / <2.0:1 / <1.5:1
Impedance
50 Ω
Max Power
20 W
Peak Gain
4.8 / 6.3 / 8 / 8.3 / 7.6 / 8.0 / 7.8 dBi (by band, low to high)
Efficiency
>68% / >75%
Polarization
Vertical
Frequency Bands
617-698 / 698-806 / 806-960 / 1710-1880 / 1850-1990 / 1910-2170 / 2300-2700 MHz
Front TO Back Ratio
8 / 12 / 20 / 20 / 20 / 18 / 15 dB (by band)
Half Power Azimuth Beamwidth
135° / 115° / 90° / 67° / 83° / 75° / 90° (by band)
Half Power Elevation Beamwidth
74° / 68° / 63° / 52° / 60° / 56° / 58° (by band)

Mechanical

Connector
N-Female
Dimensions
11.5 x 8.2 x 2.5 in (294 x 210 x 65 mm)
Environment
Waterproof, all-weather, UV stable
Mast Bracket
Tilt/swivel bracket for 1.25-2 in pipe/mast
Antenna Weight
1.76 lb (0.8 kg)
Packing Weight
1.9 lb (0.9 kg)
Radome Material
ABS, UV-stable white sealed radome
Radiator Material
Aluminum
Wind Loading Area
≥2.13 ft² (0.2 m²)
Rated Wind Velocity
1.5-2.0 / 40-50 (mph / kph, as published)
Shipping Dimensions
12.9 x 8.5 x 2.9 in (330 x 217 x 76 mm)

Questions buyers ask

Does the 311233 support Band 71?

Yes. It covers 617-960 MHz and 1710-2700 MHz, including low-frequency 5G Band 71, along with LTE, CDMA, GSM, UMTS and AWS bands.

What is the antenna's gain?

Peak gain varies by band: 4.8 dBi at 617-698 MHz, 6.3 dBi at 698-806 MHz, 8 dBi at 806-960 MHz, 8.3 dBi at 1710-1880 MHz, 7.6 dBi at 1850-1990 MHz, 8.0 dBi at 1910-2170 MHz and 7.8 dBi at 2300-2700 MHz.

Which boosters is it made for?

Wilson engineered it for the WilsonPro Pro 710i. It is also rated for high performance with weBoost cellular boosters. It uses 50 Ohm impedance and an N-Female connector.

How is it mounted?

It installs on a building exterior using the included tilt/swivel mast bracket and hardware, which clamp to pipe up to 2 in in diameter. You then aim it at the nearest cell tower.

Is it weatherproof?

Yes. It has a sealed, UV-stable ABS radome and is rugged and waterproof for all-weather operation.
