Wilson (weBoost)Antennas & Signal

WilsonPro 311234 Indoor Wall-Mount Antenna 50 Ohm 617-2700 MHz with Band 71

5GMPN 311234
  • 6–8 dBi
$48.35$89.99Save $41.64

In stock · only 2 leftFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

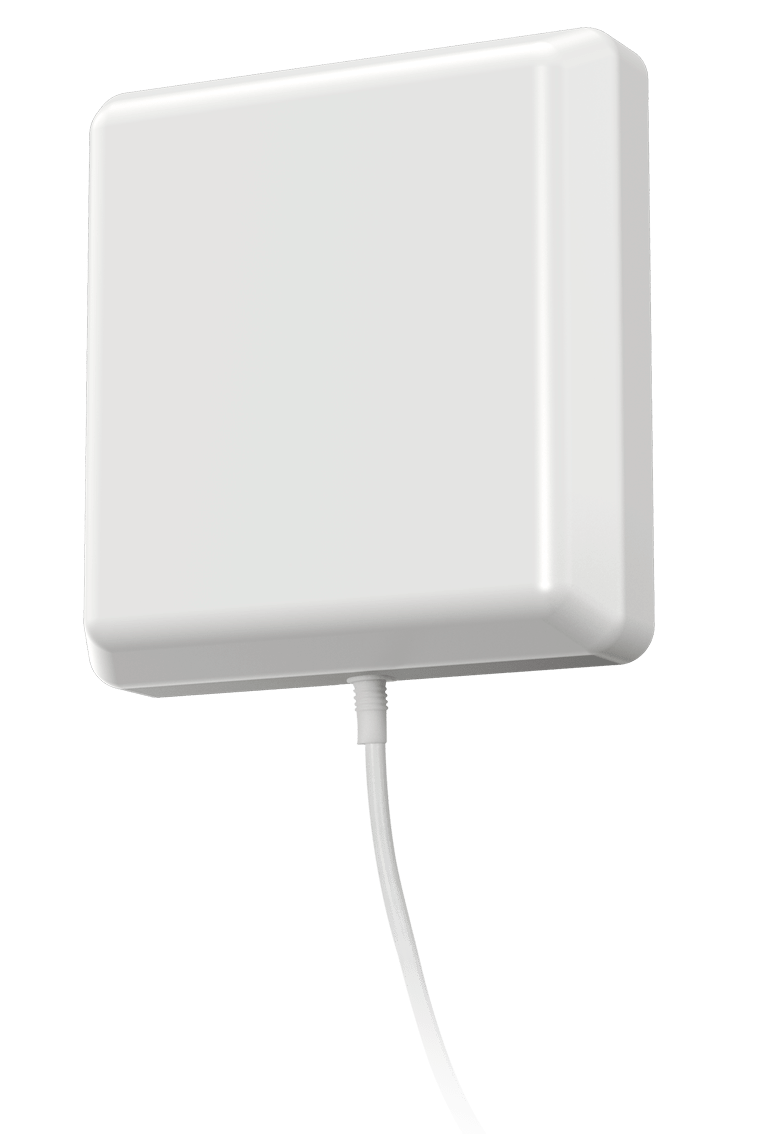

The Wilson Electronics 311234 Indoor Wall-Mount Antenna 50 Ohm is a compact inside antenna for WilsonPro cellular boosters, including the Pro 710i. It covers 617-960 MHz and 1710-2700 MHz, including low-band 5G Band 71, with peak gain up to 8.0 dBi. It mounts flat against an interior wall in offices, warehouses and commercial buildings, and its neutral color blends into most environments.

  • Covers 617-960 MHz and 1710-2700 MHz, including low-band 5G Band 71
  • Works on worldwide LTE, CDMA, GSM, UMTS and AWS bands for voice and data
  • Peak gain from 5.5 dBi to 8.0 dBi across seven frequency segments
  • 50 Ohm impedance, N-Female connector, vertical polarization, 20 W max power
  • Compact 6.6 x 6.2 x 1.8 in wall-mount design at 1.32 lb
  • Wall-mount bracket and hardware included; 2-year manufacturer warranty
  • Distribute boosted signal across an office or warehouse zone from a single wall
  • Serve Band 71 devices along with LTE and legacy 3G phones

The Indoor Wall-Mount Antenna 50 Ohm (311234) is the high-efficiency inside antenna Wilson engineered for the WilsonPro Pro 710i industrial-grade cell signal amplifier and other WilsonPro boosters. It rebroadcasts the amplified signal inside the building across seven segments from 617 MHz to 2700 MHz. That range includes low-frequency 5G Band 71 and the worldwide LTE, CDMA, GSM, UMTS and AWS bands for voice and data.

The antenna mounts flat on an interior wall and projects coverage into the space in front of it. Peak gain runs from 5.5 dBi at 617-698 MHz to 8.0 dBi at 1910-2170 MHz. Efficiency is above 75% and 70%, and front-to-back ratio reaches 18 dB in the upper bands, which helps keep indoor signal from leaking back toward the donor antenna. Electrical specs are 50 Ohm impedance, vertical polarization, an N-Female connector and 20 W of maximum power.

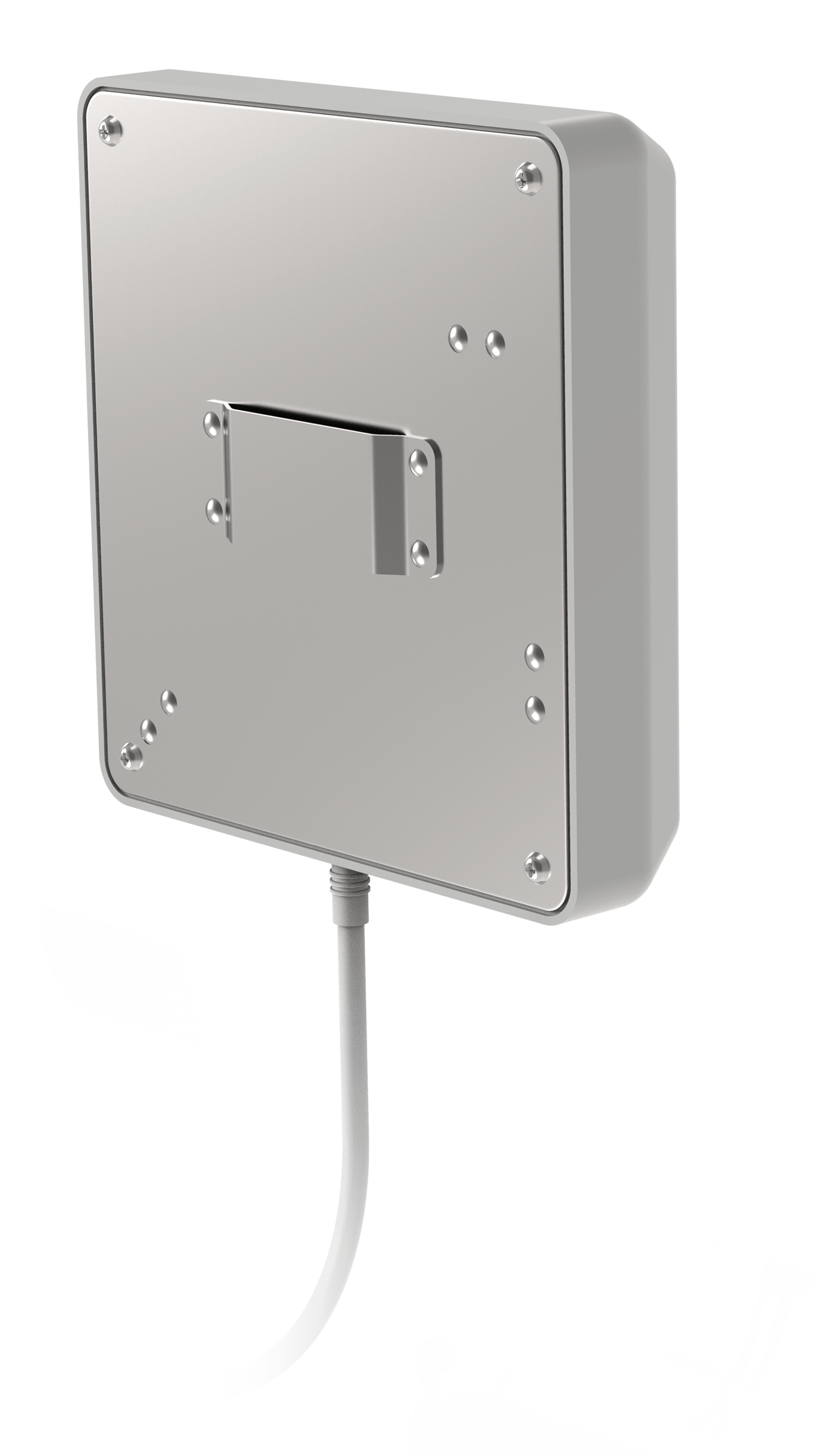

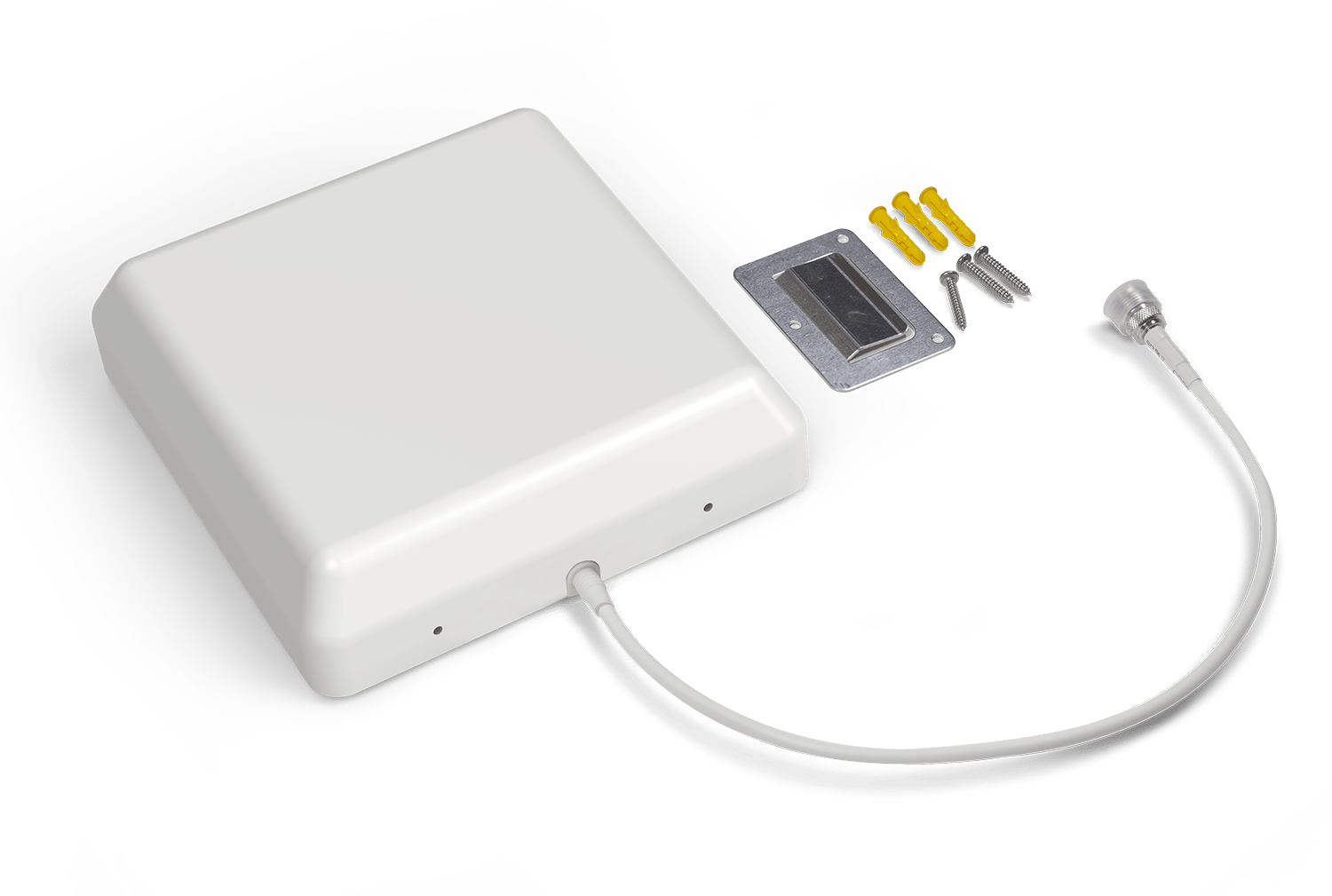

The antenna measures 6.6 x 6.2 x 1.8 in and weighs 1.32 lb. It uses an aluminum radiator inside an ABS radome in a neutral color that suits offices, warehouses and retail floors. Installation is simple: the kit includes the antenna and a wall-mount bracket with hardware.

The unit is assembled in the USA and covered by Wilson's 2-year warranty. A manufacturer spec sheet with radiation patterns is available for coverage planning in multi-antenna commercial deployments.

Ideal for

  • Inside coverage antenna for a WilsonPro Pro 710i installation
  • Office floors and conference areas with weak indoor cellular signal
  • Warehouse aisles and loading areas served by a commercial booster
  • Retail and commercial spaces that need an unobtrusive wall-mounted antenna

Specifications

General

UPC
810005962445
Brand
Wilson Electronics (WilsonPro)
Model
311234
Warranty
2-year manufacturer warranty
Product Name
Indoor Wall-Mount Antenna 50 Ohm 617-2700 MHz
Supported Technologies
Band 71 / LTE / CDMA / GSM / UMTS / AWS

Package

Origin
Assembled in the USA
Kit Includes
Antenna & wall-mount bracket with hardware
Master Carton
16.5 x 14.5 x 13.7 in, 19.9 lbs, 20 units
Package Weight
0.9 lbs (package dimensions table)
Package Dimensions
7.8 x 6.8 x 2.5 in

Electrical

Vswr
<2.2:1 / <1.6:1
Impedance
50 Ω
Max Power
20 W
Peak Gain
5.5 / 6 / 7 / 7.2 / 7.7 / 8.0 / 7.7 dBi (by band, low to high)
Efficiency
>75% / >70%
Polarization
Vertical
Frequency Bands
617-698 / 698-806 / 806-960 / 1710-1880 / 1850-1990 / 1910-2170 / 2300-2700 MHz
Front TO Back Ratio
10 / 15 / 15 / 18 / 18 / 18 / 18 dB (by band)
Half Power Azimuth Beamwidth
100° / 95° / 97° / 60° / 52° / 55° / 65° (by band)
Half Power Elevation Beamwidth
70° / 80° / 90° / 85° / 75° / 62° / 55° (by band)

Mechanical

Mounting
Flat interior wall mount
Connector
N-Female
Dimensions
6.6 x 6.2 x 1.8 in (168 x 158 x 47 mm)
Antenna Weight
1.32 lb (0.6 kg)
Packing Weight
1.9 lb (0.9 kg)
Radome Material
ABS
Radiator Material
Aluminum
Shipping Dimensions
8.6 x 6.9 x 2.7 in (220 x 176 x 70 mm)

Questions buyers ask

What frequencies does the 311234 cover?

It covers 617-960 MHz and 1710-2700 MHz, including low-frequency 5G Band 71 and worldwide LTE, CDMA, GSM, UMTS and AWS bands.

What boosters is it designed for?

Wilson engineered it for the WilsonPro Pro 710i and rates it for high performance with WilsonPro cellular boosters. It uses 50 Ohm impedance and an N-Female connector.

How is it installed?

It mounts flat against an interior wall using the included wall-mount bracket and hardware.

What is the peak gain?

Peak gain ranges from 5.5 dBi at 617-698 MHz to 8.0 dBi at 1910-2170 MHz.

How large is it?

The antenna measures 6.6 x 6.2 x 1.8 in (168 x 158 x 47 mm) and weighs 1.32 lb.
