Wilson Electronics weBoost 314411 Wideband Directional Yagi Antenna, 50 Ohm, 700-2700 MHz

4G LTEMPN 314411
  • Single (SISO)
  • 9 dBi and up
$48.35$91.65Save $43.30

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Overview

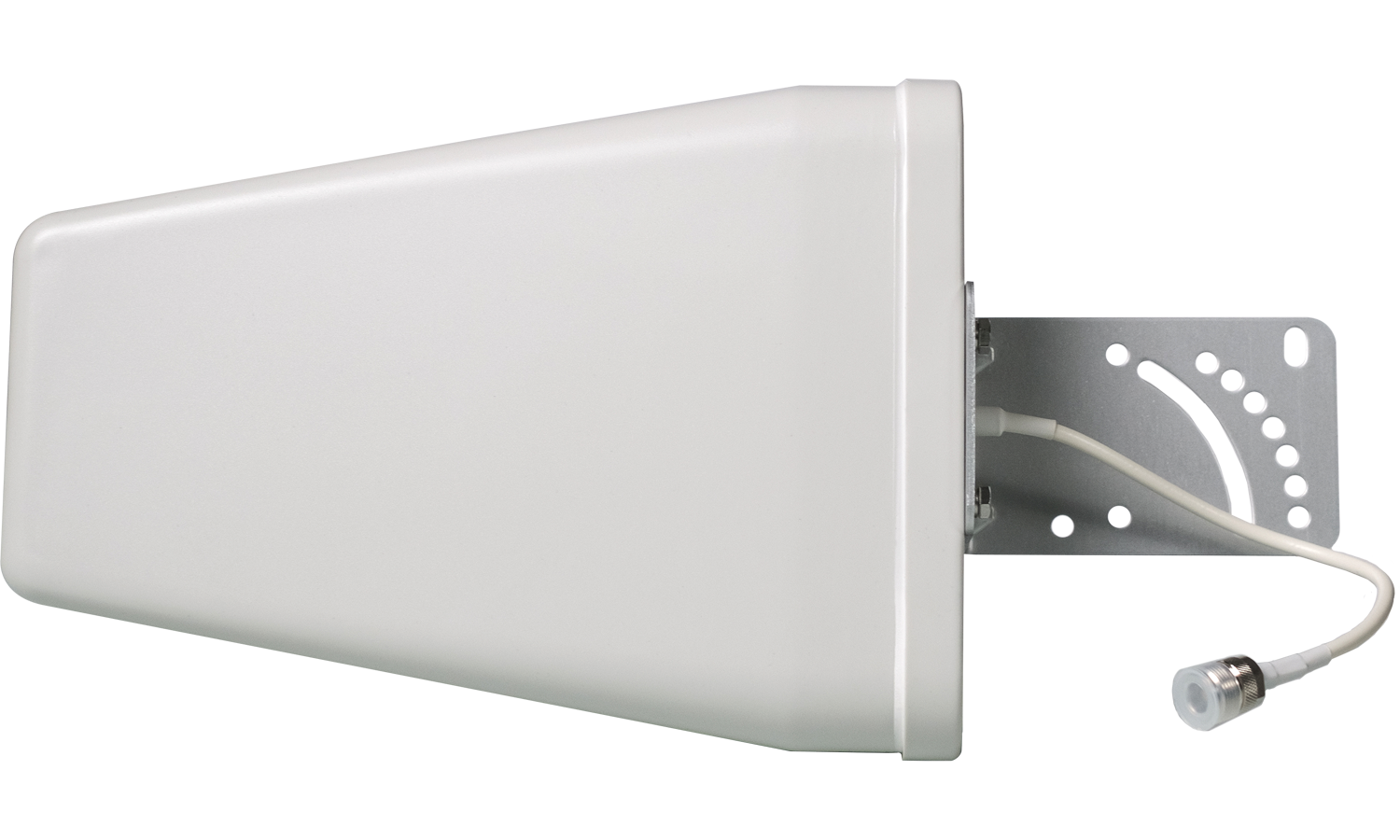

The weBoost 50-Ohm Wideband Directional Antenna (314411) is an outdoor Yagi antenna that aims at distant cell towers to feed a cell signal booster. It covers 700-2700 MHz with gain up to 10.6 dB and is compatible with all US carriers. It has an N-Female connector and an anti-UV housing, and ships with an aluminum U-bolt mount for walls, poles or rooftop vent pipes.

  • Directional Yagi design that targets distant cell towers
  • Covers 700-2700 MHz with published gain from 7.3 dB up to 10.6 dB
  • 50 Ohm impedance, vertical polarization, 100 W power rating
  • N-Female connector for coax with N-Male connectors
  • Tilt-swivel bracket and aluminum U-bolt mount for 1.25 to 2 in pipe; hardware included
  • Anti-UV plastic housing for all-weather outdoor use
  • Pulls in weak, distant signal so a booster has more to amplify indoors
  • One wideband antenna covers low-band and mid-band cellular frequencies

The weBoost 50-Ohm Wideband Directional Antenna (314411) is an outside donor antenna for homes and buildings in weak-signal areas. As a directional Yagi, it concentrates its gain toward a chosen tower rather than listening in every direction. This lets a cell signal booster pull usable signal from towers that are far away. weBoost designed it for use with its residential cell signal boosters. It is compatible with all US carriers and supports multiple devices through the booster.

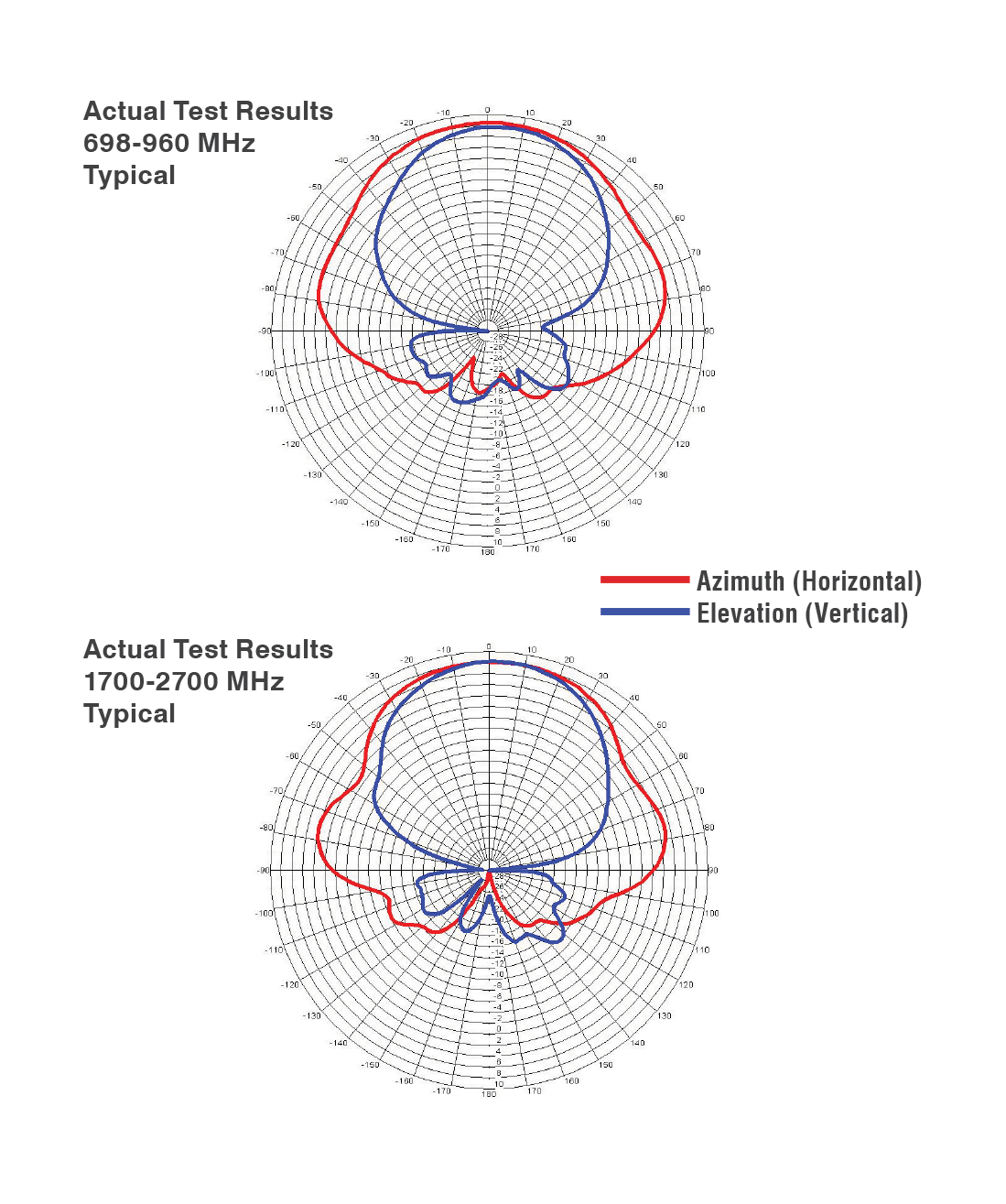

The antenna covers 700-2700 MHz. Published gain rises from 7.3 dB at 700-800 MHz to 10.6 dB at 1850-1990 MHz and 10.4 dB at 2110-2170 MHz. It is a vertically polarized, 50 Ohm antenna rated for 100 watts, with an N-Female connector for coax cable fitted with N-Male connectors. If you use a 75-ohm amplifier, it needs the appropriate connector to join the outside cable to the amplifier or antenna.

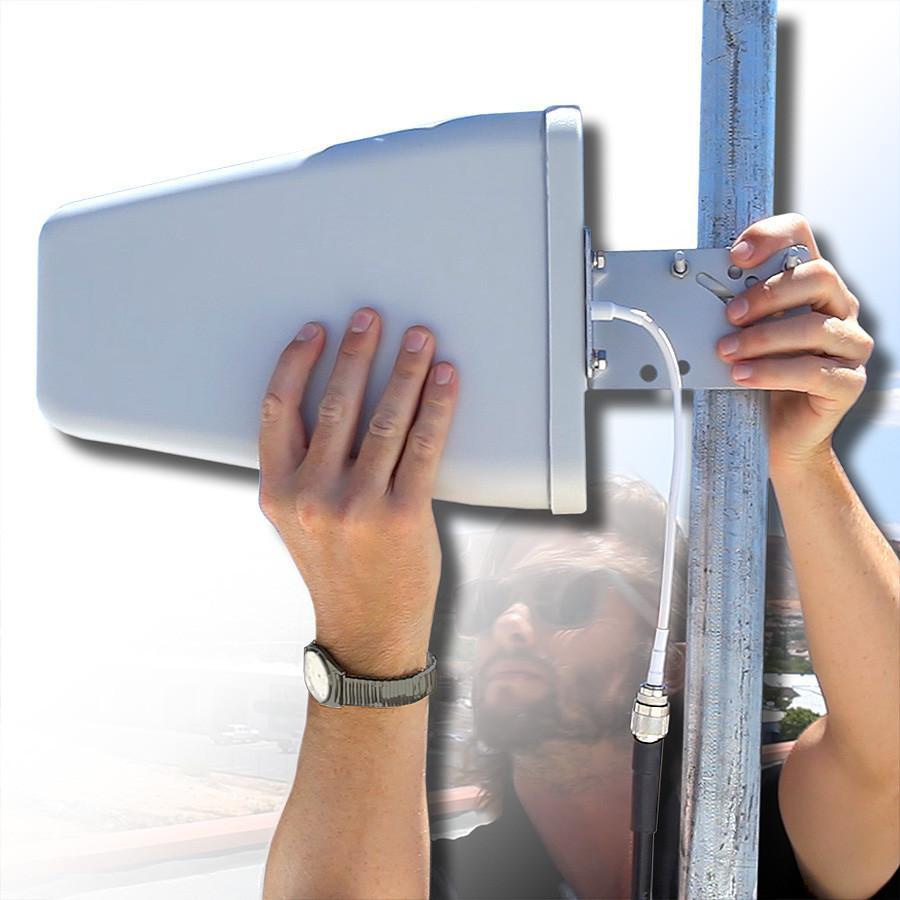

For installation, a tilt-swivel bracket and aluminum U-bolt mount attach the antenna to an exterior wall, antenna pole or rooftop vent pipe. It accepts pipe 1.25 to 2 inches in diameter, and mounting hardware is included. The antenna is 11.42 inches long, weighs 3.31 lbs (1.5 kg) with its mount, and presents a 465 cm2 wind surface area. The anti-UV plastic housing resists sunlight, water and debris for all-weather use.

The 314411 is also the wide band directional outside antenna supplied in WilsonPro Enterprise 4330 kits. weBoost includes a 2-year manufacturer's warranty.

Ideal for

  • Rural homes far from the nearest cell tower
  • Outside donor antenna for a residential weBoost booster system
  • Replacement or upgrade outside antenna for WilsonPro Enterprise 4330 installations
  • Small offices and outbuildings with weak outdoor signal

Specifications

RF

Power
100 watts
Impedance
50 Ohm
Directivity
Directional (Yagi)
Polarization
Vertical
Frequency Range
700-2700 MHz
Gain 700 800 MHz
7.3 dB (700-800 MHz)
Gain 824 894 MHz
8.1 dB (824-894 MHz)
Gain 880 960 MHz
7.4 dB (880-960 MHz)
Gain 1710 1880 MHz
9.2 dB (1710-1880 MHz)
Gain 1850 1990 MHz
10.6 dB (1850-1990 MHz)
Gain 2110 2170 MHz
10.4 dB (2110-2170 MHz)

General

MPN
314411
Brand
Wilson Electronics (weBoost)
Product Name
weBoost 50-Ohm Wideband Directional Antenna (Yagi)
Product Type
Outdoor Directional Yagi Antenna

Package

Included
Antenna and Mounting Hardware
Shipping Weight
2.2 lb

Support

Warranty
2-Year Manufacturer's Warranty

Mounting

Brackets
Max OD 2 in
Hardware
Tilt-Swivel Bracket, Aluminum U-Bolt, Hardware Included
Mount Type
Pipe 1.25 to 2 in Diameter
Mounting Locations
Exterior Wall, Antenna Pole or Rooftop Vent Pipe

Physical

Height
11.42 in
Housing
Anti-UV Plastic, All-Weather
Weight With Mount
3.31 lbs / 1.5 kg (With Mount)
Wind Surface Area
465 cm2
Weight Wilson Connectivity
1.8 lbs
Dimensions Wilson Connectivity
11.75 x 8.5 x 2.50 in

Connectors

Connector
N-Female
Cable Requirement
Coax with N-Male Connectors

Compatibility

Boosters
weBoost Residential Cell Signal Boosters
Carriers
All US Carriers
Kit Usage
Outside Antenna in Enterprise 4330 Kits

Questions buyers ask

What connector does the 314411 use?

It has an N-Female connector and is made for coax cable with N-Male connectors.

Can this antenna be used with a 75-ohm booster?

It is a 50 Ohm antenna. A 75-ohm amplifier must have the appropriate connector to join the outside cable to the amplifier or antenna.

How is the antenna mounted?

A tilt-swivel bracket and aluminum U-bolt mount fit pipe 1.25 to 2 inches in diameter. It can go on an exterior wall, antenna pole or rooftop vent pipe, and the mounting hardware is included.

How much gain does it provide?

Published gain ranges from 7.3 dB at 700-800 MHz to 10.6 dB at 1850-1990 MHz, with 10.4 dB at 2110-2170 MHz.
