1 / 3
Wilson (weBoost)Antennas & Signal
WilsonPro IoT 3.0 Direct-Connect Cellular Amplifier Kit for IoT Modems (460079)
MPN 460079
- Fleet & IoT
$799.99
In stock · only 4 leftFree 2-3 day shipping
- Free 2-3 day shipping to the US
- 30-day returns on unopened devices
- Secure checkout · pay by card
Datasheets & documents
Overview

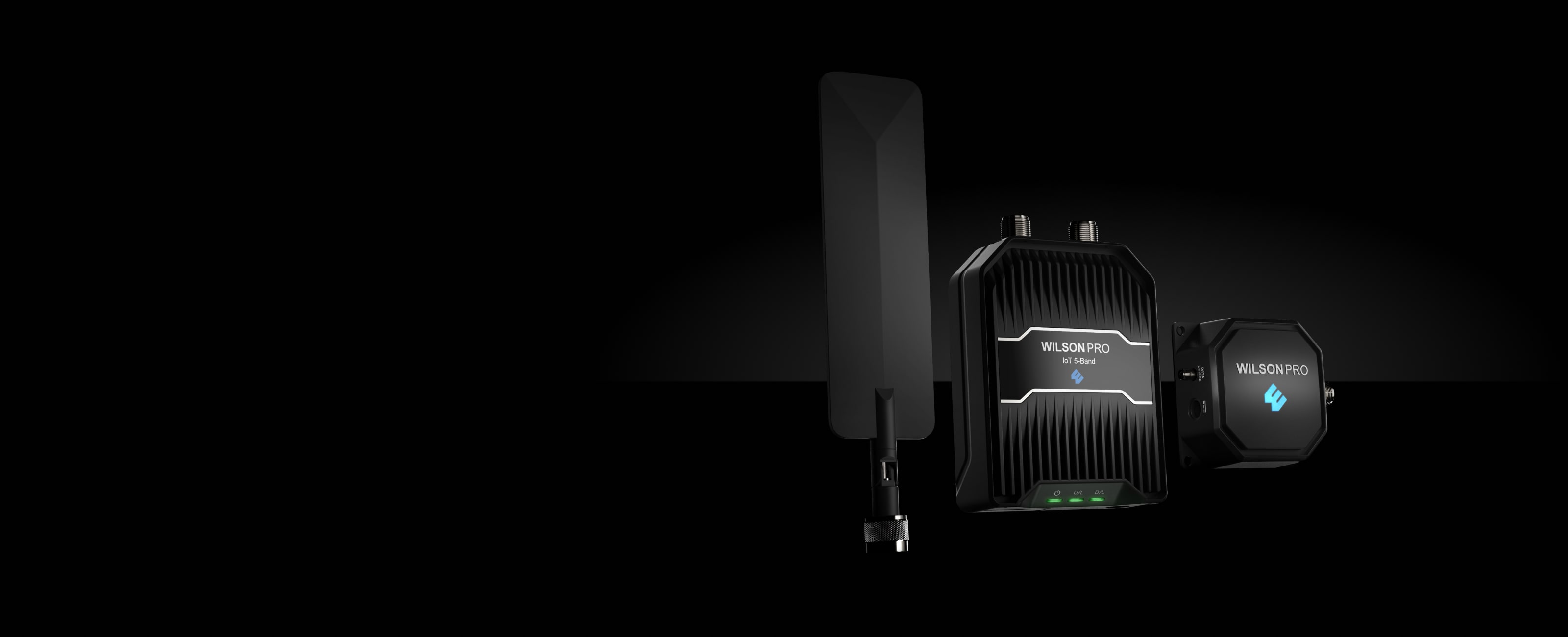

The WilsonPro IoT 3.0 (460079) is a direct-connect cellular amplifier kit that cables straight to a data modem. It strengthens LTE connectivity for ATMs, point-of-sale terminals, digital displays, security systems and other IoT equipment in weak-signal locations. It covers bands 12, 13, 5, 4 and 25/2 with 15 dB maximum gain. Power over coax allows flexible antenna placement, and passive RF bypass keeps the modem connected if the amplifier loses power.
- Direct-connect amplifier that cables to a cellular data modem
- Bands 12, 13, 5, 4 and 25/2 with 15 dB maximum gain and 24 dBm maximum uplink power
- Passive RF bypass keeps the modem transmitting if the amplifier loses power
- Power over coax lets the antenna be placed at the point of best signal
- 12V AC/DC power supply and 12V DC hardwire cable included for fixed or vehicle installs
- Pre-approved by all major US carriers under FCC Part 20 rules
- Keeps ATMs, POS terminals and kiosks transacting in weak-signal locations
- Maintains basic signal through power outages via passive RF bypass
The WilsonPro IoT 3.0 (460079) is a direct-connect signal amplifier for cellular-enabled equipment. Rather than rebroadcasting signal into a room, it cables directly to a data modem. This delivers consistent, hardwired cellular connectivity to point-of-sale devices, digital displays, ATMs, vending machines, kiosks, security systems and inventory management equipment. Wilson rates the boost at 5X signal strength, and the compact 5.4 x 4.2 x 1.4 in amplifier fits inside tightly constrained enclosures.
The amplifier covers Band 12 and 13 (700 MHz), Band 5 (850 MHz), Band 4 (1700/2100 MHz) and Band 25/2 (1900 MHz). It provides 15 dB maximum gain, 24 dBm maximum uplink power and 5 dB nominal noise figure, with auto-power control to maximize signal output. Power over coax lets the antenna sit where the signal is strongest. Passive RF bypass reroutes signal through a passive path if power is lost, so basic transmission continues during an outage. Wilson also lists dual amplifiers supporting 2x2 and 4x4 MIMO configurations for high-data-rate devices.
One kit covers several installation types. The 12V AC/DC supply suits ATMs and kiosks near an outlet, and the 12V DC hardwire cable suits vehicle-powered LTE modem hotspots. MCX and MMCX adapter cables interface with cellular home and business security systems. The IoT 3.0 is compatible with all US carrier networks, including AT&T, Verizon and T-Mobile, and is pre-approved by all major carriers under FCC Part 20 rules.
This is not a consumer device. It is intended for installation by FCC licensees and qualified installers, and operation requires an FCC license or the express consent of an FCC licensee. The amplifier is assembled in the USA and carries a 3-year warranty from purchase. A manufacturer spec sheet is available.
Ideal for
- ATMs, vending machines and self-service kiosks with cellular modems
- Point-of-sale terminals and digital signage in concrete or steel buildings
- Cellular home and business security panels via MCX/MMCX cables
- Vehicle-powered LTE modem hotspots using the 12V DC hardwire kit
- OEM integration into compact IoT communication enclosures
Specifications
Power
- Power
- 12V DC / 2A
- Power Options
- 12V AC/DC Supply or 12V DC Hardwire
- Power Over Coax
- Power over Coax (DC with RF Pass-Through)
General
- MPN
- 460079
- UPC
- 810005965125
- Brand
- Wilson Electronics (WilsonPro)
- Model Number
- 460079
- Product Name
- WilsonPro IoT 3.0
- Product Type
- Direct-Connect Cellular Amplifier Kit
Package
- Kit Contents
- Amplifier, Bracket, Antenna, PoC Unit, Cables, Power Supply and Hardwire Kit
- Package Weight
- 3.94 lbs
- Package Dimensions
- 10.25 x 10.25 x 3.75 in
Support
- Warranty
- 3-Year Warranty from Purchase
Cellular
- MIMO
- 2x2 and 4x4 MIMO Support
- Frequencies
- Band 12, 13 (700 MHz); Band 5 (850 MHz); Band 4 (1700/2100 MHz); Band 25/2 (1900 MHz)
- Frequency Ranges
- 698-716, 746-787, 824-894, 1850-1995, 1710-1755/2110-2155 MHz
- Carrier Compatibility
- All U.S. Carriers (AT&T, Verizon, T-Mobile)
Physical
- Connectors
- N-Female
- Amplifier Weight
- 1.58 lbs
- Amplifier Dimensions
- 5.4 x 4.2 x 1.4 in
Regulatory
- IC ID
- 4726A-079
- Fcc ID
- PWO079
- Assembly
- Assembled in the USA
- Carrier Approval
- FCC Part 20 Carrier Pre-Approved
- Installation Requirement
- Professional Installation (FCC Licensee Consent Required)
RF Performance
- Failover
- Passive RF Bypass
- Max Gain
- 15 dB
- Impedance
- 50 Ohm
- Isolation
- >40 dB
- Noise Figure
- 5 dB Nominal
- Max Uplink Power
- 24 dBm
- Max Downlink Power
- -5 dBm
- Uplink Power Band 4
- 25.6 dBm (Band 4, 1700 MHz)
- Uplink Power Band 5
- 24.1 dBm (Band 5, 800 MHz)
- Uplink Power Band 13
- 24.9 dBm (Band 13, 700 MHz)
- Downlink Power Band 4
- -7.7 dBm (Band 4)
- Downlink Power Band 5
- -6.5 dBm (Band 5)
- Downlink Power Band 13
- -6.5 dBm (Band 13)
- Uplink Power Band 25 2
- 25.0 dBm (Band 25/2, 1900 MHz)
- Uplink Power Band 12 17
- 24.7 dBm (Band 12/17, 700 MHz)
- Downlink Power Band 25 2
- -5.8 dBm (Band 25/2)
- Downlink Power Band 12 17
- -6.3 dBm (Band 12/17)
Questions buyers ask
What equipment does the IoT 3.0 work with?
It connects directly to cellular data modems in equipment such as ATMs, POS terminals, digital displays, kiosks, vending machines and security systems. MCX and MMCX cables are included for security panels.
What happens if the amplifier loses power?
Passive RF bypass reroutes signal through a passive path, so the modem keeps basic signal transmission during a power outage.
Which bands does it amplify?
Band 12 and 13 (700 MHz), Band 5 (850 MHz), Band 4 (1700/2100 MHz) and Band 25/2 (1900 MHz).
Can anyone install the IoT 3.0?
No. It is not a consumer device. It is designed for installation by FCC licensees and qualified installers, and operation requires an FCC license or the express consent of an FCC licensee.
How is it powered?
It runs on 12V DC at 2A. The kit includes a 12V AC/DC power supply for outlet-powered sites and a 12V DC hardwire cable for vehicle installations.
