WilsonPro Enterprise 4330R Cell Signal Amplifier Rack Mount Kit (463075)

MPN 463075
  • Large building
$7,775.05$13,550.00Save $5,774.95

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

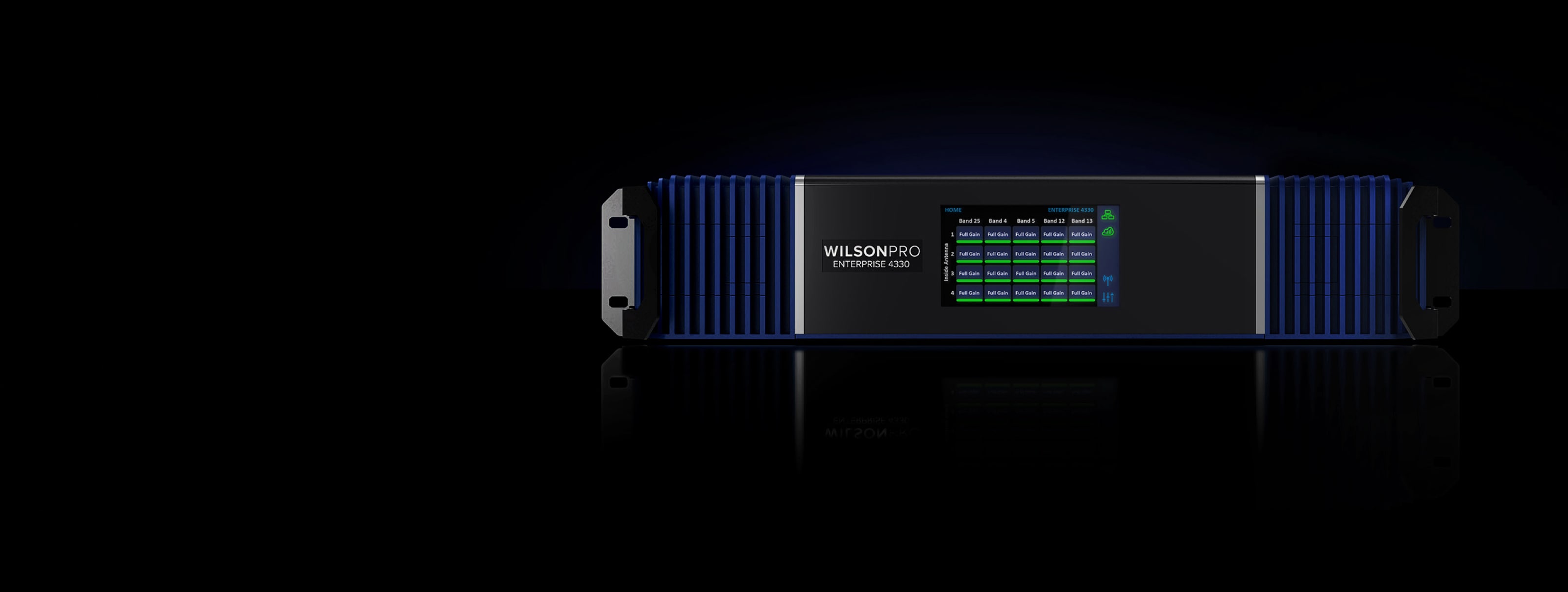

The WilsonPro Enterprise 4330R Rack Mount Kit (463075) is a complete in-building cell signal amplifier system for commercial buildings with equipment racks. It pairs the rack-mount 4330 amplifier (461075) with a wideband directional outside antenna, four dome inside antennas, 100 ft cable runs and a lightning surge protector. The amplifier delivers 70 dB maximum gain and 26 dBm uplink power. It supports wideband and channelized operation, split mode, XDR, and WilsonPro Cloud remote access.

  • Complete rack-mount system: Enterprise 4330 amplifier (461075), outside Yagi, four dome antennas, cabling and surge protector
  • 70 dB maximum gain, 26 dBm maximum uplink and 4 x 17 dBm downlink power
  • Wideband and channelized modes to filter and amplify specific sub-blocks within a band
  • Split mode (multi-tower targeting) for separate outdoor antennas per band
  • XDR technology designed to avoid shutdown from strong signal
  • Color LCD touchscreen, network scanning and WilsonPro Cloud access via Ethernet or internal LTE modem
  • Rack-mount amplifier installs alongside network equipment in a comms room
  • Improves indoor calls, texts and data for all devices on US and Canadian carriers

The WilsonPro Enterprise 4330R Rack Mount Kit (463075) is the rack-mount version of the Enterprise 4330 system. It suits installers who want the amplifier alongside network gear in a comms room or equipment rack. Wilson positions the system for enhanced 4G LTE and 5G coverage inside buildings where outdoor signal does not penetrate. It serves every phone and cellular device on all US and Canadian carriers, including smaller regional providers.

The rack-mount Enterprise 4330 amplifier (461075) covers Band 12/17 and 13 (700 MHz), Band 5 (850 MHz), Band 4 (1700/2100 MHz) and Band 25 (1900 MHz). It provides 70 dB maximum gain, up to 26 dBm uplink power and 17 dBm downlink power on each of four ports. Channelization lets installers filter specific sub-blocks within a band to deal with interference from a strong outside carrier, or to boost only one carrier. Split mode (multi-tower targeting) supports separate outdoor antennas for different bands. XDR (eXtended Dynamic Range) continuously scans and adjusts so the system does not shut down from strong signal.

A color LCD touchscreen and real-time network scanning simplify commissioning. Remote access runs through the WilsonPro Cloud service over Ethernet or the internal, pre-activated LTE modem.

The kit includes the amplifier, a 314411 wideband directional outside antenna, four 304412 dome inside antennas, five 100 ft Wilson 400 cables, a 2 ft Wilson 400 jumper and an 859902 50-ohm lightning surge protector. It ships in one box weighing 60.93 lbs, is assembled in the USA, and carries a 3-year warranty from purchase. A manufacturer spec sheet is available.

Ideal for

  • Commercial buildings with a comms room or equipment rack for the amplifier
  • Offices, hospitals and schools with poor indoor cellular coverage
  • Sites where a strong nearby carrier signal interferes and needs channel filtering
  • Single-carrier deployments that should amplify only one network
  • Integrator-managed installations monitored through WilsonPro Cloud

Specifications

Power

Power
120-240V, 50-60 Hz, 1.4-0.7A

General

MPN
463075
UPC
810005965088
Brand
Wilson Electronics (WilsonPro)
Product Name
Enterprise 4330R Rack Mount Kit
Amplifier Model
461075 (Rack Mount Amplifier)
Spec Sheet Model Numbers
460075 / 461075

Package

Shipping
Ships in One Box
Kit Contents
Amplifier, Outside Yagi, 4 Dome Antennas, 5 x 100 ft Cable, 2 ft Jumper, Surge Protector
Package Weight
60.93 lbs
Package Dimensions
28 x 19 x 20 in

Support

Warranty
3-Year Warranty from Purchase

Cellular

Modes
Wideband / Channelized / Split Mode
Frequencies
Band 12/17, 13 (700 MHz); Band 5 (850 MHz); Band 4 (1700/2100 MHz); Band 25 (1900 MHz)
Frequency Ranges
698-716, 729-756, 777-787, 824-894, 1850-1995, 1710-1755/2110-2155 MHz
Carrier Compatibility
All U.S. and Canada Carriers

Physical

Mounting
Rack Mount
Connectors
N-Female
Amplifier Weight
18.3 lbs / 18.0 lbs (460075 / 461075)
Amplifier Dimensions
3.50 x 18.71 x 13.48 in / 3.50 x 18.89 x 14.04 in (460075 / 461075)

Management

Display
Color LCD Touchscreen
Remote Access
WilsonPro Cloud (Ethernet or Internal LTE)
Network Scanning
Real-Time Network Scanning

Regulatory

IC ID
4726A-075
Fcc ID
PWO075
Assembly
Assembled in the USA

RF Performance

Xdr
XDR (eXtended Dynamic Range)
Max Gain
70 dB
Impedance
50 Ohm
Isolation
>90 dB
Noise Figure
5 dB Nominal
Max Uplink Power
26 dBm
Max Downlink Power
4 x 17 dBm
Uplink Power Band 4
24.1 dBm (Band 4)
Uplink Power Band 5
24.1 dBm (Band 5)
Uplink Power Band 13
25.4 dBm (Band 13)
Uplink Power Band 25 2
24.9 dBm (Band 25/2)
Uplink Power Band 12 17
25.4 dBm (Band 12/17)
Downlink Power 4 Ports Band 4
16.8 dBm (Band 4, 4 Ports)
Downlink Power 4 Ports Band 5
16.8 dBm (Band 5, 4 Ports)
Downlink Power 4 Ports Band 13
15.9 dBm (Band 13, 4 Ports)
Downlink Power 4 Ports Band 25 2
16.8 dBm (Band 25/2, 4 Ports)
Downlink Power 4 Ports Band 12 17
16.9 dBm (Band 12/17, 4 Ports)
Max Downlink Power Industrial Version
4 x 23 dBm (4330 Industrial)

Questions buyers ask

What is included in the 463075 kit?

The kit contains the Enterprise 4330 rack-mount amplifier, a 314411 wide band directional outside antenna and four 304412 dome inside antennas. It also includes five 100 ft Wilson 400 cables, a 2 ft Wilson 400 cable and an 859902 50 Ohm lightning surge protector.

How is this different from the 462075 kit?

The 463075 uses the rack-mount amplifier (461075). The 462075 uses the wall-mount amplifier (460075). Both kits share the same antennas, cabling and surge protector.

Which carriers does it support?

It works with all phones and cellular devices on all US and Canadian carriers, including smaller local and regional providers.

How much does the kit weigh when shipped?

The kit ships in one box measuring 28 x 19 x 20 in and weighing 60.93 lbs.
