Compulocks Bow Tilting Wall Mount with Apex Enclosure for Galaxy Tab S9+/S9 FE+/S10+ 12.4" - Black

MPN 505B124GAPXB
  • Wall

Fits Galaxy Tab S9+, Galaxy Tab S9 FE+, Galaxy Tab S10+

$206.18$229.00Save $22.82

In stock · only 2 leftFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

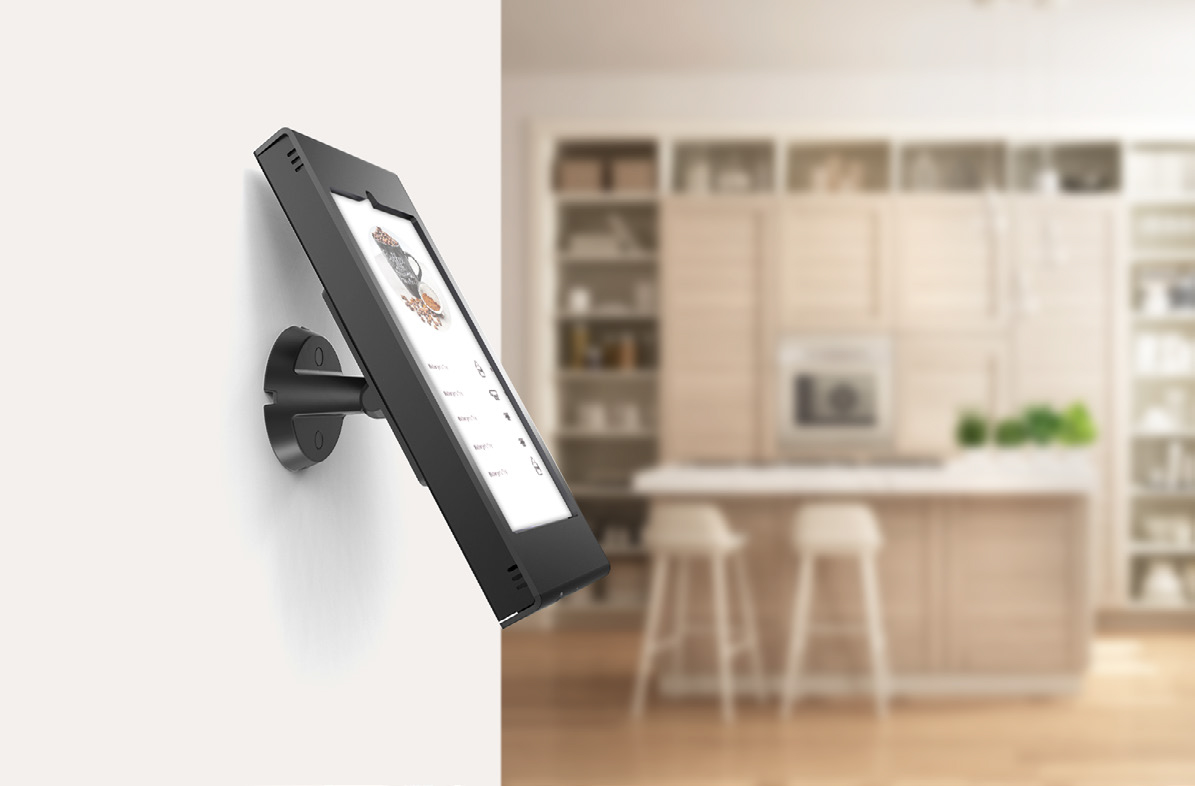

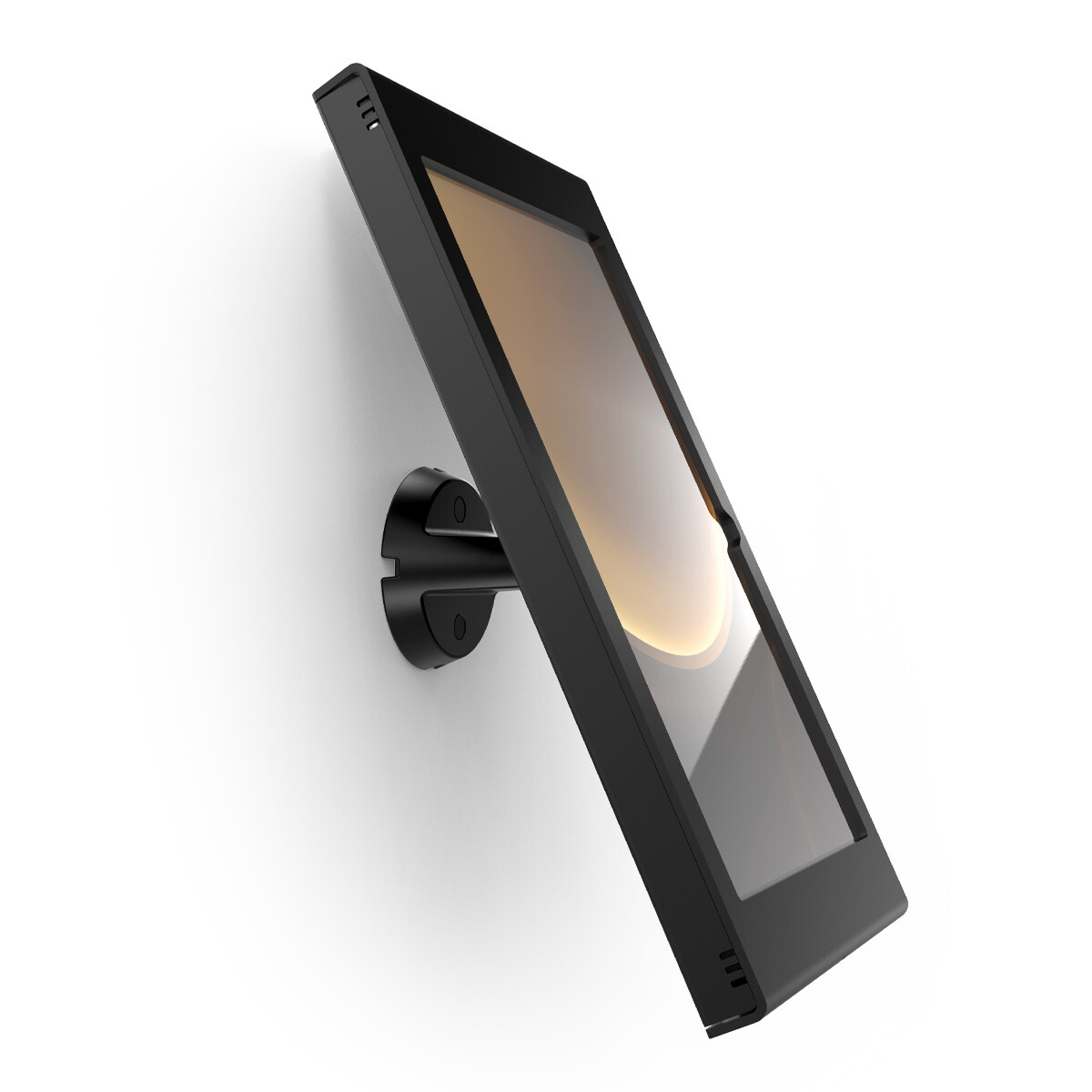

The Compulocks 505B124GAPXB combines the Bow VESA tilting wall mount with a black Apex enclosure for the 12.4-inch Galaxy Tab S9+, S9 FE+ and S10+. The aluminum arm tilts through 130° and pans. It keeps the tablet 4 inches from the wall in an ADA-compliant profile. The keyed Apex metal frame secures the tablet, leaves its cameras and sensors usable and accepts a charging cable routed through the arm.

  • Bundle of Compulocks 505B Bow VESA Tilting Wall Mount and 124GAPXB Apex enclosure, both black
  • Apex enclosure built for Galaxy Tab S9+, S9 FE+ and S10+ 12.4"
  • 130° tilt range with panning and hinge tension adjustment
  • ADA-compliant profile holding the tablet 4 inches from the wall
  • Through-arm cable management with up to four base exit points
  • Metal Apex frame with individually keyed quick lock; cameras and sensors exposed
  • 75 x 75 mm and 100 x 100 mm VESA, 4-screw wall pattern, integrated lock slot
  • Puts a 12.4-inch Galaxy Tab on the wall as a larger interactive display

The Compulocks 505B124GAPXB is a Samsung Galaxy Tab tilting wall mount. It bundles two parts: the 505B VESA Tilting Wall Mount (Bow) in black and the 124GAPXB Apex enclosure in black. The enclosure is built for the 12.4-inch Galaxy Tab S9+, Galaxy Tab S9 FE+ and Galaxy Tab S10+. The larger screen makes this bundle a good fit for dashboards, signage and interactive displays that need more viewing area than an 11-inch tablet.

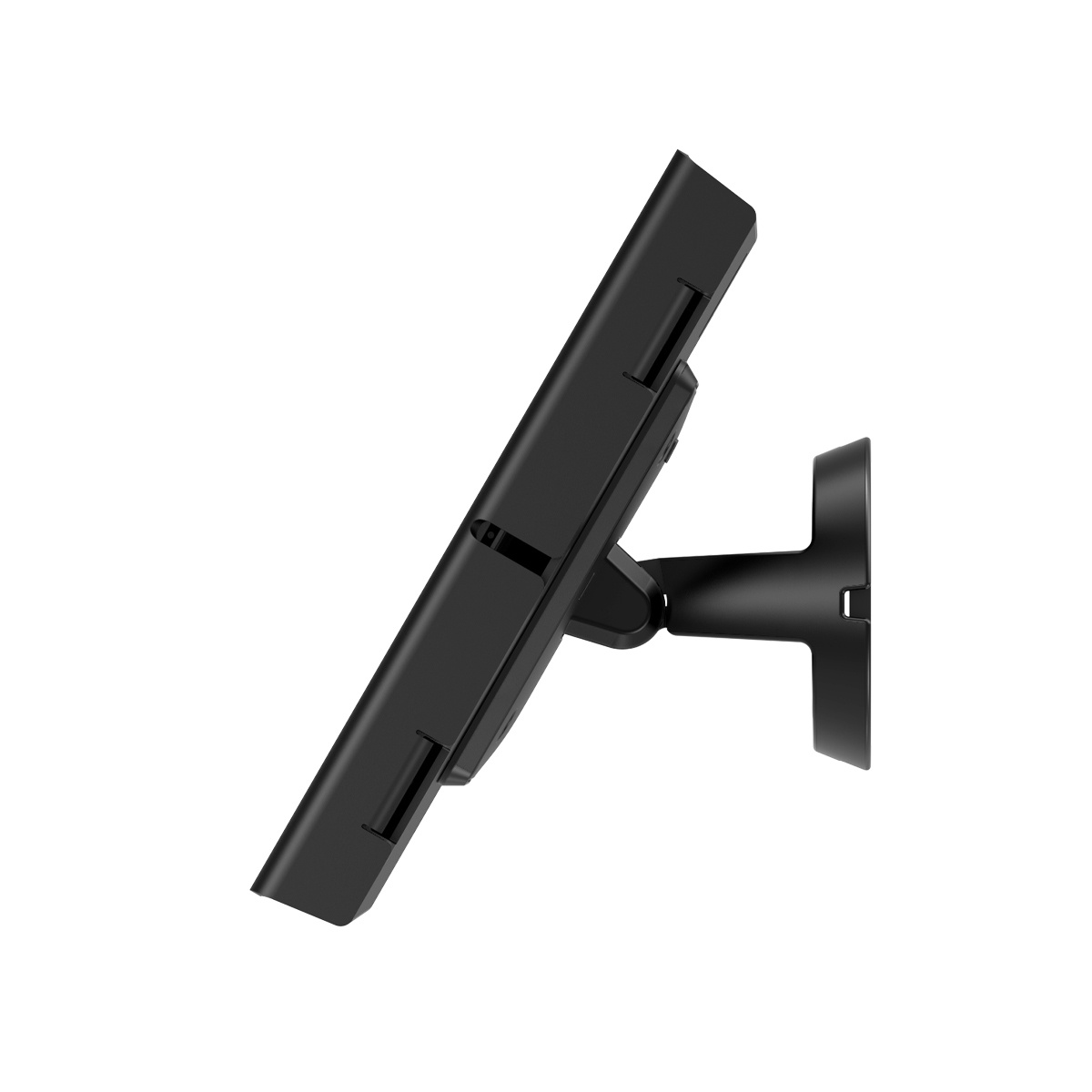

The Bow mount is made from durable aluminum. It offers a 130° tilt range, panning and easy-access hinge tension adjustments. With the enclosure fitted, the tablet sits 4 inches from the wall, which meets ADA accessibility standards. Cables run through the arm, with up to four exit points at the base or a center-base option. The mount uses a 4-screw wall pattern, supports 75 x 75 mm and 100 x 100 mm VESA and includes an integrated lock slot. It can be installed in portrait or landscape.

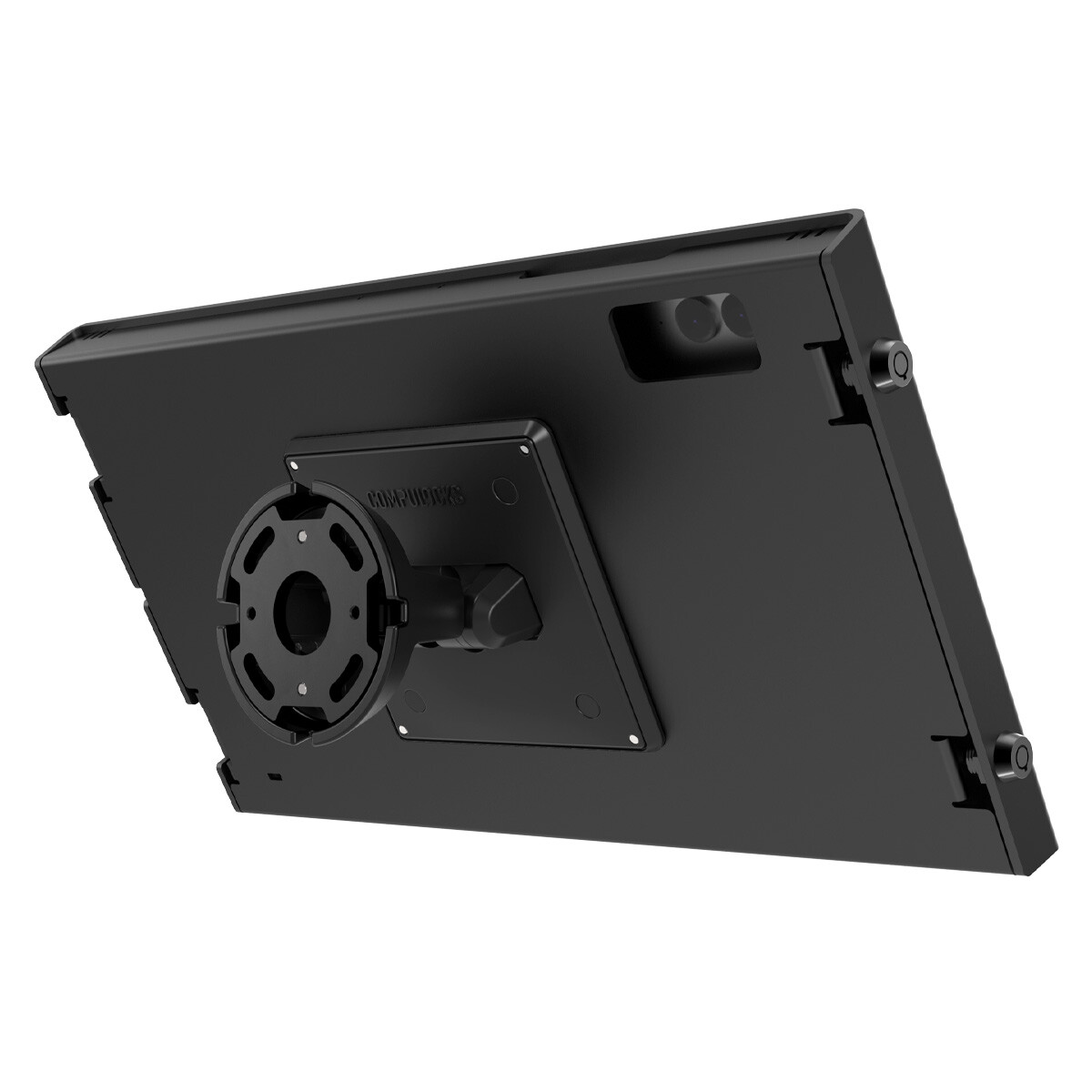

The Apex enclosure has a metal frame with individually keyed quick lock-and-unlock access, and dedicated openings for charging cables. The Galaxy Tab's front and rear cameras and sensors remain fully functional. A keyed-alike upgrade lets one key open multiple enclosures, and bulk customers can request a master key.

A Compulocks product sheet for the 505B mount and installation instructions are available for this bundle.

Ideal for

  • Wall-mounted operations or status dashboard
  • Large-screen self-service check-in
  • Digital signage and wayfinding in lobbies
  • Meeting room scheduling on a larger display
  • Patient-education or nurse-station tablet in healthcare

Specifications

General

MPN
505B124GAPXB
UPC
810157342652
Brand
Compulocks
Color
Black
Product Name
Samsung Galaxy Tab Tilting Wall Mount
Bundle Contents
505B Bow Tilting Wall Mount + 124GAPXB Apex Enclosure
Enclosure Family
Apex

Package

Documents
Product Sheet and Installation Instructions
Shipping Weight
5.00 lbs

Mount 505b

Pan
Yes
Sku
505B
UPC
810157341198
Name
VESA Tilting Wall Mount - Black
Colour
Black
Weight
1.35 lbs
Material
Aluminum
Security
Integrated Lock Slot
Tilt Range
130°
Orientation
Portrait or Landscape
Ada Compliant
Yes
Wall Distance
Distance from Wall (with enclosure): 4 in
Cable Management
Through-Arm Routing, Up to 4 Base Exits
Mounting Pattern
4-Screw Wall Mounting Pattern
Compatible Devices
100 x 100 mm and 75 x 75 mm VESA

Product Sheets

Bow Sku
505B (Black), 505W (White)
Bow Weight
1.04 lb
Bow Version
REV E

Enclosure 124gapxb

Sku
124GAPXB
Lock
Individually Keyed Quick Lock/Unlock
Color
Black
Charging
Charging Cable Openings
Camera Access
Front/Rear Cameras and Sensors Exposed
Galaxy Tab Model
Galaxy Tab S9+/S9 FE+/S10+ 12.4"
Compatible Devices
Galaxy Tab S9+, S9 FE+, S10+ (12.4")

Questions buyers ask

Which tablets does this fit?

The Galaxy Tab S9+, Galaxy Tab S9 FE+ and Galaxy Tab S10+, all 12.4-inch models.

How much can the display be adjusted?

The Bow arm tilts through 130° and pans. Hinge tension adjustments hold your chosen angle.

Is the installation ADA-compliant?

Yes. With the enclosure fitted, the tablet sits 4 inches from the wall, which meets ADA accessibility standards.

How are cables managed?

Cables route through the arm, with up to four exit points at the base or a center-base option. The Apex enclosure has openings for charging cables.

Are keyed-alike options available?

Yes. Each mount is individually keyed, a keyed-alike upgrade is offered, and bulk customers can request a master key.
