NetgearAntennas & Signal

Netgear Omnidirectional MIMO Antenna for 3G/4G/5G Hotspots and Modems (6000451)

5GMPN 6000451-10000S
  • 2x2 MIMO
  • 3–5 dBi

Made for Netgear

$58.69$85.33Save $26.64

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Netgear Omnidirectional MIMO Antenna (6000451-10000S) is a slim external antenna that improves reception for NETGEAR 3G/4G/5G mobile hotspots and USB modems with TS-9 or SMA connectors. It covers 600-960 MHz and 1710-5925 MHz with up to 2.5 dB gain. It comes with two SMA connectors, two TS-9 converters, a 100 cm cable, and clips and suction cups for mounting on a window or laptop. Installation requires no software.

  • Omnidirectional MIMO design covering 600-960 MHz and 1710-5925 MHz
  • Up to 2.5 dB gain
  • Rated for GSM/EDGE/UMTS/HSPA/HSPA+/HSPA+ DC/CDMA/EV-DO/WiMAX/LTE/5G
  • Two SMA connectors and two TS-9 converters included
  • Slim 160 x 120 x 5.5 mm panel with a 100 cm (39.37 in) cable
  • Clips and suction cups for window or laptop mounting; no software required
  • Improves reception indoors, in vehicles and at remote or fringe-coverage sites
  • Lets you place the antenna at a window while the hotspot stays on the desk

When a mobile hotspot sits deep inside a building, in a vehicle or at a remote site, its internal antennas are often the limiting factor. The Netgear 6000451 Omnidirectional MIMO Antenna moves reception to a better spot, such as a window or the lid of a laptop, and connects to the hotspot or modem through a 100 cm (39.37 in) cable. Its omnidirectional pattern needs no aiming, and the MIMO design uses both of the device's antenna connectors.

The antenna covers 600-960 MHz and 1710-5925 MHz with up to 2.5 dB gain. NETGEAR rates it for GSM/EDGE/UMTS/HSPA/HSPA+/HSPA+ DC/CDMA/EV-DO/WiMAX/LTE/5G across those ranges. It ships with two SMA connectors and two TS-9 converters. NETGEAR states it is compatible with most NETGEAR USB modems and mobile hotspots, and listed models include the MR1100, MR5200, MR6500, MR6110 and LM1200.

The flat 160 x 120 x 5.5 mm panel packs easily in a travel bag, and the included clips and suction cups hold it in place without tools. Installation is plug-in only, with no software or configuration. NETGEAR covers the antenna with a limited 1-year hardware warranty, and a manufacturer data sheet is available.

Ideal for

  • Improving hotspot reception inside offices, basements and steel-framed buildings
  • Vehicle-based connectivity for field crews
  • Remote or rural sites in fringe network areas
  • Travel kits, with the antenna attached to a laptop or hotel window

Specifications

RF

Gain
Up to 2.5 dB
Directivity
Omnidirectional
Frequency Bands
GSM/EDGE/UMTS/HSPA/HSPA+/HSPA+ DC/CDMA/EV-DO/WiMAX/LTE/5G, 600-960/1710-5925 MHz

General

MPN
6000451-10000S
UPC
606449158540
Brand
Netgear
Model
6000451
Product
Omnidirectional MIMO Antenna
Manufacturer
NETGEAR
Compatibility
Most NETGEAR 3G/4G/5G USB modems and mobile hotspots with TS-9 or SMA connectors
Listed Compatible Models
NETGEAR MR1100, MR5200, MR6500, MR6110, LM1200

Physical

Cable
39.37 in / 100 cm
Dimensions
160 x 120 x 5.5 mm

Warranty

Warranty
NETGEAR limited 1-year hardware warranty

Connectors

Connectors
Two SMA connectors and two TS-9 converters

Package Contents

IN The Box

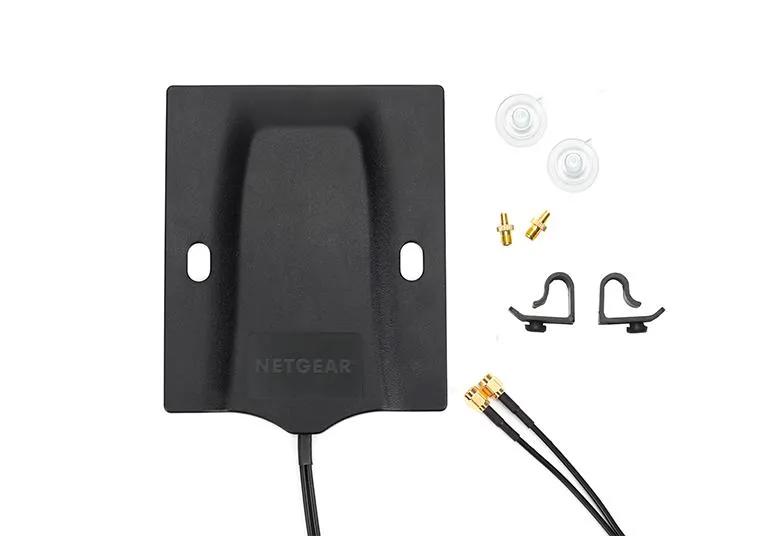

MIMO 3G/4G/5G antenna, two SMA connectors, two TS-9 converters, clips and suction cups
Shipping Weight
0.45 lb

Questions buyers ask

Which devices does this antenna work with?

NETGEAR rates it as compatible with most NETGEAR 3G/4G/5G USB modems and mobile hotspots with TS-9 or SMA connectors. Listed models include the MR1100, MR5200, MR6500, MR6110 and LM1200.

What frequencies does it cover?

It covers 600-960 MHz and 1710-5925 MHz, rated for GSM/EDGE/UMTS/HSPA/HSPA+/HSPA+ DC/CDMA/EV-DO/WiMAX/LTE/5G, with up to 2.5 dB gain.

How do I mount it?

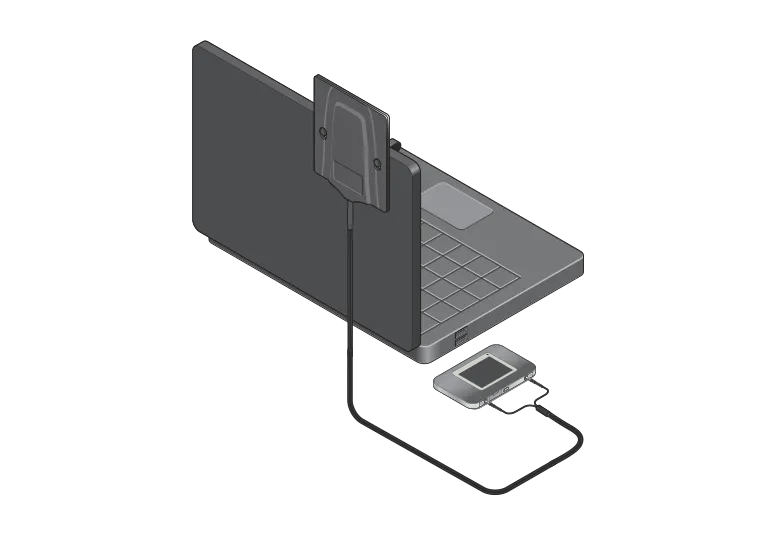

The included clips and suction cups attach the slim panel to a window or laptop, and the 100 cm cable reaches back to the hotspot or modem.

Does it need software or setup?

No. Connect the antenna using the SMA connectors or TS-9 converters. No software or configuration is required.
