Wilson 1/2-Inch Plenum Coaxial Cable, 500 ft. Spool for DAS (952003)

MPN 952003
  • Plenum
  • Over 5 m
$1,369.24

In stock · only 3 leftFree ground shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Wilson 952003 is Wilson's highest-performing coaxial cable: a 1/2-inch, 50 Ohm, plenum-rated cable for professional in-building DAS installations. It has a copper-clad aluminum center conductor, a corrugated aluminum tube outer conductor and a white, flame-retardant, low-smoke PVDF jacket. It is ETL certified and CMP (UL 444) rated, with low attenuation and low PIM. It ships as 500 ft. on a wooden spool with unterminated ends.

  • 1/2-inch, 50 Ohm low-loss plenum coaxial cable
  • ETL certified, CMP (UL 444) rated
  • Low passive intermodulation and high-efficiency signal transfer
  • Copper-clad aluminum center conductor with corrugated aluminum tube outer conductor
  • White flame-retardant, low-smoke PVDF jacket
  • 2.19 dB per 100 ft. at 824 MHz; 4.44 dB per 100 ft. at 3000 MHz
  • 500 ft. on a wooden spool, unterminated
  • Wilson's lowest-attenuation coax keeps more signal at distant DAS antennas

The Wilson 1/2-inch Plenum Cable (952003) is built for the plenum spaces of commercial and industrial buildings as part of a Distributed Antenna System. It is a 1/2-inch, 50 Ohm, low-loss coax with a copper-clad aluminum center conductor, an air dielectric structure on a polyethylene spline, and a helically corrugated aluminum tube outer conductor. The outer jacket is white, flame-retardant, low-smoke PVDF. Due to supply constraints, jacket colour and appearance may vary.

Wilson calls this its highest-performing coaxial cable. Published attenuation per 100 ft. is 0.40 dB at 30 MHz, 2.19 dB at 824 MHz, 3.25 dB at 1700 MHz, 3.93 dB at 2400 MHz and 4.44 dB at 3000 MHz. Low passive intermodulation and high-efficiency signal transfer make it well suited to long horizontal and riser runs. It is ETL certified and CMP (UL 444) rated, so it is safe to use throughout a building, including air-carrying and plenum spaces. It is rated for operation from -4 to 167 °F (-20 to 75 °C).

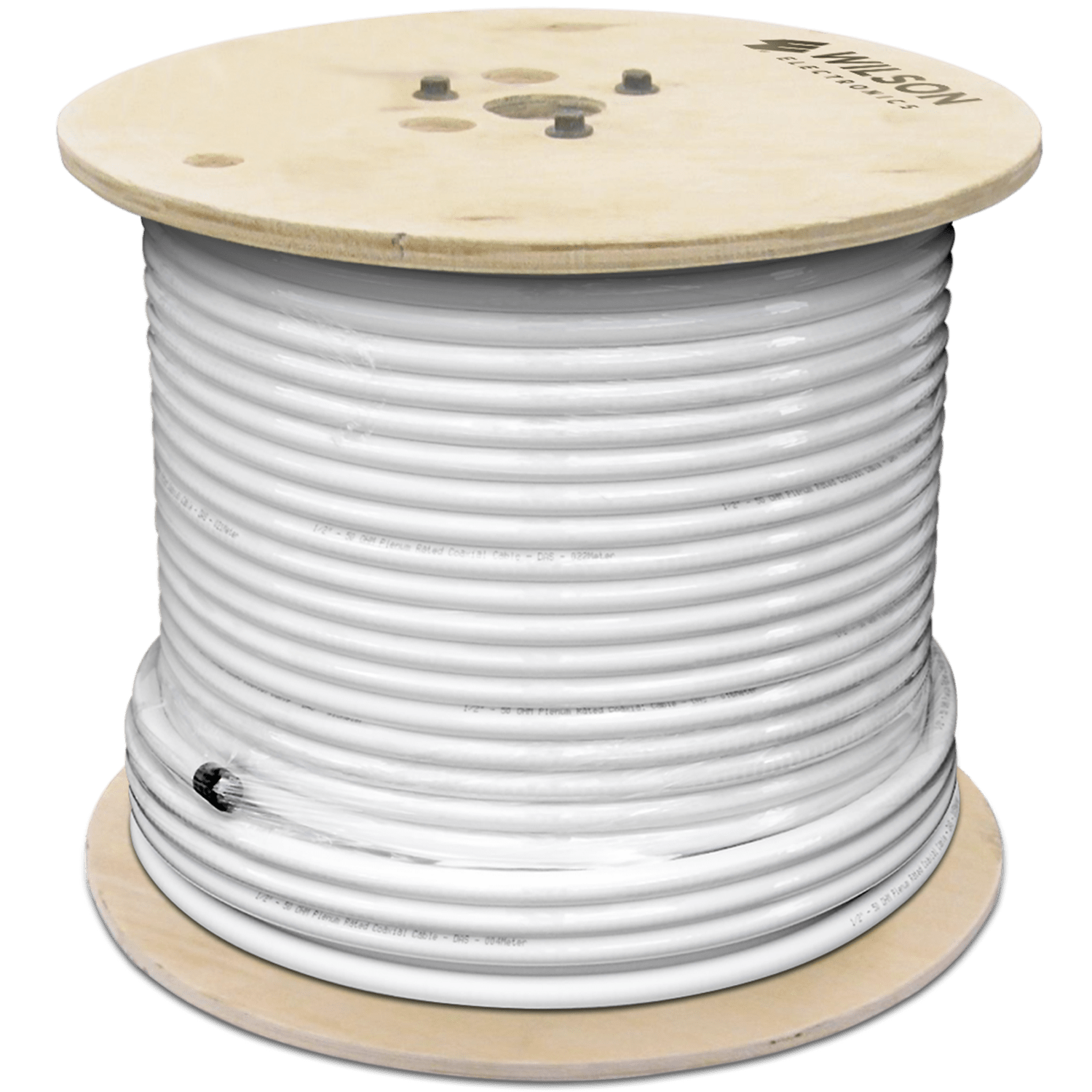

Each 500 ft. length comes on a wooden spool with unterminated ends and weighs 120 lbs. (55 kg). Connectors and tools are sold separately. Compatible N-Male connectors are the 970014-10 and 990074, and compatible cable prep tools are the 992208, or the 992207 with the 992206. The cable is only for use in professional DAS installations.

The manufacturer spec sheet is available as a datasheet for design and submittal packages.

Ideal for

  • Horizontal and riser runs in commercial in-building DAS
  • Plenum ceiling cabling in offices, hospitals and campuses
  • Long feeder runs between DAS head-end equipment and antennas
  • Industrial facilities that need low-PIM, low-loss coax

Specifications

General

MPN
952003
Brand
Wilson Electronics (WilsonPro)
Application
Professional in-building DAS installations only
Product Name
Wilson ½-inch Plenum Cable 500 ft. Spool
Spec Sheet Sku
473154

Package

Spool
Wooden spool
Warranty
2 Year Warranty
Termination
Unterminated ends (connectors and tools sold separately)

Compliance

Certification
ETL Certified, CMP (UL 444) Rated
Jacket Rating
Flame retardant, low smoke

Attenuation

Loss 30 MHz
0.40 dB @ 30 MHz
Loss 150 MHz
0.90 dB @ 150 MHz
Loss 450 MHz
1.59 dB @ 450 MHz
Loss 824 MHz
2.19 dB @ 824 MHz
Loss 1700 MHz
3.25 dB @ 1700 MHz
Loss 2400 MHz
3.93 dB @ 2400 MHz
Loss 3000 MHz
4.44 dB @ 3000 MHz

Compatibility

Cable Prep Tools
992208, or 992207 with 992206
N Male Connectors
N Male Connector 970014-10 or 990074

Specifications

Weight
120 lbs. / 55 kg
Impedance
50 Ohm
Cable Size
1/2 in.
Cable Length
500 ft.
Jacket Material
PVDF, White (colour and appearance may vary)
Outer Conductor
Corrugated Aluminum Tube
Dielectric Insulation
Polyethylene
Operating Temperature
-4 to 167 °F / -20 to 75 °C
Center Conductor Material
Copper Clad Aluminum

Questions buyers ask

Does the cable come with connectors?

No. It ships on a wooden spool with unterminated ends. Compatible N-Male connectors are the 970014-10 and 990074, and prep tools are the 992208, or the 992207 with the 992206.

What is the loss at cellular frequencies?

Per 100 ft., loss is 2.19 dB at 824 MHz, 3.25 dB at 1700 MHz, 3.93 dB at 2400 MHz and 4.44 dB at 3000 MHz.

Is it rated for plenum spaces?

Yes. It is ETL certified and CMP (UL 444) rated, and is safe to use throughout buildings, including air-carrying and plenum spaces.

Who should install it?

Wilson specifies this cable for professional DAS installations only.

What is the warranty?

The spec sheet lists a 2 year warranty.
