Lantronix ANT-0100-B04 LTE/5G L-Hinged SMA Antenna Bundle, 4 Pack

5GMPN ANT-0100-B04
  • Single (SISO)
  • 3–5 dBi
  • No cable

Made for Lantronix

$25.69

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Overview

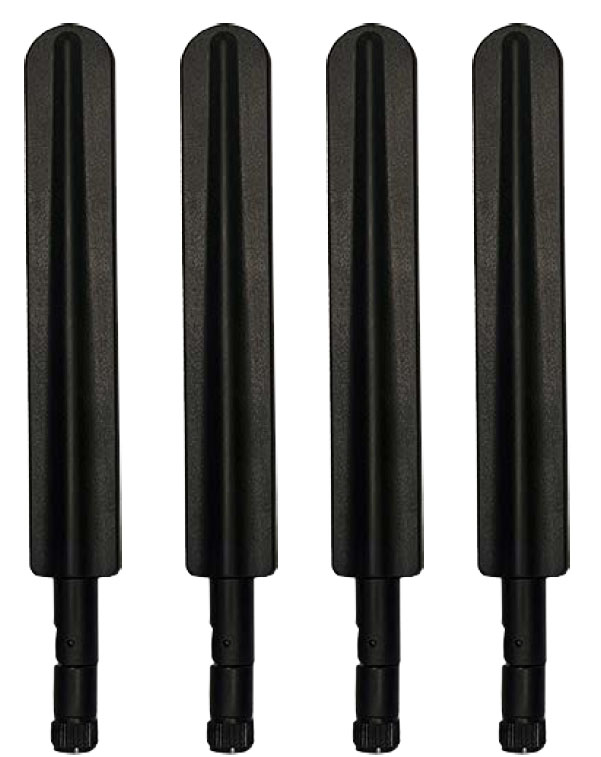

The Lantronix ANT-0100-B04 bundles four ANT-0100 LTE/5G 3dBi antennas under a single part number. Each antenna has an L-hinged SMA male connector, covers 617-960 MHz and 1710-6000 MHz, has a rated maximum gain of 1/3 dBi and VSWR of 3.5 or lower, and stands 171 mm tall. Lantronix lists the bundle for its NTC-500 Series routers, which makes it a simple way to equip or restock multiple antenna ports at once.

  • Bundle of four ANT-0100 LTE/5G antennas under one part number
  • Each antenna covers 617-960 MHz and 1710-6000 MHz
  • Rated maximum gain of 1/3 dBi per antenna (3dBi-class)
  • VSWR rated at 3.5 or lower
  • L-hinged design with SMA male connector on each antenna
  • 171 mm height per antenna
  • Listed by Lantronix as compatible with the NTC-500 Series
  • Equip several antenna ports on NTC-500 Series routers with a single order

The Lantronix ANT-0100-B04 packages four of the manufacturer's ANT-0100 LTE/5G antennas under one part number. It is intended for NTC-500 Series deployments that need several antennas at once, whether you are equipping a multi-antenna router, building spares for a fleet or standardizing replacement stock across sites. Ordering the four-pack means one line item instead of four.

Every antenna in the bundle carries the same Lantronix specification: 617-960 MHz for low-band cellular and 1710-6000 MHz for mid- and high-band LTE and 5G, a rated maximum gain of 1/3 dBi (described by Lantronix as 3dBi), and VSWR of 3.5 or lower. Each unit is 171 mm tall and uses an L-hinged SMA male connector.

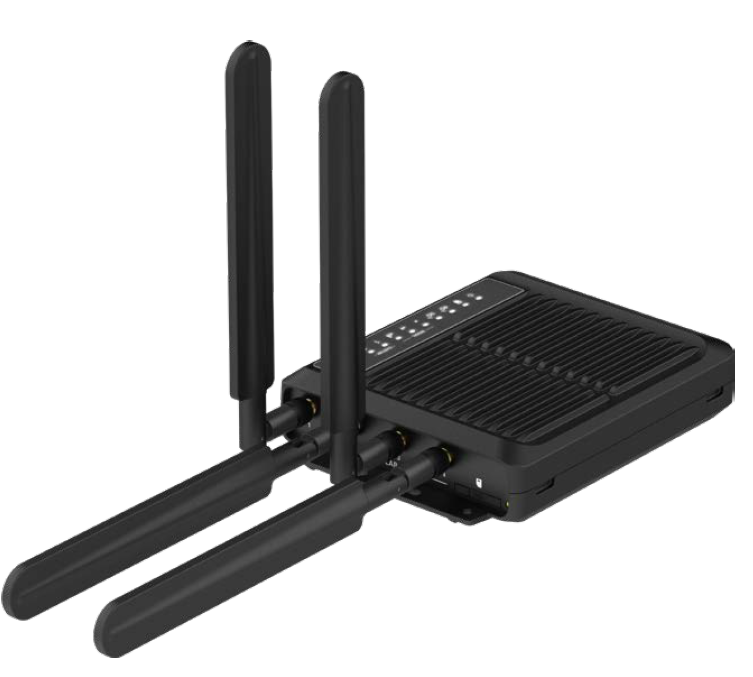

The L-hinge lets each antenna stand vertically or fold to an angle, which is useful when routers are mounted in cabinets, on walls or inside equipment enclosures. For IT managers and field-operations teams running NTC-500 Series hardware, the bundle provides manufacturer-matched antennas across every port without mixing parts from different sources.

Ideal for

  • Fitting all antenna ports on Lantronix NTC-500 Series routers in one order
  • Stocking spare antennas for a fleet of NTC-500 gateways
  • Standardizing replacement antennas across multiple branch or field sites
  • Cabinet and enclosure installs that need angled antennas

Specifications

General

MPN
ANT-0100-B04
UPC
783384261006
Brand
Lantronix
Description
Antenna, Bundle of four, LTE/5G 3dBi, L-Hinged, SMA Male
Product Type
LTE/5G L-Hinged Antenna Bundle

Package

Quantity
4 x ANT-0100 Antennas
Shipping Weight
1.00 lbs

Compatibility

Compatible Products
Compatible With: Lantronix NTC-500 Series

Specifications

Vswr
≤ 3.5
Height
171 mm
Connector
SMA Male
Frequency
617-960 / 1710-6000 MHz
Mount Style
L-Hinged
Maximum Gain
1/3 dBi

Questions buyers ask

How many antennas are in the ANT-0100-B04?

The bundle contains four ANT-0100 LTE/5G antennas.

Is each antenna the same as the single ANT-0100?

Yes. Lantronix lists the same specifications for each antenna: 617-960 / 1710-6000 MHz, 1/3 dBi maximum gain, VSWR of 3.5 or lower, 171 mm height and an L-hinged SMA male connector.

Which Lantronix routers does this bundle fit?

Lantronix lists the ANT-0100-B04 as compatible with the NTC-500 Series.

Why choose the bundle over single antennas?

It puts four matched antennas under one part number, which suits multi-antenna routers, spares kits and multi-site rollouts.
