Cisco ANT-5G-MP-OUT-N= Multipurpose Omnidirectional Outdoor Antenna, 617-5925 MHz

5GMPN ANT-5G-MP-OUT-N=
  • Single (SISO)
  • No cable
$87.34$127.02Save $39.68

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Cisco ANT-5G-MP-OUT-N= is a compact multipurpose omnidirectional outdoor antenna for Cisco Connected Grid Routers used in IoT devices, smart metering and utility boxes. The monopole covers 617-960 MHz and 1710-5925 MHz with average peak gain of 2 dBi and 5.5 dBi. It has an N-male connector and is IP66 and IP67 rated for operation from -40°C to +85°C.

  • Monopole omnidirectional antenna covering 617-960 MHz and 1710-5925 MHz
  • Average peak gain of 2 dBi (617-960 MHz) and 5.5 dBi (1710-5925 MHz)
  • Average efficiency of 83% and 85% across the two ranges
  • N-male connector, 4-5 ft-lbs installation torque
  • IP66 and IP67 ingress protection, -40°C to +85°C operating
  • DC grounded ESD protection; RoHS-6 compliant
  • The wide 617-5925 MHz span lets one antenna cover the router's low-band and mid-band needs

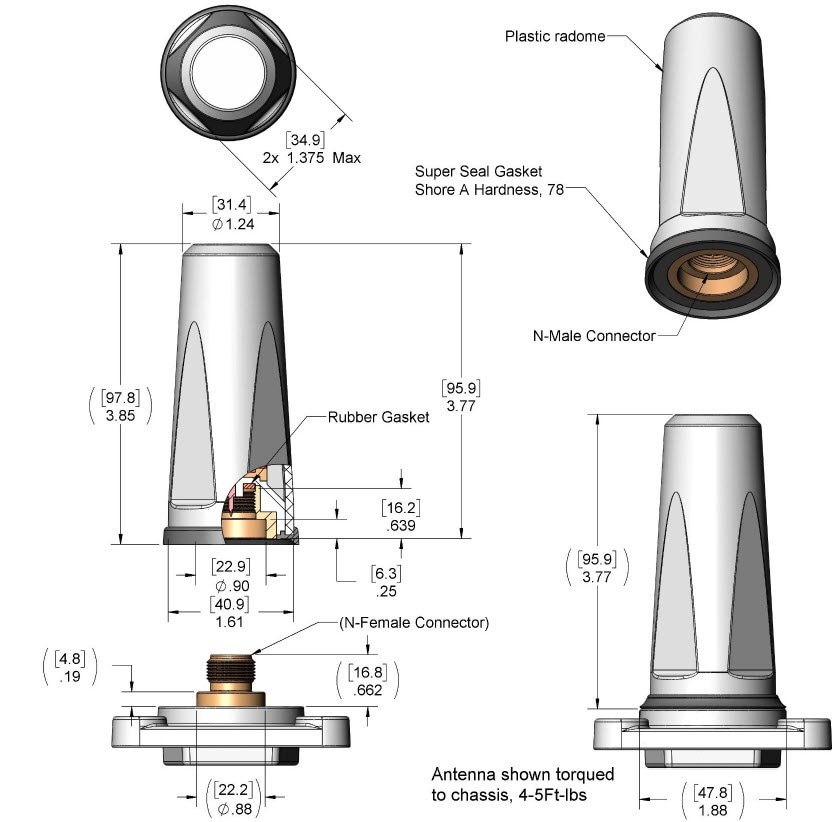

  • The compact 3.77 x 1.61 in, 63 g body fits on meter housings, utility boxes and small enclosures

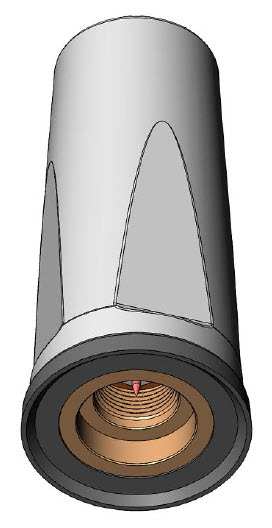

The Cisco Multipurpose Omnidirectional Outdoor Antenna (ANT-5G-MP-OUT-N=) is a low-profile monopole built for Cisco Connected Grid Routers. Cisco designed it for IoT devices, smart metering and utility boxes. At 3.77 in tall, 1.61 in in diameter and 63 g, it fits on enclosures and meter housings where a tall stick antenna would be impractical or easy to damage.

One antenna covers two wide frequency ranges: 617-960 MHz and 1710-5925 MHz. In the low range, average peak gain is 2 dBi with 83% average efficiency and 65° vertical half-power beamwidth. In the upper range, average peak gain is 5.5 dBi with 85% average efficiency and 40° vertical beamwidth. VSWR is 3:1 and 2:1 respectively. Polarization is vertical with an omnidirectional pattern, so the antenna needs no aiming. Impedance is 50 ohms and the average power rating is 10 W.

The antenna is sealed to IP66 and IP67 and operates and stores from -40°C to +85°C, so it suits outdoor cabinets in harsh climates. It is DC grounded for ESD protection. It attaches through an N-male connector with a specified installation torque of 4-5 ft-lbs. It is RoHS-6 compliant.

Cisco's installation guide for this antenna covers radiation patterns, system requirements and installation notes.

Ideal for

  • Smart metering installations on Cisco Connected Grid Routers
  • Utility boxes and distribution cabinets needing a low-profile outdoor antenna
  • Outdoor industrial IoT enclosures
  • Harsh-climate sites requiring IP66/IP67 sealing and -40°C to +85°C operation

Specifications

General

MPN
ANT-5G-MP-OUT-N=
Brand
Cisco
Model
ANT-5G-MP-OUT-N
Product Name
Multipurpose Omnidirectional Outdoor Antenna

Technical

Vswr
3:1 (617-960 MHz); 2:1 (1710-5925 MHz)
Height
3.77 in (95.9 mm)
Weight
0.14 lbs (63 g)
Diameter
1.61 in (40.9 mm)
Connector
N-Male
Antenna Type
Monopole
Polarization
Vertical
Esd Protection
DC Grounded
Rohs 6 Compliant
Yes
Average Peak Gain
2 dBi (617-960 MHz); 5.5 dBi (1710-5925 MHz)
Nominal Impedance
50 Ohms
Radiation Pattern
Omni
Average Efficiency
83% (617-960 MHz); 85% (1710-5925 MHz)
Ingress Protection
IP66 and IP67
Hpbw Vertical Plane
65° (617-960 MHz); 40° (1710-5925 MHz)
Installation Torque
4-5 ft-lbs
Storage Temperature
-40° to +185°F (-40°C to +85°C)
Average Power Rating
10 W
Operational Temperature
-40° to +185°F (-40°C to +85°C)
Operating Frequency Range
617-960 MHz; 1710-5925 MHz

Compatibility

System Requirements
Designed for use with Cisco Connected Grid Routers
Intended Applications
IoT devices, smart metering, utility boxes

Questions buyers ask

What frequencies does the ANT-5G-MP-OUT-N= cover?

It operates across 617-960 MHz and 1710-5925 MHz, with average peak gain of 2 dBi and 5.5 dBi respectively.

What connector does it use and how tight should it be installed?

It uses an N-male connector with a specified installation torque of 4-5 ft-lbs.

What routers is this antenna designed for?

Cisco designed it for use with Cisco Connected Grid Routers in IoT, smart metering and utility box applications.

How rugged is it?

It carries IP66 and IP67 ingress protection, operates from -40°C to +85°C and is DC grounded for ESD protection.
