Advantech ANT-LTE5G-025 5G NR/4G LTE Terminal Antenna with SMA Male Connector

5GMPN ANT-LTE5G-025
  • Single (SISO)
  • 3–5 dBi
$14.51

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Advantech ANT-LTE5G-025 is a 5G NR, 4G LTE, 3G and 2G terminal antenna for Advantech cellular routers. It covers 698–960 MHz and 1710–5000 MHz with peak gain up to 4.7 dBi. It connects directly to the router's SMA port through an SMA male connector and hinges 90° so it can stand upright or fold flat. The black PC + ABS radome is rated IP55 and works from -40 to +80 °C.

  • Frequency range 698–960 MHz and 1710–5000 MHz for 5G NR, 4G LTE, 3G and 2G
  • Peak gain up to 4.7 dBi, VSWR ≤ 3.0, 50 Ω impedance, linear polarization
  • SMA male (center pin) connector for direct router mounting
  • Hinged 90° for vertical or angled orientation
  • IP55 black PC + ABS radome, -40 °C to +80 °C working temperature
  • 199 mm × Φ22 mm size, RoHS compliant
  • Covers both LTE and 5G spectrum up to 5 GHz, so it can stay in place when a site moves from an LTE to a 5G router
  • Mounts directly on the router with no cable run or bracket needed

The Advantech ANT-LTE5G-025 is a wideband terminal antenna for cellular routers running LTE and 5G. It covers the 698–960 MHz low band and a continuous 1710–5000 MHz range, which includes the mid-band and 5G NR spectrum up to 5 GHz. It also works with 3G and 2G. It is a 50 Ω linear-polarized antenna with VSWR of 3.0 or better and peak gain up to 4.7 dBi.

The antenna screws directly onto a router's SMA port through an SMA male (center pin) connector. A 90° hinge lets it stand vertically or angle to suit the enclosure and mounting position. It measures 199 mm long and 22 mm in diameter. The black PC + ABS radome is rated IP55 and handles working temperatures from -40 °C to +80 °C. It is RoHS compliant.

Advantech publishes measured performance in the datasheet. Efficiency peaks at 87.88% at 4720 MHz and exceeds 70% across much of the 1000–2700 MHz range. Measured gain reaches 4.71 dBi at 5000 MHz. Advantech lists this antenna as compatible with a wide range of its routers, including the ICR-2000, ICR-3200 and ICR-4000 series models and the SR300-series routers. Multi-antenna routers use one antenna per cellular port, main and diversity, for full performance.

Ideal for

  • Replacement or spare cellular antennas for Advantech ICR-series routers
  • Main and diversity antennas for dual-port routers such as the ICR-3241
  • Upgrading from LTE to 5G routers without changing antennas
  • Cabinet, kiosk and DIN-rail installations where a folding antenna saves space

Specifications

General

MPN
ANT-LTE5G-025
Rohs
RoHS Compliant
Brand
Advantech
Life Cycle
Available
Description
5G NR / 4G LTE / 3G / 2G Terminal Antenna

Mechanical

Hinge
Hinged 90°
Casing
PC + ABS
IP Rating
IP55
Antenna Size

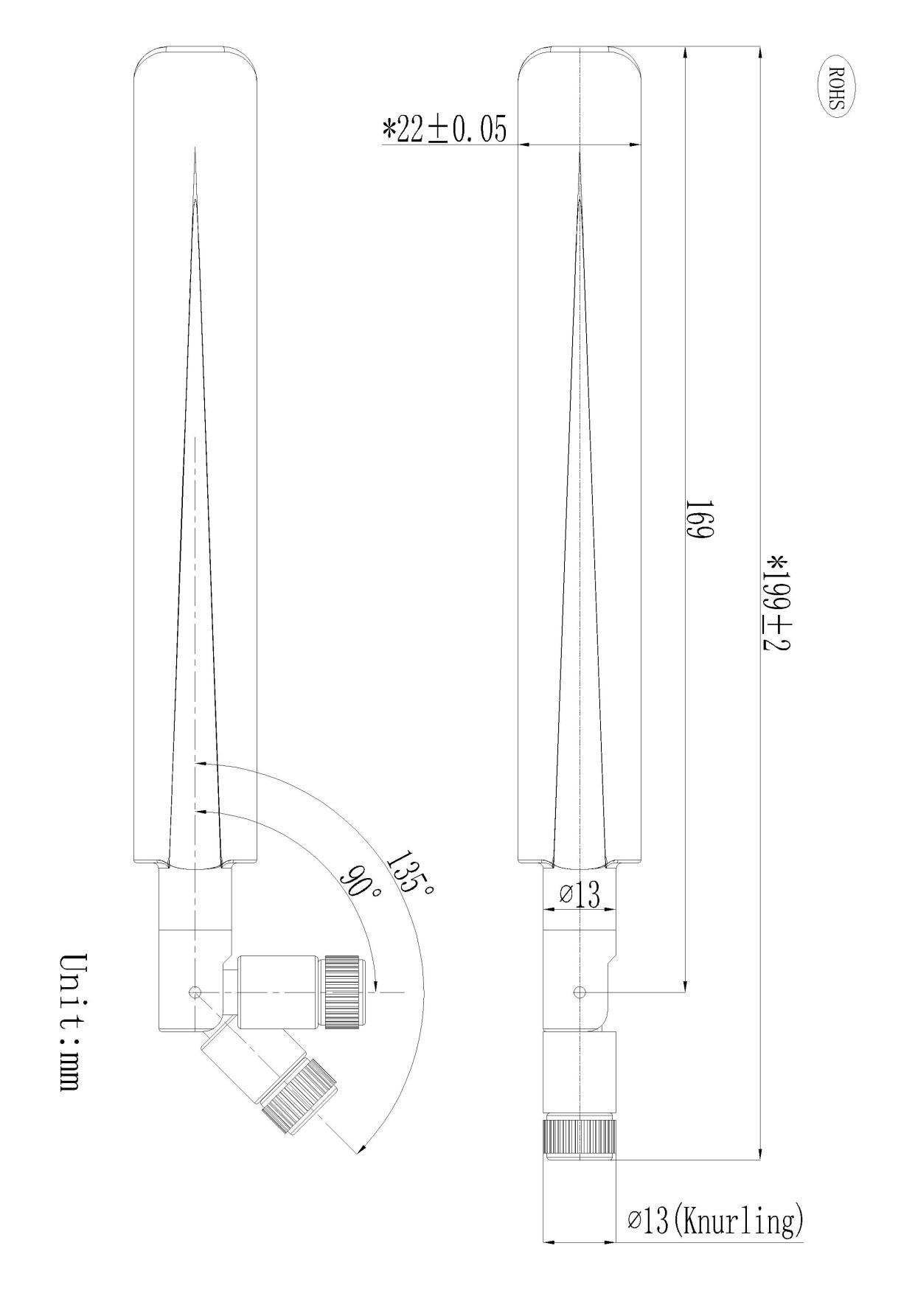

199 mm × Φ 22 mm
Radome Color
Black
Connector Type
SMA Male (center pin)
Working Temperature
-40 °C to +80 °C

Compatibility

Application
For cellular routers using LTE and 5G
Compatible Advantech Routers
ICR-4453, SR309, ICR-1601, ICR-2031, ICR-2041, ICR-2431, ICR-2432, ICR-2437, ICR-2441, ICR-2452 RedCap, ICR-2531, ICR-2545, ICR-2631, ICR-2734 Libratum, ICR-2834, ICR-4133, ICR-4161, ICR-4261, SR308, ICR-4233, ICR-4434, ICR-4461, ICR-4272, ICR-4172, ICR-3211, ICR-3231, ICR-3232, SL305, SR304, SR310, SR305, ICR-4171, ICR-4271, ICR-3241

Measured Gain

MHz 700
700 MHz: -2.44 dBi
MHz 780
780 MHz: -0.5 dBi
MHz 840
840 MHz: 0.66 dBi
MHz 960
960 MHz: 0.65 dBi
MHz 1000
1000 MHz: 2.68 dBi
MHz 1700
1700 MHz: 2.93 dBi
MHz 1950
1950 MHz: 1.71 dBi
MHz 2200
2200 MHz: 2.66 dBi
MHz 2450
2450 MHz: 0.33 dBi
MHz 2700
2700 MHz: 2.46 dBi
MHz 3300
3300 MHz: -1.31 dBi
MHz 3525
3525 MHz: 0.6 dBi
MHz 3750
3750 MHz: 1.3 dBi
MHz 3975
3975 MHz: 2.08 dBi
MHz 4200
4200 MHz: 0.18 dBi
MHz 4400
4400 MHz: 0.22 dBi
MHz 4560
4560 MHz: 1.57 dBi
MHz 4720
4720 MHz: 3 dBi
MHz 4880
4880 MHz: 4.12 dBi
MHz 5000
5000 MHz: 4.71 dBi

Measured Vswr

MHz 698
698 MHz: 3.22
MHz 824
824 MHz: 1.26
MHz 960
960 MHz: 2.09
MHz 1710
1710 MHz: 2.34
MHz 2690
2690 MHz: 1.34
MHz 3400
3400 MHz: 2.26
MHz 4400
4400 MHz: 2.12
MHz 5000
5000 MHz: 1.35

Test Environment

Vna
Keysight E5063A VNA, 100 kHz – 6.5 GHz
Chamber
RayZone 2800 5G (FR1) Chamber, 400 MHz – 6.0 GHz

Passive Electrical

Gain
≤ 4.7 dBi
Vswr
VSWR ≤ 3.0
Polarization
Linear
Frequency Range
698–960 MHz, 1710–5000 MHz
Input Impedance
50 Ω

Measured Efficiency

MHz 700
700 MHz: 39.05%
MHz 780
780 MHz: 47.34%
MHz 840
840 MHz: 65.18%
MHz 960
960 MHz: 69.71%
MHz 1000
1000 MHz: 71.27%
MHz 1700
1700 MHz: 70.81%
MHz 1950
1950 MHz: 58.72%
MHz 2200
2200 MHz: 60.62%
MHz 2450
2450 MHz: 66.25%
MHz 2700
2700 MHz: 74.38%
MHz 3300
3300 MHz: 35.32%
MHz 3525
3525 MHz: 43.54%
MHz 3750
3750 MHz: 43.95%
MHz 3975
3975 MHz: 46.81%
MHz 4200
4200 MHz: 28.84%
MHz 4400
4400 MHz: 38.82%
MHz 4560
4560 MHz: 61.86%
MHz 4720
4720 MHz: 87.88%
MHz 4880
4880 MHz: 75.98%
MHz 5000
5000 MHz: 74.22%

Questions buyers ask

Which frequencies does the ANT-LTE5G-025 cover?

It covers 698–960 MHz and 1710–5000 MHz, supporting 5G NR, 4G LTE, 3G and 2G.

What connector does it use?

It uses an SMA male (center pin) connector and mounts directly on a router's SMA antenna port.

Which routers is it compatible with?

Advantech lists it for the ICR-4453, SR309, ICR-1601, ICR-2031, ICR-2041, ICR-2431, ICR-2432, ICR-2437, ICR-2441, ICR-2452 RedCap, ICR-2531, ICR-2545, ICR-2631, ICR-2734 Libratum, ICR-2834, ICR-4133, ICR-4161, ICR-4261, SR308, ICR-4233, ICR-4434, ICR-4461, ICR-4272, ICR-4172, ICR-3211, ICR-3231, ICR-3232, SL305, SR304, SR310, SR305, ICR-4171, ICR-4271 and ICR-3241.

Can it be used outdoors?

The radome is rated IP55 and the antenna works from -40 °C to +80 °C, so it tolerates dust and water spray in industrial environments.

What is the antenna's gain?

Rated gain is up to 4.7 dBi. Measured gain in the datasheet ranges from -2.44 dBi at 700 MHz to 4.71 dBi at 5000 MHz.
