Panorama B4BE-6-60-2SP Bracket Mount 4G/5G Omni Antenna with 2 m Cable and SMA (m)

5GMPN B4BE-6-60-2SP
  • Single (SISO)
  • 3–5 dBi
  • 1–3 m
$25.78$35.33Save $9.55

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

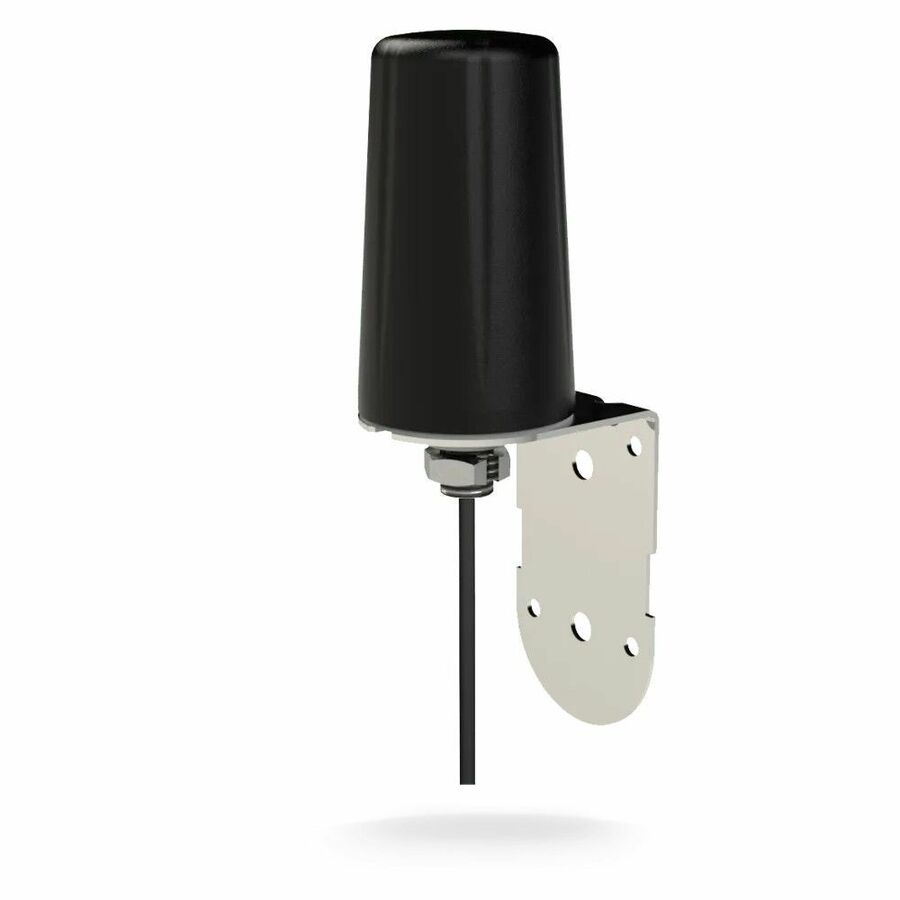

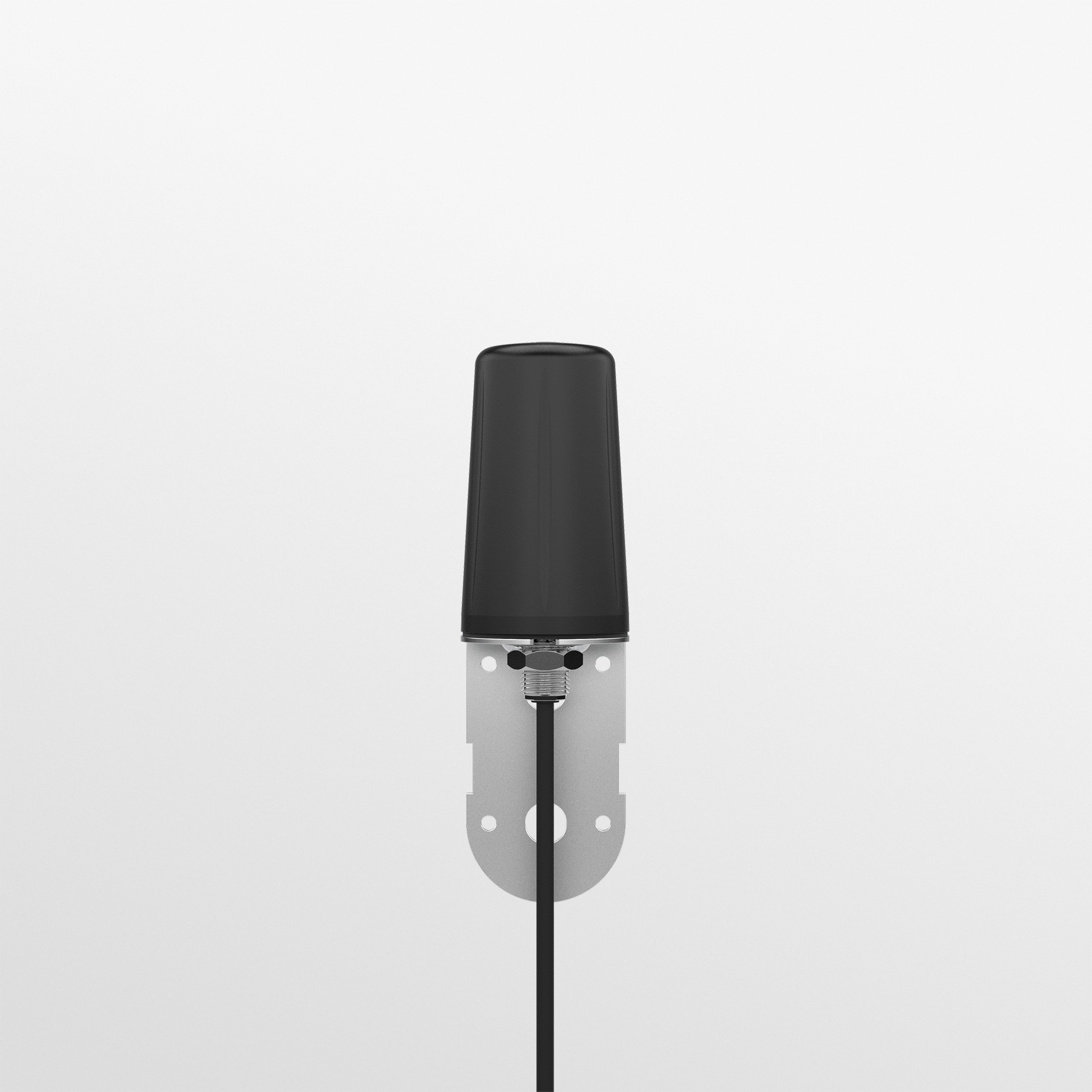

The Panorama B4BE-6-60-2SP is a weatherproof, omnidirectional bracket mount antenna for 2G/3G/4G and 5G devices. It covers 600-6000 MHz with up to 5 dBi peak gain, is Band 71 600 MHz ready, and is rated IP66 for wall or mast installation. This black SKU has a 2 m integrated CS29 low-loss cable terminated in an SMA (m) plug. That length suits a short run through a wall or into a cabinet to the router or gateway.

  • 600-6000 MHz coverage for 2G/3G/4G and 5G, Band 71 600 MHz ready
  • Up to 5 dBi peak gain: 2 dBi (617-960 MHz), 3.5 dBi (1710-2700 MHz), 5 dBi (3400-3800 MHz)
  • Omnidirectional single-element (SISO) cellular antenna
  • Integrated 2 m CS29 low-loss cable with SMA (m) connector
  • UV stable, IP66 rated housing for wall or mast mounting
  • Operates from -40°C, 30 W maximum input power
  • The 2 m lead suits through-wall runs to a device just inside the building or cabinet
  • External, elevated mounting captures stronger signal for routers and gateways

The Panorama B4BE-6-60-2SP is a robust bracket mount antenna for LTE, M2M and IoT use. It is designed for wall or mast mounting in an elevated or external location, where cellular signal is strongest. The omnidirectional pattern means the antenna goes up quickly without being aimed at a tower.

A single cellular element (SISO) covers 600-6000 MHz for 2G, 3G, 4G LTE and 5G, and the antenna is Band 71 600 MHz ready. Panorama specifies 2 dBi across 617-960 MHz, 3.5 dBi across 1710-2700 MHz and 5 dBi across 3400-3800 MHz, with 30 W maximum input power. There are no GPS, Wi-Fi or UHF elements.

The 164 mm by 48 mm housing is UV stable and IP66 rated, and it is specified to operate down to -40°C. Housing materials meet UL746C F2 and UL 94-HB.

The 2 m (6.56 ft) integrated CS29 low-loss cable ends in an SMA (m) connector. It gives enough reach to mount the antenna on an outside wall or short mast and pass the cable through to a router, gateway or telemetry unit on the other side, without the extra slack of a longer lead. The B4BE-6-60 is also available with 0.5 m, 5 m and 10 m cables. Panorama publishes a datasheet and installation instructions for the family.

Ideal for

  • Through-wall antenna for a small-business or branch cellular router
  • Smart metering and utility telemetry
  • Remote monitoring cabinets and kiosks
  • External antenna for M2M and IoT gateways

Specifications

GPS

Number OF GPS Elements
No

Cable

Cable Type LTE
CS29
Cable Length LTE
2 m (6.56 ft)
Family Cable Length Range
0.5 m (1.64 ft) to 10 m (32.81 ft)

General

UPC
5055416034243
Brand
Panorama Antennas
Model Family
B4BE-6-60 Bracket Mount 4G/5G Antenna
Housing Colour
Black
Manufacturer Part Number
B4BE-6-60-2SP

Package

Shipping Weight
0.65 lb

Mounting

Mounting Methods
Mast; Wall
Mounting Type Fixed
Mast; Wall

Approvals

IP Rating
IP66
Material Flammability
UL746C F2, UL 94-HB

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
No
Max Input Power
30 W
Gain 617 960 MHz
2 dBi
Gain 1710 2700 MHz
3.5 dBi
Gain 3400 3800 MHz
5 dBi
Cellular LTE Elements
SISO (single element)

Mechanical

Height
164 mm (6.46 in)
Diameter
48 mm (1.89 in)
Colour Options Family
Black; White
Operating Temperature
-40°C to +80°C (-40°F to +176°F); -40°C to +85°C (-40°F to +185°F)

Technology

Band 71
Band 71 600 MHz ready
Technology
2G/3G/4G and 5G

Termination

Connector LTE
SMA (m)

Questions buyers ask

How long is the cable?

2 m (6.56 ft) of integrated CS29 low-loss cable with an SMA (m) connector.

What frequencies does it cover?

600-6000 MHz for 2G/3G/4G and 5G. Gain is 2 dBi at 617-960 MHz, 3.5 dBi at 1710-2700 MHz and 5 dBi at 3400-3800 MHz.

Can it be mounted on a mast?

Yes. It is designed for wall or mast mounting.

Is it rated for outdoor use?

Yes. It is IP66 rated, UV stable and specified to operate down to -40°C.
