Panorama BATGM-7-60 Covert 2x2 MIMO 4G/5G Dash Antenna with GPS/GNSS, 3 m SMA

5GMPN BATGM-7-60
  • 2x2 MIMO
  • GNSS
  • 9 dBi and up
  • 1–3 m
$88.66$121.28Save $32.62

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

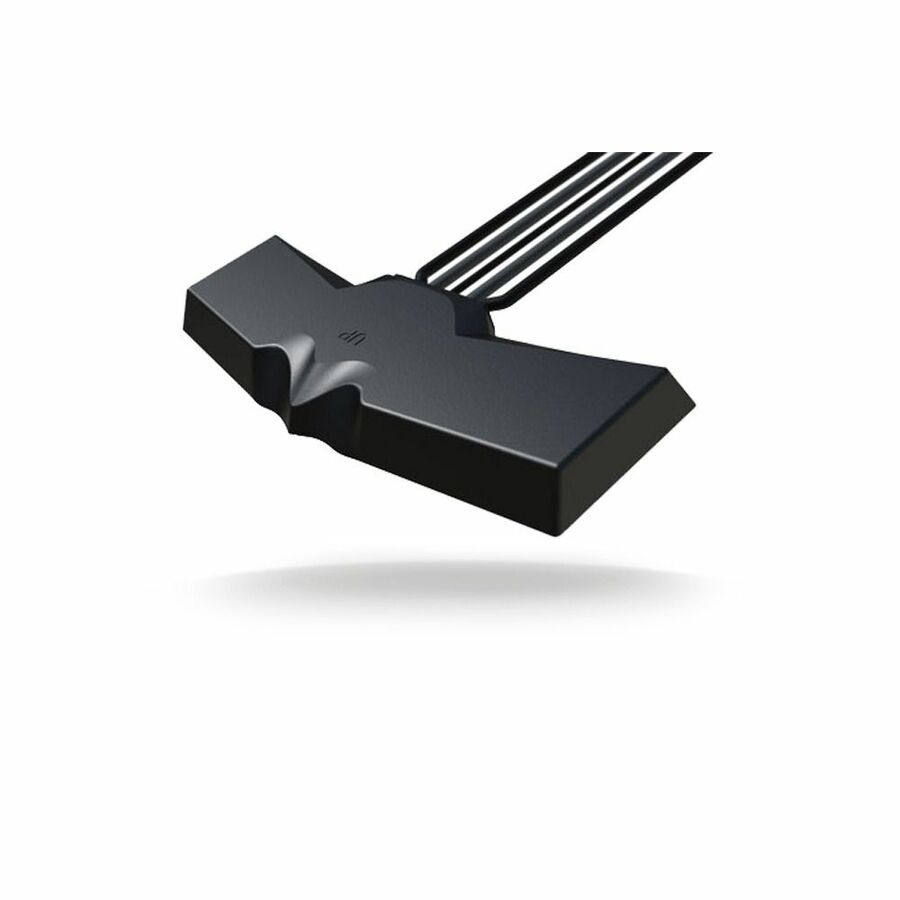

The Panorama BATGM-7-60 is a slim, covert in-vehicle antenna that pairs 2x2 MIMO 4G/5G elements with an active GPS/GNSS module. Its cellular coverage runs from 617 to 6000 MHz with up to 9 dBi gain, including Band 71. The GNSS module has a 26 dB LNA with advanced B13/B14 filtering. At 16.5 mm tall, it mounts on or under a dashboard or on glass, and ships with 3 m flame-retardant cables terminated in SMA male connectors.

  • 2x2 MIMO 4G/5G elements covering 617-960, 1710-2170, 2500-3800 and 4900-6000 MHz
  • Gain of 3 dBi low band rising to 9 dBi at 4900-6000 MHz
  • Active GPS/GNSS (1562-1612 MHz) with 26 dB LNA and advanced B13/B14 filtering
  • Low-profile 214 x 77 x 16.5 mm covert housing for dash or glass mounting
  • 3 m flame-retardant leads meeting EN45545-2 HL3 and UN ECE R118
  • SMA (m) connectors on cellular and GNSS leads
  • Keeps a 2x2 MIMO 4G/5G router connected from inside the vehicle, with nothing on the roof
  • Band 71 coverage supports US 600 MHz low-band service for wider reach

The Panorama BATGM-7-60 is the SMA-terminated cellular and GPS model in Panorama's BAT range of internal, discreet all-in-one antennas. It suits public safety, mass transit and utility vehicles that need a 2x2 MIMO 4G/5G router or modem and GPS tracking without an exterior antenna. The cellular elements are tuned for effective MIMO, with good isolation and low correlation.

The cellular elements cover 617-960 MHz at 3 dBi, 1710-2170 MHz at 7 dBi, 2500-3800 MHz at 8 dBi and 4900-6000 MHz at 9 dBi. That coverage includes Band 71 (600 MHz), and Panorama lists FirstNet among the supported technologies. The GPS/GNSS module covers 1562-1612 MHz with a 26 dB LNA and advanced B13/B14 filtering. This version has no Wi-Fi elements. Maximum input power is 20 W.

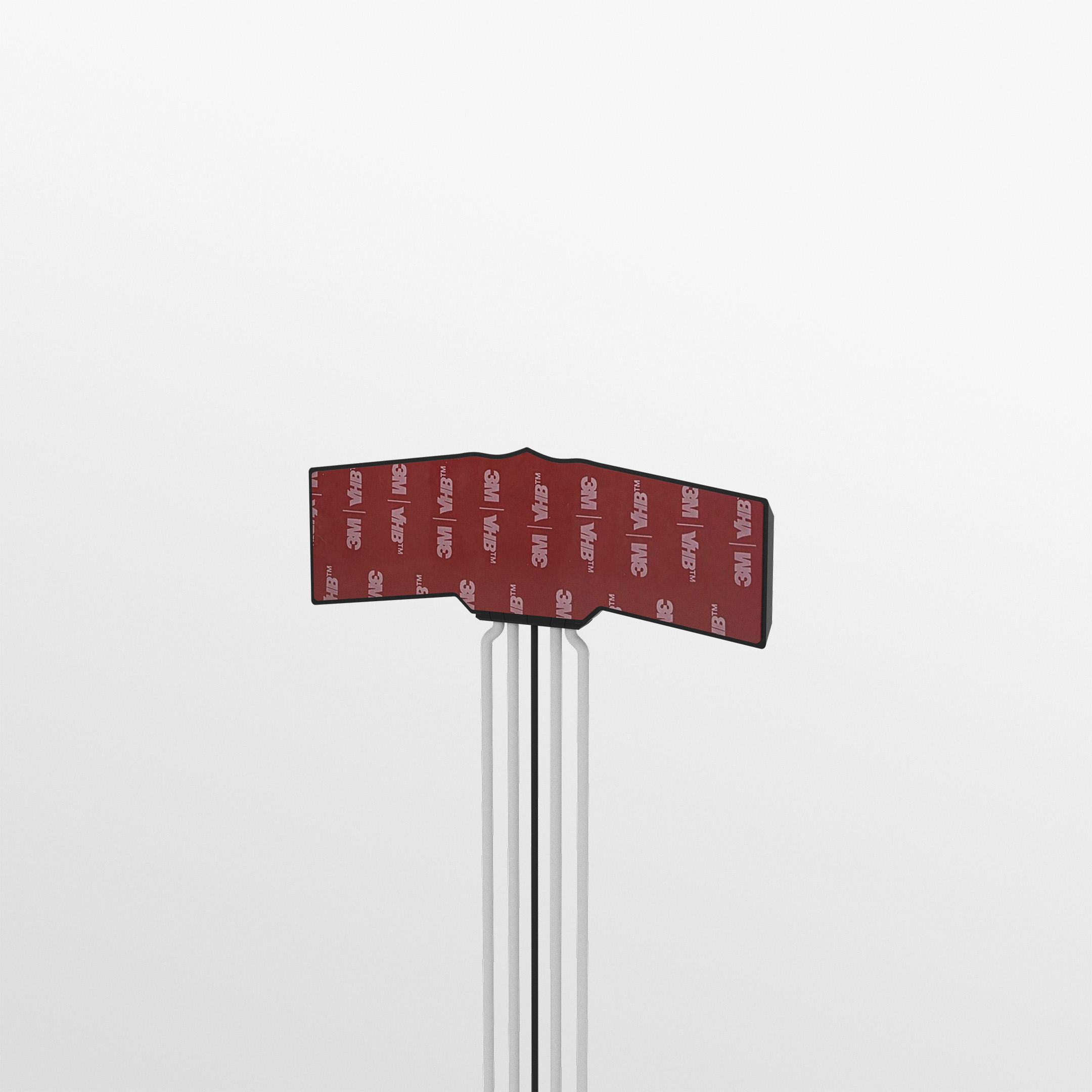

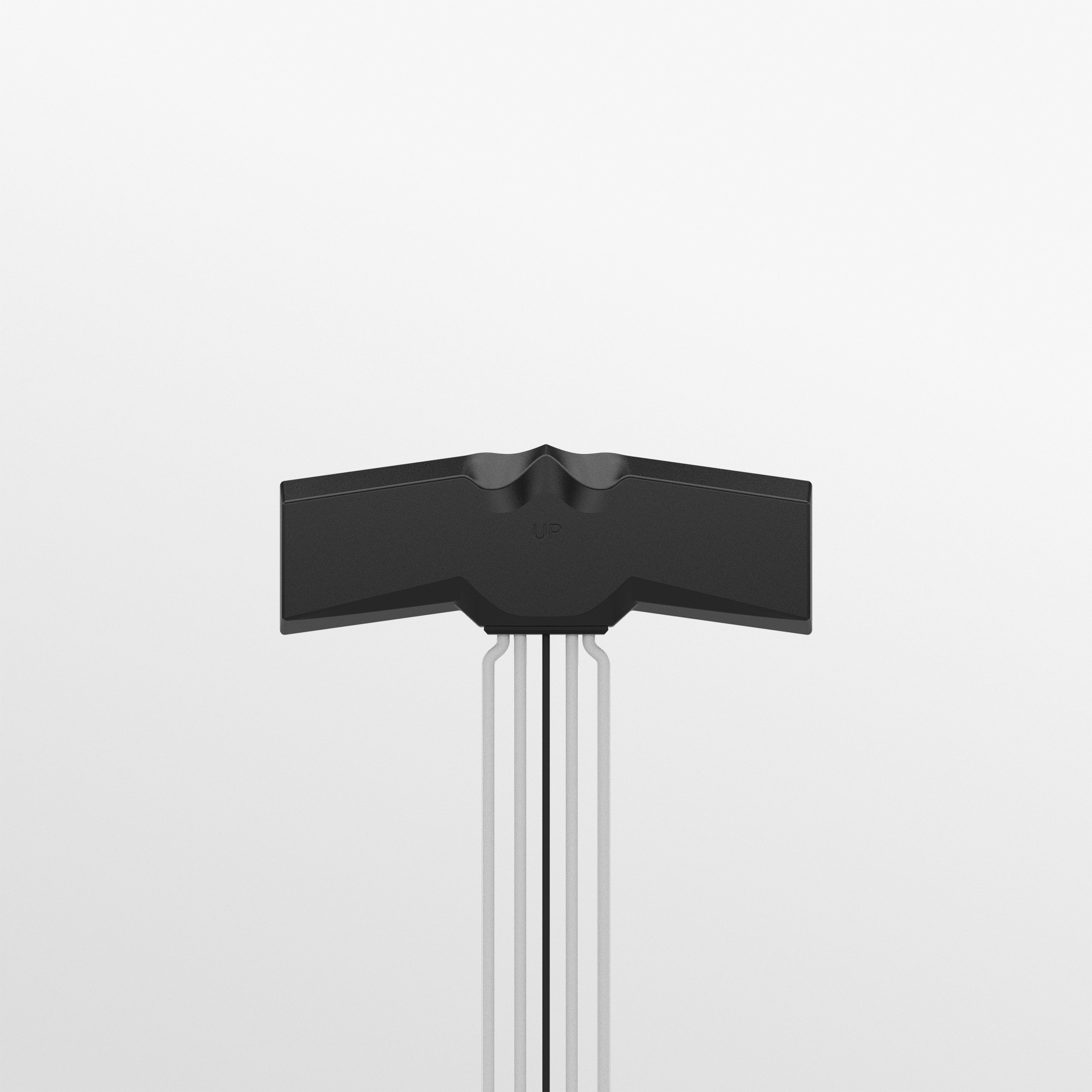

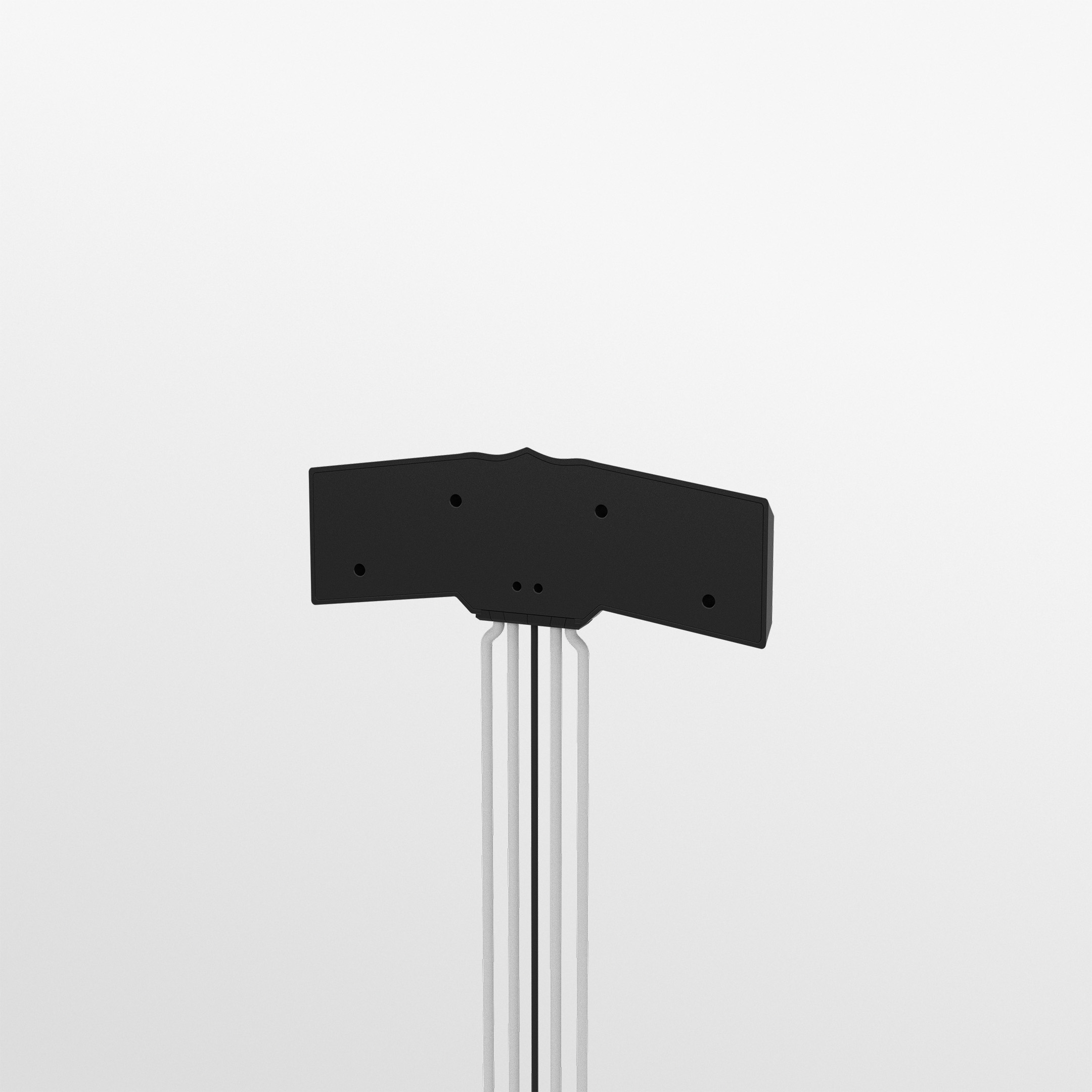

The black housing measures 214 x 77 x 16.5 mm and operates from -30 to +70°C. It is designed for on or under a vehicle dashboard or on glass, and can be mounted on any non-conductive surface. All leads are 3 m. Cellular leads use FR CS32 cable, the GNSS lead uses FR RG174, and all terminate in SMA male connectors. The cables meet EN45545-2 HL3 and UN ECE R118. Panorama's datasheet and installation instructions (SW3-773) cover the BATGM series.

Ideal for

  • Public safety vehicles running a 2x2 MIMO 4G/5G router
  • Mass transit vehicles with GPS tracking
  • Utility and field-service trucks
  • Covert in-vehicle installs where roof antennas are not permitted

Specifications

GPS

Lna Gain
26 dB
GPS Frequency Range
1562-1612 MHz
Number OF GPS Elements
1 Module

Cable

Cable Type GPS
FR RG174
Cable Type LTE
FR CS32
Cable Length GPS
3 m (9.84 ft)
Cable Length LTE
3 m (9.84 ft)

General

MPN
BATGM-7-60
Brand
Panorama Antennas
Product Family
BATGM Internal MiMo 4G/5G Antenna

Package

Shipping Weight
2.50 lb

Mounting

Mounting Methods
Dash, Glass Mount
Mounting Type Temp
Dash, Glass Mount

Approvals

Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
No
Max Input Power
20 W
Gain 617 960 MHz
3 dBi
Gain 1710 2170 MHz
7 dBi
Gain 2500 3800 MHz
8 dBi
Gain 4900 6000 MHz
9 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
77 mm (3.03 in)
Colour
Black
Height
16.5 mm (0.65 in)
Length
214 mm (8.43 in)
Operating Temperature
-30°C to +70°C (-22°F to +158°F)

Technology

Technology
GPS, 4G/5G, 5G, 2G/3G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GNSS

Termination

Connector GPS
SMA (m)
Connector LTE
SMA (m)

Questions buyers ask

What frequencies does the BATGM-7-60 cover?

The 2x2 MIMO cellular elements cover 617-960 MHz (3 dBi), 1710-2170 MHz (7 dBi), 2500-3800 MHz (8 dBi) and 4900-6000 MHz (9 dBi). The GPS/GNSS module covers 1562-1612 MHz.

Does it include Wi-Fi?

No. The BATGM-7-60 provides 2x2 MIMO cellular plus GPS/GNSS. The BATGM-7-60-24-58 adds 2x2 MIMO Wi-Fi.

What connectors are fitted?

All leads are 3 m and terminate in SMA male connectors.

Where is it installed?

It is designed for on or under a vehicle dashboard or on glass, and can be mounted on any non-conductive surface.

Are the cables approved for transit vehicles?

Yes. The cables are flame retardant and meet EN45545-2 HL3 and UN ECE R118.
