Panorama BATGMF-7-60-24-58 Covert 5-in-1 4G/5G, GNSS and Wi-Fi Antenna with FAKRA

5GMPN BATGMF-7-60-24-58
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up
  • 1–3 m
$100.26$137.45Save $37.19

In stock · only 4 leftFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

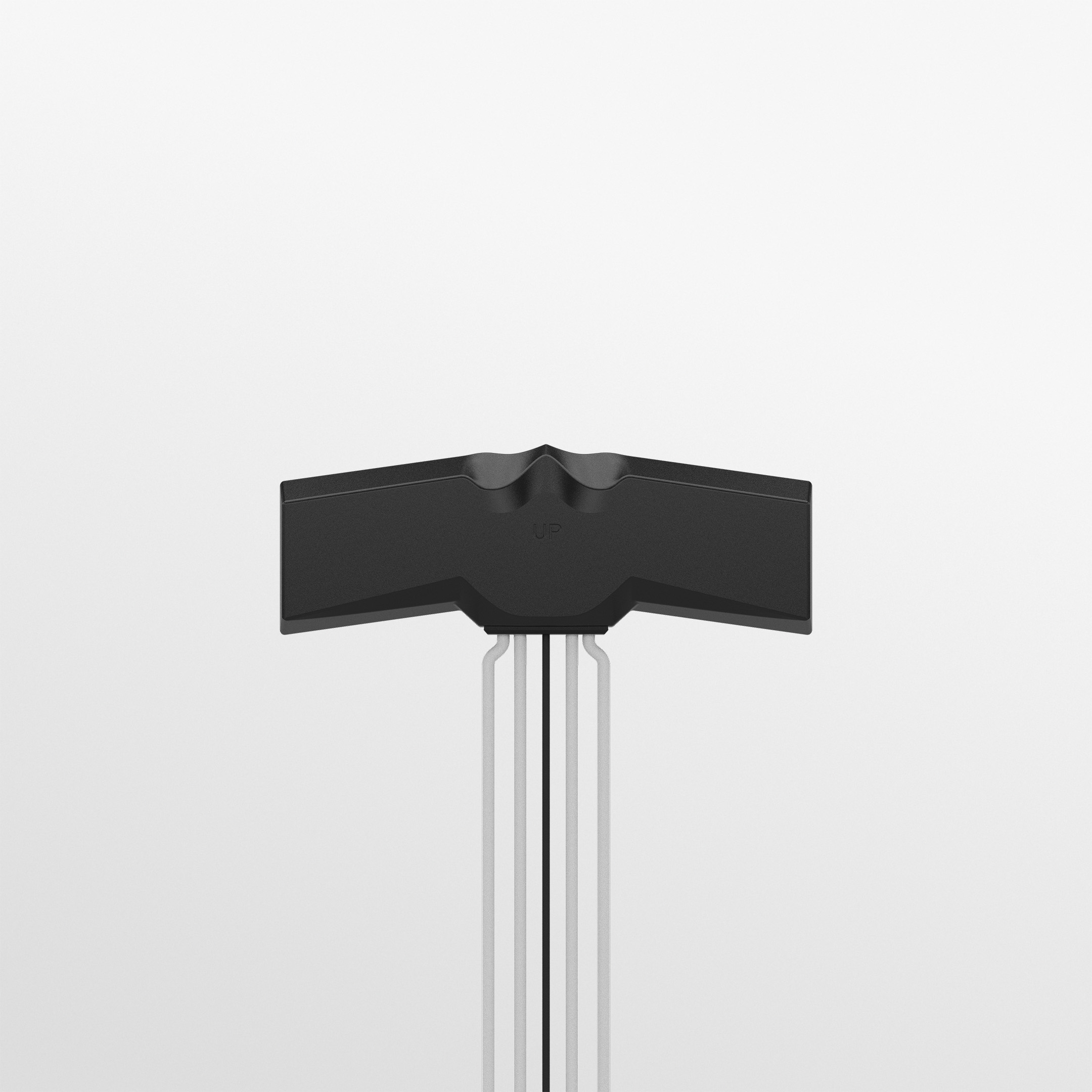

The Panorama BATGMF-7-60-24-58 is a low-profile covert in-vehicle antenna that combines 2x2 MIMO 4G/5G, an active GPS/GNSS module and 2x2 MIMO dual-band Wi-Fi in one housing. Its cellular elements cover 617-6000 MHz with up to 9 dBi gain, including Band 71. Each 3 m flame-retardant lead ends in a FAKRA connector: D for cellular, C for GNSS and I for Wi-Fi, suiting FAKRA-equipped vehicle routers.

  • 5-in-1: 2x2 MIMO 4G/5G, 1 GPS/GNSS module and 2x2 MIMO dual-band Wi-Fi
  • Cellular coverage of 617-960, 1710-2170, 2500-3800 and 4900-6000 MHz, up to 9 dBi
  • Active GPS/GNSS (1562-1612 MHz) with 26 dB LNA and B13/B14 filtering
  • FAKRA D (cellular), FAKRA C (GNSS) and FAKRA I (Wi-Fi) connectors on 3 m leads
  • Low-profile 214 x 77 x 16.5 mm covert housing
  • Flame-retardant cables meeting EN45545-2 HL3 and UN ECE R118
  • One hidden antenna replaces separate cellular, GPS and Wi-Fi antennas
  • Colour-coded FAKRA connectors plug directly into FAKRA-equipped vehicle routers and help prevent mis-connection

The Panorama BATGMF-7-60-24-58 is the complete 5-in-1 FAKRA version of Panorama's BATGM series of internal, discreet antennas. It serves public safety, mass transit and utility fleets that run vehicle routers with FAKRA inputs and want cellular, GPS and Wi-Fi from a single hidden unit. The F in the part number denotes FAKRA termination, and the -24-58 suffix denotes the dual-band 2.4/5 GHz Wi-Fi elements.

The 2x2 MIMO cellular elements cover 617-960 MHz at 3 dBi, 1710-2170 MHz at 7 dBi, 2500-3800 MHz at 8 dBi and 4900-6000 MHz at 9 dBi. They are designed for good isolation and low correlation, for effective MIMO performance. That coverage includes Band 71 (600 MHz), and Panorama lists FirstNet among the supported technologies. The active GPS/GNSS module covers 1562-1612 MHz with a 26 dB LNA and advanced B13/B14 filtering. A pair of MIMO Wi-Fi elements provides in-vehicle wireless coverage.

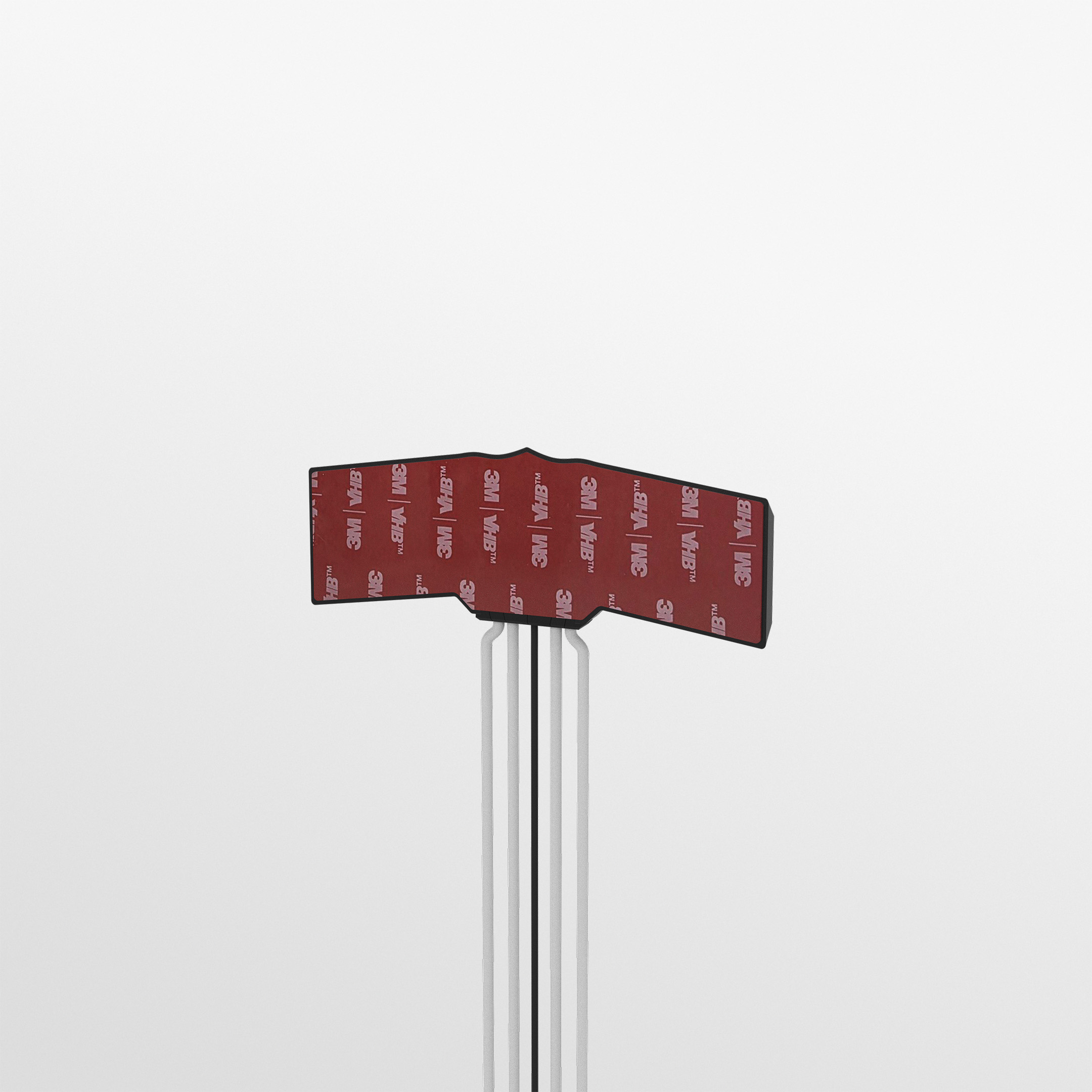

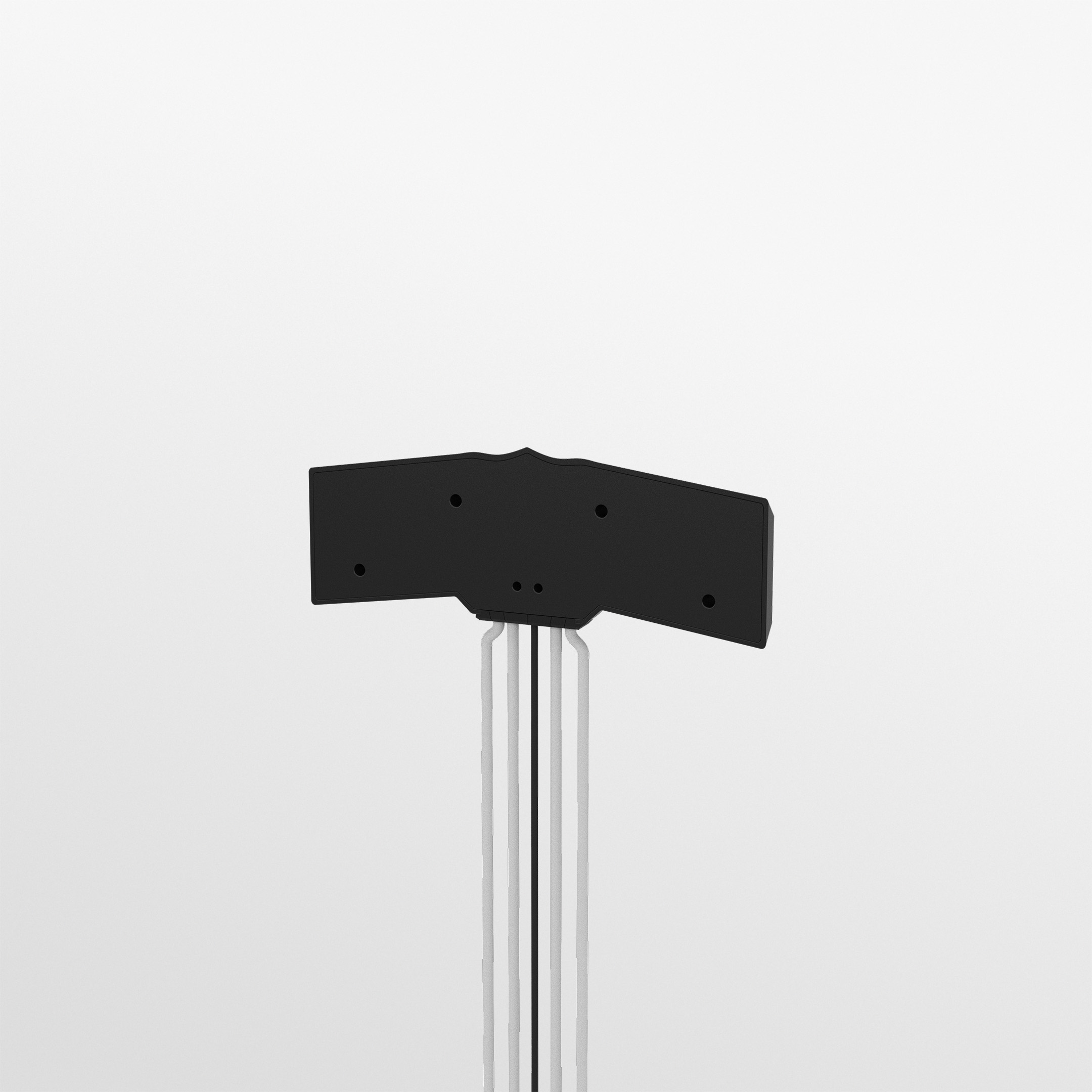

The black housing measures 214 x 77 x 16.5 mm and operates from -30 to +70°C. It mounts on or under a dashboard or on glass, and on any non-conductive surface. All leads are 3 m flame-retardant cable (FR CS32 for cellular and Wi-Fi, FR RG174 for GNSS). The cables meet EN45545-2 HL3 and UN ECE R118. Panorama's datasheet and installation instructions (SW3-773) cover the series.

Ideal for

  • Public safety vehicles with FAKRA-input 4G/5G routers
  • Mass transit vehicles providing passenger Wi-Fi and GPS tracking
  • Utility and field-service fleets
  • Covert installations where exterior antennas are not permitted

Specifications

GPS

Lna Gain
26 dB
GPS Frequency Range
1562-1612 MHz
Number OF GPS Elements
1 Module

Cable

Cable Type GPS
FR RG174
Cable Type LTE
FR CS32
Cable Type Wi-Fi
FR CS32
Cable Length GPS
3 m (9.84 ft)
Cable Length LTE
3 m (9.84 ft)
Cable Length Wi-Fi
3 m (9.84 ft)

General

MPN
BATGMF-7-60-24-58
UPC
5055416065940
Brand
Panorama Antennas
Product Family
BATGM Internal MiMo 4G/5G Antenna

Package

Shipping Weight
2.50 lb

Mounting

Mounting Methods
Dash, Glass Mount
Mounting Type Temp
Dash, Glass Mount

Approvals

Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO
Max Input Power
20 W
Gain 617 960 MHz
3 dBi
Gain 1710 2170 MHz
7 dBi
Gain 2500 3800 MHz
8 dBi
Gain 4900 6000 MHz
9 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
77 mm (3.03 in)
Colour
Black
Height
16.5 mm (0.65 in)
Length
214 mm (8.43 in)
Operating Temperature
-30°C to +70°C (-22°F to +158°F)

Technology

Technology
GPS, 4G/5G, 5G, 2G/3G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GNSS, Wi-Fi MIMO, Wi-Fi

Termination

Connector GPS
FAKRA C
Connector LTE
FAKRA D
Connector Wi-Fi
FAKRA I

Questions buyers ask

What connectors does the BATGMF-7-60-24-58 use?

The cellular leads use FAKRA D, the GNSS lead uses FAKRA C, and the Wi-Fi leads use FAKRA I. All leads are 3 m.

What does -24-58 mean in the part number?

It denotes the dual-band 2.4/5 GHz Wi-Fi elements, fitted here as 2x2 MIMO.

What cellular bands are covered?

The 2x2 MIMO elements cover 617-960 MHz (3 dBi), 1710-2170 MHz (7 dBi), 2500-3800 MHz (8 dBi) and 4900-6000 MHz (9 dBi). That coverage includes Band 71.

Is there an SMA version?

Yes. The BATGM-7-60-24-58 has the same cellular, GNSS and 2x2 Wi-Fi configuration with SMA and reverse polarity SMA connectors.

How is it mounted?

It is designed for on or under a vehicle dashboard or on glass, and can be mounted on any non-conductive surface.
