Panorama BATM-7-60 Covert 2x2 MIMO 4G/5G Dashboard Antenna, 3 m SMA

The Panorama BATM-7-60 is a covert 2x2 MIMO antenna for in-vehicle 4G and 5G connectivity. It is aimed at public safety, mass transit and utility fleets. It belongs to Panorama's BAT range of internal antennas and is the cellular-only configuration, with no GPS or Wi-Fi elements. Two MIMO elements cover 617-960/1427-6000 MHz, including 600 MHz Band 71, with good isolation and low correlation for effective MIMO performance on 2x2 routers and gateways.

Gain rises with frequency, as Panorama publishes it: 3 dBi at 617-960 MHz, 7 dBi at 1710-2170 MHz, 8 dBi at 2500-3800 MHz and 9 dBi at 4900-6000 MHz. The pattern is omnidirectional and maximum input power is 20 W.

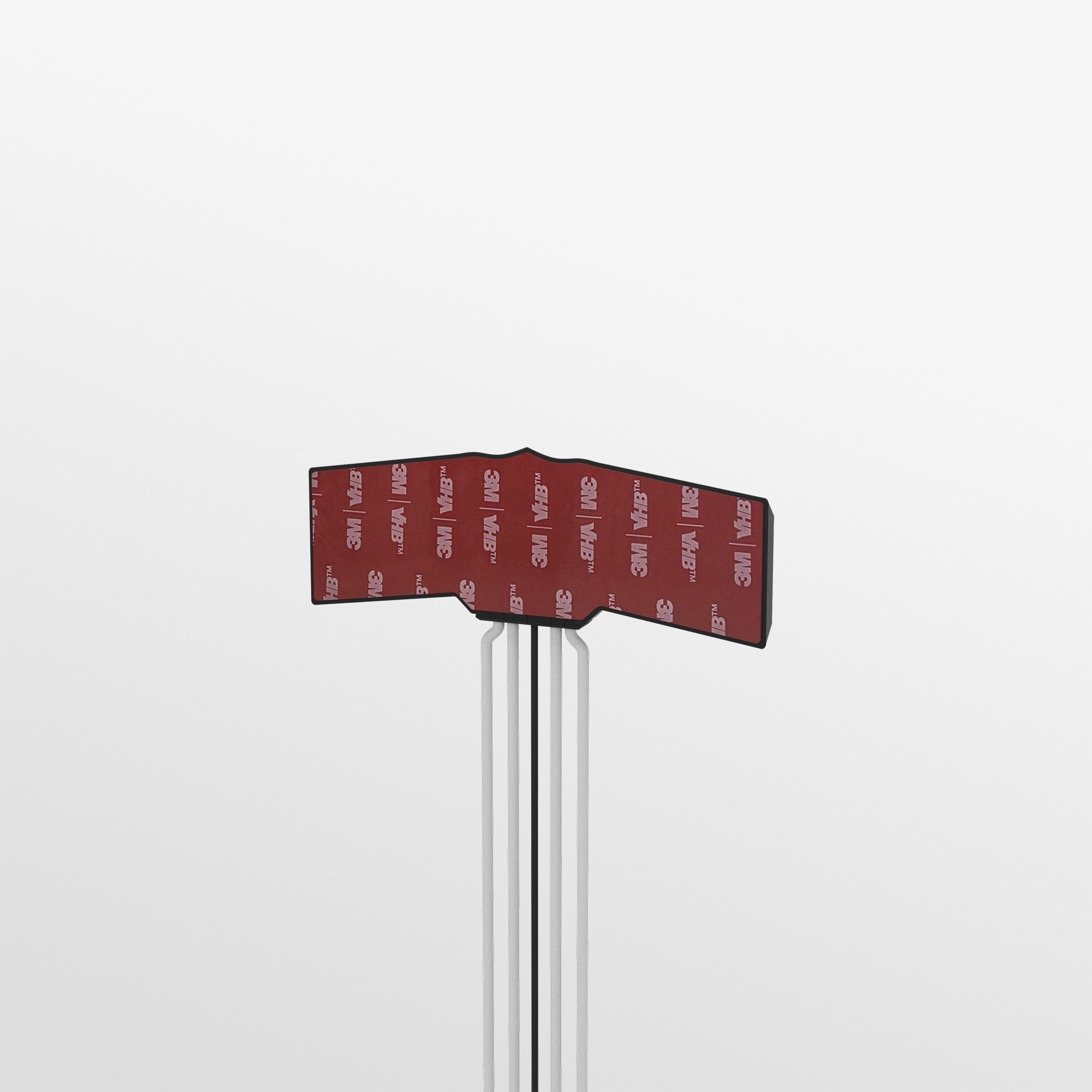

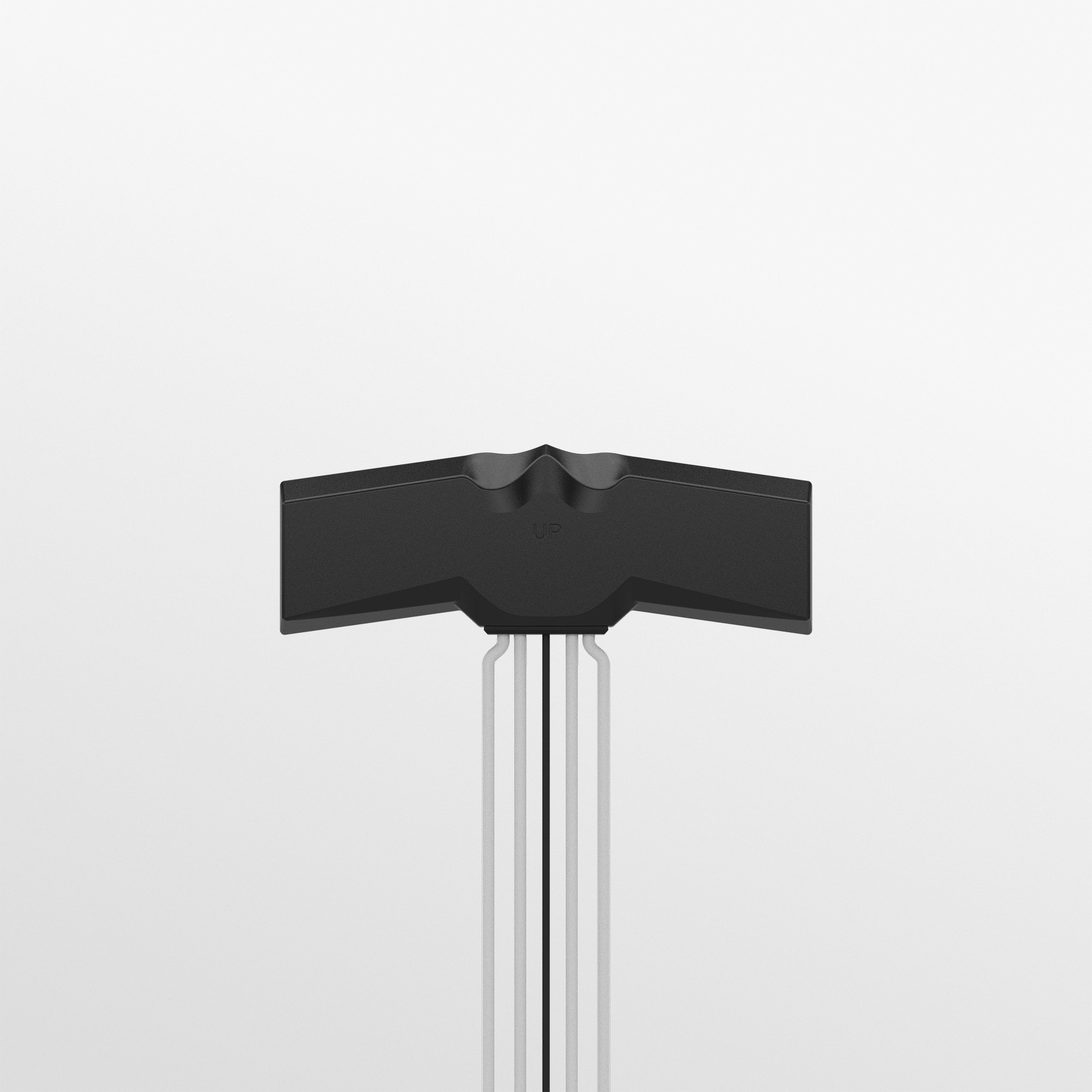

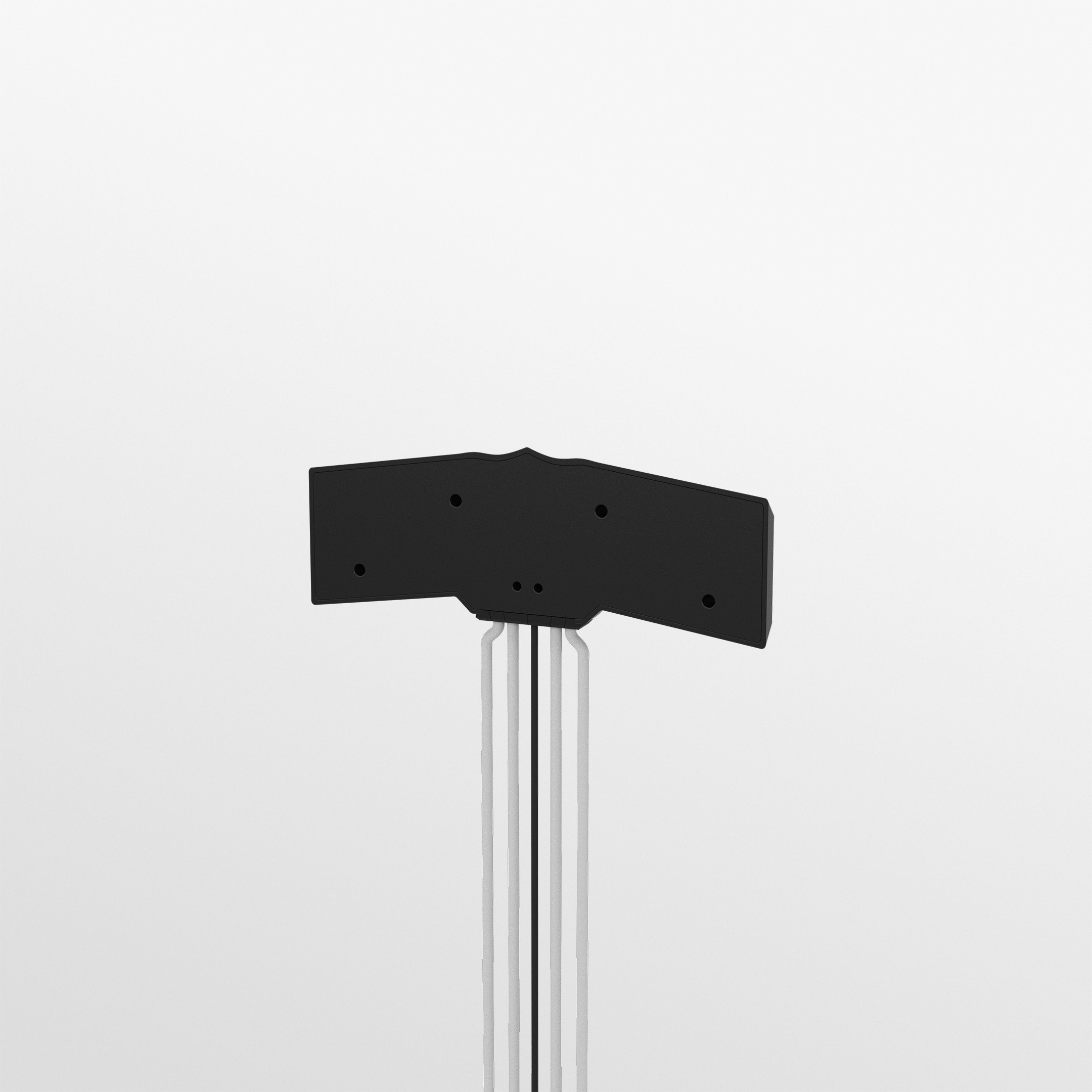

The black housing measures 214 x 77 x 16.5 mm. It sits on or under a dashboard or mounts on glass, and it can go on any non-conductive surface. Keeping the antenna inside the vehicle protects it and keeps it out of view. The rated operating range is -30°C to +70°C. Integrated 3 m (9.84 ft) FR CS32 low-loss cables are flame retardant, meet UN ECE R118 and EN45545-2 HL3, and terminate in SMA (m) connectors.

Panorama supplies a datasheet and the SW3-773 BAT-series installation instructions. If you later need positioning or in-vehicle Wi-Fi from a single housing, the same BATGM family offers GPS/GNSS and Wi-Fi variants.
