Advantech BB-2J7041BGFA-300 3-in-1 4G LTE MIMO and GNSS Heavy-Duty Screw Mount Antenna
4G LTEMPN BB-2J7041BGFA-300
- 2x2 MIMO
- GNSS
- 3–5 dBi
$247.91
In stock · only 5 leftFree 2-day shipping
- Free shipping to the US
- 30-day returns on unopened devices
- Secure checkout · pay by card
Datasheets & documents
Overview

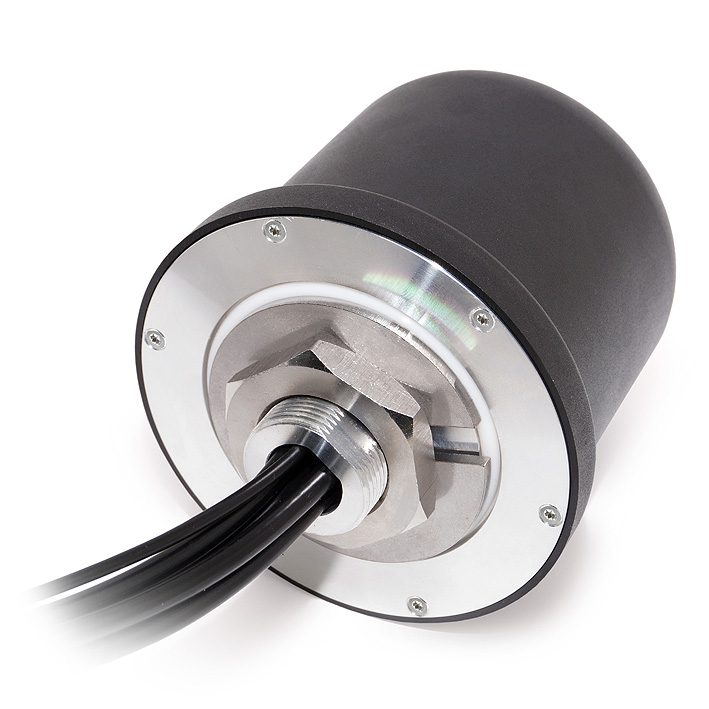

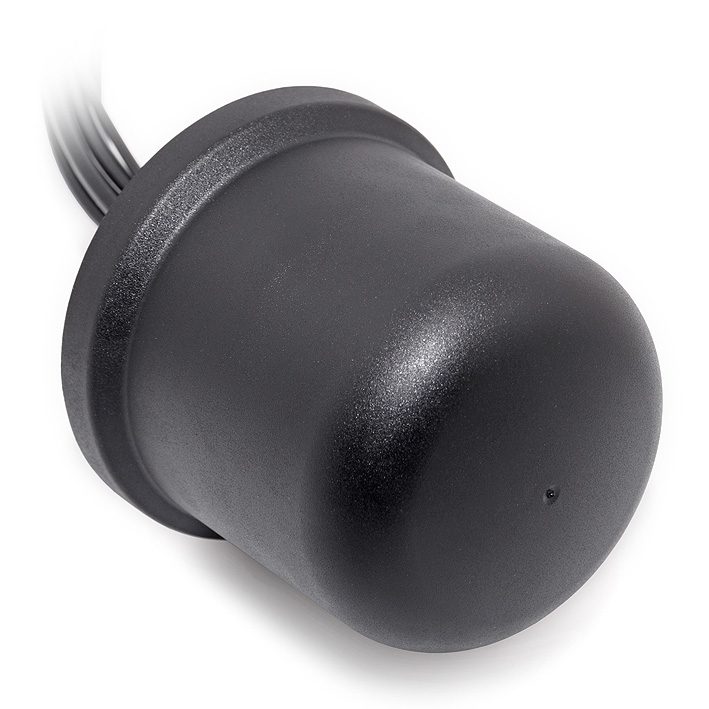

The Advantech BB-2J7041BGFA-300 is a heavy-duty 3-in-1 dome antenna that combines two 4G LTE MIMO elements with an active GNSS element for GPS, GLONASS, Galileo and QZSS. The LTE elements cover 698-960, 1710-2170 and 2500-2700 MHz, and the GNSS element adds 28 dB of active gain. Each element has its own 3 m cable with an SMA-male connector. The antenna is ground plane independent, uses an anti-rotation screw mount and carries IP67, IP69 and IK09 certifications.
- 3-in-1: two 4G LTE MIMO elements plus one active GNSS element
- LTE coverage 698-960, 1710-2170 and 2500-2700 MHz for 2G, 3G and 4G
- GNSS support for GPS, GLONASS, Galileo and QZSS with 28 dB active gain
- Three 3 m cables (2x LMR195 LTE, 1x LMR100 GNSS) with SMA-male connectors
- Ground plane independent, anti-rotation screw mount
- IP67, IP69 and IK09 certified housing with UV-stable ASA radome, -40 to +85 °C
- One roof penetration covers both LTE MIMO ports and the GNSS input of an Advantech router
- Tracking, telematics and positioning from the same antenna as the data link
The Advantech BB-2J7041BGFA-300 is a compact heavy-duty antenna for 4G LTE and GNSS in industrial and vehicle deployments. One Ø 96 x 90 mm dome holds two cellular MIMO elements and a positioning element, each on a separate 3 m cable with an SMA-male connector. The long cables let the router sit deep inside a vehicle or cabinet while the antenna mounts outside. Both LTE elements use low-loss LMR195 cable, and the GNSS element uses LMR100.
The cellular elements cover 698-960 MHz (700/850/900), 1710-2170 MHz (1700/1800/1900/2100) and 2500-2700 MHz (2600) for 2G, 3G and 4G. Radiation is omnidirectional with linear polarisation, 50 Ohm impedance and a 25 W maximum input rating. Efficiency measures around 54-63% in the low and mid bands, with peak gain of approximately 4.2 dBi at 1710-2170 MHz on cable 1. The GNSS element receives GPS, QZSS and Galileo at 1575.42 MHz and GLONASS at 1598-1610 MHz. It uses RHCP polarisation, a SAW pre-filter, 28 dB active gain and a 1.8 dB noise figure at 2.7 V, and runs from 1.5-3.6 V.
The antenna is ground plane independent, so it performs on fibreglass, plastic or metal surfaces. It has a UV-stable ASA radome on an aluminium alloy base with an anti-rotation mounting system. The housing is certified IP67 for water resistance, IK09 for impact resistance and IP69K for high-pressure, hot-water ingress. Operating range is -40 to +85 °C, and the antenna is RoHS compliant.
Advantech lists compatibility with the ICR-2431, ICR-2432, ICR-2441, ICR-2834, ICR-3231, ICR-3232, ICR-3241, SR304, SR305, SR308, SR309 and SR310. A manufacturer datasheet is available for this model.
Ideal for
- Fleet telematics and vehicle tracking with LTE data and GNSS positioning from one antenna
- Public transport, emergency and utility vehicles running Advantech ICR routers
- Agricultural and construction equipment exposed to washdown, impact and UV
- Remote industrial sites that need LTE backhaul plus GNSS time or location
- Installs on fibreglass or plastic roofs where no metal ground plane is available
Specifications
General
- MPN
- BB-2J7041BGFA-300
- Brand
- Advantech
- Life Cycle
- Available
- Description
- 4G LTE MIMO and GNSS Antenna
- Configuration
- 3-in-1: 2x cellular/LTE + 1x GPS/GLONASS/QZSS/Galileo
Package
- Shipping Weight
- 1.76 lb
- Packaged Quantity
- 1
Cable 3 GNSS
- Band
- 1575 / 1602 MHz
- Vswr
- ≤ 1.5:1
- Voltage
- 1.5-3.6 V
- Standard
- GPS/QZSS/Galileo (1575.42 MHz), GLONASS (1598-1610 MHz)
- Frequency
- 1575.42 / 1598-1610 MHz
- Impedance
- 50 Ohm
- Cable Type
- LMR100 standard (other cables available)
- Saw Filter
- Pre-filter
- Active Gain
- 28 dB @ 2.7 V
- Return Loss
- ≤ -14 dB
- Cable Length
- 300 cm standard (any cable length available)
- Noise Figure
- 1.8 dB @ 2.7 V
- Polarization
- RHCP
- Connector Type
- SMA-Male standard (other connectors available)
- Esd Protection
- 6 kV
- Power Consumption
- 24.3 mW @ 2.7 V
- Radiation Pattern
- Hemispherical
- Current Consumption
- 9 mA @ 2.7 V
- Out OF Band Rejection
- ~43 dBc
Compatibility
- Compatible Routers
- Advantech SR309, ICR-2431, ICR-2432, ICR-2441, ICR-2834, SR308, ICR-3231, ICR-3232, SR304, SR310, SR305, ICR-3241
Cable 1 Cellular LTE
- Band
- 700/850/900, 1700/1800/1900/2100, 2600 MHz
- Vswr
- ~1.9:1 / ~1.6:1 / ~1.7:1
- Frequency
- 698-960 / 1710-2170 / 2500-2700 MHz
- Impedance
- 50 Ohm
- Peak Gain
- ~2.1 / ~4.2 / ~3.1 dBi
- Standards
- 2G, 3G and 4G
- Cable Type
- LMR195
- Efficiency
- ~57% / ~57% / ~47%
- Return Loss
- ~-10.6 / ~-15.6 / ~-11.7 dB
- Average Gain
- ~-2.4 / ~-2.5 / ~-3.3 dB
- Cable Length
- 300 cm
- Polarisation
- Linear
- Connector Type
- SMA-Male
- Max Input Power
- 25 W
- Radiation Pattern
- Omni-directional
Cable 2 Cellular LTE
- Band
- 700/850/900, 1700/1800/1900/2100, 2600 MHz
- Vswr
- ~1.9:1 / ~1.6:1 / ~1.4:1
- Frequency
- 698-960 / 1710-2170 / 2500-2700 MHz
- Impedance
- 50 Ohm
- Peak Gain
- ~3.0 / ~3.2 / ~-4.0 dBi
- Standards
- 2G, 3G and 4G
- Cable Type
- LMR195
- Efficiency
- ~63% / ~54% / ~57%
- Return Loss
- ~-11.0 / ~-14.3 / ~-16.5 dB
- Average Gain
- ~-2.0 / ~-2.6 / ~-2.4 dB
- Cable Length
- 300 cm
- Polarisation
- Linear
- Connector Type
- SMA-Male
- Max Input Power
- 25 W
- Radiation Pattern
- Omni-directional
Technical Description
- Cables
- 3x cable, 3 m each
- Design
- Heavy-duty, high-performance antenna
- Connectors
- LTE: 2x SMA-male; GNSS: 1x SMA-male
- Ground Plane
- Ground plane independent
- Anti Rotation
- Anti-rotation mounting
Measurement Conditions
- Test Cable
- 200 cm of LMR195 cable
- Ground Plane
- Mounted on 30 x 30 cm metal plate
- Test Chamber
- Certified CTIA 3D anechoic chamber
Mechanical Environmental
- Radome
- ASA, UV stable
- Dimensions
- Ø 96 x H 90 mm
- Antenna Base
- Aluminium alloy
- Certificates
- IP67, IP69, IK09
- Radome Color
- White, Black
- Mounting Type
- Screw mount
- Storage Temperature
- -40 to +85 °C
- Substance Compliance
- RoHS
- Operating Temperature
- -40 to +85 °C
Questions buyers ask
What does 3-in-1 mean for this antenna?
It combines two 4G LTE MIMO cellular elements and one GNSS element in a single dome. Each element has its own 3 m cable with an SMA-male connector.
Which satellite systems does the GNSS element support?
GPS, QZSS and Galileo at 1575.42 MHz, and GLONASS at 1598-1610 MHz. It is an active element with 28 dB gain and runs on 1.5-3.6 V.
Does it support 5G?
No. Advantech specifies the cellular elements for 2G, 3G and 4G across 698-960, 1710-2170 and 2500-2700 MHz.
Can it be mounted on a non-metal roof?
Yes. The antenna is ground plane independent, so it does not rely on a metal surface beneath it.
Which Advantech routers is it listed for?
Advantech lists the ICR-2431, ICR-2432, ICR-2441, ICR-2834, ICR-3231, ICR-3232, ICR-3241, SR304, SR305, SR308, SR309 and SR310.
