Advantech BB-2J7050BGFA-150 5-in-1 LTE MIMO, Wi-Fi MIMO and GNSS Screw-Mount Antenna

4G LTEMPN BB-2J7050BGFA-150
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
$280.85

In stock · only 4 leftShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

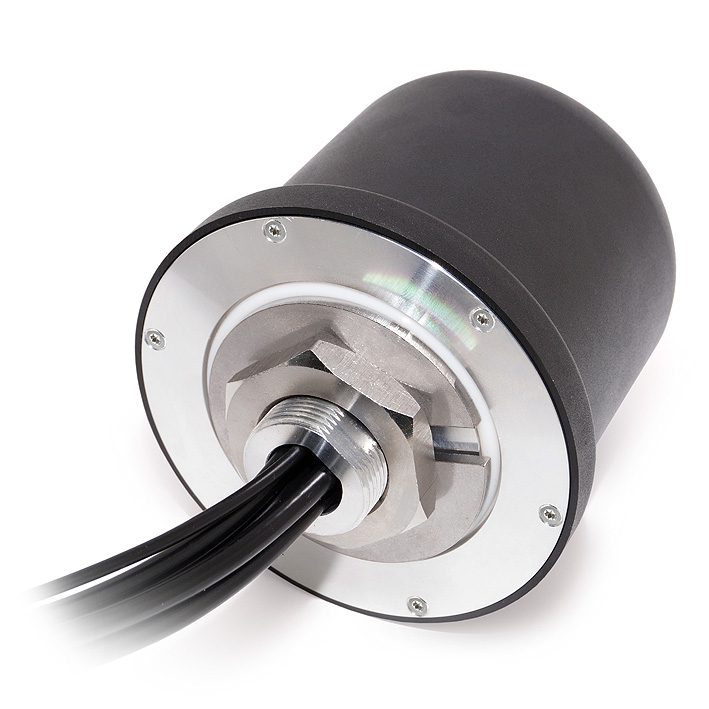

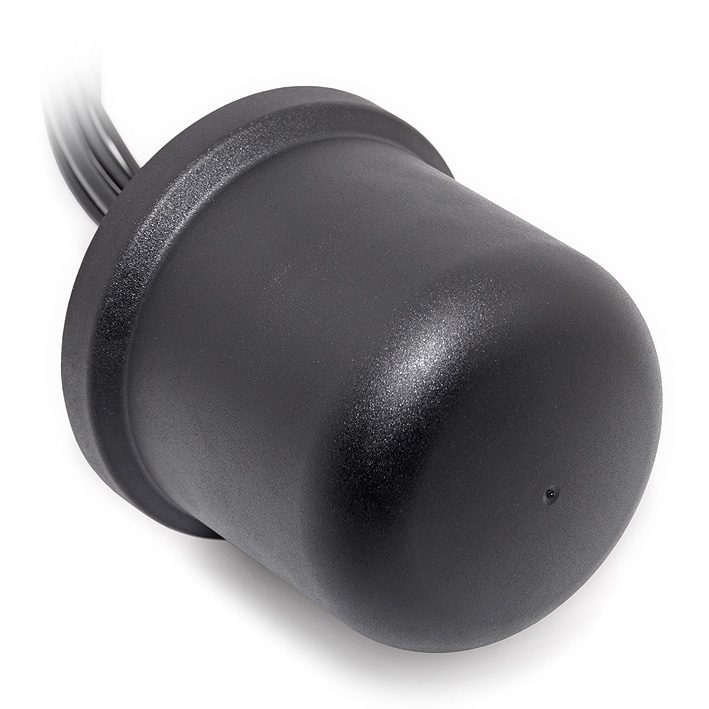

The Advantech BB-2J7050BGFA-150 is a compact, heavy-duty 5-in-1 antenna that combines 2x2 cellular MIMO, 2x2 dual-band 2.4/5.0 GHz Wi-Fi MIMO and an active GPS/GLONASS/QZSS/Galileo receiver in one Ø 96 x 90 mm screw-mount housing. Five 1.5 m cables terminate in 2x SMA-male (LTE), 2x R-SMA (Wi-Fi) and 1x SMA-male (GNSS). The antenna is ground-plane independent, uses an anti-rotation mount, carries IP67, IP69 and IK09 ratings, and operates from -40 to +85 °C.

  • 5-in-1 design: 2x cellular/LTE, 2x 2.4/5.0 GHz ISM (Wi-Fi) and 1x GNSS element in one housing
  • Cellular coverage of 698-960, 1710-2170 and 2500-2700 MHz for 2G, 3G and 4G
  • Dual-band 2410-2490 / 4920-5925 MHz ISM elements for Wi-Fi, Bluetooth and ZigBee
  • Active GPS/GLONASS/QZSS/Galileo receiver with 28 dB gain, 1.8 dB noise figure and SAW pre-filter
  • Five 1.5 m cables: LTE 2x SMA-male, Wi-Fi 2x R-SMA, GNSS 1x SMA-male
  • Heavy-duty, ground-plane-independent screw mount with anti-rotation system
  • IP67, IP69 and IK09 certified; -40 to +85 °C operating range
  • One roof penetration replaces five antennas, which simplifies vehicle and enclosure installs

The Advantech BB-2J7050BGFA-150 is a 4G LTE MIMO, 2.4/5.0 GHz ISM MIMO and GNSS antenna built for industrial cellular routers. It replaces up to five separate whips with a single rugged dome. That makes it a clean choice for vehicles, kiosks, cabinets and machinery that need a cellular uplink, a local Wi-Fi hotspot and location tracking.

Cables 1 and 2 serve cellular (2G, 3G and 4G) across 698-960, 1710-2170 and 2500-2700 MHz, with peak gain up to ~4.2 dBi and efficiency up to ~63%. Cables 3 and 4 cover 2410-2490 MHz and 4920-5925 MHz for Wi-Fi, Bluetooth, ZigBee and other ISM use, with peak gain up to ~5.6 dBi. Cable 5 is an active GNSS element for GPS, QZSS, Galileo (1575.42 MHz) and GLONASS (1598-1610 MHz). It provides 28 dB active gain, a 1.8 dB noise figure, a SAW pre-filter and 6 kV ESD protection, and draws 9 mA at 2.7 V from a 1.5-3.6 V supply. All radiating elements are omni-directional, 50 Ohm, and rated for 25 W maximum input.

Mechanically, the antenna pairs a black ASA radome with an aluminium alloy base and an anti-rotation screw mount, so it stays aligned on vibrating equipment. Because it is ground-plane independent, it performs on non-metallic surfaces as well as metal roofs. The housing is rated IP67 for water resistance and IK09 for impact. The datasheet also describes IP69K protection against high-pressure, hot-water washdown. The antenna is RoHS compliant and rated from -40 to +85 °C for operation and storage.

Advantech lists the antenna as compatible with its SR304, SR305, SR308, SR309, SR310, ICR-3231, ICR-3232 and ICR-3241 routers. The full manufacturer datasheet is available for this model.

Ideal for

  • Fleet and service vehicles that need cellular uplink, onboard Wi-Fi and GNSS tracking from one roof antenna
  • Industrial kiosks, cabinets and machinery connected through Advantech SR3xx or ICR-32xx routers
  • Washdown environments such as food processing or agricultural equipment that need IP69-class protection
  • Remote monitoring and telemetry sites operating in extreme temperatures
  • Public transport and utility vehicles that need rugged, impact-resistant antennas

Specifications

General

MPN
BB-2J7050BGFA-150
Brand
Advantech
Life Cycle
Available
Description
4G LTE MIMO, 2.4/5.0 GHz ISM MIMO and GNSS Antenna
Shipping Weight
1.10 lbs

Compatibility

Compatible Advantech Routers
SR304, SR305, SR308, SR309, SR310, ICR-3231, ICR-3232, ICR-3241

Cable 5 GPS Glonass

Band
1575 / 1602 MHz
Vswr
≤ 1.5:1
Voltage
1.5 – 3.6 V
Standard
1575.42 MHz: GPS/QZSS/Galileo; 1598-1610 MHz: GLONASS
Frequency
1575.42 / 1598-1610 MHz
Impedance
50 Ohm
Cable Type
LMR100
Saw Filter
Pre-filter
Active Gain
28 dB @ 2.7 V
Return Loss
≤ -14 dB
Cable Length
150 cm
Noise Figure
1.8 dB @ 2.7 V
Polarization
RHCP
Connector Type
SMA-Male
Esd Protection
6 kV
Power Consumption
24.3 mW @ 2.7 V
Radiation Pattern
Hemispherical
Current Consumption
9 mA @ 2.7 V
Out OF Band Rejection
~43 dBc

Cable 1 Cellular LTE

Band
698-960 MHz: 700/850/900; 1710-2170 MHz: 1700/1800/1900/2100; 2500-2700 MHz: 2600
Vswr
~1.9:1 / ~1.6:1 / ~1.7:1
Frequency
698-960 / 1710-2170 / 2500-2700 MHz
Impedance
50 Ohm
Peak Gain
~2.1 / ~4.2 / ~3.1 dBi
Standards
2G, 3G and 4G
Cable Type
LMR195
Efficiency
~57% / ~57% / ~47%
Return Loss
~-10.6 / ~-15.6 / ~-11.7 dB
Average Gain
~-2.4 / ~-2.5 / ~-3.3 dB
Cable Length
150 cm
Polarisation
Linear
Connector Type
SMA-Male
Max Input Power
25 W
Radiation Pattern
Omni-directional

Cable 2 Cellular LTE

Band
698-960 MHz: 700/850/900; 1710-2170 MHz: 1700/1800/1900/2100; 2500-2700 MHz: 2600
Vswr
~1.9:1 / ~1.6:1 / ~1.4:1
Frequency
698-960 / 1710-2170 / 2500-2700 MHz
Impedance
50 Ohm
Peak Gain
~3.0 / ~3.2 / ~4.0 dBi
Standards
2G, 3G and 4G
Cable Type
LMR195
Efficiency
~63% / ~54% / ~57%
Return Loss
~-11.0 / ~-14.3 / ~-16.5 dB
Average Gain
~-2.0 / ~-2.6 / ~-2.4 dB
Cable Length
150 cm
Polarisation
Linear
Connector Type
SMA-Male
Max Input Power
25 W
Radiation Pattern
Omni-directional

Cable 3 Ism 2 4 5 GHz

Band
2410-2490 MHz (2.4 GHz); 4920-5925 MHz (5.0 GHz)
Vswr
~1.9:1 / ~1.6:1
Frequency
2410-2490 / 4920-5925 MHz
Impedance
50 Ohm
Peak Gain
~5.6 / ~5.5 dBi
Standards
Wi-Fi, Bluetooth, ZigBee, ISM
Cable Type
LMR195
Efficiency
~58% / ~64%
Return Loss
~-10.4 / ~-13.6 dB
Average Gain
~-2.3 / ~-1.9 dB
Cable Length
150 cm
Polarisation
Linear
Connector Type
R-SMA
Max Input Power
25 W
Radiation Pattern
Omni-directional

Cable 4 Ism 2 4 5 GHz

Band
2410-2490 MHz (2.4 GHz); 4920-5925 MHz (5.0 GHz)
Vswr
~2.1:1 / ~1.6:1
Frequency
2410-2490 / 4920-5925 MHz
Impedance
50 Ohm
Peak Gain
~5.5 / ~4.4 dBi
Standards
Wi-Fi, Bluetooth, ZigBee, ISM
Cable Type
LMR195
Efficiency
~57% / ~59%
Return Loss
~-8.9 / ~-13.6 dB
Average Gain
~-2.4 / ~-2.3 dB
Cable Length
150 cm
Polarisation
Linear
Connector Type
R-SMA
Max Input Power
25 W
Radiation Pattern
Omni-directional

Technical Description

Mounting
Screw mount, 5x cable, 1.5 m length
Connectors
LTE 2x SMA-Male, Wi-Fi 2x R-SMA, GNSS 1x SMA-Male
Ground Plane
Ground plane independent
Antenna Class
Heavy duty, high performance antenna
Anti Rotation
Anti-rotation mounting
Cable Allocation
Cables 1-2 Cellular/LTE; Cables 3-4 2.4/5.0 GHz ISM; Cable 5 GPS/GLONASS/QZSS/Galileo

Measurement Conditions

Test Cable
200 cm LMR195 cable
Ground Plane
Mounted on 30 x 30 cm metal plate
Test Chamber
Certified CTIA 3D anechoic chamber

Mechanical Environmental

Radome
ASA
Dimensions
Ø 96 x H 90 mm
Antenna Base
Aluminium alloy
Certificates
IP67, IP69, IK09
Radome Color
Black
Mounting Type
Screw mount
Storage Temperature
-40 to +85 °C
Substance Compliance
RoHS
Operating Temperature
-40 to +85 °C

Questions buyers ask

Which cellular technologies does the BB-2J7050BGFA-150 support?

Its two cellular elements are specified for 2G, 3G and 4G across 698-960 MHz, 1710-2170 MHz and 2500-2700 MHz.

What connectors are on the cables?

The five 1.5 m cables terminate in 2x SMA-male for LTE, 2x R-SMA for Wi-Fi and 1x SMA-male for GNSS. The LTE and ISM cables use LMR195, and the GNSS cable uses LMR100.

Which Advantech routers is it compatible with?

Advantech lists the SR304, SR305, SR308, SR309, SR310, ICR-3231, ICR-3232 and ICR-3241 as compatible routers.

Does it need a metal ground plane?

No. The antenna is ground-plane independent, so it can be mounted on non-metallic surfaces. Published performance figures were measured on a 30 x 30 cm metal plate.

How rugged is it?

The housing carries IP67, IP69 and IK09 certifications, uses an ASA radome on an aluminium alloy base, and is rated for -40 to +85 °C operation and storage.
