Advantech BB-2J7B83BC-150 4x 5G MIMO Screw-Mount Antenna, 617-5925 MHz

5GMPN BB-2J7B83BC-150
  • 4x4 MIMO
$104.74

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

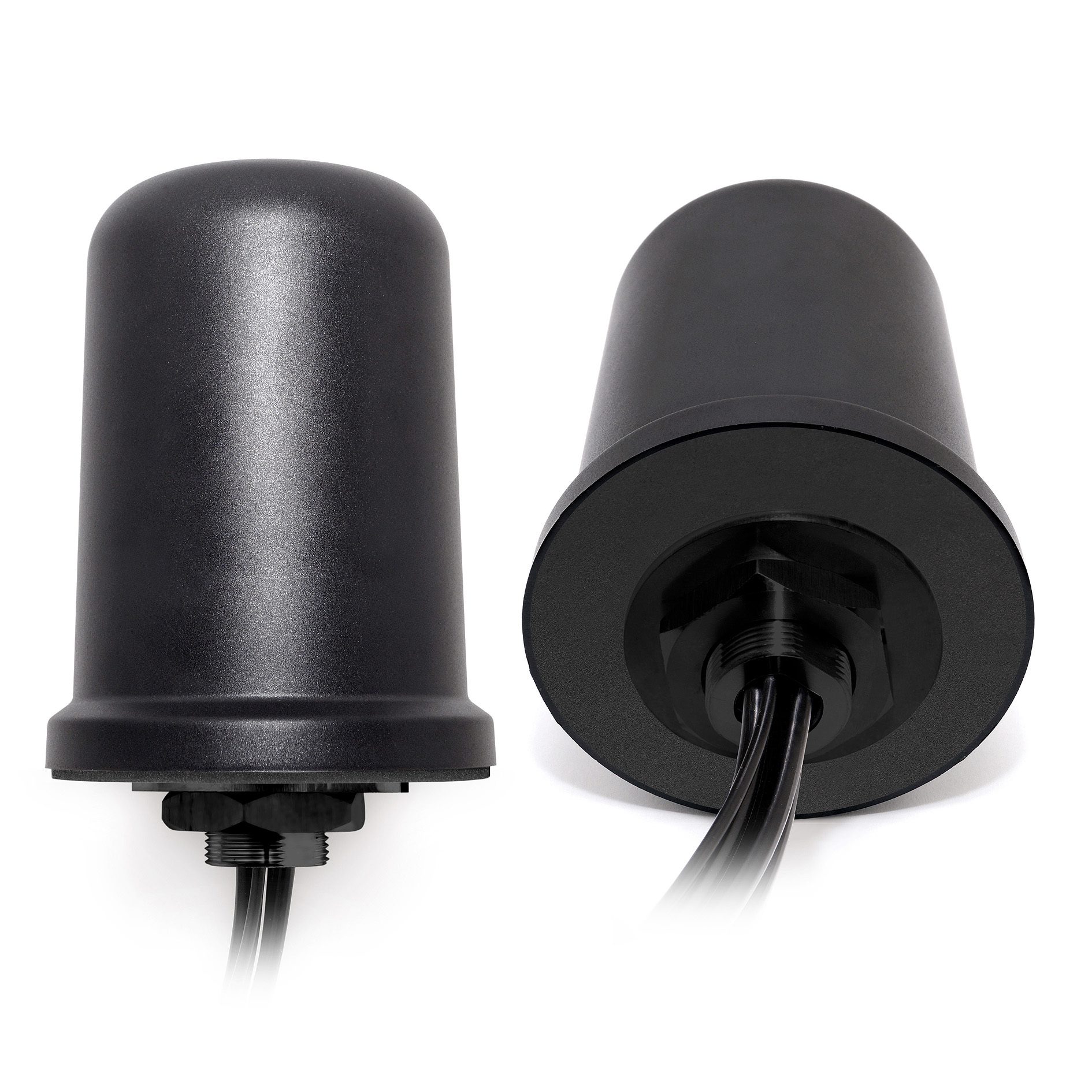

The Advantech BB-2J7B83BC-150 is a heavy-duty 4x 5G MIMO antenna for Advantech ICR-4000-series 5G routers. Four identical elements cover 617-960, 1427-2690, 3300-5000 and 5150-5925 MHz for 5G NR, 4G LTE, 3G, 2G and GNSS. Each element connects on a 1.5 m LL195 cable with an SMA-male connector. The Ø 96 x 130 mm dome is ground-plane independent and uses an anti-rotation screw mount. It is rated IP67, IP69 and IK09 for -40 to +85 °C operation.

  • Four identical 5G MIMO elements, each on a 1.5 m LL195 cable with SMA-male connector
  • Frequency coverage: 617-960, 1175-1177, 1427-2690, 3300-5000 and 5150-5925 MHz
  • Supports 5G NR, 4G LTE, FirstNet, CBRS, LPWA, CAT-M, NB-IoT, 3G and 2G per the manufacturer
  • GNSS coverage including GPS L1C/L5, Galileo E1/E5a, BeiDou B1/B2a, GLONASS L1OF and QZSS
  • Peak gain up to ~4.5 dBi (3300-5000 MHz), omni-directional, 25 W max input
  • Heavy-duty, ground-plane-independent screw mount with anti-rotation system; Ø 96 x H 130 mm
  • IP67, IP69 and IK09 certified; -40 to +85 °C operating range
  • Four matched elements feed a 4x4 MIMO 5G router from a single mounting hole

The Advantech BB-2J7B83BC-150 is a four-port 5G MIMO antenna for industrial 5G routers that need full 4x4 cellular diversity from a single rugged housing. Each of its four identical elements covers 617-960 MHz, 1175-1177 MHz, 1427-2690 MHz, 3300-5000 MHz and 5150-5925 MHz. That range spans low-band 600/700 MHz, mid-band, C-band and 3.3-5 GHz spectrum, and the 5 GHz LTE-LAA range.

The manufacturer's standards list includes 5G NR, 4G LTE, FirstNet, CBRS, LPWA, CAT-M, NB-IoT, 3G and 2G. Listed 5G NR bands include n5, n28, n41, n66, n71, n77, n78 and n79. LTE coverage includes B12, B13, B14, B48, B66 and B71, among many others. The elements also cover GNSS frequencies, including GPS L1C/L5, Galileo E1/E5a, BeiDou B1/B2a, GLONASS L1OF and QZSS. Peak gain reaches ~4.5 dBi in the 3300-5000 MHz range and ~3.9 dBi in 1427-2690 MHz. Every element is 50 Ohm, linearly polarised, omni-directional and rated for 25 W input.

The antenna is built for harsh sites. It has an ASA radome and base, an anti-rotation screw mount with a 6 Nm maximum tightening torque, and IP67, IP69 and IK09 certification. It is RoHS compliant and rated from -40 to +85 °C. Because it is ground-plane independent, it can be mounted on vehicles, poles, cabinets or non-metallic enclosures.

Advantech lists compatibility with its ICR-4161, ICR-4171, ICR-4172, ICR-4261, ICR-4271, ICR-4272, ICR-4453 and ICR-4461 routers. The manufacturer datasheet is available for this model.

Ideal for

  • External 4x4 MIMO antenna for Advantech ICR-4000-series 5G industrial routers
  • Public safety and utility vehicles that operate on FirstNet Band 14 or private CBRS networks
  • Fixed wireless and remote site backhaul on 5G C-band and 3.3-5 GHz spectrum
  • Outdoor cabinets, poles and kiosks exposed to weather, washdown or impact
  • IoT gateways using LTE-M or NB-IoT that also need GNSS positioning

Specifications

General

MPN
BB-2J7B83BC-150
Brand
Advantech
Life Cycle
Available
Description
4x 5G MIMO Antenna
Shipping Weight
1.10 lbs

Compatibility

Compatible Advantech Routers
ICR-4161, ICR-4171, ICR-4172, ICR-4261, ICR-4271, ICR-4272, ICR-4453, ICR-4461

Technical Description

Mounting
Screw mount, 4x cable, 1.5 m length
Connectors
5G, 4G, 3G and 2G - 4x SMA-Male
Ground Plane
Ground plane independent
Antenna Class
Heavy duty, high performance antenna
Anti Rotation
Anti-rotation mounting
Cable Allocation
Cables 1-4: 5G NR/GNSS, 617-960 / 1175-1177 / 1427-2690 / 3300-5000 / 5150-5925 MHz

Cables 1 4 Common 5gnr

Band
617-960 MHz: 600, 700, 850, 900; 1427-2690 MHz: 1500-2600; 3300-5000 MHz: 3300, 3500, 3600, 3700, 4500; 5150-5925 MHz: 5200, 5500, 5800
Frequency
617-960 / 1175-1177 / 1427-2690 / 3300-5000 / 5150-5925 MHz
Impedance
50 Ohm
Standards
5G NR / 4G LTE / FirstNet / CBRS / LPWA / CAT-X / CAT-Mx / CAT-NBx / NB-IoT / 3G / 2G
5gnr Bands
617-960 MHz: n5, n8, 12, n20, n28, n71, n81, n82, n83; 1427-2690 MHz: n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86; 3300-5000 MHz: n77, n78, n79
Cable Type
LL195
GNSS Bands
1175-1177 MHz: GPS L5, BeiDou B2a, QZSS L5, Galileo E5a, IRNSS L5; 1427-2690 MHz: GPS L1C, GLONASS L1OF, BeiDou B1, QZSS L1C, Galileo E1
4glte Bands
617-960 MHz: B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85; 1427-2690 MHz: B1, B2, B3, B4, B7, B9, B22, B42, B43, B48, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76; 3300-5000 MHz: B49, B52; 5150-5925 MHz: B46, B47, B252, B255
2gcell Bands
617-960 MHz: 710, 750, 810T, 850, 900P, 900E, 900R; 1427-2690 MHz: 1800DCS, 1900PCS
3gcell Bands
617-960 MHz: B5, B6, B8, B12, B13, B14, B19, B20, B26; 1427-2690 MHz: B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32-B40; 3300-5000 MHz: B22
Cable Length
150 cm
Polarisation
Linear
Technologies
5G, 4G, 3G, 2G, GNSS
Cdmacell Bands
617-960 MHz: BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19; 1427-2690 MHz: BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21
Connector Type
SMA-Male
Max Input Power
25 W
Radiation Pattern
Omni-directional

Measurement Conditions

Test Cable
200 cm LL195 cable
Ground Plane
Mounted on 30 x 30 cm metal plate
Test Chamber
Certified CTIA 3D anechoic chamber

Cable 1 5gnr Performance

Vswr
~3.7:1 / ~6.2:1 / ~2.0:1 / ~1.5:1 / ~1.8:1
Peak Gain
~-2.3 / ~-3.3 / ~3.9 / ~4.4 / ~3.5 dBi
Efficiency
~16.9% / ~6.6% / ~36.4% / ~39.2% / ~32.3%
Return Loss
~-4.3 / ~-2.3 / ~-11.7 / ~-14.8 / ~-11.9 dB
Average Gain
~-7.1 / ~-7.8 / ~-4.1 / ~-3.7 / ~-4.3 dB

Cable 2 5gnr Performance

Vswr
~3.7:1 / ~6.8:1 / ~1.9:1 / ~1.7:1 / ~1.5:1
Peak Gain
~-2.6 / ~-3.5 / ~3.8 / ~4.5 / ~4.0 dBi
Efficiency
~16.7% / ~6.2% / ~35.4% / ~40.1% / ~35.8%
Return Loss
~-4.5 / ~-2.3 / ~-11.6 / ~-14.2 / ~-14.3 dB
Average Gain
~-7.1 / ~-8.0 / ~-4.4 / ~-3.6 / ~-3.9 dB

Cable 3 5gnr Performance

Vswr
~3.9:1 / ~6.8:1 / ~2.0:1 / ~1.6:1 / ~1.5:1
Peak Gain
~-2.6 / ~-3.8 / ~3.8 / ~4.1 / ~3.6 dBi
Efficiency
~16.4% / ~6.0% / ~36.1% / ~38.5% / ~34.2%
Return Loss
~-4.4 / ~-2.5 / ~-11.9 / ~-13.2 / ~-13.5 dB
Average Gain
~-7.2 / ~-8.2 / ~-4.2 / ~-3.6 / ~-4.1 dB

Cable 4 5gnr Performance

Vswr
~3.6:1 / ~6.8:1 / ~1.9:1 / ~1.8:1 / ~1.6:1
Peak Gain
~-2.2 / ~-3.0 / ~3.7 / ~4.2 / ~3.5 dBi
Efficiency
~17.1% / ~6.2% / ~35.0% / ~37.4% / ~33.1%
Return Loss
~-4.6 / ~-2.5 / ~-12.1 / ~-12.4 / ~-12.3 dB
Average Gain
~-7.0 / ~-8.0 / ~-4.3 / ~-3.9 / ~-4.2 dB

Mechanical Environmental

Radome
ASA
Dimensions
Ø 96 x H 130 mm
Antenna Base
ASA
Certificates
IP67, IP69, IK09
Radome Color
White, Black
Mounting Type
Screw mount
Max Tighten Torque
6 Nm
Storage Temperature
-40 to +85 °C
Substance Compliance
RoHS
Operating Temperature
-40 to +85 °C

Questions buyers ask

Which Advantech routers is the BB-2J7B83BC-150 compatible with?

Advantech lists the ICR-4161, ICR-4171, ICR-4172, ICR-4261, ICR-4271, ICR-4272, ICR-4453 and ICR-4461 as compatible routers.

Does it cover US 5G bands?

Yes. The manufacturer's band list includes n5, n25, n41, n66, n71 and n77 among others, along with LTE bands such as B2, B4, B12, B13, B14, B48, B66 and B71.

What connectors and cables does it use?

All four elements terminate on 1.5 m LL195 cables with SMA-male connectors.

Can it be used for GNSS?

The elements cover GNSS frequencies, including GPS L1C and L5, Galileo E1 and E5a, BeiDou B1 and B2a, GLONASS L1OF and QZSS. The antenna has no separate dedicated GNSS cable.

How is it mounted and how rugged is it?

It uses a screw mount with an anti-rotation system and a 6 Nm maximum tightening torque. The housing is ASA, certified IP67, IP69 and IK09, and rated for -40 to +85 °C.
