Panorama C32SP-10SMARV 10 m CS32 Low-Loss Coax Cable, SMA Male to SMA Male
MPN C32SP-10SMARV
- Over 5 m
$38.68$57.00Save $18.32
In stockFree 2-3 day shipping
- Free 2-3 day shipping to the US
- 30-day returns on unopened devices
- Secure checkout · pay by card
Datasheets & documents
Overview

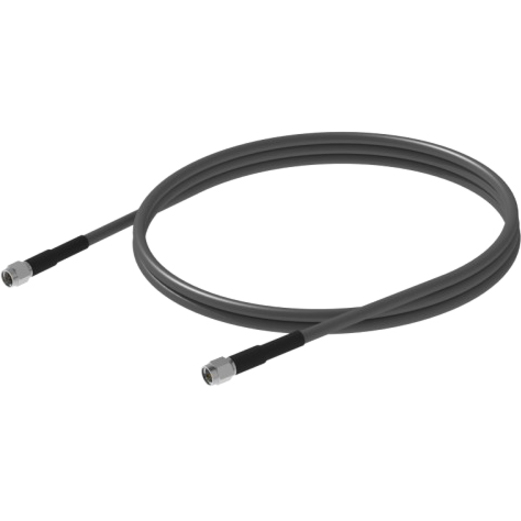

The Panorama C32SP-10SMARV is a 10 m (32.8 ft) coaxial antenna cable with SMA male connectors at both ends. It is built from Panorama's CS32 ultra low loss, double-shielded, solid-core 5 mm cable, rated for applications up to 6 GHz, with a flame retardant, zero halogen, UV stabilised jacket. The assembly is TAA compliant, which suits government and public-sector procurement.
- 10 m (32.8 ft) cable assembly with SMA male connectors at both ends
- Panorama CS32 ultra low loss, double-shielded, solid-core 5 mm coax
- Rated for applications up to 6 GHz with 50 Ω impedance
- Typical attenuation over 10 m: 4 dB at 1 GHz, 5.8 dB at 2 GHz, 11 dB at 6 GHz
- Flame retardant, zero halogen, UV stabilised jacket certified to ECE R118.03 and compliant with EN 45545-2
- TAA compliant, country of origin Switzerland
- Connect female-SMA antenna bases or bulkheads to equipment up to 10 m away
- Low-loss CS32 cable keeps attenuation modest over a long run
The Panorama C32SP-10SMARV is a 10 m (32.8 ft) antenna cable for linking equipment with female SMA ports, such as an antenna base or bulkhead feedthrough, to a router, gateway or modem across a longer distance. Both ends are fitted with SMA male connectors. The assembly is TAA compliant, with Switzerland listed as country of origin, which helps with public-sector and government purchasing requirements.
Panorama's CS32 cable is an ultra low loss, double-shielded, solid-core design suitable for applications up to 6 GHz. Because this assembly is 10 m long, Panorama's typical attenuation figures describe the full run: 2.5 dB at 400 MHz, 4 dB at 1 GHz, 5.8 dB at 2 GHz and 11 dB at 6 GHz. A tin plated copper braid with at least 90% coverage over aluminium foil gives shielding effectiveness better than -95 dB at 400 MHz, and impedance is 50 Ω.
The 5.0 mm grey jacket is flame retardant, halogen free and UV stabilised, certified to ECE R118.03 and compliant with EN 6722 and EN 45545-2 (HL3). It operates from -30 °C to +80 °C and takes a 25 mm one-time or 50 mm repeated bend radius, so it routes through trunking and around cabinet corners without strain. Panorama's CS32 cable datasheet provides the full cable data.
Ideal for
- Linking a female-SMA antenna base or bulkhead to a router up to 10 m away
- Government and public-sector installations that require TAA-compliant parts
- Rooftop or mast antenna runs into equipment rooms
- Vehicle and rail installations needing halogen-free, flame retardant cable
Specifications
General
- MPN
- C32SP-10SMARV
- Brand
- Panorama Antennas
- Cable Series
- Panorama CS32 ultra low loss, double screened, solid centre (FRZH)
- Product Type
- Coaxial antenna cable assembly
- Cable Part Number
- SR1-032-FRZH-G
- Connector Compatibility
- Compatible with standard connectors for RG58 / 5 mm cable
Package
- Shipping Weight
- 0.88 lb
Assembly
- Length
- 10 m (32.81 ft)
- Shielding
- Shielded
- Connector A
- SMA male
- Connector B
- SMA male
Compliance
- TAA Compliant
- TAA compliant
- Country OF Origin
- Switzerland
Electrical
- Jacket Spark
- 3000 V RMS
- Max Frequency
- Suitable for applications up to 6 GHz
- Impedance 1ghz
- 50 Ω ± 2 Ω at 1 GHz
- Impedance 2ghz
- 50 Ω ± 4 Ω at 2 GHz
- Attenuation 1ghz
- 4 dB per 10 m at 1 GHz (typical)
- Attenuation 2ghz
- 5.8 dB per 10 m at 2 GHz (typical)
- Attenuation 6ghz
- 11 dB per 10 m at 6 GHz (typical)
- Braid Resistance
- Less than 150 mΩ per 10 m
- Voltage Withstand
- 1000 VDC
- Attenuation 400mhz
- 2.5 dB per 10 m at 400 MHz (typical)
- Shielding Effectiveness
- < -95 dB per IEC 61196-1 at 400 MHz
Construction
- Dielectric Diameter
- 2.6 mm (0.10 in)
- Dielectric Material
- Foam polyethene
- Outer Jacket Colour
- Grey RAL 7047
- Outer Jacket Diameter
- 5.0 mm (0.19 in)
- Outer Jacket Material
- UV stabilised flexible Megalon S540
- Inner Conductor Diameter
- 0.95 mm (0.03 in)
- Inner Conductor Material
- Solid copper
- Inner Shielding Diameter
- 3.0 mm (0.11 in)
- Inner Shielding Material
- Aluminium foil
- Min Bend Radius One Time
- 25 mm (1 in) one time
- Min Bend Radius Repeated
- 50 mm (2 in) repeated
- Outer Conductor Coverage
- No less than 90% wire coverage
- Outer Conductor Diameter
- 3.5 mm (0.13 in)
- Outer Conductor Material
- Tin plated copper braid
Environmental
- Jacket Type
- Flame retardant, zero halogen, UV stabilised
- Flame Retardance
- ECE 118.03 (E11*118R03/00*1305*00) / EN 6722:2006 §12 / EN 45545-2: HL3
- Operating Temperature
- -30 °C to +80 °C (-22 °F to 176 °F)
Questions buyers ask
What connectors are on the C32SP-10SMARV?
Both ends are fitted with SMA male connectors, for linking two devices or components that have female SMA ports.
Is this cable TAA compliant?
Yes. It is TAA compliant, with Switzerland listed as the country of origin.
How much loss does the 10 m length add?
Panorama's typical attenuation for CS32 cable is 2.5 dB per 10 m at 400 MHz, 4 dB at 1 GHz, 5.8 dB at 2 GHz and 11 dB at 6 GHz, which matches this assembly's length.
Can it be bent tightly in a cabinet?
The minimum bend radius is 25 mm (1 in) for a one-time bend and 50 mm (2 in) where the cable will be flexed repeatedly.
