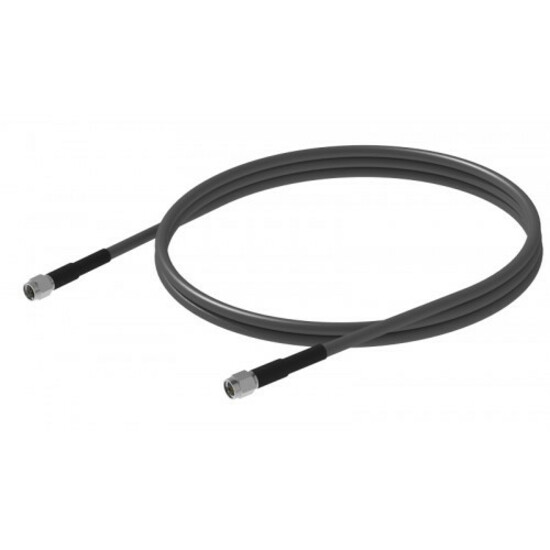

Panorama C32SP-5SMARV 5 m CS32 Ultra Low Loss Coax Cable, SMA Male to RP-SMA Male

MPN C32SP-5SMARV
  • 3–5 m
$24.81$34.34Save $9.53

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Panorama C32SP-5SMARV is a 5 m (16.40 ft) coaxial assembly terminated with an SMA male plug at one end and an RP-SMA male plug at the other. It uses Panorama's CS32 cable, a 5 mm double-shielded, solid-core 50 Ω coax that Panorama positions as an alternative to LMR-195 for LTE and Wi-Fi applications up to 6 GHz. The flame-retardant, zero-halogen jacket suits vehicle, rail and building installs where routers, modems and antennas need a clean, low-loss link.

  • 5 m (16.40 ft) assembly with SMA male and RP-SMA male connectors
  • Panorama CS32 double-shielded, solid-core 5 mm coax, positioned as an LMR-195 alternative
  • Suited to LTE and Wi-Fi applications up to 6 GHz
  • Typical attenuation of 4 dB per 10 m at 1 GHz and 11 dB per 10 m at 6 GHz
  • 50 Ω ± 2 Ω impedance at 1 GHz
  • Flame-retardant, zero-halogen, UV-stabilised jacket certified to ECE R118.03
  • Links SMA and RP-SMA equipment directly, with no adapter in the signal path
  • Extra shielding keeps loss down at higher LTE and Wi-Fi frequencies

The C32SP-5SMARV connects an antenna to a router, modem or other radio across a 5 m (16.40 ft) run, with an SMA male plug on one end and a reverse-polarity SMA (RP-SMA) male plug on the other. That pairing bridges equipment and antennas that use different SMA conventions, so installers can place the antenna for better coverage without adapters in the signal path.

Panorama describes CS32 as a high-performance, double-shielded, solid-core 5 mm cable and a strong alternative to LMR-195. The extra shielding reduces loss at higher frequencies, which makes it well suited to LTE and Wi-Fi applications up to 6 GHz. A tin-plated copper braid with no less than 90% coverage sits over an aluminium foil, giving shielding effectiveness better than -95 dB (IEC 61196-1 at 400 MHz). Typical attenuation is 2.5 dB per 10 m at 400 MHz, 4 dB at 1 GHz, 5.8 dB at 2 GHz and 11 dB at 6 GHz, with impedance held at 50 Ω ± 2 Ω at 1 GHz.

The grey RAL 7047 jacket is UV-stabilised Megalon S540, flame retardant and halogen free. It is certified to ECE R118.03 and compliant with EN 6722 and EN 45545-2 (HL3). The cable operates from -30°C to +80°C and accepts a 25 mm one-time bend radius, or 50 mm for repeated flexing.

Ideal for

  • Connecting an external LTE or Wi-Fi antenna to a router or modem across a 5 m run
  • Bridging SMA-equipped antennas and RP-SMA-equipped equipment without adapters
  • Vehicle, rail and fleet antenna installs requiring halogen-free, flame-retardant cable
  • Moving antennas outside metal cabinets or enclosures for better reception

Specifications

General

MPN
C32SP-5SMARV
Brand
Panorama Antennas
Length
5 m (16.40 ft)
Cable Type
Ultra low loss, double-shielded, solid core coaxial
Cable Family
Panorama CS32
Connector End 1
SMA male (plug)
Connector End 2
RP-SMA male
Cable Part Number
SR1-032-FRZH-G
Devices Supported
Router, modem, antenna

Package

Shipping Weight
0.45 lb

Electrical

Jacket Spark
3000 V RMS
Impedance 1ghz
50 Ω ± 2 Ω at 1 GHz
Impedance 2ghz
50 Ω ± 4 Ω at 2 GHz
Attenuation 1ghz
4 dB per 10 m at 1 GHz
Attenuation 2ghz
5.8 dB per 10 m at 2 GHz
Attenuation 6ghz
11 dB per 10 m at 6 GHz
Braid Resistance
Less than 150 mΩ per 10 m
Maximum Frequency
Applications up to 6 GHz
Voltage Withstand
1000 VDC
Attenuation 400mhz
2.5 dB per 10 m at 400 MHz
Shielding Effectiveness
< -95 dB (IEC 61196-1 @ 400 MHz)

Construction

Dielectric Diameter
2.6 mm (0.10 in)
Dielectric Material
Foam Polyethene
Outer Jacket Colour
Grey RAL 7047
Outer Jacket Diameter
5.0 mm (0.19 in)
Outer Jacket Material
UV Stabilised Flexible Megalon S540
Inner Conductor Diameter
0.95 mm (0.03 in)
Inner Conductor Material
Solid Copper
Inner Shielding Diameter
3.0 mm (0.11 in)
Inner Shielding Material
Aluminium Foil
Outer Conductor Coverage
No less than 90%
Outer Conductor Diameter
3.5 mm (0.13 in)
Outer Conductor Material
Tin Plated Copper Braid

Environmental

Flame Retardance
ECE 118.03 (E11*118R03/00*1305*00) / EN 6722:2006 §12 / EN 45545-2: HL3
Jacket Properties
Flame retardant, zero halogen, UV stabilised
Operating Temperature
-30°C to +80°C (-22°F to 176°F)
Min Bend Radius One Time
25 mm (1 in)
Min Bend Radius Repeated
50 mm (2 in)

Questions buyers ask

What connectors are on the C32SP-5SMARV?

One end has a standard SMA male plug and the other an RP-SMA (reverse-polarity SMA) male plug.

Is it suitable for LTE and Wi-Fi?

Yes. Panorama describes CS32 as ideal for LTE and Wi-Fi applications up to 6 GHz, thanks to its extra shielding.

How does CS32 compare to LMR-195?

Panorama positions CS32, a 5 mm double-shielded solid-core cable, as a strong alternative to LMR-195.

How much signal loss should I expect?

Panorama quotes typical attenuation of 2.5 dB per 10 m at 400 MHz, 4 dB at 1 GHz, 5.8 dB at 2 GHz and 11 dB at 6 GHz.

What is the operating temperature range?

The CS32 cable is rated from -30°C to +80°C (-22°F to 176°F).
