Panorama C32SP-5T 5 m CS32 Low-Loss Coax Cable, SMA Male to TNC Male
MPN C32SP-5T
- 3–5 m
$21.22$28.84Save $7.62
In stockShips from the US
- 30-day returns on unopened devices
- Secure checkout · pay by card
Datasheets & documents
Overview

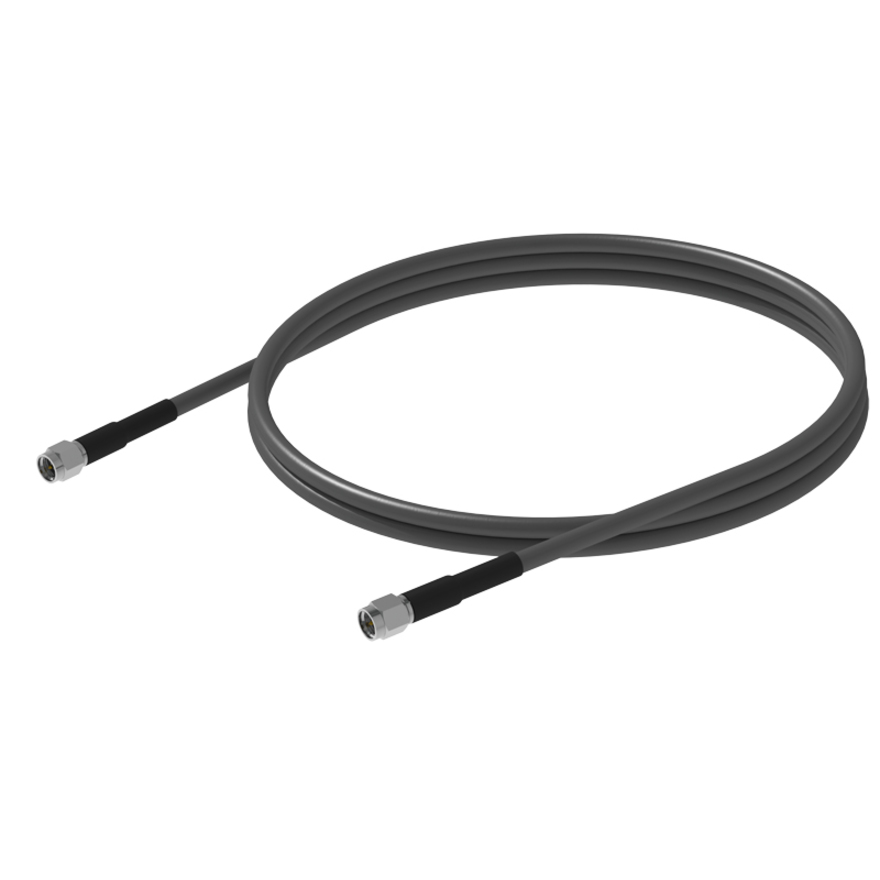

The Panorama C32SP-5T is a 5 m (16.4 ft) coaxial cable assembly with an SMA male connector on one end and a TNC male connector on the other. It is built on Panorama's CS32 double-shielded, solid-core 5 mm cable, positioned as an alternative to LMR-195 for LTE and Wi-Fi applications up to 6 GHz. The flame-retardant, halogen-free grey jacket suits vehicle, rail and fixed installations.
- 5 m (16.4 ft) assembly terminated SMA male to TNC male
- Panorama CS32 double-shielded, solid-core 5 mm coax, an alternative to LMR-195
- Suitable for LTE and Wi-Fi applications up to 6 GHz
- Typical attenuation of 4 dB per 10 m at 1 GHz and 5.8 dB per 10 m at 2 GHz
- Shielding effectiveness better than -95 dB at 400 MHz
- Flame retardant, zero halogen, UV-stabilised jacket certified to ECE R118.03
- Bridges SMA equipment and TNC antennas in a single run, with no adapter in the signal path
- Double shielding reduces gain loss at higher LTE and Wi-Fi frequencies
The Panorama C32SP-5T is a factory-terminated 5 m (16.4 ft) cable that joins an SMA male connector to a TNC male connector. Use it to connect equipment and antennas that use different connector families. Typical examples are an SMA-ported router or modem paired with an antenna that has a TNC jack. It is built from Panorama's CS32 cable, a high-performance 5 mm coax with a solid copper centre conductor. Panorama positions CS32 as an alternative to LMR-195 for LTE and Wi-Fi up to 6 GHz.
CS32 uses two shielding layers, a tin-plated copper braid with at least 90% coverage over aluminium foil. This reduces gain loss at higher frequencies and gives shielding effectiveness better than -95 dB at 400 MHz (IEC 61196-1). Typical attenuation is 2.5 dB per 10 m at 400 MHz, 4 dB at 1 GHz, 5.8 dB at 2 GHz and 11 dB at 6 GHz. Impedance is 50 Ω ± 2 Ω at 1 GHz.
The grey (RAL 7047) jacket is UV-stabilised flexible Megalon S540. It is flame retardant and halogen free, certified to ECE R118.03 and compliant with EN 6722 and EN 45545-2 (HL3). The cable is rated from -30 °C to +80 °C, with a minimum bend radius of 25 mm for a single bend and 50 mm for repeated flexing.
Panorama's CS32 cable datasheet documents the full cable specification.
Ideal for
- Connecting an SMA-ported cellular router or modem to a TNC-terminated antenna
- Fleet and vehicle antenna installations needing flame-retardant cabling
- Fixed-site LTE antenna runs on rooftops or masts up to 5 m
- Rail and transit deployments requiring EN 45545-2 compliant cable
Specifications
General
- MPN
- C32SP-5T
- Brand
- Panorama Antennas
- Cable Type
- Ultra low loss, double-shielded, solid core coax
- Cable Series
- CS32 Ultra Low Loss (FRZH)
- Cable Part Number
- SR1-032-FRZH-G
Package
- Shipping Weight
- 1.00 lb
Assembly
- Length
- 5 m (16.4 ft)
- Connector A
- SMA male (plug)
- Connector B
- TNC male (plug)
- Devices Supported
- Routers, modems, antennas
- Connector Compatibility
- Compatible with standard RG58 / 5 mm cable connectors
Dielectric
- Diameter
- 2.6 mm (0.10 in)
- Material
- Foam polyethene
Electrical
- Jacket Spark
- 3000 V RMS
- Max Frequency
- Suitable for applications up to 6 GHz
- Impedance 1ghz
- 50 Ω ± 2 Ω at 1 GHz
- Impedance 2ghz
- 50 Ω ± 4 Ω at 2 GHz
- Attenuation 1ghz
- 4 dB per 10 m at 1 GHz (typical)
- Attenuation 2ghz
- 5.8 dB per 10 m at 2 GHz (typical)
- Attenuation 6ghz
- 11 dB per 10 m at 6 GHz (typical)
- Braid Resistance
- Less than 150 mΩ per 10 m
- Voltage Withstand
- 1000 VDC
- Attenuation 400mhz
- 2.5 dB per 10 m at 400 MHz (typical)
- Shielding Effectiveness
- < -95 dB per IEC 61196-1 at 400 MHz
Outer Jacket
- Colour
- Grey (RAL 7047)
- Diameter
- 5.0 mm (0.19 in)
- Material
- UV-stabilised flexible Megalon S540
Environmental
- Flame Retardance
- ECE R118.03, EN 6722:2006 §12, EN 45545-2 HL3
- Jacket Properties
- Flame retardant, zero halogen, UV stabilised
- Operating Temperature
- -30 °C to +80 °C (-22 °F to 176 °F)
- Min Bend Radius One Time
- 25 mm (1 in), one time
- Min Bend Radius Repeated
- 50 mm (2 in), repeated
Inner Conductor
- Diameter
- 0.95 mm (0.03 in)
- Material
- Solid copper
Inner Shielding
- Diameter
- 3.0 mm (0.11 in)
- Material
- Aluminium foil
Outer Conductor
- Diameter
- 3.5 mm (0.13 in)
- Material
- Tin-plated copper braid
- Wire Coverage
- No less than 90%
Questions buyers ask
What connectors are on the C32SP-5T?
One end has an SMA male connector and the other has a TNC male connector.
How long is the C32SP-5T?
The cable is 5 m (16.4 ft) long.
Is it suitable for LTE antennas?
Yes. Panorama describes CS32 cable as ideal for LTE and Wi-Fi applications up to 6 GHz, with typical attenuation of 4 dB per 10 m at 1 GHz and 5.8 dB per 10 m at 2 GHz.
What makes CS32 different from standard RG58-size cable?
CS32 is double shielded, with a copper braid over aluminium foil, and uses a solid copper centre conductor. The extra shielding reduces loss at higher frequencies. It still accepts standard RG58 / 5 mm connectors.
Is the jacket rated for vehicles?
The jacket is flame retardant and halogen free, certified to ECE R118.03 and compliant with EN 6722 and EN 45545-2 (HL3).
