Panorama DWMM4G-6-60-05NJ Hammerhead 4x4 MIMO 4G/5G + GPS/GNSS Antenna, 0.5 m N (f)

5GMPN DWMM4G-6-60-05NJ
  • 4x4 MIMO
  • GNSS
  • 6–8 dBi
  • Up to 1 m
$272.10$374.85Save $102.75

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

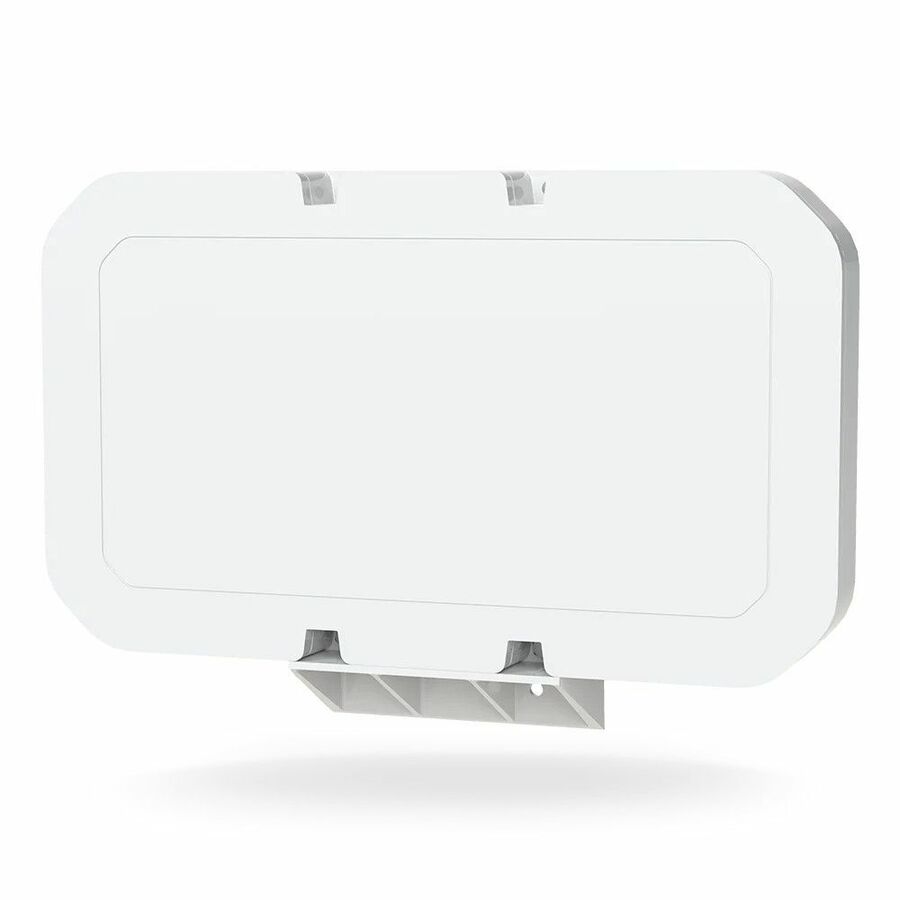

The Panorama DWMM4G-6-60-05NJ Hammerhead combines four ultra-wideband 4G/5G elements (617-6000 MHz) and an integrated GPS/GNSS module in one white IP66 housing. The GNSS module has 26 dB LNA gain and advanced filtering. Both the cellular and GPS leads are 0.5 m integrated cables ending in N (f) jacks, so you can extend them with your own coax run. Supplied hardware covers wall, mast, pole and desk mounting for branch office, enterprise and failover sites.

  • 4x4 MIMO omnidirectional 4G/5G antenna with four separately fed ultra-wideband elements
  • Integrated GPS/GNSS module with 26 dB LNA gain and advanced noise filtering
  • Covers 617-6000 MHz, Band 71 600 MHz ready
  • 0.5 m integrated cellular and GPS cables with N (f) jacks
  • IP66 housing, -40°C to +80°C operating range
  • Wall, mast, pole and desk mounting with supplied hardware
  • One housing delivers 4x4 MIMO cellular plus GNSS to a router with GPS input
  • N (f) jacks let you pair the antenna with a coax run sized to your installation

The Panorama DWMM4G-6-60-05NJ is the GPS/GNSS-equipped member of the Hammerhead family (DWMM4[G]-6-60). It houses four separately fed ultra-wideband cellular elements for 4x4 MIMO on 4G and 5G networks from 617 to 6000 MHz, including Band 71 (600 MHz). It also includes an integrated GPS/GNSS module with 26 dB LNA gain and advanced filtering to combat noise. This gives a router cellular and location signals from a single antenna.

This variant has short 0.5 m integrated cables on both the cellular and GPS leads, each terminated in an N (f) jack. The short tails suit installations where the antenna connects to a separate coaxial cable run that you choose for the distance between antenna and router. The integrated flame-retardant cabling keeps exposed connector joints to a minimum.

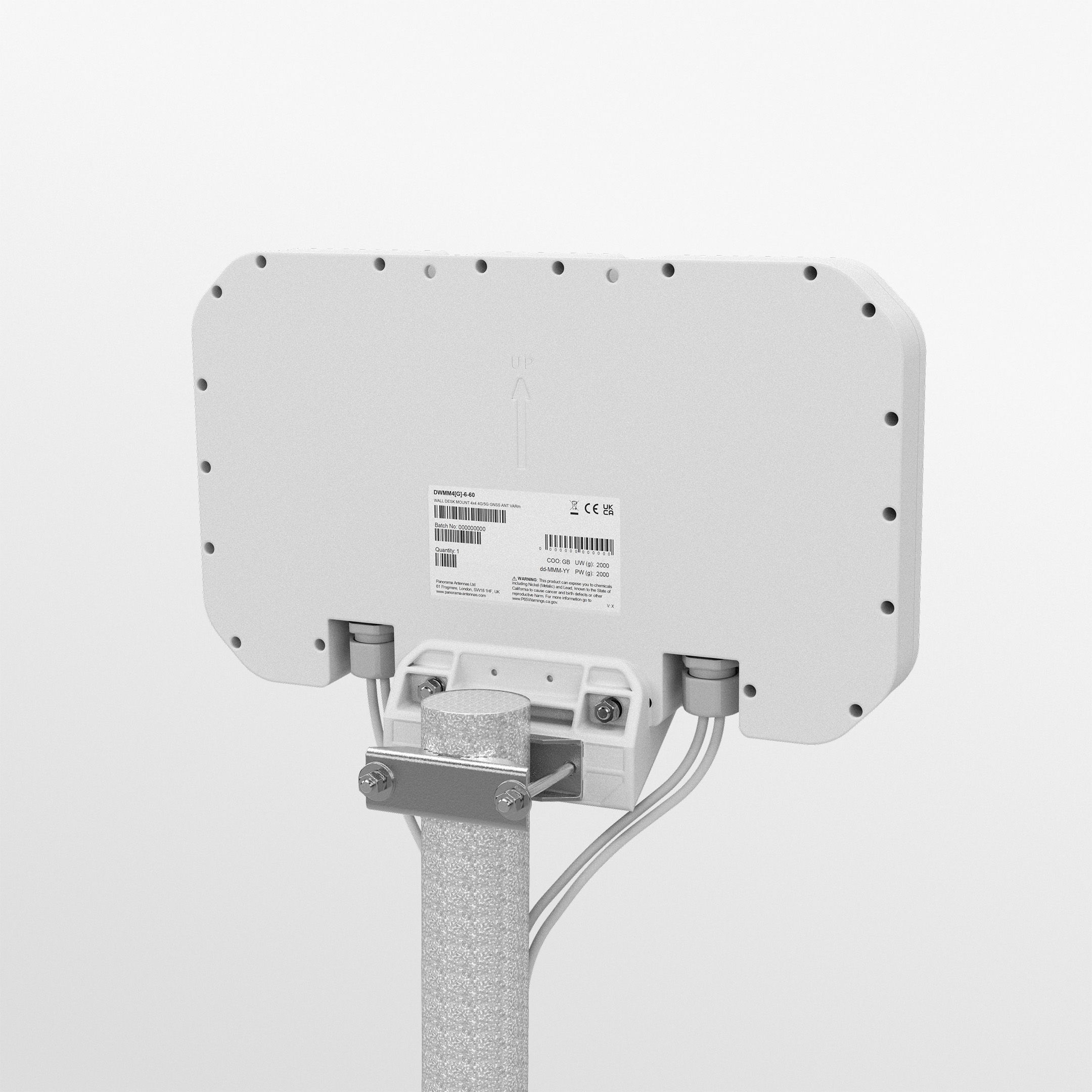

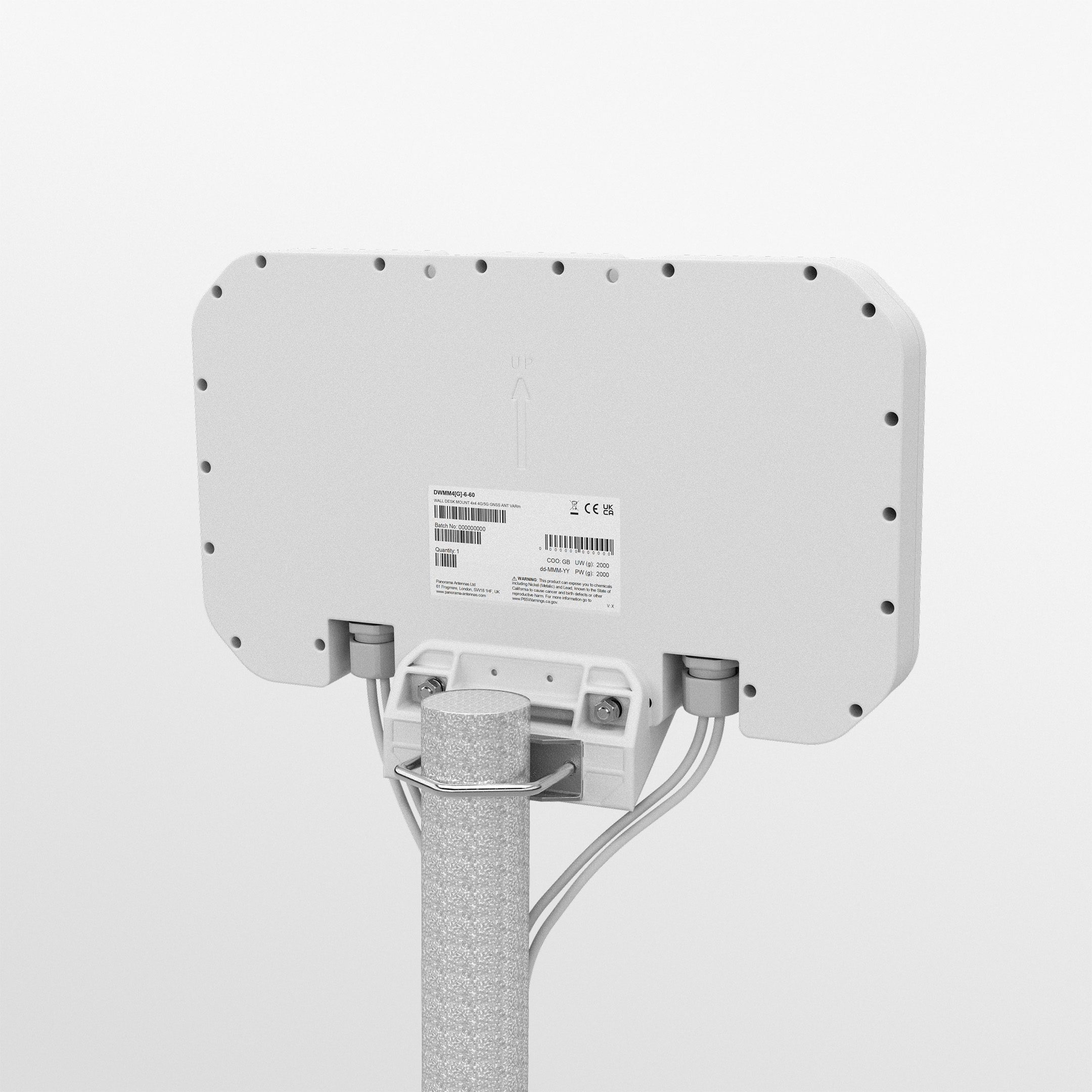

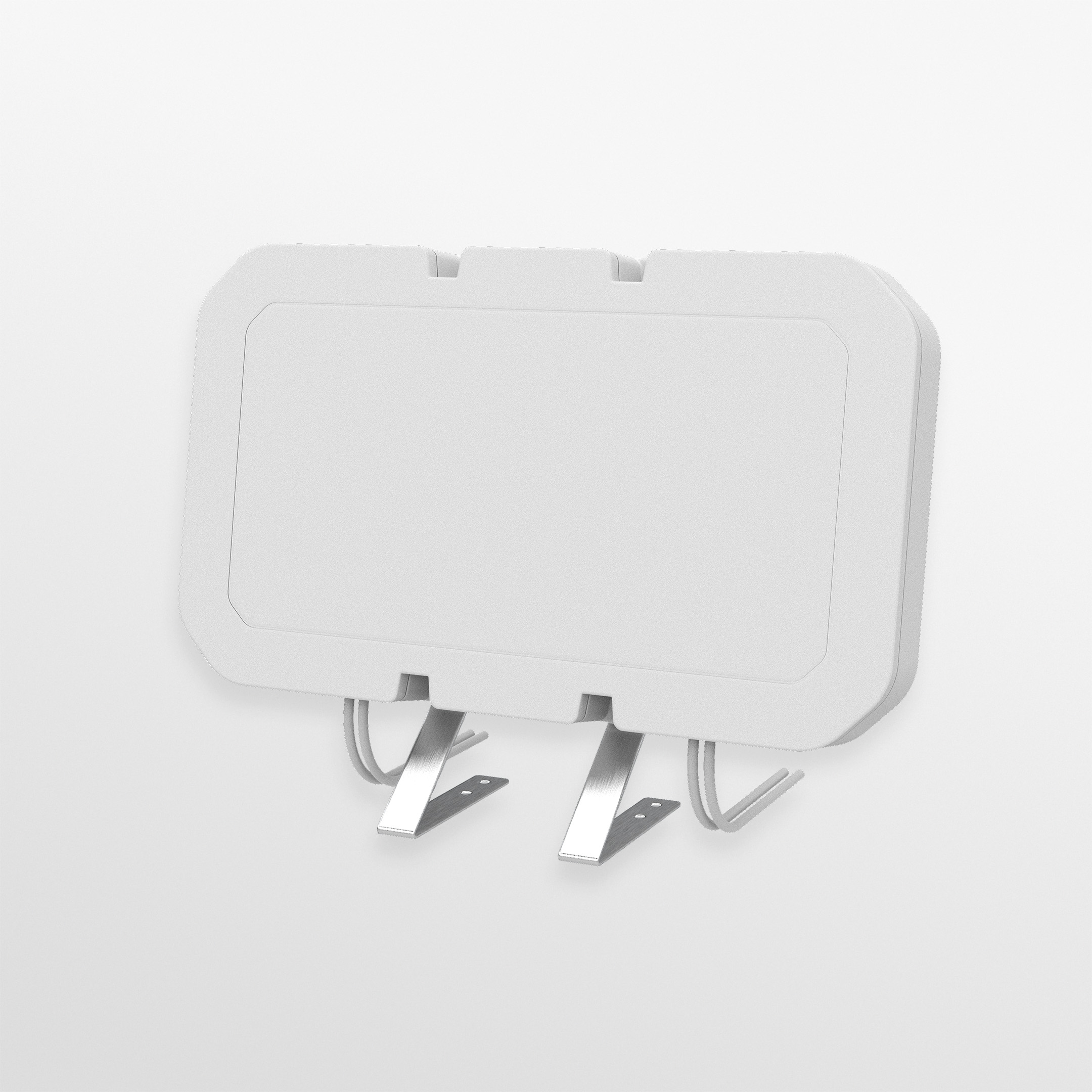

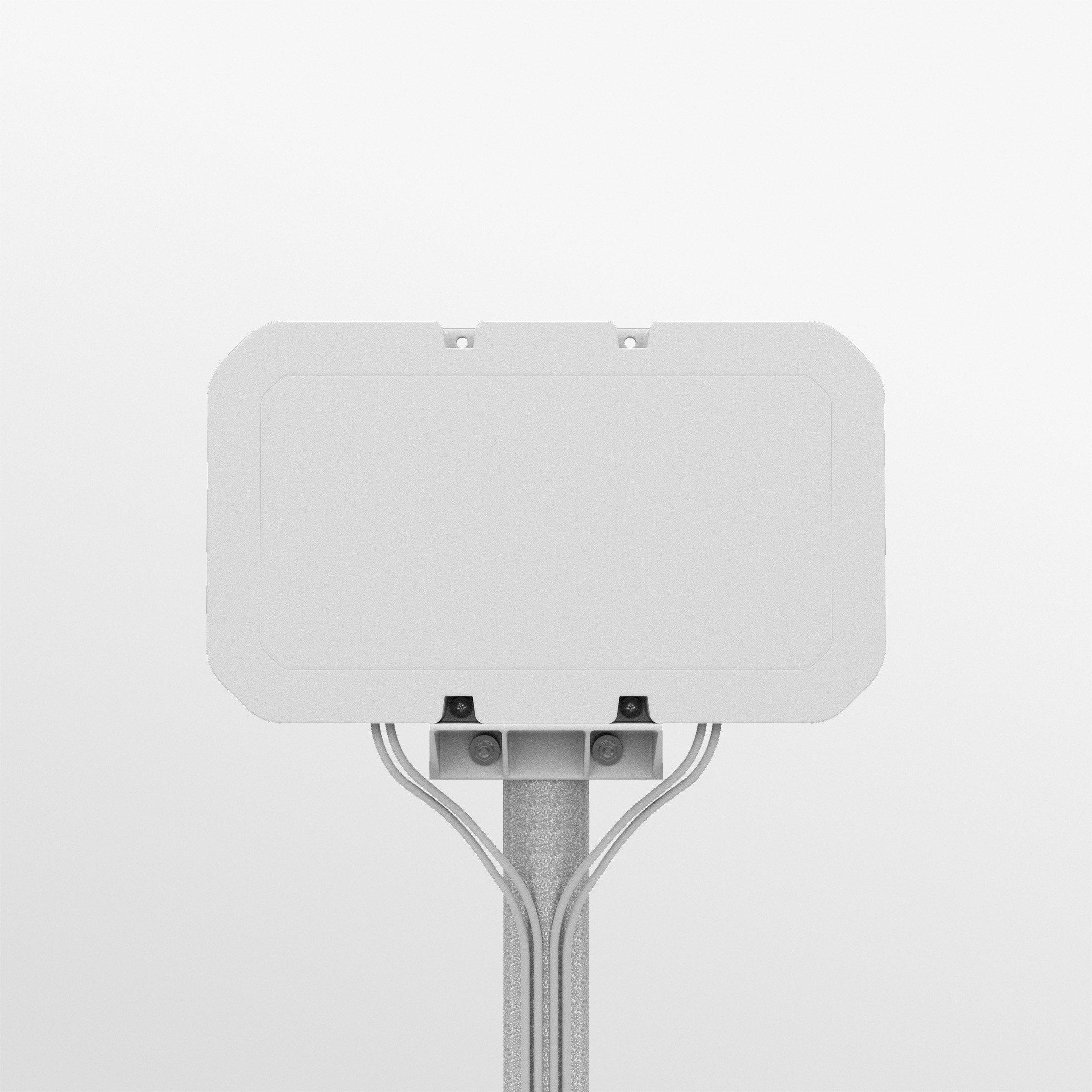

The omnidirectional pattern needs no directional alignment. The IP66 housing operates from -40°C to +80°C, so the antenna works indoors or outdoors. It measures 371 x 40 x 221 mm and handles up to 10 W input power. The supplied bracket mounts to a wall with the included screws and wall plugs, or to a mast or pole with the supplied clamps. The antenna can also be screwed to non-conductive panels or internal walls, or stood on a desk with the supplied feet.

Panorama publishes a datasheet and installation instructions for the DWMM4[G]-6-60 family.

Ideal for

  • 4G/5G branch router installations that also need GNSS positioning or timing
  • Enterprise failover sites where the antenna connects over a longer low-loss coax run
  • Exterior mast or wall mounting at fixed sites with the router indoors
  • Fixed-site IoT and M2M gateways that use GPS input

Specifications

Cable

Cable Type GPS
FR CS32 flame retardant
Cable Type LTE
FR CS32 flame retardant
Cable Length GPS
0.5 m (1.64 ft)
Cable Length LTE
0.5 m (1.64 ft)

General

MPN
DWMM4G-6-60-05NJ
UPC
5055416071729
Brand
Panorama Antennas
Product Family
DWMM4[G]-6-60 Hammerhead
Shipping Weight
4.75 lb

Package

Included
Antenna with integrated cables, mounting bracket, mast clamps, screws, wall plugs, mounting feet

GPS Data

Lna Gain
26 dB
Number OF GPS Elements
1 GPS/GNSS module

Mounting

Mounting Methods
Desk, Mast, Wall, Pole
Mounting Type Fixed
Desk, Mast, Wall

Approvals

IP Rating
IP66

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
No
Frequency Range
617-6000 MHz
Max Input Power
10 W
Cellular LTE Elements
4 x 4 MIMO

Mechanical

Width
40 mm (1.57 in)
Colour
White
Height
221 mm (8.70 in)
Length
371 mm (14.61 in)
Operating Temperature
-40°C to +80°C (-40°F to +176°F)

Technology

Technology
2G/3G, 4G, 5G; Band 71 600 MHz ready; GPS; GNSS

Termination

Connector GPS
N female (jack)
Connector LTE
N female (jack)

Questions buyers ask

What is the difference between the DWMM4G and DWMM4 versions?

The DWMM4G adds an integrated GPS/GNSS module with 26 dB LNA gain and advanced filtering. The DWMM4 versions are cellular only.

Why does it have 0.5 m cables with N (f) jacks?

The short tails with N (f) jacks let you connect a separate coaxial cable run of the length your installation needs between the antenna and the router.

How many cellular elements does it have?

It has four separately fed ultra-wideband elements, which provides 4x4 MIMO across 617-6000 MHz.

Can it be mounted outdoors?

Yes. It is rated IP66, operates from -40°C to +80°C, and ships with a bracket and clamps for wall, mast or pole mounting.
