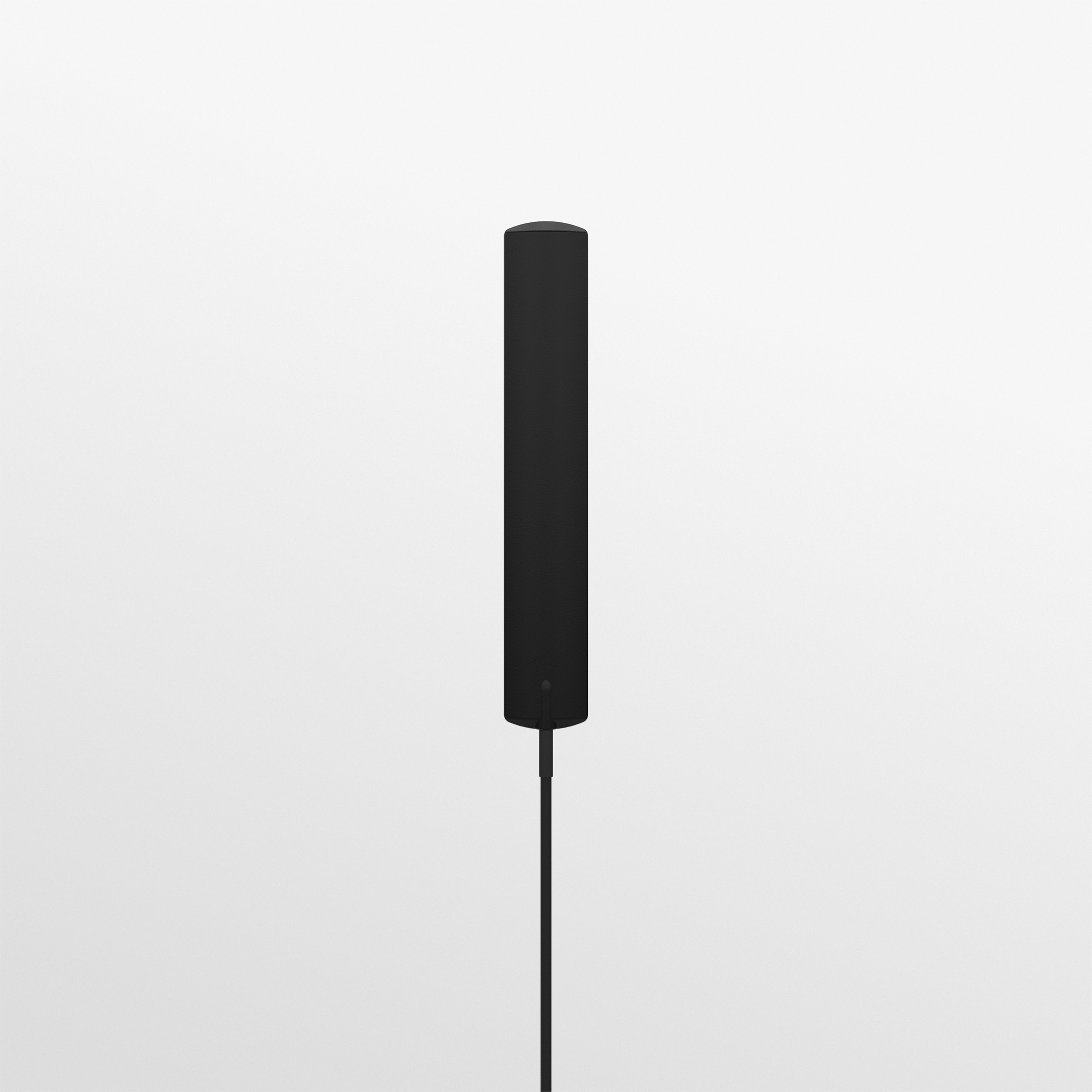

Panorama EF-BC3G-26-3SP Adhesive Mount 2G/3G/4G LTE Antenna, 3 m SMA Male

4G LTEMPN EF-BC3G-26-3SP
  • Single (SISO)
  • Under 3 dBi
  • 1–3 m
$18.51$25.56Save $7.05

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Panorama EF-BC3G-26-3SP is a slimline, adhesive-mount cellular antenna covering 698–960, 1710–2170 and 2400–2700 MHz. Gain is 2, 3 and 6 dBi respectively. It is omnidirectional and ground-plane independent. The antenna fits on non-heated, non-metallised windshields, on or under plastic panels, or inside plastic enclosures. A single SISO element connects through a 3 m RG174 cable with an SMA male connector. It is designed for in-vehicle connectivity, smart metering, vending and M2M installations.

  • Frequency coverage 698–960 MHz (2 dBi), 1710–2170 MHz (3 dBi) and 2400–2700 MHz (6 dBi)
  • Omnidirectional and ground-plane independent
  • Automotive-grade adhesive pad for mounting on any non-conductive surface
  • Single SISO cellular element on a 3 m RG174 cable with SMA male connector
  • Slimline 131 x 21.7 mm housing, rated -30 °C to +70 °C
  • Listed for 2G/3G/4G, 5G and FirstNet technologies within its frequency ranges
  • Plug-and-play: no tuning required, which shortens installation time across large deployments
  • Works with or without a ground plane, so placement is flexible in vehicles and plastic enclosures

The Panorama EF-BC3G-26-3SP is the 3 m SMA male version of the EF-BC3G-26 Adhesive Mount 2G/3G/4G LTE Antenna. Panorama designed the range to reduce the lifetime cost of M2M and smart metering installations. It is robust, easy to install and intended to last the life of the installation without maintenance. It suits field-operations teams, integrators and IT managers connecting routers, gateways and modems in vehicles or fixed equipment.

The antenna covers global cellular and LTE bands across three ranges: 698–960 MHz at 2 dBi, 1710–2170 MHz at 3 dBi and 2400–2700 MHz at 6 dBi. Panorama lists it for 2G/3G/4G, 5G and FirstNet technologies within those ranges. Performance is omnidirectional with or without a ground plane. The efficient element design aims for a high first-time connection rate and a robust link in problematic coverage areas. It is plug-and-play and needs no additional tuning.

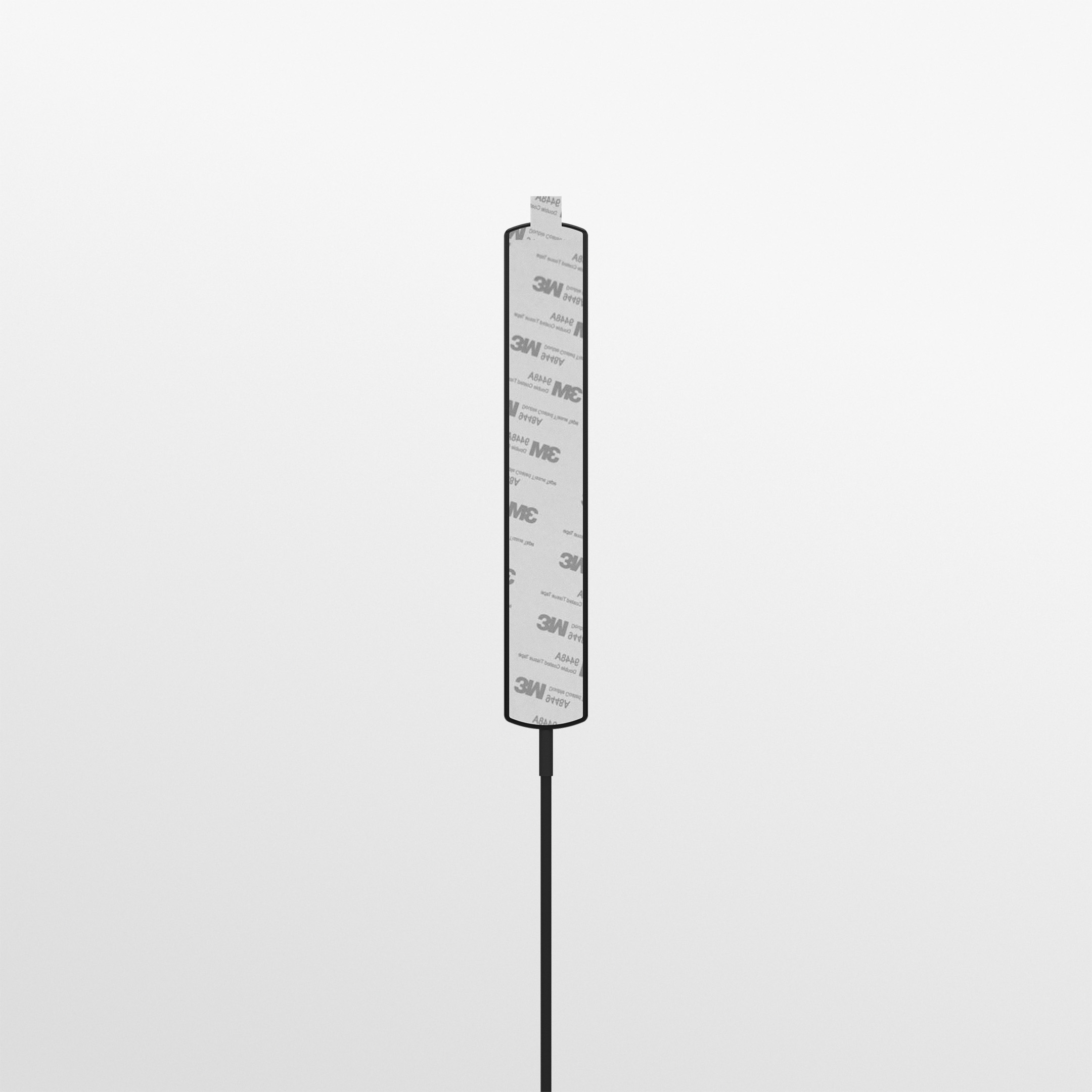

Installation uses the supplied automotive-grade adhesive pad. Suitable locations include windshields that are not heated or metallised, the surface or underside of plastic panels, or the inside of plastic enclosures. The weather-resistant plastic body suits semi-exposed locations. The slimline housing measures 131 x 21.7 mm and is rated from -30 °C to +70 °C with 10 W maximum input power. It uses a single SISO cellular element on a 3 m RG174 cable terminated in SMA male.

Panorama publishes the EF-BC3G-26 series datasheet and SW3-2000 installation instructions. Other terminations in the family include 0.5 m SMA male, 3 m FAKRA D and 3 m TS9 male.

Ideal for

  • In-vehicle router and modem connectivity mounted on the windshield
  • Smart meter installations inside plastic enclosures
  • Vending machine telemetry
  • M2M gateways in cabinets or behind plastic panels

Specifications

General

MPN
EF-BC3G-26-3SP
UPC
5019738239366
Brand
Panorama Antennas
Category
4G LTE Antennas
Product Family
EF-BC3G-26 Adhesive Mount 2G/3G/4G LTE Antenna

Package

Shipping Weight
0.25 lb

GPS Data

Number OF GPS Elements
No

Cable Data

Cable Type LTE
RG174
Cable Length LTE
3 m (9.84 ft)

Mounting Data

Attachment
Automotive-grade adhesive pad
Mounting Type
Glass mount
Mounting Methods
Glass mount

Electrical Data

Pattern
Omnidirectional
Ground Plane
Installs with or without a ground plane
Uhf Elements
No
Wi-Fi Elements
No
Max Input Power
10 W
Cellular LTE Elements
SISO
Frequency Range Gain Low
698–960 MHz | 2 dBi
Frequency Range Gain Mid
1710–2170 MHz | 3 dBi
Frequency Range Gain High
2400–2700 MHz | 6 dBi

Mechanical Data

Width
21.7 mm (0.85 in)
Colour
Black
Length
131 mm (5.16 in)
Diameter
2.5 mm (0.10 in)
Operating Temperature
-30 °C to +70 °C (-22 °F to +158 °F)

Technology Data

Technology
4G/5G, 5G, 2G/3G, 2G/3G/4G, FirstNet

Termination Data

Connector LTE
SMA male

Questions buyers ask

What frequencies and gain does the EF-BC3G-26-3SP support?

It covers 698–960 MHz at 2 dBi, 1710–2170 MHz at 3 dBi and 2400–2700 MHz at 6 dBi, with an omnidirectional pattern.

Does it need a metal ground plane?

No. It is ground-plane independent and can be installed with or without a ground plane.

Where can it be mounted?

It mounts with the supplied automotive-grade adhesive pad on non-conductive surfaces. Examples are windshields that are not heated or metallised, on or under plastic panels, or inside plastic enclosures.

Is it a MIMO antenna?

No. It has a single SISO cellular element with one 3 m RG174 cable terminated in SMA male.

Is it compatible with 5G?

Panorama lists 2G/3G/4G, 5G and FirstNet among its supported technologies within the 698–960, 1710–2170 and 2400–2700 MHz ranges.
