Zebra ET401 8-Inch 5G Rugged Enterprise Tablet with SR500 Scanner, 6GB/64GB, Android GMS (North America)

5GMPN ET401EA-301P1B2P-NA
  • 64 GB
  • 6 GB
  • Under 9 in
  • Rugged
$1,124.37$1,168.86Save $44.49

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

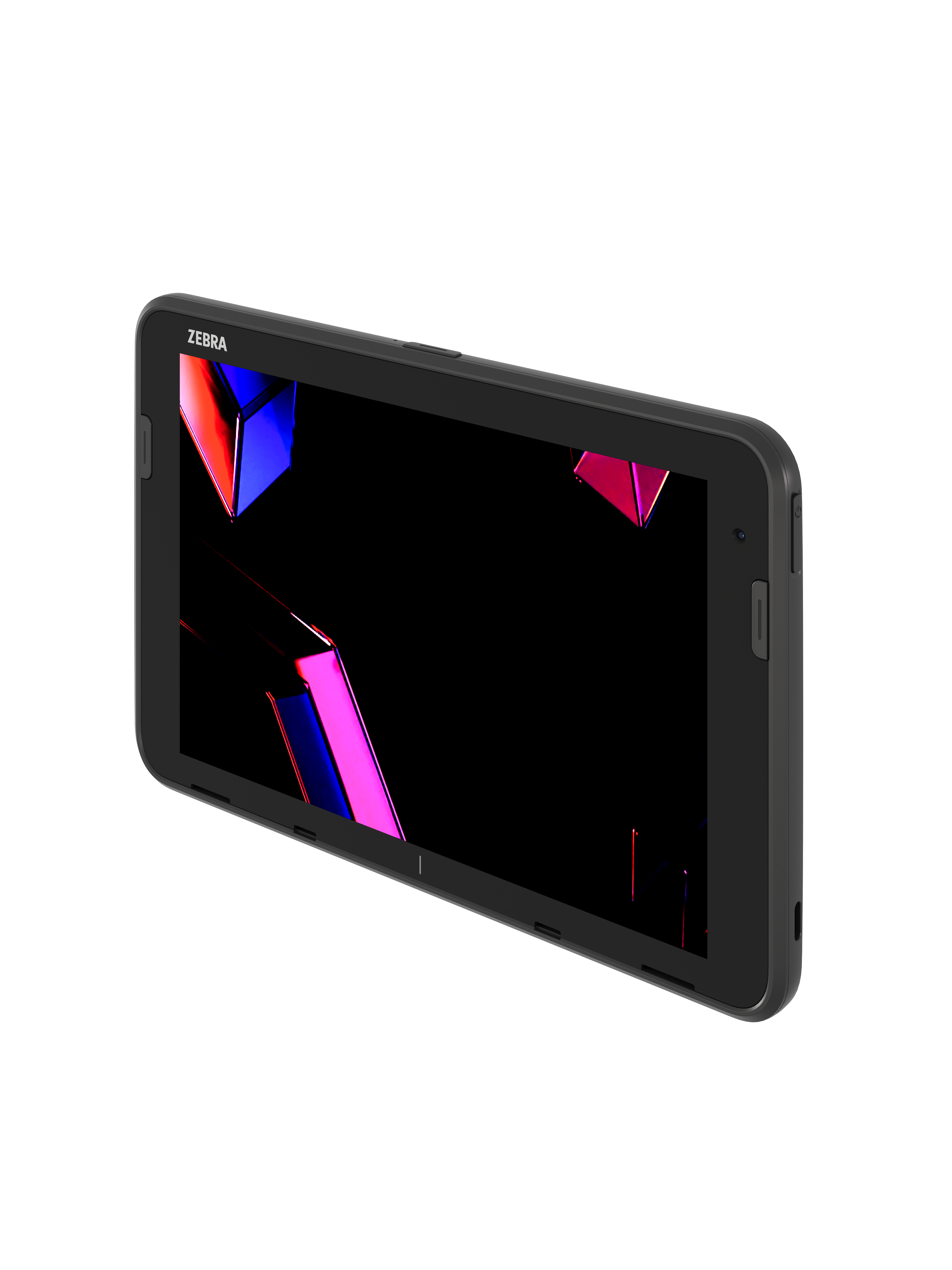

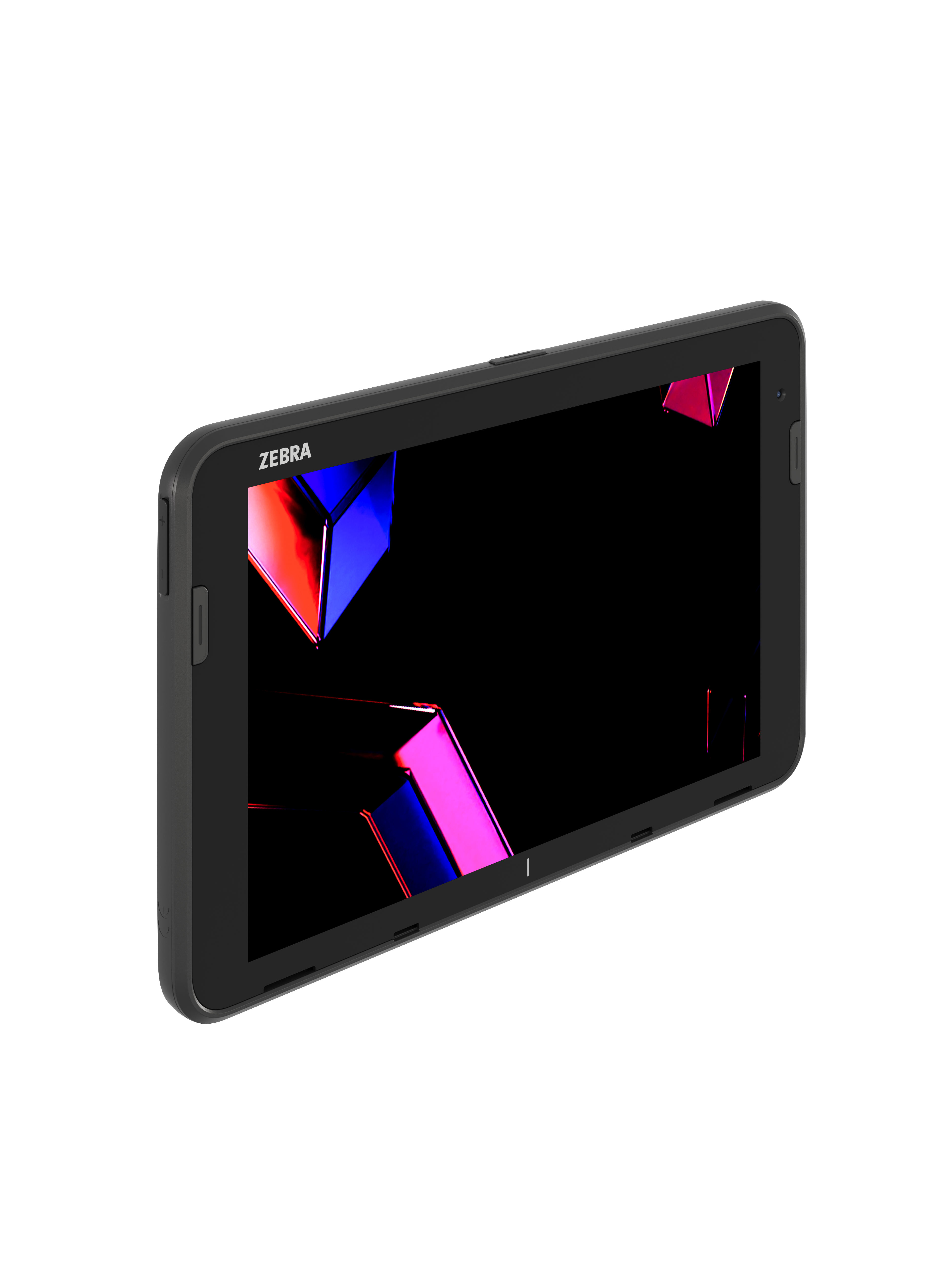

The Zebra ET401EA-301P1B2P-NA is an 8-inch rugged enterprise tablet for North America. It pairs a 5G Release 17 modem and Wi-Fi 7 with an integrated SR500 1D/2D scan engine, 6 GB LPDDR5 RAM and 64 GB UFS 2.2 flash, and Android with Google Mobile Services. The tablet has IP68 sealing, a 600-nit Gorilla Glass 5 display and a user-replaceable 6100 mAh battery. It is built for retail, logistics and warehouse teams that scan, sell and deliver in the field.

  • 8-inch WUXGA 1920x1200 display, 600 nits, optically bonded, Corning Gorilla Glass 5
  • 5G NR Sub-6 (NSA/SA) Release 17 with Gigabit LTE-A, private cellular support, nano SIM + eSIM
  • Integrated SR500 1D/2D scan engine plus 16 MP autofocus rear camera and 8 MP front camera
  • Qualcomm Dragonwing Q-6690 up to 2.0 GHz with 6 GB LPDDR5 RAM / 64 GB UFS 2.2 flash, microSD up to 2 TB
  • Tri-band Wi-Fi 7 (2.4/5/6 GHz) with MLO, Bluetooth 6.0, NFC and dual-band GNSS
  • IP68 sealing, 4 ft (1.2 m) multi-drop to concrete, -20°C to +50°C operating range
  • User-replaceable 6100 mAh (23.46 Wh) battery with battery-free operation option
  • Scan barcodes outdoors in direct sunlight with the SR500 engine, and capture documents and text for proof of delivery

The Zebra ET401 is the successor to the ET40 and ET45 enterprise tablets. It keeps the thin, light design of the earlier ET4 series and moves to newer hardware. This North America SKU uses the 8-inch body, which weighs 1.05 lbs (480 g) and measures 0.45 in (11.4 mm) deep. It runs Android with Google Mobile Services on 6 GB LPDDR5 RAM and 64 GB UFS 2.2 flash, and a microSD slot accepts cards up to 2 TB. A Qualcomm Dragonwing Q-6690 processor runs at up to 2.0 GHz, and Zebra states processor support through 2034.

The integrated SR500 scan engine reads 1D and 2D barcodes in all lighting conditions, including bright sunlight. Its yellow LED aimer with red illumination makes targets easier to see, and it can also capture images, documents and OCR/text. A 16 MP autofocus rear camera and an 8 MP front camera are included. NFC supports Apple VAS and Google Smart Tap for contactless workflows.

For connectivity, the tablet combines 5G NR Sub-6 (NSA and SA) with Gigabit LTE-A, private cellular bands including B48 and n48, and tri-band Wi-Fi 7 with 2x2 MU-MIMO and MLO. It also has Bluetooth 6.0 and dual-band GNSS. SIM options are a nano SIM plus eSIM.

The ET401 is IP68 sealed and survives multiple 4 ft (1.2 m) drops to concrete, or 5.1 ft (1.5 m) with the optional rugged frame per MIL-STD-810H. It operates from -4°F to 122°F. The 600-nit WUXGA screen rejects water droplets and works with a bare or gloved finger or a conductive stylus. Nearly all ET40/ET45 accessories fit the ET401. Zebra offers the model for sale for four years plus four more years of service, for up to eight years in total. The Zebra spec sheet and Product Reference Guide are available for this model.

Ideal for

  • Retail assisted selling, line busting and mobile point of sale
  • Proof of pickup and delivery with barcode and document capture
  • Inventory management in stores, warehouses and distribution centers
  • Routing, dispatch and vehicle inspection for transportation fleets
  • Maintenance, repair and quality assurance in manufacturing

Specifications

General

MPN
ET401EA-301P1B2P-NA
Brand
Zebra Technologies
Model
ET401 Enterprise Tablet
Radio
5G
Region
North America
Replaces
Replaces ET40 and ET45
Configuration Tier
Standard
Operating System Sku
Android with Google Mobile Services

Package

IN The Box
ET401 Tablet

Software

Zebra Dna
Zebra DNA software suite for setup, security and management (Android; features vary by model; Support Contract may be required)

Warranty

Warranty
1 year from date of shipment against defects in workmanship and materials, subject to Zebra's hardware warranty statement

Data Capture

NFC
NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards; NFC Forum tags 2,3,4,5; Host Card Emulation; Contactless Payment Support; VAS and Wallet support; Apple ECP1.0 and ECP2.0; Apple VAS and Google Smart Tap certified; VAS Library/SDK
Scanning
Rear camera scanning; integrated SR500 1D/2D scan engine (this SKU)
Rear Camera
16 MP, Flash LED, Phase Detection, Autofocus
Front Camera
8 MP
Integrated Rfid
Optional on ET401: short range integrated UHF RFID; 4 ft (1.2 m) range; reads > 90 tags per second; EPC Class 1 Gen2; EPC Gen 2 V2; EU 865-868 MHz and US 902-928 MHz
Ultra Wide Rear Camera
13 MP Flash LED (optional on ET401)

Wireless LAN

Fast Roam
802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC
Data Rates
2.4 GHz 802.11b/g/n/ax/be 20 MHz up to 344 Mbps; 5 GHz 802.11a/n/ac/ax/be 20-160 MHz up to 2882 Mbps; 6 GHz 802.11ax/be 20-320 MHz up to 5764 Mbps
Wlan Radio
IEEE 802.11 be/az/mc/ax/ac/n/a/g/b/d/h/i/r/k/u/v/w; Tri-band (2.4, 5, 6 GHz), 2x2 MU-MIMO; Wi-Fi CERTIFIED 7; MLO (STR MLMR) in 5+6, 5+5, 2.4+5, 2.4+6; Dual Band Simultaneous; High Band Simultaneous; IPv4, IPv6; Wi-Fi Aware
Certifications
Wi-Fi CERTIFIED 7/6/6E/ac/n; WPA2 and WPA3 Personal/Enterprise (incl. 192-bit); Protected Management Frames; Enhanced Open; WMM, WMM-PS, WMM-AC; Voice-Enterprise; Wi-Fi Direct; Agile Multiband; QoS Management; Optimized Connectivity; Passpoint
Wi-Fi Multimedia
Wi-Fi Multimedia (WMM) and WMM-PS; TSPEC
Operating Channels
Channels 1-13 (2401-2483 MHz); 36-165 (5150-5850 MHz); 1-233 (5925-7125 MHz); bandwidth 20/40/80/160/320 MHz, subject to regulatory rules
Security Encryption
WPA3 Enterprise 192-bit (GCMP-256, EAP-TLS); WPA3 Enterprise (AES-CCMP-128, GCMP-256; EAP-TTLS, EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, EAP-PWD); WPA3 Personal (SAE, SAE-EXT); WPA/WPA2 Enterprise and Personal (TKIP, AES-CCMP-128); Enhanced Open (OWE); WEP 40/104 bit; WAN device only: EAP-SIM, EAP-AKA, EAP-AKA Prime

Wireless Pan

Bluetooth
Class 1, Bluetooth v6.0; Classic (BR/EDR) and Bluetooth LE; BLE Audio; BLE beaconing; Bluetooth Channel Sounding

Wireless WAN

GNSS
GPS; GLONASS; a-GLONASS; Galileo; BeiDou; QZSS; Dual-Band GNSS concurrent L1/G1/E1/B1 + L5/E5a/BDS B2a; a-GPS; supports XTRA
2g Bands
850/900/1800/1900
3g Bands
B1/2/4/5/6/8/19
4G Bands
4G LTE: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/48/53/66/68/70/71/106
5G Bands
5G FR1: n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/41/48/53/66/70/71/75/76/77/78/79
4x4 DL MIMO
5G FR1 n1/2/3/7/25/30/38/40/41/48/66/70/77/78/79; 4G LTE 1/2/3/4/7/25/30/38/40/41/42/43/48/66/70
Private Cellular
B48/53/106/68 and more
Cellular Features
Rel-17; Dual SIM/Dual Standby; Gigabit LTE-A; 5G NR Sub-6 (NSA, SA); LTE/NR Carrier Aggregation; LTE CA up to 3DL/2UL; NR CA up to 3DL/2UL

User Environment

Esd
+/- 15 kV air discharge; +/- 8 kV contact; +/- 8 kV indirect
Drop
4 ft (1.2 m) multiple drops to concrete; 5.1 ft (1.5 m) with optional rugged frame per MIL-STD-810H
Sealing
IP68
Humidity
5%-95% non-condensing
Vibration
Sine: 4g's peak, 5 Hz to 2 kHz; Random: 6 g RMS (20 Hz to 2 kHz)
Thermal Shock
-40°F to +158°F (-40°C to +70°C)
Storage Temperature
-40°F to +158°F (-40°C to +70°C)
Operating Temperature
-4°F to +122°F (-20°C to +50°C)

Recommended Services

Services
Zebra OneCare Essential and Select; Zebra Visibility Services VisibilityIQ Foresight; Professional Services Gold Build

Environmental Compliance

Compliance
RoHS Directive 2011/65/EU; Amendment 2015/863; REACH SVHC 1907/2006

Physical Characteristics

SIM
Dual SIM (Single Nano SIM and eSIM)
Audio
Stereo speakers; two microphones; headset support via USB-C or Bluetooth; BLE compatible; VoIP including PTT support; Qualcomm Fluence AI noise suppression
Weight
1.05 lbs (480 g)
Battery
Rechargeable Li-Ion Polymer, user replaceable; 6100 mAh 3.91 V (23.46 Wh)
Buttons
Volume up/down; power on/off; scan; programmable buttons
Display
8 in (20.3 cm) WUXGA 1920x1200; 600 nits; optically bonded to touch panel
Charging
Through USB-C (USB PD compatible), bottom pogo and selected back accessory charging options
Dimensions
8.37 x 5.29 x 0.45 in (212.7 x 134.4 x 11.4 mm) L x H x D
Touch Panel
Multi mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately); water droplet rejection; fingerprint resistant coating; Corning Gorilla Glass 5
Notifications
Audible tone; multi-color LEDs; vibration
Interface Ports
USB Type C (USB 3.1); Bottom and back IO (USB 2.0)
Keyboard Options
Virtual; Bluetooth; USB
Secondary Battery
Optional hot swappable 3400 mAh 7.6 V (25.84 Wh) secondary battery, for use with expansion back accessory
Battery Free Operation
Draw power from external power source via USB-C or bottom/back IO

Performance Characteristics

CPU
Qualcomm Dragonwing Q-6690 Processor, up to 2.0 GHz
Memory
6 GB LPDDR5 RAM / 64 GB UFS 2.2 Flash
Expansion
MicroSD card slot supports up to 2 TB
Operating System
Android with GMS (see zebra.com/android-versions for supported versions)

Interactive Sensor Technology

Light Sensor
Automatically adjusts display brightness
Magnetometer
eCompass automatically detects direction and orientation
Motion Sensor
3-axis gyroscope; 3-axis accelerometer

Questions buyers ask

Which market is this ET401 configuration for?

The -NA suffix marks a North America SKU. Its 5G and LTE band list includes n71, n77, n41, B13, B14 and B66, alongside private cellular bands such as B48.

Will my ET40 or ET45 accessories work with the ET401?

Zebra states that nearly all existing ET40/ET45 accessories work with the ET401, so most fleets can swap devices without replacing cradles and mounts.

What SIM setup does the tablet use?

It supports dual SIM with one nano SIM and one eSIM, with dual SIM/dual standby operation.

Can the display be used with gloves or in the rain?

Yes. The multi mode capacitive touch panel accepts a bare or gloved finger or a conductive stylus (sold separately) and has water droplet rejection, so no mode change is needed.

How long will the ET401 be supported?

Zebra offers the ET401 for sale for four years and extends service for four more, for up to eight years in total. The Dragonwing Q-6690 processor is supported through 2034.
