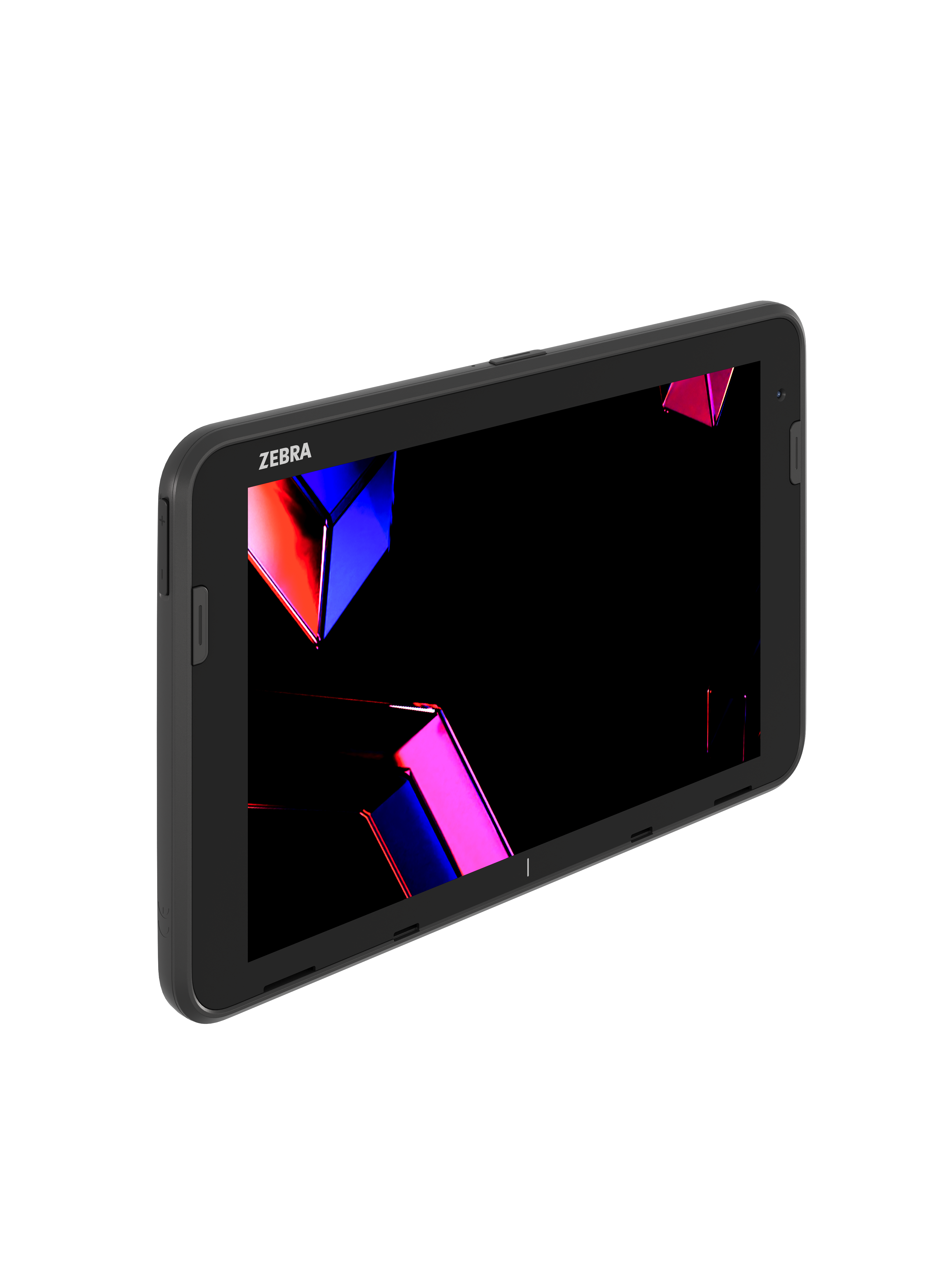

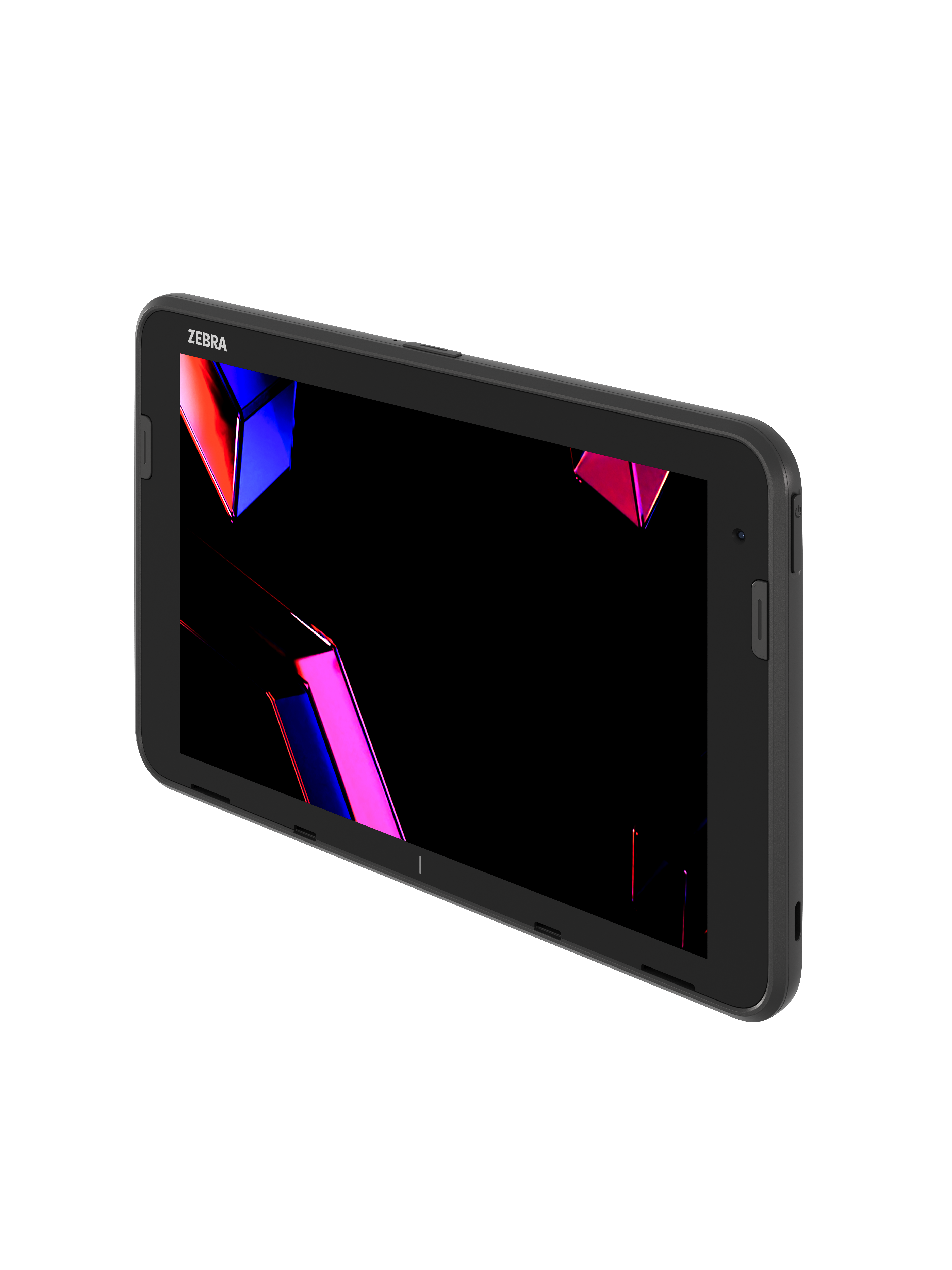

Zebra ET401 8-Inch 5G Rugged Enterprise Tablet with SR500 Scanner, 8GB/128GB, Android GMS (North America)

5GMPN ET401EA-301P2B2P-NA
  • 128 GB
  • 8 GB
  • Under 9 in
  • Rugged
$1,293.01$1,344.19Save $51.18

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Zebra ET401EA-301P2B2P-NA is the higher-memory 8-inch ET401 rugged enterprise tablet for North America. It pairs 8 GB LPDDR5 RAM and 128 GB UFS 3.1 flash with a 5G Release 17 modem, Wi-Fi 7 and an integrated SR500 1D/2D scan engine, and runs Android with Google Mobile Services. IP68 sealing, a 600-nit Gorilla Glass 5 display and a user-replaceable 6100 mAh battery suit retail, logistics and warehouse work where apps and data need more room.

  • 8 GB LPDDR5 RAM / 128 GB UFS 3.1 flash, microSD up to 2 TB
  • 8-inch WUXGA 1920x1200 display, 600 nits, Corning Gorilla Glass 5
  • 5G NR Sub-6 (NSA/SA) Release 17 with Gigabit LTE-A, private cellular support, nano SIM + eSIM
  • Integrated SR500 1D/2D scan engine, 16 MP autofocus rear and 8 MP front cameras
  • Qualcomm Dragonwing Q-6690 up to 2.0 GHz; tri-band Wi-Fi 7, Bluetooth 6.0, NFC, dual-band GNSS
  • IP68 sealing, 4 ft (1.2 m) multi-drop to concrete, -20°C to +50°C operating range
  • User-replaceable 6100 mAh (23.46 Wh) battery with battery-free operation option
  • Run heavier line-of-business apps and store more offline data with 8 GB RAM and 128 GB of UFS 3.1 storage

The Zebra ET401 is the successor to the ET40 and ET45 enterprise tablets. This North America SKU uses the 8-inch body and the upgraded memory configuration: 8 GB LPDDR5 RAM with 128 GB UFS 3.1 flash, plus a microSD slot for cards up to 2 TB. The extra memory gives headroom for multi-app workflows, offline data and image capture. It runs Android with Google Mobile Services on a Qualcomm Dragonwing Q-6690 processor at up to 2.0 GHz, with processor support through 2034. The tablet weighs 1.05 lbs (480 g) and is 0.45 in (11.4 mm) deep.

The integrated SR500 scan engine reads 1D and 2D barcodes in all lighting conditions, including bright sunlight. It uses a yellow LED aimer with red illumination and can capture images, documents and OCR/text. A 16 MP autofocus rear camera, an 8 MP front camera and NFC with Apple VAS and Google Smart Tap support round out data capture.

For connectivity, it offers 5G NR Sub-6 (NSA and SA), Gigabit LTE-A and private cellular band support. It also has tri-band Wi-Fi 7 with MLO, Bluetooth 6.0, dual-band GNSS, and a nano SIM plus eSIM.

The ET401 is IP68 sealed, rated for multiple 4 ft (1.2 m) drops to concrete (5.1 ft with the optional rugged frame per MIL-STD-810H), and operates from -4°F to 122°F. The 600-nit WUXGA display works with a bare or gloved finger or a conductive stylus and rejects water droplets. Nearly all ET40/ET45 accessories are compatible. Zebra offers up to eight years of availability and service. The Zebra spec sheet and Product Reference Guide are available for this model.

Ideal for

  • Mobile point of sale and assisted selling with payment and loyalty apps
  • Proof of pickup and delivery with barcode, photo and document capture
  • Warehouse and store inventory management
  • Vehicle inspection, routing and dispatch for fleets
  • Manager devices for staff communication and quality checks

Specifications

General

MPN
ET401EA-301P2B2P-NA
Brand
Zebra Technologies
Model
ET401 Enterprise Tablet
Radio
5G
Region
North America
Replaces
Replaces ET40 and ET45
Configuration Tier
Standard
Operating System Sku
Android with Google Mobile Services

Package

IN The Box
ET401 Tablet

Software

Zebra Dna
Zebra DNA software suite for setup, security and management (Android; features vary by model; Support Contract may be required)

Warranty

Warranty
1 year from date of shipment against defects in workmanship and materials, subject to Zebra's hardware warranty statement

Data Capture

NFC
NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards; NFC Forum tags 2,3,4,5; Host Card Emulation; Contactless Payment Support; VAS and Wallet support; Apple ECP1.0 and ECP2.0; Apple VAS and Google Smart Tap certified; VAS Library/SDK
Scanning
Rear camera scanning; integrated SR500 1D/2D scan engine (this SKU)
Rear Camera
16 MP, Flash LED, Phase Detection, Autofocus
Front Camera
8 MP
Integrated Rfid
Optional on ET401: short range integrated UHF RFID; 4 ft (1.2 m) range; reads > 90 tags per second; EPC Class 1 Gen2; EPC Gen 2 V2; EU 865-868 MHz and US 902-928 MHz
Ultra Wide Rear Camera
13 MP Flash LED (optional on ET401)

Wireless LAN

Fast Roam
802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC
Data Rates
2.4 GHz 802.11b/g/n/ax/be 20 MHz up to 344 Mbps; 5 GHz 802.11a/n/ac/ax/be 20-160 MHz up to 2882 Mbps; 6 GHz 802.11ax/be 20-320 MHz up to 5764 Mbps
Wlan Radio
IEEE 802.11 be/az/mc/ax/ac/n/a/g/b/d/h/i/r/k/u/v/w; Tri-band (2.4, 5, 6 GHz), 2x2 MU-MIMO; Wi-Fi CERTIFIED 7; MLO (STR MLMR) in 5+6, 5+5, 2.4+5, 2.4+6; Dual Band Simultaneous; High Band Simultaneous; IPv4, IPv6; Wi-Fi Aware
Certifications
Wi-Fi CERTIFIED 7/6/6E/ac/n; WPA2 and WPA3 Personal/Enterprise (incl. 192-bit); Protected Management Frames; Enhanced Open; WMM, WMM-PS, WMM-AC; Voice-Enterprise; Wi-Fi Direct; Agile Multiband; QoS Management; Optimized Connectivity; Passpoint
Wi-Fi Multimedia
Wi-Fi Multimedia (WMM) and WMM-PS; TSPEC
Operating Channels
Channels 1-13 (2401-2483 MHz); 36-165 (5150-5850 MHz); 1-233 (5925-7125 MHz); bandwidth 20/40/80/160/320 MHz, subject to regulatory rules
Security Encryption
WPA3 Enterprise 192-bit (GCMP-256, EAP-TLS); WPA3 Enterprise (AES-CCMP-128, GCMP-256; EAP-TTLS, EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, EAP-PWD); WPA3 Personal (SAE, SAE-EXT); WPA/WPA2 Enterprise and Personal (TKIP, AES-CCMP-128); Enhanced Open (OWE); WEP 40/104 bit; WAN device only: EAP-SIM, EAP-AKA, EAP-AKA Prime

Wireless Pan

Bluetooth
Class 1, Bluetooth v6.0; Classic (BR/EDR) and Bluetooth LE; BLE Audio; BLE beaconing; Bluetooth Channel Sounding

Wireless WAN

GNSS
GPS; GLONASS; a-GLONASS; Galileo; BeiDou; QZSS; Dual-Band GNSS concurrent L1/G1/E1/B1 + L5/E5a/BDS B2a; a-GPS; supports XTRA
2g Bands
850/900/1800/1900
3g Bands
B1/2/4/5/6/8/19
4G Bands
4G LTE: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/48/53/66/68/70/71/106
5G Bands
5G FR1: n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/41/48/53/66/70/71/75/76/77/78/79
4x4 DL MIMO
5G FR1 n1/2/3/7/25/30/38/40/41/48/66/70/77/78/79; 4G LTE 1/2/3/4/7/25/30/38/40/41/42/43/48/66/70
Private Cellular
B48/53/106/68 and more
Cellular Features
Rel-17; Dual SIM/Dual Standby; Gigabit LTE-A; 5G NR Sub-6 (NSA, SA); LTE/NR Carrier Aggregation; LTE CA up to 3DL/2UL; NR CA up to 3DL/2UL

User Environment

Esd
+/- 15 kV air discharge; +/- 8 kV contact; +/- 8 kV indirect
Drop
4 ft (1.2 m) multiple drops to concrete; 5.1 ft (1.5 m) with optional rugged frame per MIL-STD-810H
Sealing
IP68
Humidity
5%-95% non-condensing
Vibration
Sine: 4g's peak, 5 Hz to 2 kHz; Random: 6 g RMS (20 Hz to 2 kHz)
Thermal Shock
-40°F to +158°F (-40°C to +70°C)
Storage Temperature
-40°F to +158°F (-40°C to +70°C)
Operating Temperature
-4°F to +122°F (-20°C to +50°C)

Recommended Services

Services
Zebra OneCare Essential and Select; Zebra Visibility Services VisibilityIQ Foresight; Professional Services Gold Build

Environmental Compliance

Compliance
RoHS Directive 2011/65/EU; Amendment 2015/863; REACH SVHC 1907/2006

Physical Characteristics

SIM
Dual SIM (Single Nano SIM and eSIM)
Audio
Stereo speakers; two microphones; headset support via USB-C or Bluetooth; BLE compatible; VoIP including PTT support; Qualcomm Fluence AI noise suppression
Weight
1.05 lbs (480 g)
Battery
Rechargeable Li-Ion Polymer, user replaceable; 6100 mAh 3.91 V (23.46 Wh)
Buttons
Volume up/down; power on/off; scan; programmable buttons
Display
8 in (20.3 cm) WUXGA 1920x1200; 600 nits; optically bonded to touch panel
Charging
Through USB-C (USB PD compatible), bottom pogo and selected back accessory charging options
Dimensions
8.37 x 5.29 x 0.45 in (212.7 x 134.4 x 11.4 mm) L x H x D
Touch Panel
Multi mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately); water droplet rejection; fingerprint resistant coating; Corning Gorilla Glass 5
Notifications
Audible tone; multi-color LEDs; vibration
Interface Ports
USB Type C (USB 3.1); Bottom and back IO (USB 2.0)
Keyboard Options
Virtual; Bluetooth; USB
Secondary Battery
Optional hot swappable 3400 mAh 7.6 V (25.84 Wh) secondary battery, for use with expansion back accessory
Battery Free Operation
Draw power from external power source via USB-C or bottom/back IO

Performance Characteristics

CPU
Qualcomm Dragonwing Q-6690 Processor, up to 2.0 GHz
Memory
8 GB LPDDR5 RAM / 128 GB UFS 3.1 Flash
Expansion
MicroSD card slot supports up to 2 TB
Operating System
Android with GMS (see zebra.com/android-versions for supported versions)

Interactive Sensor Technology

Light Sensor
Automatically adjusts display brightness
Magnetometer
eCompass automatically detects direction and orientation
Motion Sensor
3-axis gyroscope; 3-axis accelerometer

Questions buyers ask

How does this SKU differ from ET401EA-301P1B2P-NA?

Both are 8-inch 5G Standard-tier ET401 tablets with the SR500 scanner and Android GMS for North America. This model has 8 GB LPDDR5 RAM and 128 GB UFS 3.1 flash, while the other has 6 GB RAM and 64 GB UFS 2.2 flash.

Does it support private 5G networks?

Yes. The 5G Release 17 modem supports private cellular, including B48, B53, B106 and B68, as well as n48 and n53 on 5G.

Can the tablet run without a battery?

Yes. For permanent installs in vehicles, kiosks or workstations, it can draw power from an external source via USB-C or the bottom/back IO.

Is the battery replaceable?

Yes. The 6100 mAh 3.91 V (23.46 Wh) Li-Ion polymer battery is user replaceable. An optional hot-swappable 3400 mAh secondary battery is available with the expansion back accessory.

What warranty does Zebra provide?

Zebra warrants the ET401 against defects in workmanship and materials for one year from the date of shipment, subject to its hardware warranty statement.
