ZebraTablets & Laptops

Zebra ET45 8-Inch 5G Rugged Enterprise Tablet with SE4710 Scanner, 8GB/128GB, North America

5GMPN ET45BA-101D2B0-NA
  • 128 GB
  • 8 GB
  • Under 9 in
  • Rugged
$1,481.57

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

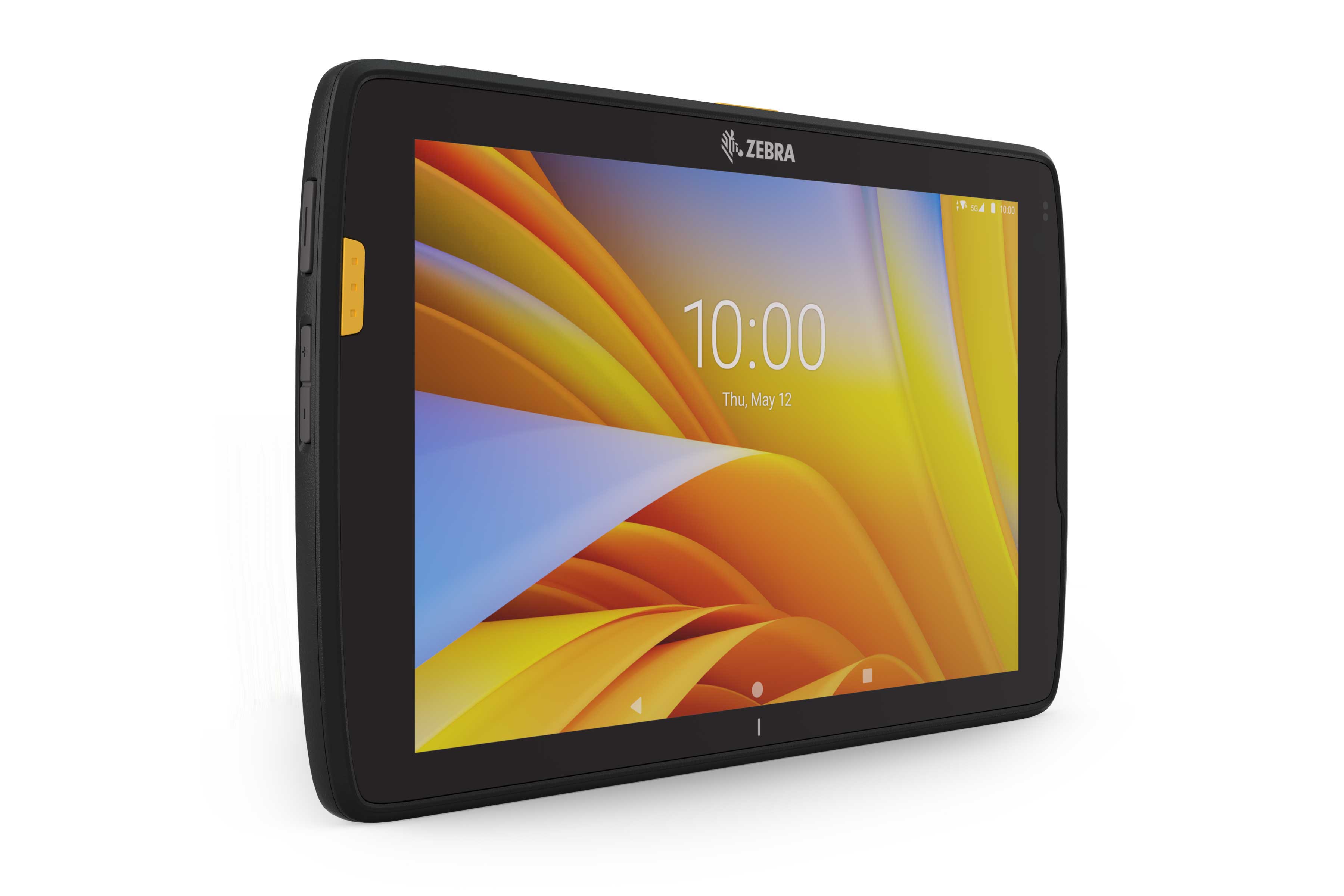

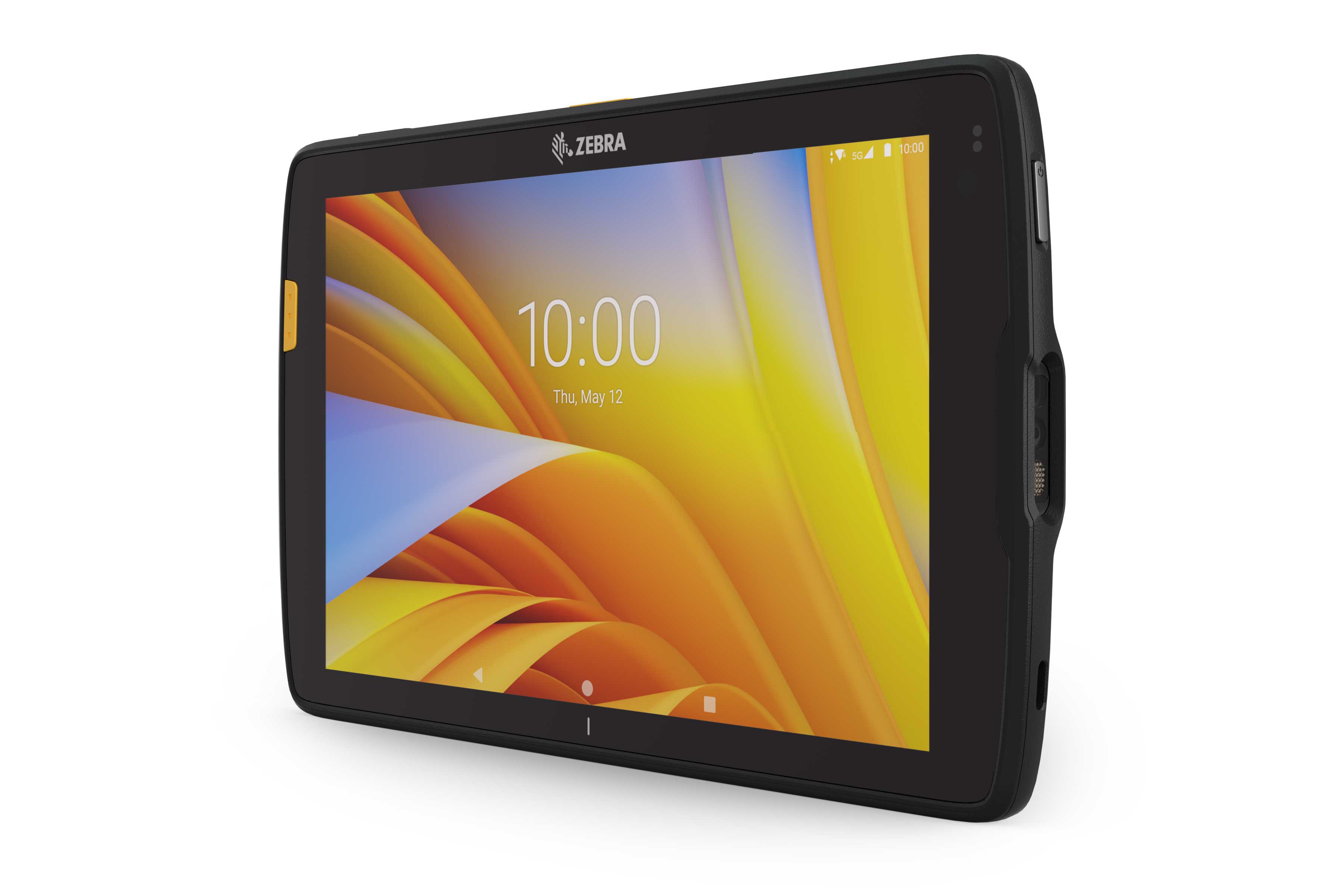

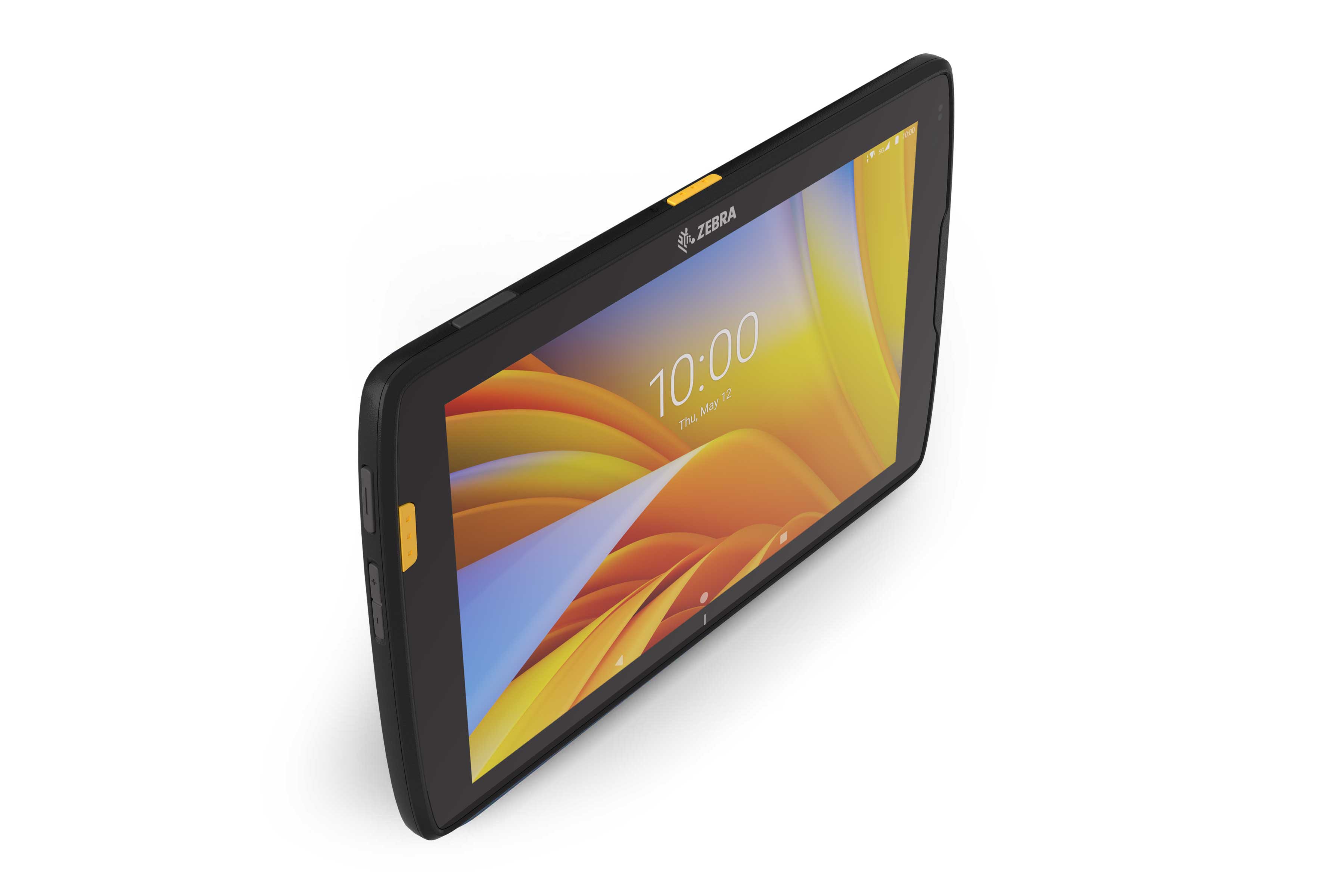

The Zebra ET45 (ET45BA-101D2B0-NA) is an 8-inch rugged enterprise tablet for delivery drivers, field teams and retail staff. It combines 5G and Wi-Fi 6 with a built-in SE4710 1D/2D barcode scanner and 8 GB RAM with 128 GB flash. It carries IP65 sealing and a 4 ft drop rating to concrete. This North America configuration runs Android with GMS and supports NFC tap-to-pay for mobile point of sale.

  • 8-inch WXGA 1280 x 800 capacitive multi-touch display with Corning Gorilla Glass
  • 5G and global LTE WWAN (data only), Wi-Fi 6 2x2 MU-MIMO, Bluetooth 5.1 with BLE and NFC
  • Integrated SE4710 1D/2D scan engine with a dedicated scanner button
  • Qualcomm Snapdragon SM6375 octa-core CPU with 8 GB RAM and 128 GB flash, running Android GMS
  • IP65 sealing, 4 ft (1.2 m) drop to concrete per MIL-STD-810H, -20°C to +50°C operation
  • User-replaceable 6,100 mAh (23.61 Wh) battery with an optional hot-swappable 3,400 mAh secondary battery
  • Dual-band (L1+L5) GNSS: GPS, Galileo, Beidou and Glonass
  • Scan barcodes without add-on sleeves, because the SE4710 imager is built in

The Zebra ET45 is a business-grade replacement for consumer tablets. It is built for work that happens on the road, in the yard and on the shop floor. This North America SKU pairs the compact 8-inch WXGA (1280 x 800) Corning Gorilla Glass display with the Premium memory tier of 8 GB RAM and 128 GB flash. It runs on a Qualcomm Snapdragon SM6375 octa-core processor (2 x 2.2 GHz plus 6 x 1.8 GHz) and Android with Google Mobile Services.

Connectivity is the core of the ET45. It has a 5G and LTE WWAN modem for data, with North America 5G/LTE support listed for AT&T and Verizon. It also has 2x2 MU-MIMO Wi-Fi 6 and Bluetooth 5.1 with BLE. Dual-band (L1+L5) GNSS covers GPS, Galileo, Beidou and Glonass. CBRS support in the U.S. enables private LTE networks. NFC handles contactless payment, Apple VAS and Google Smart Tap. The integrated SE4710 1D/2D scan engine sits behind Gorilla Glass and has a dedicated scan button. A 13 MP auto-focus rear camera with LED flash captures proof of delivery and condition.

The tablet is built for all-day use. It is IP65 sealed and survives 4 ft drops to concrete per MIL-STD-810H, or 5.1 ft with the optional rugged frame. It operates from -4°F to 122°F. The user-replaceable 6,100 mAh PowerPrecision+ battery is rated for a full shift. An optional hot-swappable 3,400 mAh secondary battery on the expansion back keeps the tablet running across multiple shifts.

For IT teams, Zebra DNA Professional tools come pre-loaded and pre-licensed. Zebra supports the device for six years from initial sale and guarantees the exact model's availability for three years. Optional Workcloud Sync adds push-to-talk and PBX handset functions. The ET40/ET45 spec sheet, Product Reference Guide and ET4 Series Accessory Guide document the full platform.

Ideal for

  • Proof of pickup and delivery with barcode scans, photos and GPS routing
  • Mobile point of sale and invoicing with NFC tap-to-pay
  • Yard management and parcel track and trace
  • Retail line busting, price checks and inventory management
  • Staff communications and push-to-talk with optional Workcloud Sync

Specifications

Power

Battery Type
PowerPrecision+ Li-Ion, rechargeable, removable
Battery Capacity
6,100 mAh 3.87 V rechargeable Li-Ion Polymer, user replaceable (23.61 Wh)
Battery User Profile
Full shift; continuous operation with optional secondary battery
Optional Secondary Battery
Optional hot-swappable 3,400 mAh 7.6 V (25.84 Wh), for use with expansion back accessory

Display

Resolution
Color WXGA 1280 x 800
Cover Glass
Corning Gorilla Glass
Screen Size
8 in (20.3 cm)
Touch Panel
Capacitive multi-touch

General

MPN
ET45BA-101D2B0-NA
Brand
Zebra Technologies
Model
ET45 Enterprise Tablet
Region
North America
Product Family
ET40/ET45 Enterprise Tablets
Operating System
Android with Google Mobile Services (see zebra.com/android-versions for supported versions)

Package

IN The Box
ET45 Tablet
Documentation
Spec sheet, Product Reference Guide, ET4 Series Accessory Guide

Sensors

Magnetometer
eCompass detects direction and orientation
Motion Sensor
3-axis gyroscope and 3-axis accelerometer
Ambient Light Sensor
Ambient light sensor with automatic brightness

Support

Warranty
1 year against defects in workmanship and materials from date of shipment (see zebra.com/warranty)
Regulatory
Declarations of Conformity at www.zebra.com/doc
Lifecycle Support
Support for six years from initial sale date
Model Availability
Exact model availability guaranteed for three years
Recommended Services
Zebra OneCare Essential/Select, VisibilityIQ Foresight

Physical

Audio
Stereo speakers, two microphones, USB-C or Bluetooth headset support
Weight
1.07 lb (485 g)
Buttons
Volume up/down, power, scan, programmable buttons
SIM Slots
1 nano SIM
Dimensions
8.42 x 5.32 x 0.45 in (213.9 x 134.8 x 11.4 mm)
Connectivity
Docking connector (charge/data); USB-C side port (charge/data)
Notifications
Audible tone, multi-color LEDs, vibration
Expansion Slot
Integrated accessory connector
Interface Ports
Expansion connector for Zebra accessories
Shipping Weight
1.30 lb
Keyboard Options
Virtual, Bluetooth, USB

Performance

CPU
Qualcomm Snapdragon SM6375 octa-core, 2 x 2.2 GHz + 6 x 1.8 GHz
RAM
8 GB RAM
Storage
128 GB flash
Operating System
Android; supported versions at www.zebra.com/android-versions

Data Capture

Scanner
Integrated SE4710 1D/2D scan engine
Rear Camera
13 MP auto-focus with user-controllable LED flash
Front Camera
5 MP
Imager Window
Corning Gorilla Glass

Wireless LAN

Fast Roam
PMKID caching, 802.11r (OTA), OKC
Wi-Fi Standard
Wi-Fi 6 (802.11ax), 2x2 MU-MIMO, Wi-Fi certified, IPv4/IPv6
Certifications
Wi-Fi CERTIFIED n/ac/6, Enhanced Open, WPA2/WPA3, PMF, Agile Multiband, WMM, Wi-Fi Direct
Data Rate 5ghz
5 GHz 802.11a/n/ac/ax, 20/40/80 MHz, up to 1201 Mbps
Data Rate 2 4ghz
2.4 GHz 802.11b/g/n/ax, 20 MHz, up to 286.8 Mbps
Operating Channels
Ch 1-13 (2.4 GHz); Ch 36-165 (5 GHz); 20/40/80 MHz (subject to regulatory rules)
Security And Encryption
WEP, WPA/WPA2/WPA3 Personal and Enterprise, WPA3 Enterprise 192-bit, Enhanced Open (OWE)

Wireless Pan

Bluetooth
Bluetooth 5.1 Class 2 with BLE

User Environment

Esd
±15 kV air, ±8 kV contact, ±8 kV indirect
Drop
4 ft (1.2 m) to concrete per MIL-STD-810H; 5.1 ft (1.55 m) with optional rugged frame
Humidity
5% to 95% non-condensing
IP Rating
IP65
Vibration
Sine 4 g PK (5 Hz-2 kHz); Random 6 g RMS (20 Hz-2 kHz); 60 min per axis, 3 axes
Certifications
EPEAT Bronze, ENERGY STAR, RTCA/DO-160G Section 4 Category A1
Storage Temperature
-40°F to +158°F (-40°C to +70°C)
Operating Temperature
-4°F to +122°F (-20°C to +50°C)

Wireless Communications

NFC
NFC ISO 14443 A/B, Mifare, FeliCa, ISO 15693, NFC Forum tags 2-5; HCE, contactless payment, Apple ECP1.0/2.0, Apple VAS and Google Smart Tap certified
CBRS
CBRS private LTE support, U.S. only
GNSS
GPS, Galileo, Beidou, Glonass; dual band L1+L5
Cellular
5G and global LTE; 3G/2G in Rest of World
Cellular Type
WWAN data only
North America Carriers
North America 5G, LTE: AT&T and Verizon (band support varies by country or carrier)

Questions buyers ask

Can the ET45 make cellular voice calls?

The ET45 cellular radio is WWAN data only. With optional Workcloud Sync, the tablet can make push-to-talk calls over Wi-Fi and cellular and act as a PBX handset.

Which networks does this North America model support?

Zebra lists North America 5G and LTE support for AT&T and Verizon. Actual band support varies by carrier. It also supports CBRS private LTE in the U.S.

How rugged is the 8-inch ET45?

It is IP65 sealed and survives 4 ft (1.2 m) drops to concrete per MIL-STD-810H, or 5.1 ft (1.55 m) with the optional rugged frame. It operates from -4°F to 122°F.

Can the battery last beyond one shift?

The user-replaceable 6,100 mAh battery is rated for a full shift. For continuous operation, add the optional hot-swappable 3,400 mAh secondary battery, which fits on the expansion back accessory.

What scanner does this configuration include?

This SKU has an integrated Zebra SE4710 1D/2D scan engine behind a Corning Gorilla Glass window. It is triggered by a dedicated scanner button.
