Panorama GP-IN2850 Reef Sharkee 7-in-1 Low-Profile Antenna Kit, 4x4 MIMO 5G, 2x2 Wi-Fi 6E and GPS/GNSS

5GMPN GP-IN2850
  • 4x4 MIMO
  • GNSS
  • Wi-Fi
$420.75$581.72Save $160.97

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

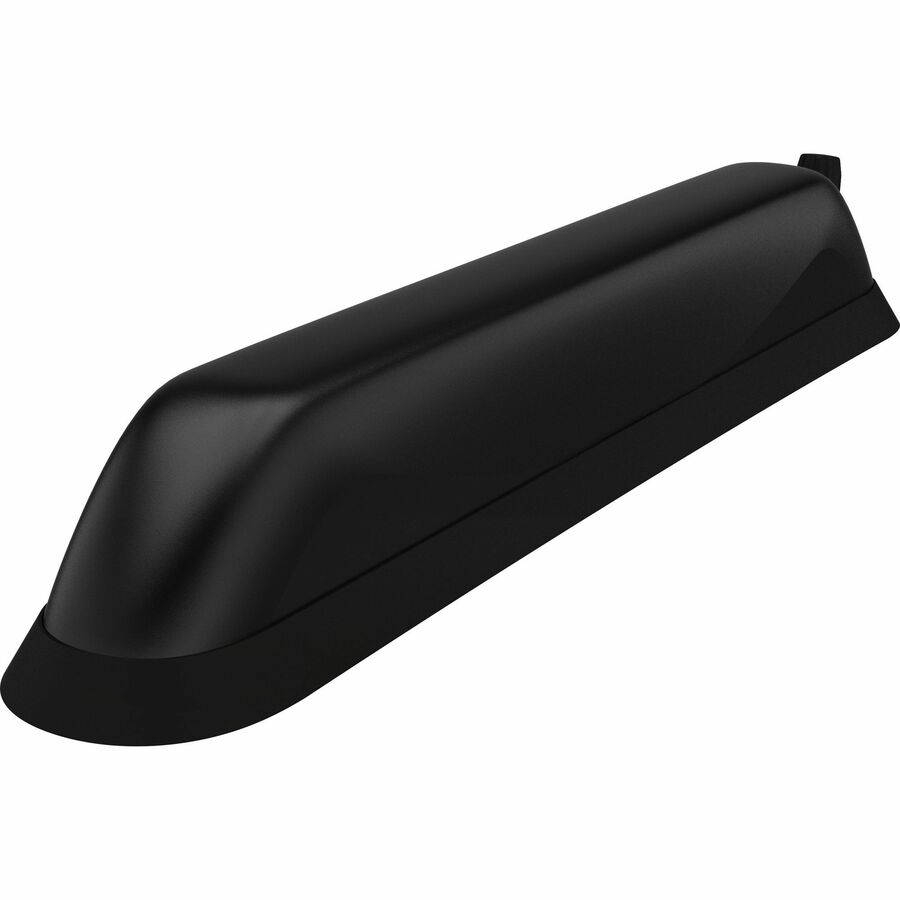

The Panorama GP-IN2850 is the 7-in-1 version of the Reef Sharkee low-profile vehicle antenna. It houses four 4G LTE/5G NR elements covering 698-960 and 1427-4900 MHz, two Wi-Fi elements, a GPS/GNSS module and a whip position for VHF, UHF or 7/800 MHz radio. It stands 52 mm (2.05 in) high, is rated IP69K and ships with 5 m flame-retardant cables fitted.

  • Four 4G LTE/5G NR elements in 4x4 MIMO covering 698-960 and 1427-4900 MHz
  • 2x2 MIMO Wi-Fi elements supporting Wi-Fi 6E (2.4 / 5.150-7.125 GHz)
  • Integrated GPS/GNSS module

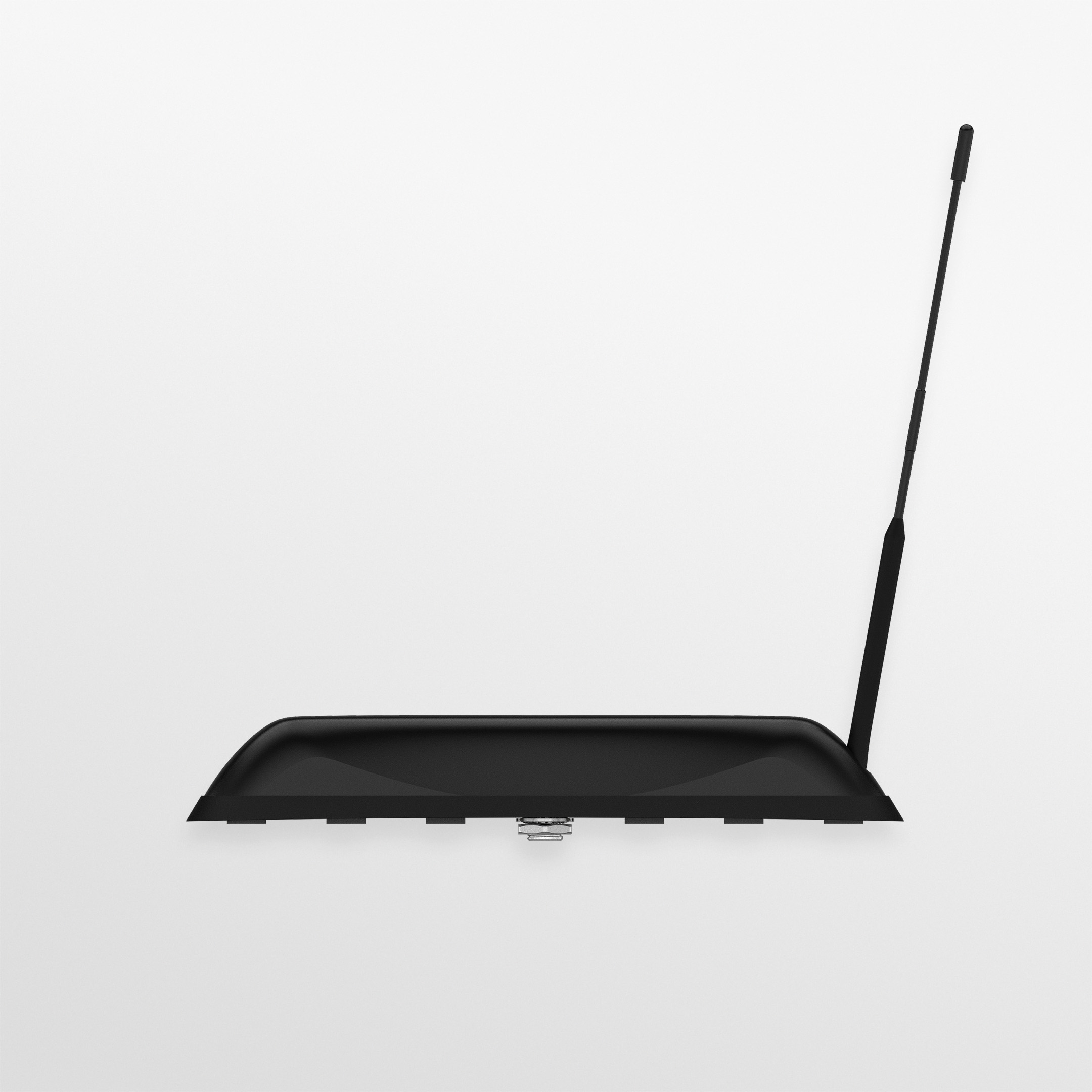

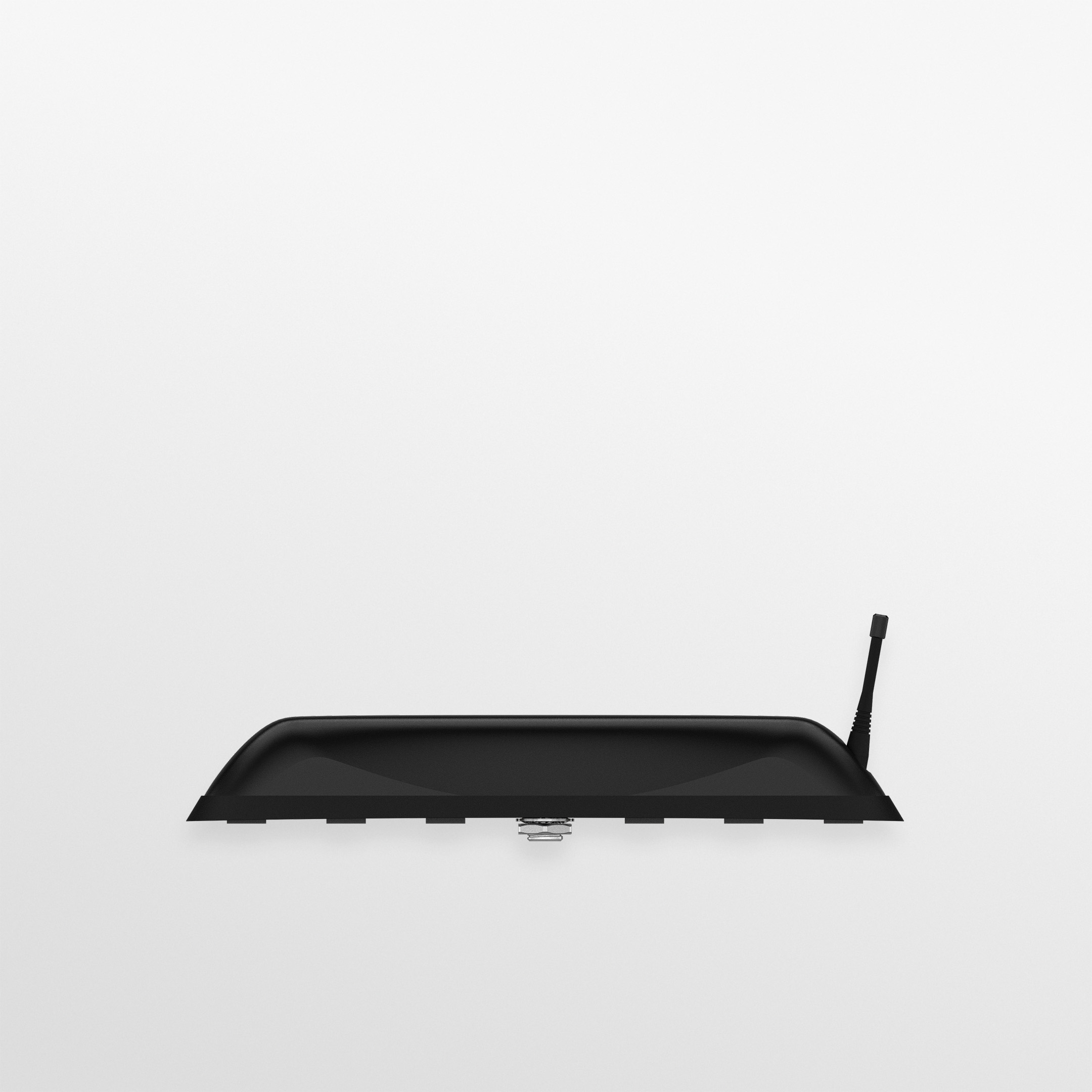

  • Whip position for single, dual or tri-band VHF, UHF and 7/800 MHz whips
  • 52 mm (2.05 in) low-profile sharkfin, IP69K rated
  • 5 m flame-retardant cables fitted, approved to UN ECE R118
  • Single-hole panel mount on conductive or non-conductive panels
  • Feeds all four cellular ports of a 4x4 MIMO 5G router from one roof antenna

The Panorama GP-IN2850 is a Reef Sharkee kit designed as a discreet, one-size-fits-all antenna for mobile applications. This 7-in-1 version combines four cellular elements, two Wi-Fi elements and a GPS/GNSS module in a single low-profile sharkfin housing. It suits police, fire, EMS and other mobility fleets running multi-modem 5G routers.

The four 4G LTE/5G NR elements provide 4x4 MIMO across 698-960 MHz and 1427-4900 MHz with a typical VSWR under 2.5:1. The 2x2 MIMO Wi-Fi supports Wi-Fi 6E across 2.4 and 5.150-7.125 GHz, and the GPS/GNSS module adds positioning. Panorama lists FirstNet, ESN and CBRS among the supported technologies. The whip position takes a single, dual or tri-band whip operating across VHF, UHF and 7/800 MHz for secure radio communications.

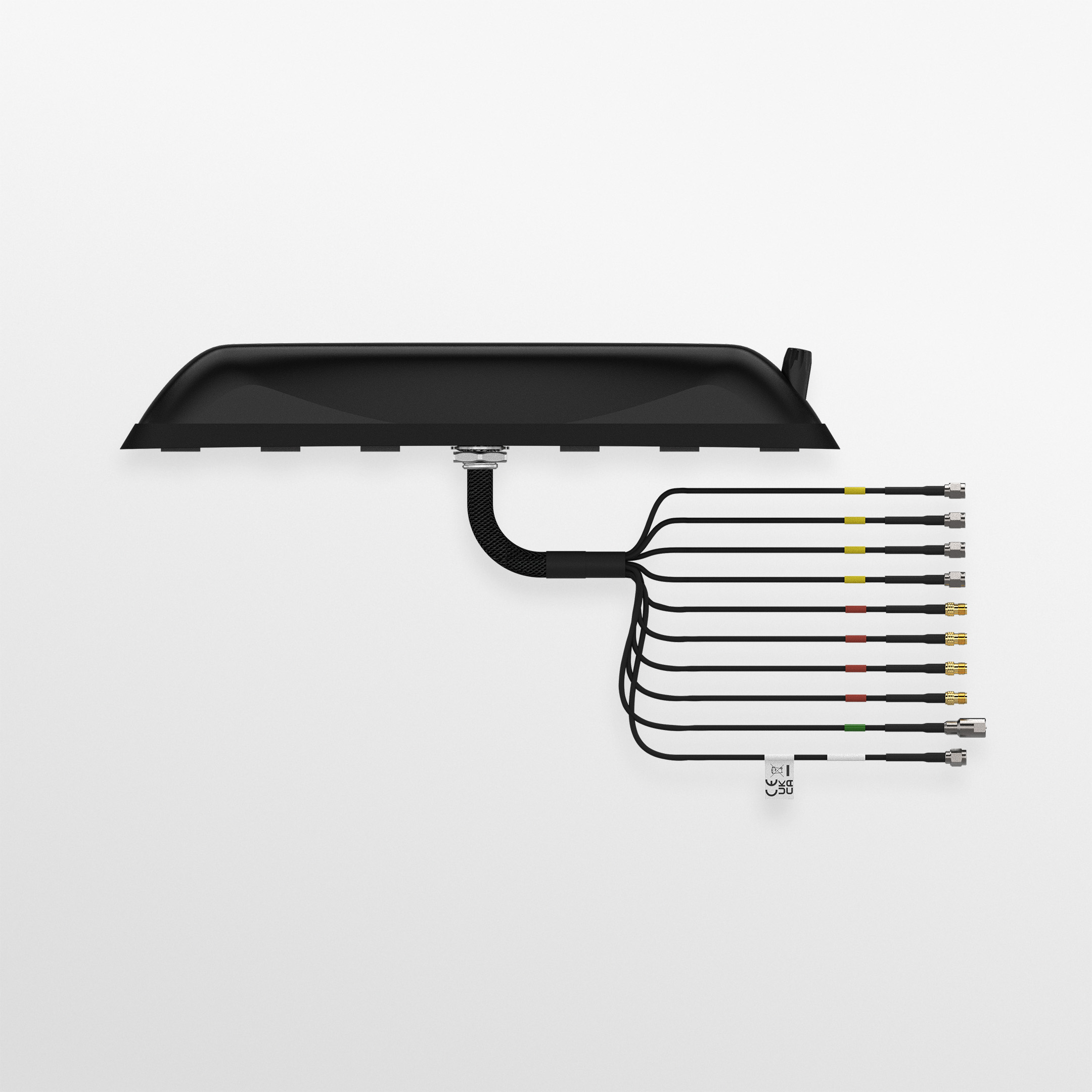

This kit arrives with 5 m low-loss, flame-retardant cables fitted and approved to UN ECE R118. Cellular and GPS leads terminate in SMA (m), Wi-Fi leads in reverse-polarity SMA, and the whip position in FME (m) on a 0.3 m RG174 lead. The housing measures 365 x 60 x 52 mm (14.37 x 2.36 x 2.05 in). At that height it can comply with certain state laws on light-bar obscuration for police vehicles.

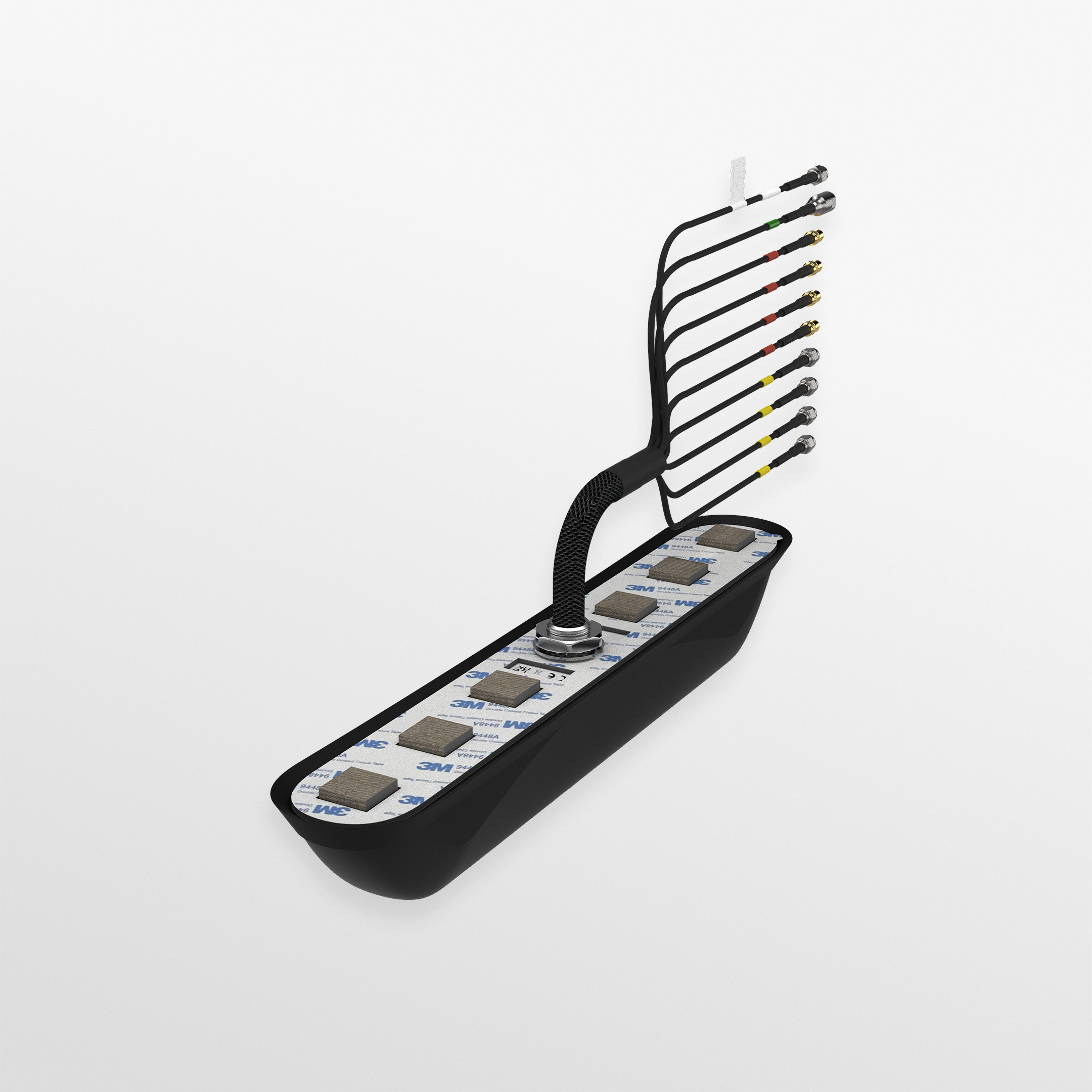

Installation is a single-hole panel mount on conductive or non-conductive panels. Installations that use a whip require a conductive ground plane. The IP69K rating and a -40 °C to +85 °C operating range suit demanding vehicle duty, and the low-profile design helps preserve resale value. Panorama lists the SAB-350 magnetic mount adapter as a compatible accessory, and publishes a datasheet, installation instructions and a product flyer.

Ideal for

  • Police vehicles needing a low-height antenna that keeps light bars clear
  • Fire, EMS and first responder vehicles running 4x4 MIMO 5G routers with FirstNet
  • Mobile command and mobility fleets combining in-vehicle Wi-Fi 6E, GNSS and LMR radio
  • Public safety fleets consolidating cellular, Wi-Fi, GPS and radio onto a single roof fixing

Specifications

General

MPN
GP-IN2850
UPC
5055416086976
Brand
Panorama Antennas
Configuration
7-in-1: 4x cellular, 2x Wi-Fi, 1x GPS/GNSS
Product Family
Reef Sharkee (GPSD[X]4-7-49[X])

Package

Shipping Weight
5.00 lb

GPS Data

Lna Gain
26 dB (L1) or 30 dB / 26 dB (L1/L5), per family version
GPS Frequency Range
1559-1612 MHz (L1) or 1164-1189/1559-1612 MHz (L1/L5), per family version
Number OF GPS Elements
1 module

Cable Data

Cable Type GPS
FR CS29 / RG174 / FR RG174
Cable Type LTE
FR CS32 / CS30
Cable Type Whip
RG174
Cable Type Wi-Fi
FR CS32 / CS30
Cable Length GPS
5 m (16.4 ft), cable fitted
Cable Length LTE
5 m (16.4 ft), cables fitted
Cable Length Whip
0.3 m (0.98 ft)
Cable Length Wi-Fi
5 m (16.4 ft), cables fitted
Quantity OF Cell Cable
4
Quantity OF Wi-Fi Extension
Up to 4 across the family (2 x 2 MIMO Wi-Fi on this model)
Quantity OF GPS GNSS Extension
1

Compatibility

Compatible Accessory
SAB-350 Magnetic Mount Adapter for Reef Sharkee (listed by Panorama)

Mounting Data

Mounting Methods
Panel, single-hole; conductive or non-conductive (whip requires conductive ground plane)
Mounting Type Fixed
Panel

Approvals Data

IP Rating
IP69K
Cable Flammability
UN ECE R118

Electrical Data

Pattern
Omnidirectional
Whip Bands
Single, dual or tri-band whip: VHF, UHF, 7/800 MHz
Typical Vswr
<2.5:1
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO
Frequency Range
698-960 MHz; 1427-4900 MHz
Wi-Fi Frequency Range
Wi-Fi 6E, 2.4 / 5.150-7.125 GHz
Cellular LTE Elements
4 x 4 MIMO

Mechanical Data

Width
60 mm (2.36 in)
Colour
Black
Height
52 mm (2.05 in)
Length
365 mm (14.37 in)
Operating Temperature
-40 °C to +85 °C (-40 °F to +185 °F)

Technology Data

Technology
4G/5G, 5G, 2G/3G/4G, CBRS, GPS, GNSS, Wi-Fi MIMO, Wi-Fi 6E, ESN, FirstNet

Termination Data

Connector GPS
SMA (m)
Connector LTE
SMA (m)
Connector Wi-Fi
Reverse-polarity SMA
Connector Vhf Uhf Whip
FME (m)

Questions buyers ask

What does 7-in-1 mean on the GP-IN2850?

The housing contains seven elements: four 4G LTE/5G NR cellular elements in 4x4 MIMO, two Wi-Fi elements in 2x2 MIMO, and one GPS/GNSS module. It also provides a whip position for radio.

Which frequencies do the cellular elements cover?

They cover 698-960 MHz and 1427-4900 MHz. Panorama lists 4G/5G, CBRS, FirstNet and ESN among the supported technologies.

How long are the cables and what connectors do they use?

The kit ships with 5 m cables fitted. The cellular and GPS leads terminate in SMA (m), the Wi-Fi leads in reverse-polarity SMA, and the whip position uses FME (m) on a 0.3 m RG174 lead.

Can it be mounted on a non-metal roof?

Yes. It can be installed on conductive or non-conductive panels, but installations that use a whip require a conductive ground plane.

Is there a magnetic mount option?

Panorama lists the SAB-350 Magnetic Mount Adapter for Reef Sharkee as a compatible accessory.
