PanoramaAntennas & Signal

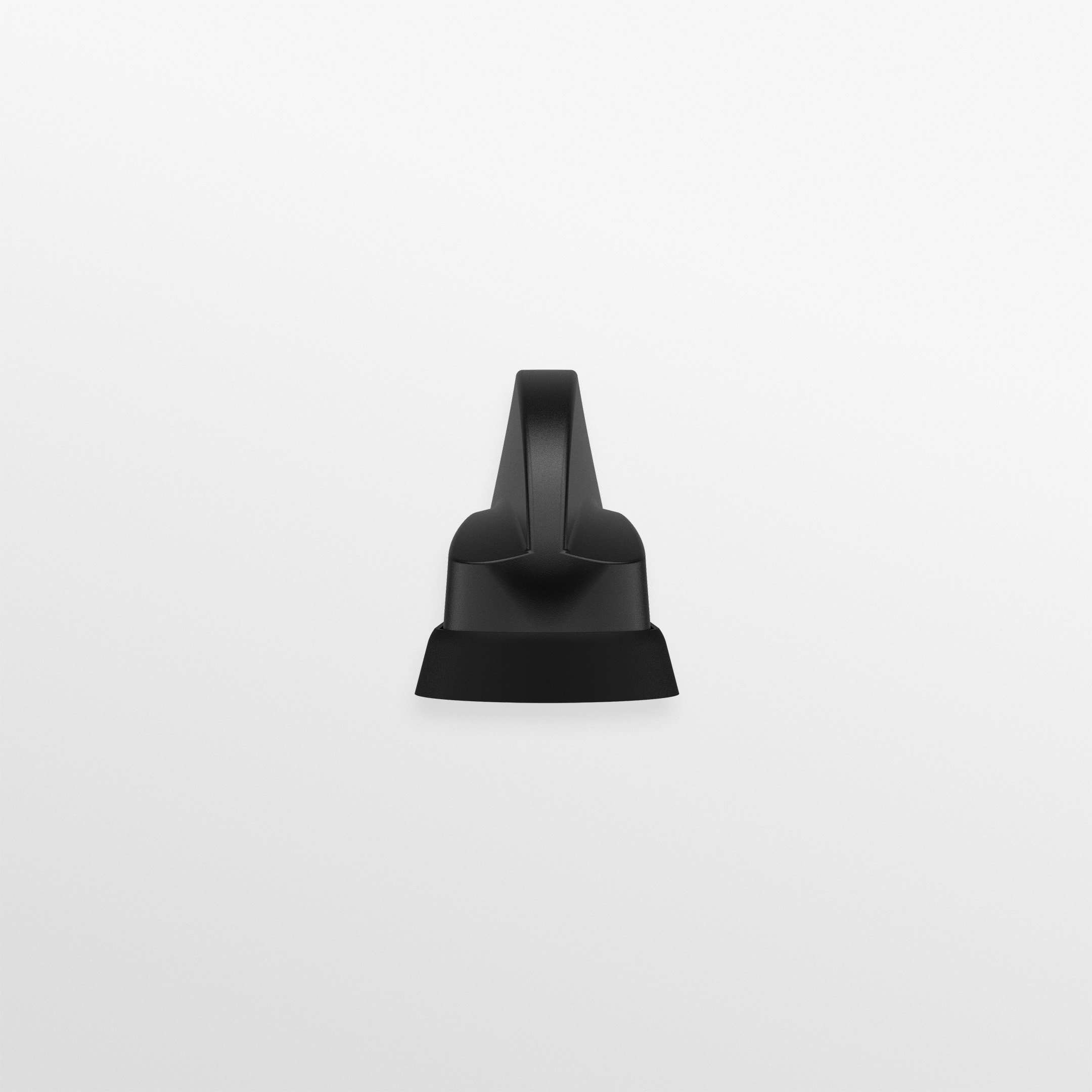

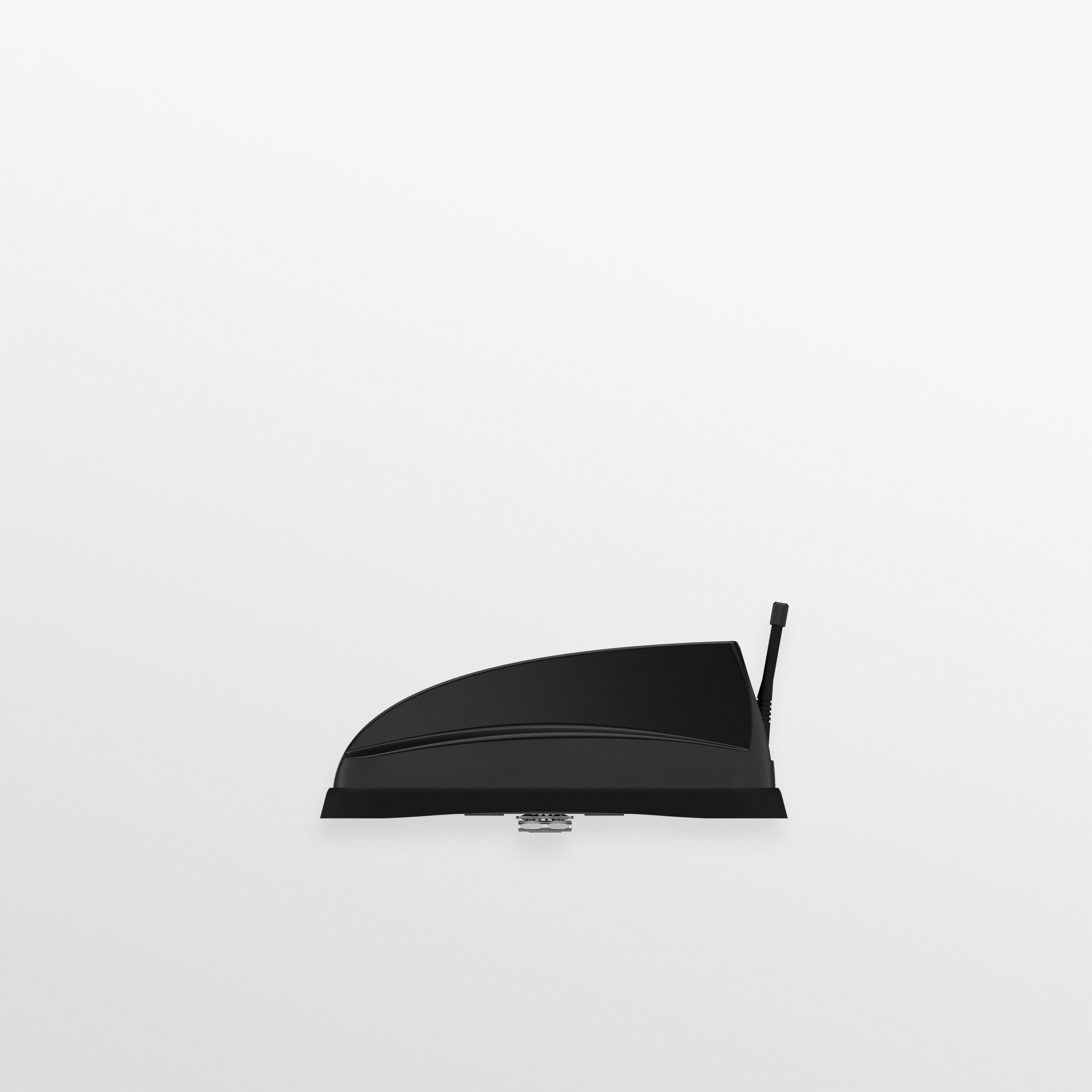

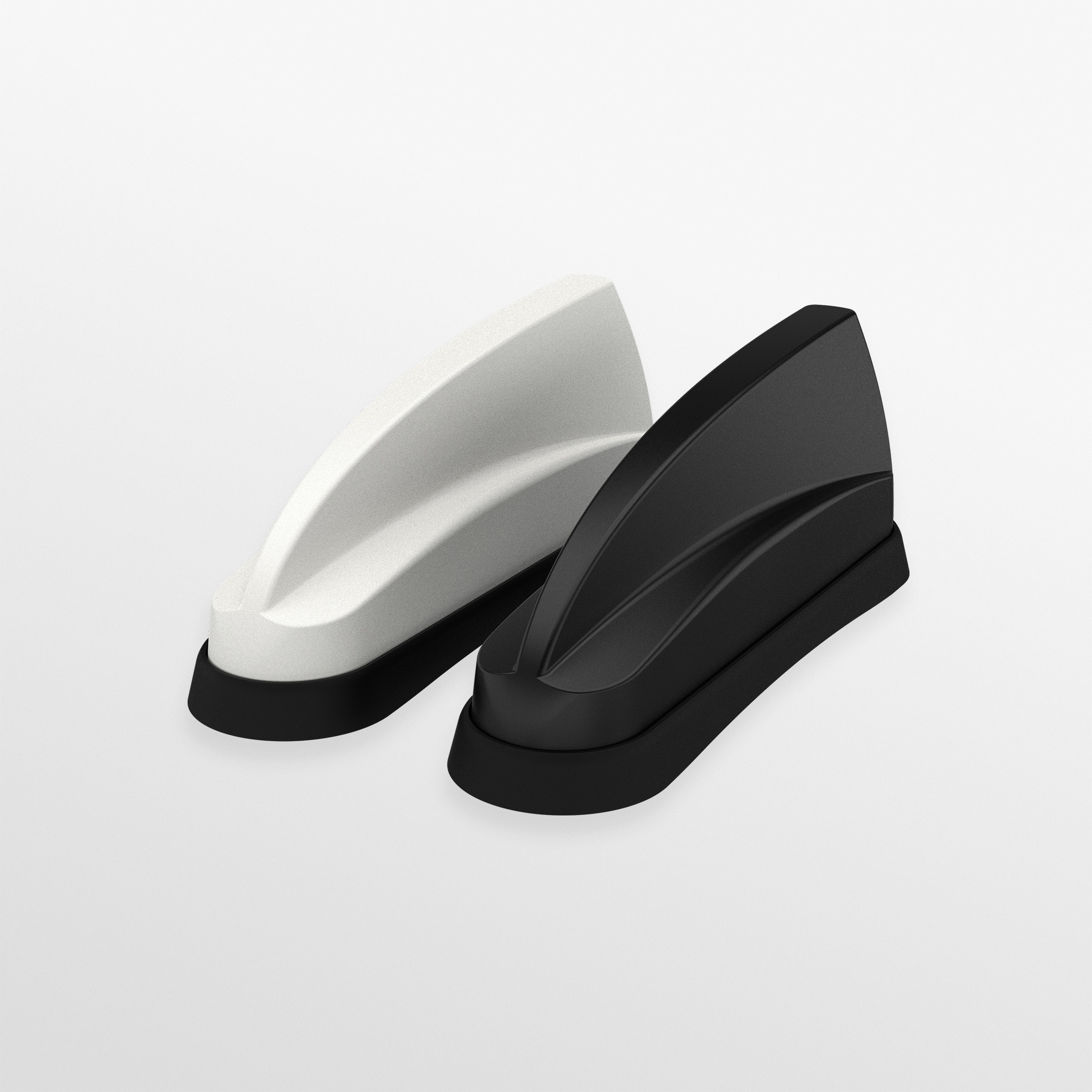

Panorama Sharkee GPSD-6-60-TW 4G/5G Shark Fin Antenna with 3x3 MIMO Wi-Fi, GPS/GNSS and Whip Mount, Black
5GMPN GPSD-6-60-TW
- 2x2 MIMO
- GNSS
- Wi-Fi
- 9 dBi and up
$218.57$303.45Save $84.88
In stock · only 3 leftShips from the US
- 30-day returns on unopened devices
- Secure checkout · pay by card
Datasheets & documents
Overview
The Panorama GPSD-6-60-TW is the three-Wi-Fi version of the Sharkee 4G/5G shark fin. One black OEM-style housing combines several antennas: • 2x2 MIMO cellular covering 617–960 and 1710–6000 MHz • 3x3 MIMO dual-band Wi-Fi with Wi-Fi 6 support • An active GPS/GLONASS/Galileo/BeiDou antenna • A stud mount for VHF, UHF or 700/800 MHz radio whips It installs through a single hole and is IP69K certified.
- 2x2 MIMO 4G/5G cellular covering 617–960 MHz and 1710–6000 MHz, up to 9 dBi gain
- 3x3 MIMO dual-band Wi-Fi elements with Wi-Fi 6 support
- Active GPS/GLONASS/Galileo/BeiDou antenna with 26 dB LNA and LTE Band 13/14 filtering
- Integrated stud mount for VHF, UHF or 700/800 MHz radio whips, with blanking cap supplied
- Single-hole panel mounting; magnetic mounting for temporary use
- IP69K certified, with UN ECE R118 and EN45545-2 HL3 compliant cable feeds

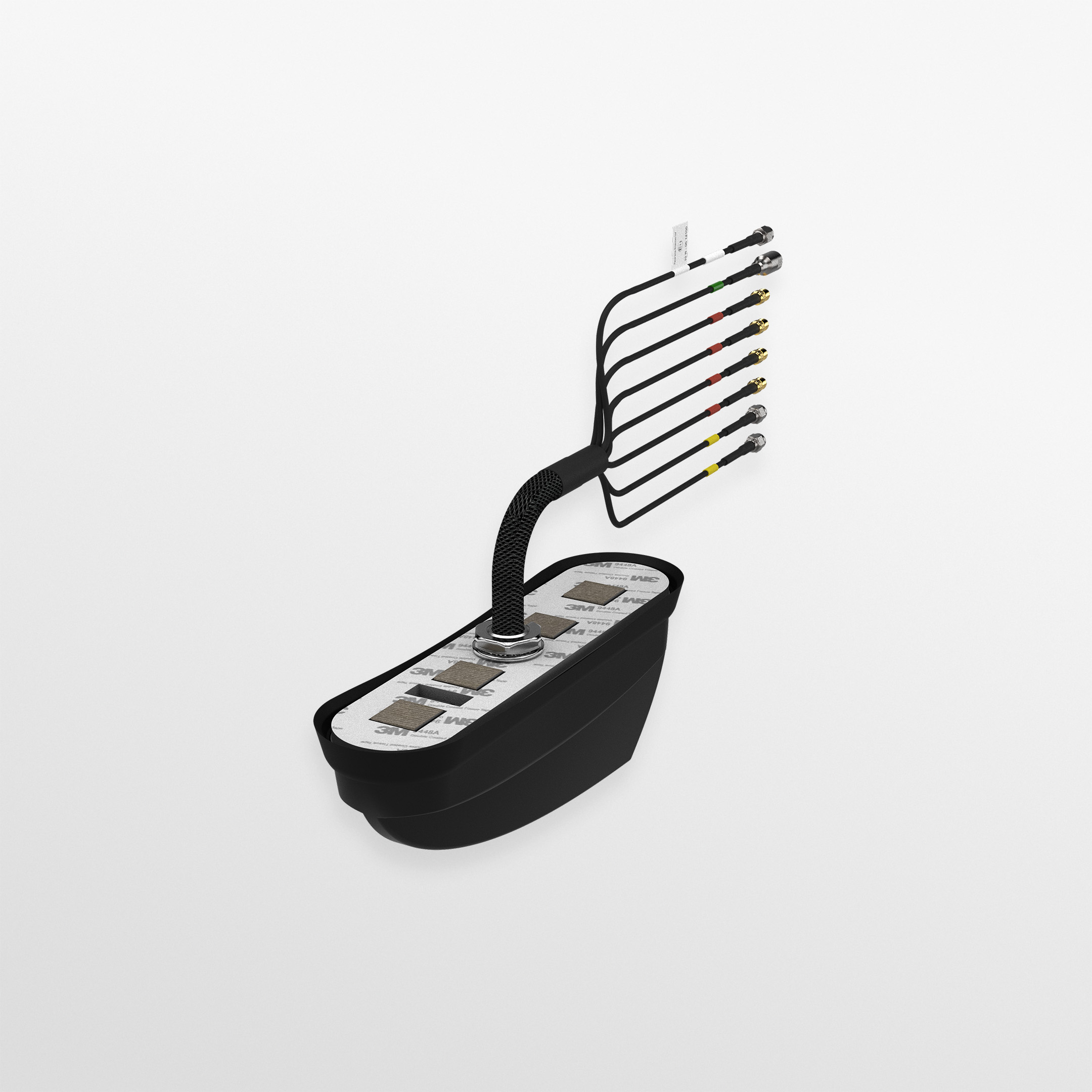

- 0.3 m FR RG174 leads: SMA (m) cellular, SMA (f) Wi-Fi, FME (f) GPS
- Matches routers with three Wi-Fi antenna ports without adding extra roof antennas
The Panorama GPSD-6-60-TW combines the Sharkee 4G/5G shark fin with 3x3 MIMO Wi-Fi. It suits vehicle routers with three Wi-Fi antenna ports that also need cellular, GNSS and a two-way radio whip on one roof mount. Target fleets include police, EMS and fire, utility, transit and industrial operators.
The 2x2 MIMO cellular elements cover 617–960 MHz and 1710–6000 MHz. Published gain is 5 dBi at 617–960 MHz, 8 dBi at 1710–3800 MHz and 9 dBi at 4900–6000 MHz, and the antenna is Band 71 600 MHz ready. Three dual-band Wi-Fi elements provide 3x3 MIMO with Wi-Fi 6 support. The active GNSS antenna receives GPS, GLONASS, Galileo and BeiDou. It uses a 26 dB LNA with advanced filtering for LTE Band 13/14 operation.

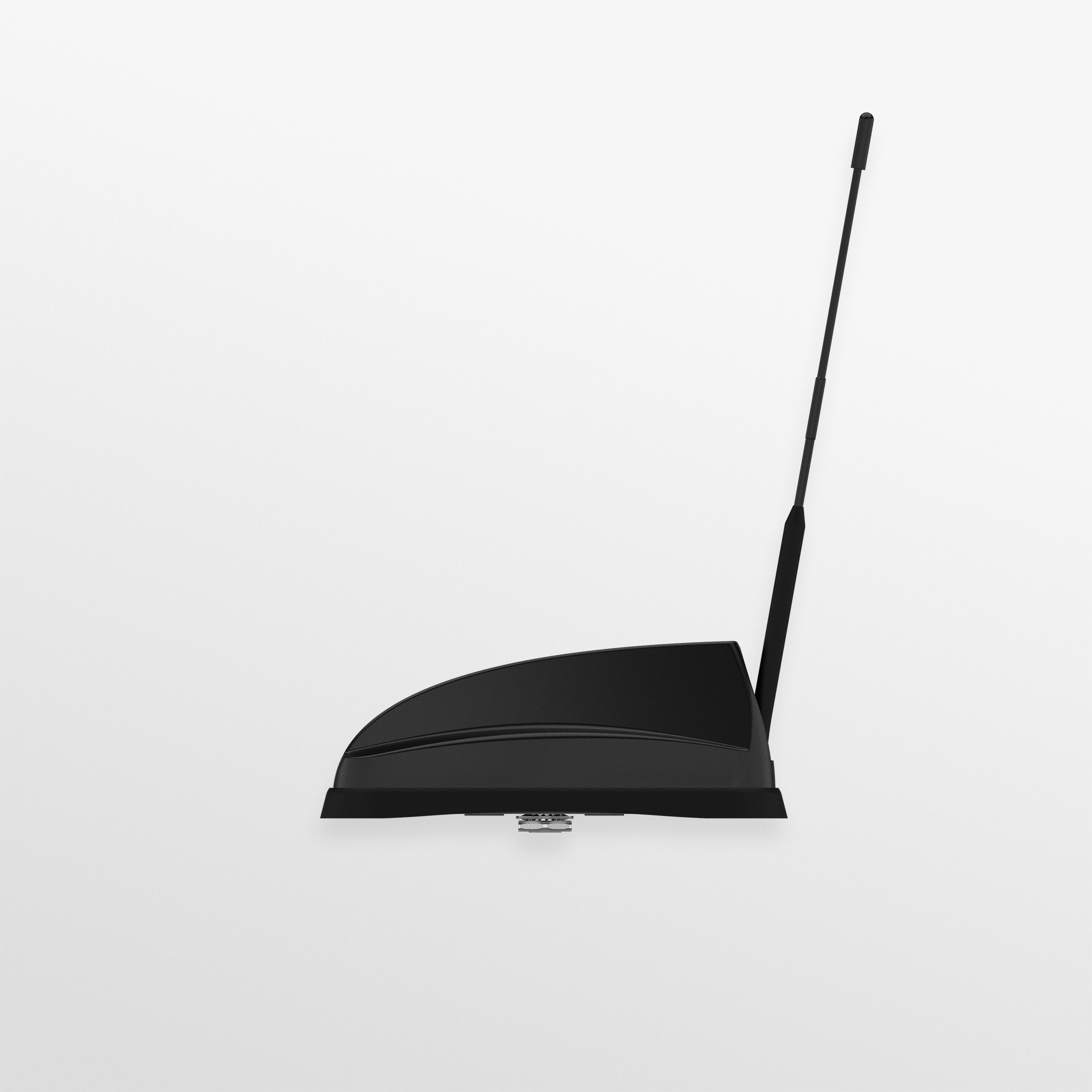

An integrated stud mount accepts a range of VHF, UHF or 700/800 MHz mobile radio whips, and a blanking cap is supplied for vehicles that do not need one. When a whip is used, install the antenna on a metal panel. Without a whip, a non-metallic panel gives similar performance. Magnetic mounting is supported for temporary use.

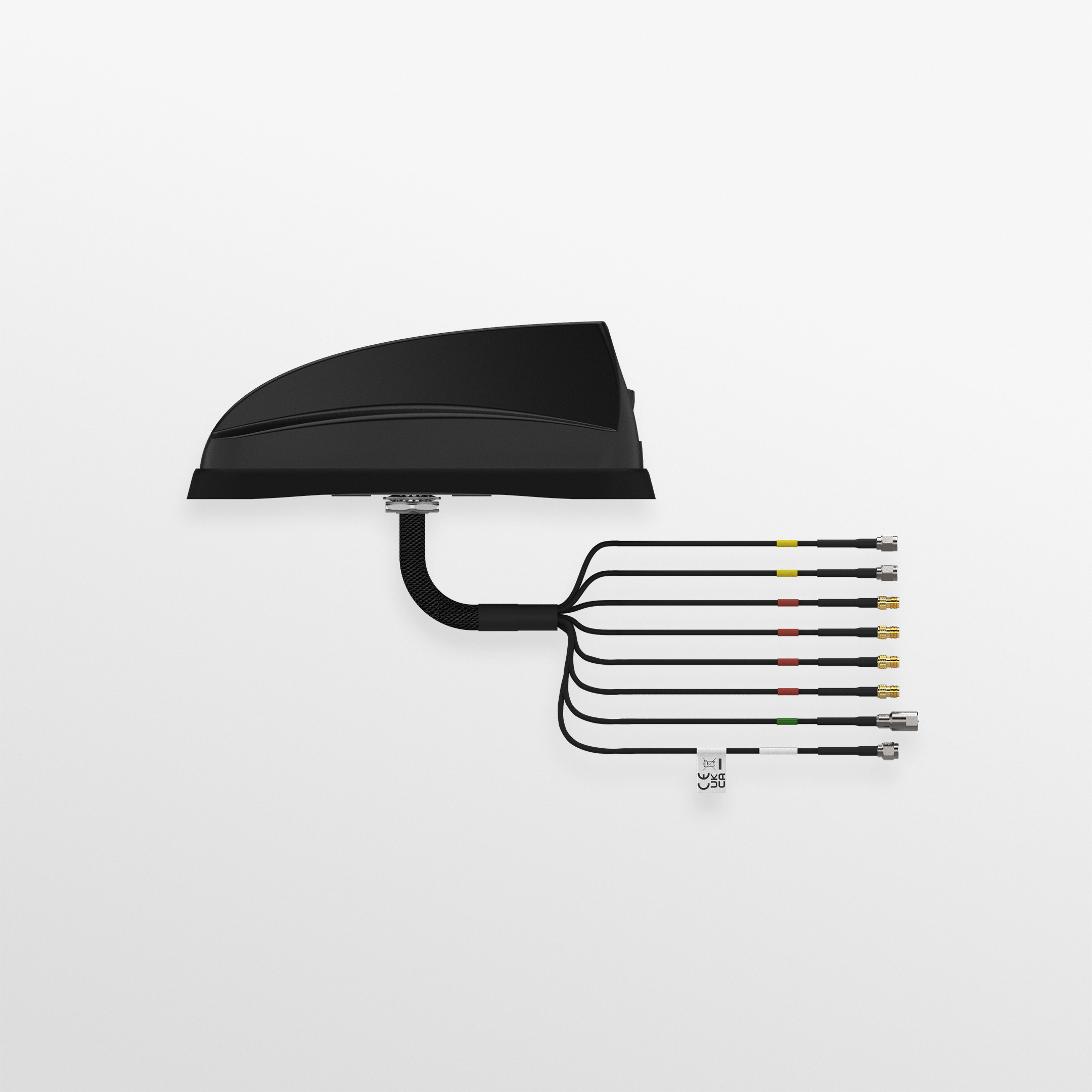

The housing measures 243 x 63 x 90 mm, is IP69K certified and is rated from -40 °C to +80 °C. All leads are 0.3 m FR RG174 cable, terminated as follows: • Cellular: SMA (m) • Wi-Fi: SMA (f) • GPS: FME (f) The cable feeds comply with UN ECE R118 and EN45545-2 HL3. The shape fits between roof ribs on all major vehicle makes and can replace a factory-fitted antenna.
Ideal for
- Police and public safety vehicles with routers that use three Wi-Fi antenna ports
- EMS and fire vehicles providing crew Wi-Fi over 4G/5G backhaul
- Utility and field service trucks combining GNSS, cellular, Wi-Fi and radio
- Transit buses needing vehicle location and onboard Wi-Fi from one antenna
Specifications
GPS
- Lna Gain
- 26 dB
- GPS Elements
- 1 Module
- LTE Filtering
- Advanced filtering for LTE Band 13/14 operation
- GNSS Constellations
- GPS, GLONASS, Galileo, BeiDou (active)
- GPS Frequency Range
- 1562–1612 MHz
Cable
- Cable Type GPS
- FR RG174
- Cable Type LTE
- FR RG174
- Cable Type Wi-Fi
- FR RG174
- Cable Length GPS
- 0.3 m (0.98 ft)
- Cable Length LTE
- 0.3 m (0.98 ft)
- Cable Length Wi-Fi
- 0.3 m (0.98 ft)
General
- UPC
- 5055416037992
- Brand
- Panorama Antennas
- Model
- GPSD-6-60-TW
- Antenna Type
- OEM automotive-style shark fin, 4G/5G + Wi-Fi + GPS/GNSS + whip mount
- Product Family
- Sharkee (GPSD-6-60 family)
Mounting
- Whip Mount
- Integrated stud mount for VHF, UHF or 700/800 MHz whips; blanking cap supplied
- Mounting Methods
- Magnetic, Panel
- Mounting Type Fixed
- Panel (single hole)
- Mounting Type Temporary
- Magnetic
Approvals
- IP Rating
- IP69K
- Cable Flammability
- EN45545-2 HL3, UN ECE R118, EN6722
Electrical
- Pattern
- Omnidirectional
- Uhf Elements
- No
- Wi-Fi Elements
- 3 x 3 MIMO, dual band, Wi-Fi 6 support
- Gain 617 960 MHz
- 5 dBi (617–960 MHz)
- Cellular Elements
- 2 x 2 MIMO
- Gain 1710 3800 MHz
- 8 dBi (1710–3800 MHz)
- Gain 4900 6000 MHz
- 9 dBi (4900–6000 MHz)
- Cellular Frequency Range
- 617–960 MHz / 1710–6000 MHz
Mechanical
- Width
- 63 mm (2.48 in)
- Colour
- Black
- Height
- 90 mm (3.54 in)
- Length
- 243 mm (9.57 in)
- Operating Temperature
- -40 °C to +80 °C (-40 °F to +176 °F)
Technology
- Technology
- GPS, GNSS, 2G/3G/4G, 4G/5G, Band 71 600 MHz ready, FirstNet, Wi-Fi MIMO
Termination
- Connector GPS
- FME female
- Connector LTE
- SMA male
- Connector Wi-Fi
- SMA female
Documentation
- Documents
- Panorama datasheet, installation instructions, IP69K certificate, product flyer
Questions buyers ask
How many Wi-Fi leads does the GPSD-6-60-TW provide?
It provides 3x3 MIMO dual-band Wi-Fi, with three 0.3 m leads terminating in SMA (f). Panorama states the Wi-Fi supports Wi-Fi 6.
What GNSS systems does it receive?
The active GNSS antenna covers GPS, GLONASS, Galileo and BeiDou (1562–1612 MHz). It has a 26 dB LNA and filtering for LTE Band 13/14 operation.
Does it need a metal roof?
Only when a whip is fitted. Without a whip, it can be mounted on a non-metallic panel with similar performance.
What are the dimensions?
The housing is 243 mm long, 63 mm wide and 90 mm high (9.57 x 2.48 x 3.54 in).
