Panorama Mako LG-IN2634-LC 5-in-1 4x4 MIMO 4G/5G + GPS/GNSS Dome Antenna Kit, FAKRA, Black

4G LTEMPN LG-IN2634-LC
  • 4x4 MIMO
  • GNSS
  • 3–5 m
$376.58$521.98Save $145.40

In stock · only 3 leftFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Panorama LG-IN2634-LC is a black Mako 5-in-1 vehicle dome antenna kit. It combines four 4G/5G cellular elements for 4x4 MIMO with a GPS/GNSS module that has a 26 dB LNA. The antenna covers 617–960 and 1710–6000 MHz and ships with 5 m FAKRA D cellular cables and a 5 m FAKRA C GPS cable, all supplied loose. It installs through a single hole on metal or non-metallic panels.

  • 5-in-1 dome: four 4G/5G cellular elements (4x4 MIMO) plus one GPS/GNSS module
  • Cellular coverage 617–960 / 1710–6000 MHz, Band 71 600 MHz ready; gain up to 9 dBi
  • GPS/GNSS 1562–1612 MHz with integrated 26 dB LNA

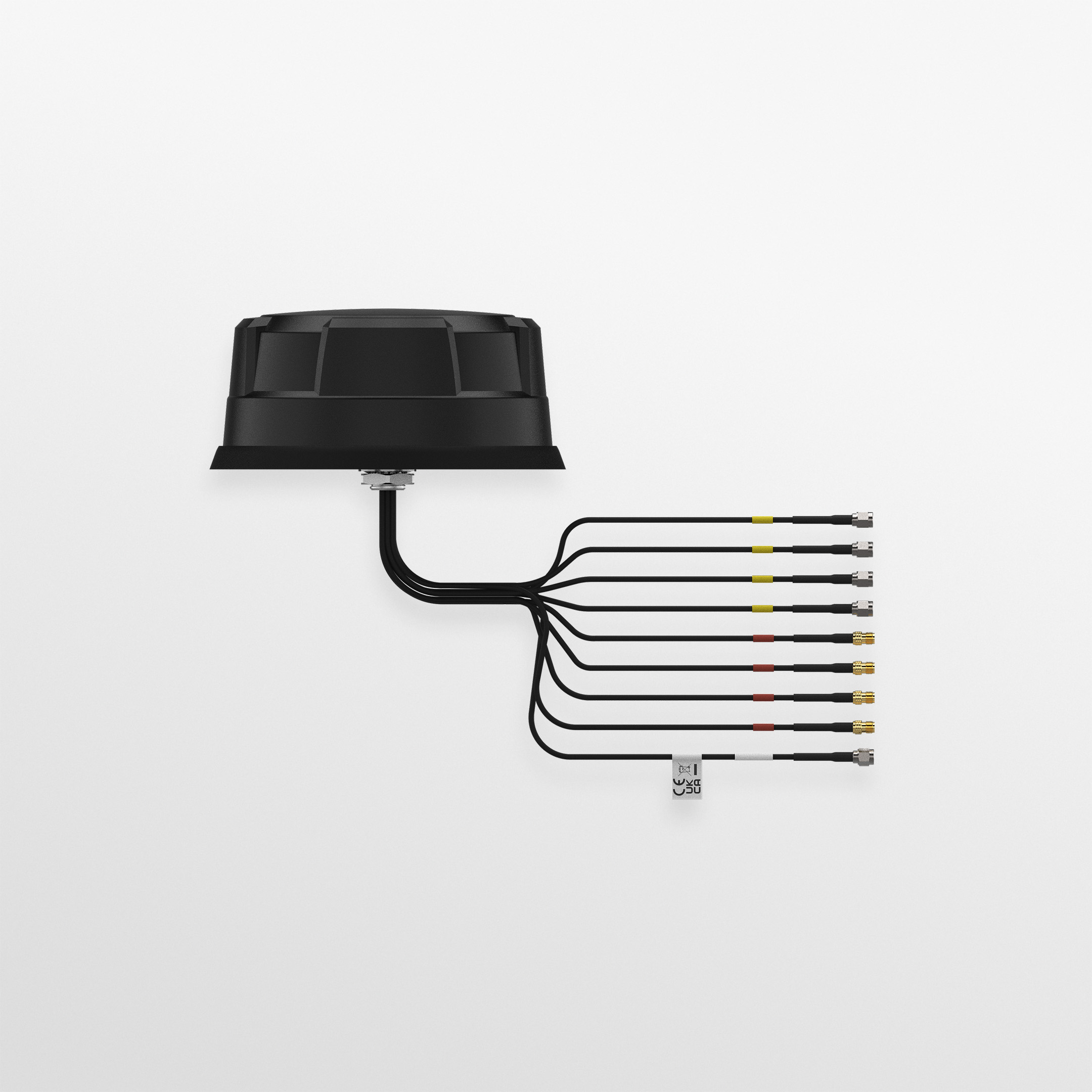

  • 5 m flame-retardant RG174 cables supplied loose: 4x FAKRA D cellular, 1x FAKRA C GPS
  • IP69K and IK10 rated, -40 °C to +80 °C operating range

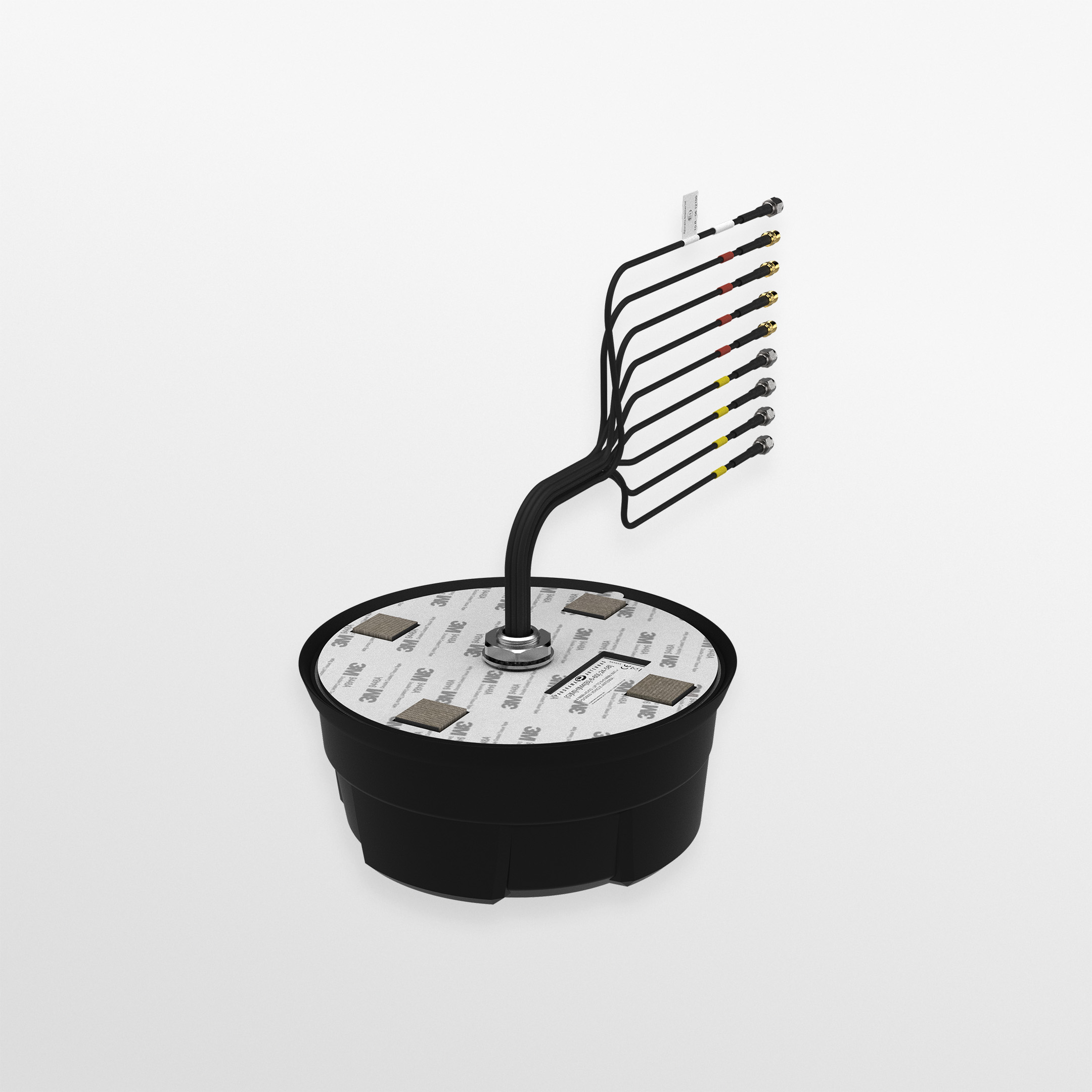

  • Ground-plane independent, single-hole panel mount
  • Delivers full 4x4 MIMO to LTE Cat 18/20 and 5G vehicle routers from one roof penetration
  • FAKRA D and FAKRA C terminations suit routers and vehicle systems built on FAKRA connectors

The Panorama LG-IN2634-LC is the black, FAKRA-terminated kit version of the Mako 5G dome. It is built for fleet, public-safety and transit vehicles running LTE Cat 18/20 or 5G routers that need full 4x4 MIMO cellular plus GNSS positioning from a single roof antenna. The kit has five functions: four isolated cellular elements covering 617–960 and 1710–6000 MHz, with Band 71 600 MHz support, and one GPS/GNSS module covering 1562–1612 MHz with a 26 dB LNA and high-quality filtering. This version has no Wi-Fi elements.

The kit includes four 5 m FAKRA D cellular cables and one 5 m FAKRA C GPS cable. All cables are flame-retardant RG174 and are supplied loose rather than fitted. Cable flags mark each lead for identification during installation. Published gain is 4 dBi at 617–960 MHz, 8 dBi at 1710–3800 MHz and 9 dBi at 4900–6000 MHz, with an omnidirectional pattern and a 10 W maximum input.

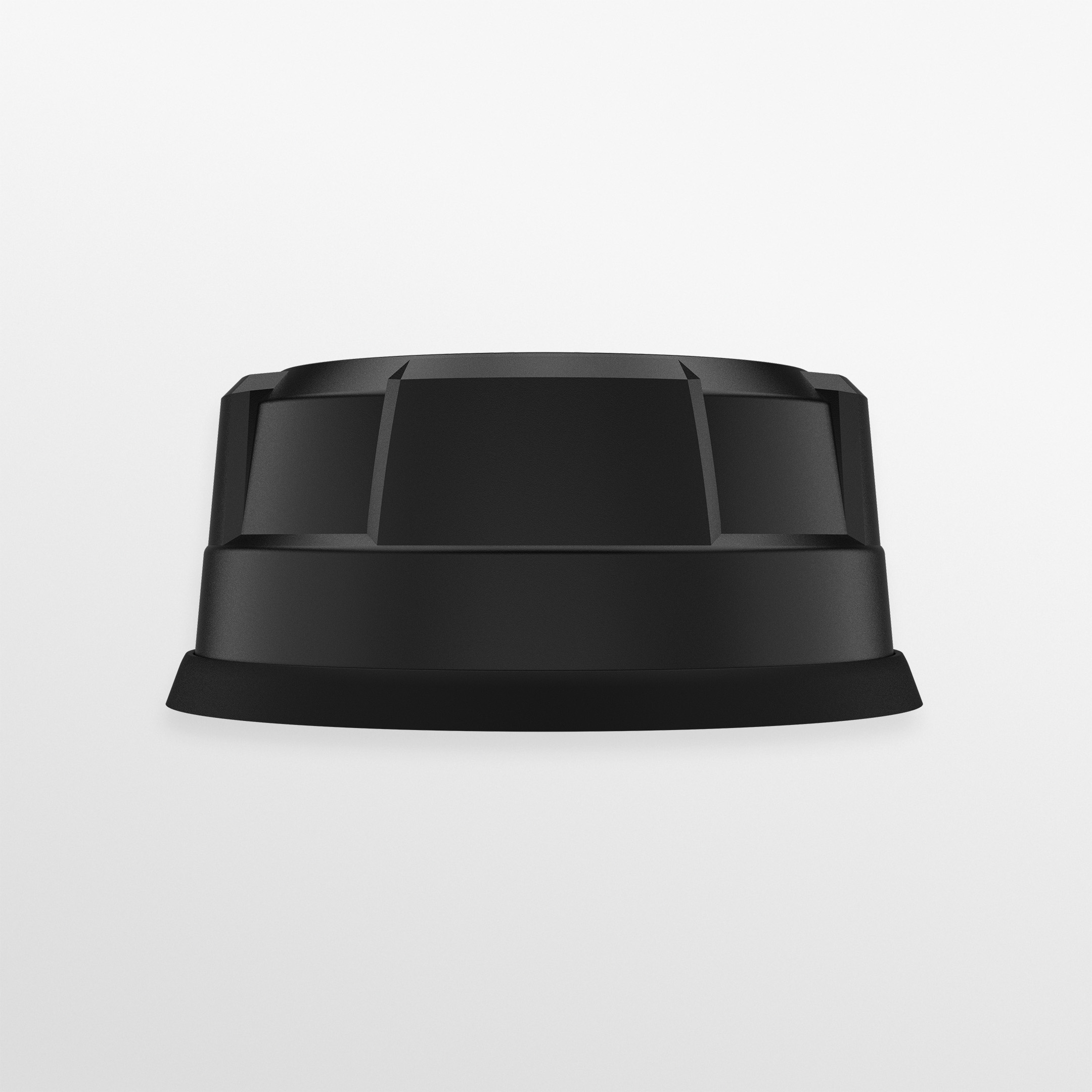

The low-profile housing is 80 mm tall and 180 mm in diameter. It is rated IP69K for ingress and IK10 for impact, and operates from -40 °C to +80 °C. The antenna does not need a metallic ground plane, so it performs on conductive and non-conductive roofs alike, and it fits with a single-hole panel mount. Panorama rates the Mako range as suitable for FirstNet (USA) and ESN (UK) public-safety networks. The cables meet UN ECE R118, EN45545-2 HL3 and EN6722 flammability requirements.

Ideal for

  • Police, ambulance and fire vehicles running 4x4 MIMO routers on FirstNet
  • Public bus and transit fleets needing cellular plus GNSS tracking
  • Utility service trucks with FAKRA-equipped in-vehicle routers
  • Vehicles with composite or fiberglass roofs where no ground plane is available

Specifications

GPS

Lna Gain
26 dB
GPS Frequency Range
1562–1612 MHz
Number OF GPS Elements
1 Module

Cable

Cable Type GPS
Flame-retardant RG174
Cable Type LTE
FR RG174; RG174
Cable Type Wi-Fi
Not applicable (no Wi-Fi elements)
Cable Length GPS
5 m (16.4 ft)
Cable Length LTE
5 m (16.4 ft)
Cable Length Wi-Fi
Not applicable (no Wi-Fi elements)
Cable Identification
Cable flags attached
Quantity OF Cell Cable
4
Quantity OF Wi-Fi Extension
None (no Wi-Fi elements)
Quantity OF GPS GNSS Extension
1

General

MPN
LG-IN2634-LC
Brand
Panorama Antennas
Cable Supply
Cables supplied loose
Configuration
4x4 MIMO cellular + 1 GPS/GNSS module, no Wi-Fi
Housing Colour
Black
Product Family
Mako 5G dome

Package

Shipping Weight
3.00 lb

Mounting

Ground Plane
Ground plane independent (conductive or non-conductive surfaces)
Mounting Methods
Magnetic; Panel
Mounting Type Temp
Magnetic
Mounting Type Fixed
Panel (single hole)

Approvals

IP Rating
IP69K ingress, IK10 impact
Cable Flammability
EN45545-2 HL3; UN ECE R118; EN6722

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
No
Max Input Power
10 W
Gain 617 960 MHz
4 dBi
Gain 1710 3800 MHz
8 dBi
Gain 4900 6000 MHz
9 dBi
Cellular LTE Elements
4 x 4 MIMO
Cellular Frequency Range
617–960 / 1710–6000 MHz

Mechanical

Colour
Black
Height
80 mm (3.15 in)
Diameter
180 mm (7.09 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
2G/3G/4G, 4G/5G, Band 71 600 MHz ready, FirstNet, GPS/GNSS
Designed For
Latest-generation LTE Cat 18/20 routers and devices
Public Safety
Suitable for FirstNet (USA) and ESN (UK)

Termination

Connector GPS
FAKRA C
Connector LTE
FAKRA D
Connector Wi-Fi
Not applicable (no Wi-Fi elements)

Compatibility

Compatible Accessories
SAB-309 wall/mast bracket; SAB-225 magnetic mount; SAB-342 pole/mast mount; SAB-326 Ford Explorer adaptor boot; LGMM-EXT-R-SLT thick/ribbed panel adapter

Questions buyers ask

Which connectors does the LG-IN2634-LC use?

The four cellular cables terminate in FAKRA D and the GPS/GNSS cable terminates in FAKRA C. All five cables are 5 m long and supplied loose.

Does this antenna include Wi-Fi?

No. The LG-IN2634-LC has four cellular elements and one GPS/GNSS module. Mako kits such as the LG-IN2567-LC and LG-IN2536-LC add FAKRA I Wi-Fi elements.

Can I use it with a dual-SIM router?

The four cellular elements can be wired as two 2x2 pairs for a dual-SIM router in failover mode, where only one SIM is active at a time. Panorama states the antenna is not intended for concurrent or aggregated dual-SIM operation, because isolation between the pairs is not sufficient. The installation instructions explain the correct connections.

Does it need a metal roof?

No. The Mako range is ground-plane independent and maintains performance on both conductive and non-conductive surfaces.
