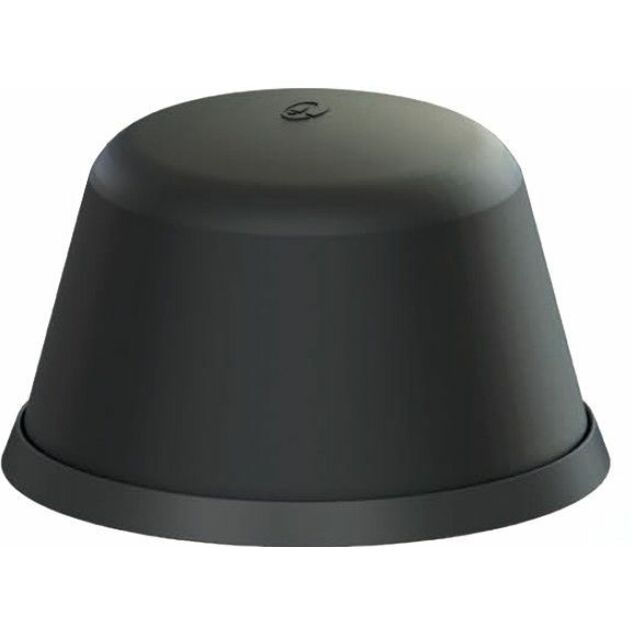

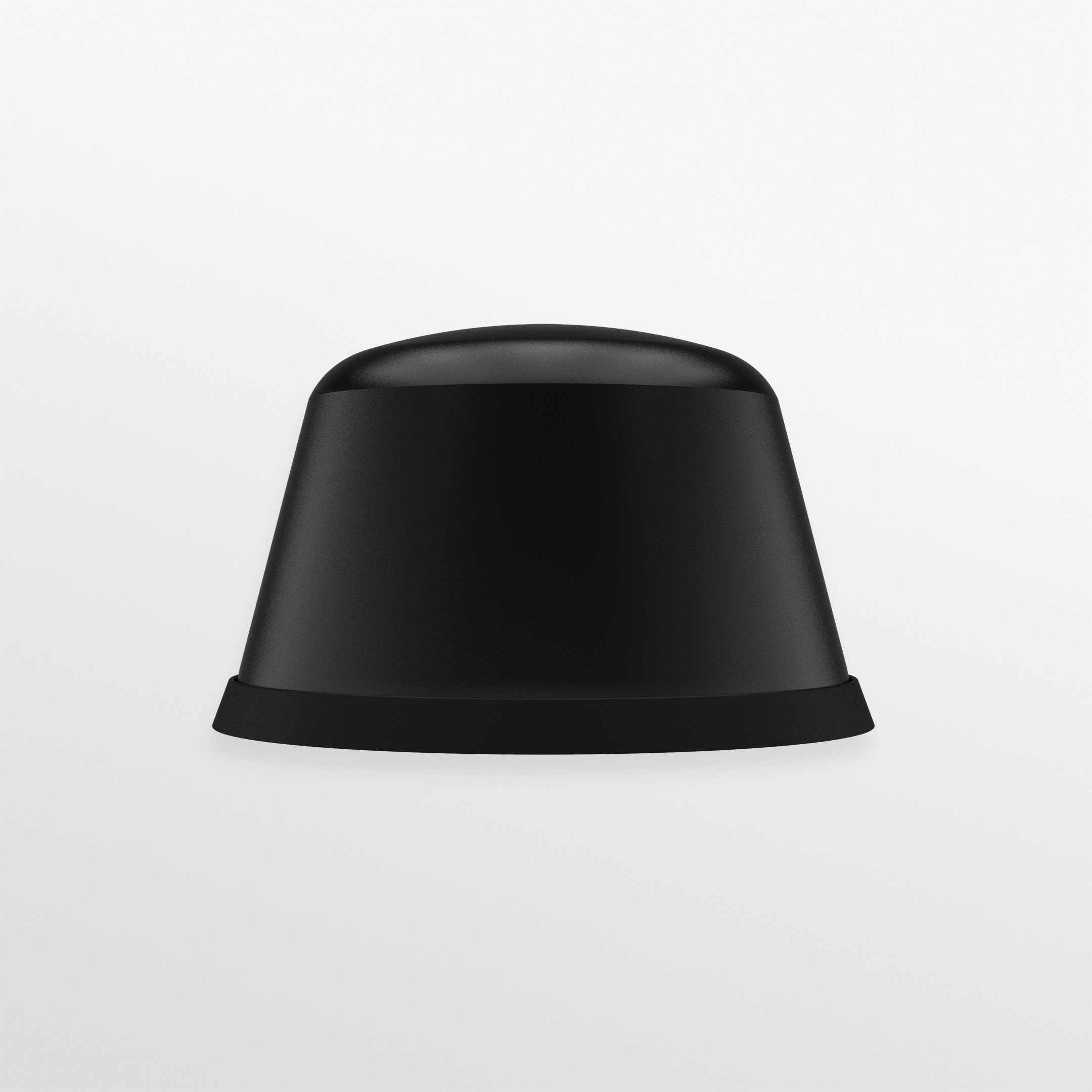

Panorama LGE-6-60 Low Profile Wideband 4G/5G + GPS/GNSS Antenna, IP69K, Panel Mount

5GMPN LGE-6-60
  • Single (SISO)
  • GNSS
  • Up to 1 m
$98.49$135.06Save $36.57

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Panorama LGE-6-60 is a rugged low profile panel-mount antenna combining a wideband SiSo 4G/5G cellular element (617–960 and 1427–6000 MHz) with an active 26 dB GPS/GNSS element. Its LEXAN housing is rated IP69K and IK10, and it needs no ground plane above 698 MHz. That makes it a strong fit for buses, first-responder vehicles, kiosks and vending machines.

  • Wideband SiSo 4G/5G cellular element covering 617–960 MHz and 1427–6000 MHz
  • Active GPS/GNSS element, 1559–1612 MHz, 26 dB LNA gain
  • LEXAN enclosure rated IP69K and IK10; UL746C-F1 and UL94-V0 material flammability
  • No ground plane required above 698 MHz
  • Panel mount, 123 mm diameter x 75 mm height, -40 °C to +85 °C
  • 0.3 m FR RG174 fly leads: SMA (m) cellular, FME (f) GPS; UN ECE R118 compliant
  • Covers 600 MHz Band 71 through 6 GHz with one wideband element, spanning 4G and 5G deployments
  • IP69K and IK10 ratings withstand washdown, weather and impact on vehicles and outdoor equipment

The LGE-6-60 is the GPS-equipped model in Panorama's L[X]E-6-60 low profile series. A single wideband cellular element covers 4G/5G frequencies from 617–960 MHz and 1427–6000 MHz. Panorama lists Band 71 600 MHz readiness, CBRS, FirstNet and ESN among the supported technologies. The integrated active GPS/GNSS antenna (1559–1612 MHz) uses a 26 dB LNA for positioning and timing.

The antenna is designed to be tough yet cost-effective. The enclosure is moulded in LEXAN for impact resistance and carries IP69K ingress and IK10 impact ratings. Material flammability meets UL746C-F1 and UL94-V0, and the cables comply with UN ECE R118. It operates from -40 °C to +85 °C, measures 123 mm in diameter by 75 mm high, and handles up to 50 W. It needs no ground plane above 698 MHz and keeps a high level of performance on non-metallic surfaces.

The LGE-6-60 is panel mounted and supplied with short 0.3 m FR RG174 fly leads. The cellular lead terminates in SMA (m) and the GPS lead in FME (f). The fly leads can be kitted with Panorama's low loss extension cables in various lengths and connector configurations to reach the router. The cellular element is SiSo, so the LGE-6-60 provides one cellular feed plus GPS. Panorama publishes a datasheet and installation instructions (SW3-1010) for the series.

Ideal for

  • Mass transit buses and coaches needing cellular and GPS from one rooftop antenna
  • First-responder and public safety vehicles
  • Mobile routers in service and fleet vehicles
  • Vending machines and kiosks in exposed locations

Specifications

GPS

Lna Gain
26 dB
GPS Frequency Range
1559–1612 MHz
Number OF GPS Elements
1 Module

Cable

Cable Type GPS
FR RG174
Cable Type LTE
FR RG174
Cable Length GPS
0.3 m (0.98 ft)
Cable Length LTE
0.3 m (0.98 ft)

General

MPN
LGE-6-60
Brand
Panorama Antennas
Configuration
SiSo cellular + 1 GPS/GNSS module
Product Family
L[X]E-6-60 Low Profile 4G/5G Antenna

Package

Shipping Weight
2.40 lb

Mounting

Mounting Methods
Panel
Mounting Type Fixed
Panel

Approvals

IP Rating
IP69K, IK10
Cable Flammability
UN ECE R118
Material Flammability
UL746C-F1, UL94-V0

Electrical

Pattern
Omnidirectional
Typical Vswr
2.5:1; <2.5:1
Uhf Elements
No
Wi-Fi Elements
No
Frequency Range
617–960 MHz; 1427–6000 MHz
Max Input Power
50 W
Cellular LTE Elements
SiSo

Mechanical

Colour
Black
Height
75 mm (2.95 in)
Diameter
123 mm (4.84 in)
Housing Material
LEXAN
Operating Temperature
-40 °C to +85 °C (-40 °F to +185 °F)

Technology

Technology
GPS, 2G/3G/4G, 4G/5G, 5G, Band 71 600 MHz ready, CBRS, ESN, FirstNet, GNSS

Termination

Connector GPS
FME (f)
Connector LTE
SMA (m)

Questions buyers ask

What frequencies does the LGE-6-60 cover?

Its wideband cellular element covers 617–960 MHz and 1427–6000 MHz. The GPS/GNSS element covers 1559–1612 MHz.

Is the LGE-6-60 a MiMo antenna?

No. The cellular element is SiSo, so it provides one cellular feed plus one GPS/GNSS feed.

What connectors are on the leads?

It has 0.3 m FR RG174 fly leads. The cellular lead ends in SMA (m) and the GPS lead in FME (f). Panorama low loss extension cables are available in various lengths and connector configurations.

Does it need a metal ground plane?

Not above 698 MHz. Panorama states it keeps a high level of performance even when mounted on a non-metallic surface.

How rugged is the housing?

The LEXAN enclosure is rated IP69K and IK10 and meets UL746C-F1 and UL94-V0 material flammability. The cables comply with UN ECE R118.
