Panorama LGMM-EXT-R-SLT Thick Panel Slotted Antenna Adapter Kit

MPN LGMM-EXT-R-SLT
$28.40$41.90Save $13.50

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plansCall +1 (224) 636-8890 for Sales

Datasheets & documents

Overview

Mount low-profile MIMO antennas on ribbed, curved or uneven vehicle roof panels while sealing the mounting hole with conformable foam pads. The black adapter kit includes a slotted mounting bush, nut and washers that permit larger FAKRA-type connector terminations to pass through the 25 mm mounting hole.

  • 25 mm mounting-hole requirement for roof-panel installations
  • 20 mm maximum mounting depth including panel and rib height
  • 10 mm maximum panel variation or rib height
  • Slotted bush supports larger FAKRA-type connector routing
  • Closed-cell silicone inner pad and semi-closed-cell EPDM outer pad
  • Mount low-profile MIMO antennas on ribbed, curved or uneven vehicle roof surfaces.
  • Seal a 25 mm mounting hole by compressing the inner foam pad 3 mm or until the hard stop.
  • Accommodate up to 20 mm of total mounting depth, including panel thickness and rib height.

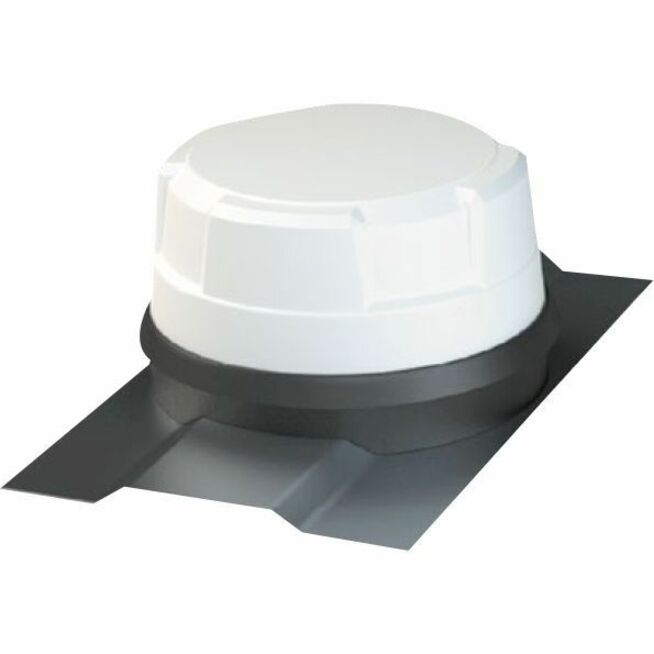

Mount low-profile MIMO antennas on ribbed roof lines, curved panels and other uneven vehicle surfaces with a foam-pad adapter system that conforms to the mounting area. Panorama LGMM-EXT-R-SLT fits the LGMM and LPMM antenna series and supports Great White, Great White 5G, Mako and Mako 5G antennas. Its black outer pad provides a finished appearance around the antenna mount while helping seal the drilled roof opening.

The kit includes a mounting bush extender, slotted mounting bush, nut, washers, a semi-closed-cell EPDM outer foam pad and a closed-cell silicone inner foam pad. The slotted bush and accompanying hardware allow larger connector bodies, including FAKRA-type terminations, to pass through during installation. This avoids requiring the connector to fit through a conventional unslotted mounting bush when routing antenna leads through the vehicle roof.

Install through a 25 mm mounting hole on panels with up to 10 mm of surface variation or rib height. The adapter accommodates a maximum 20 mm mounting depth, including panel thickness and rib height. Compress the inner foam pad by 3 mm, or until the hard stop is reached, to form the seal. This configuration is suited to SUVs, light commercial vehicles and other mobility installations where a flat roof surface is unavailable.

Ideal for

  • SUV roof installation where an antenna must mount across ribbed sheet-metal contours.
  • Light commercial vehicle installation with curved or uneven roof panels.
  • Mobile-router antenna deployment requiring FAKRA-terminated cable routing through the mounting bush.

Specifications

Mounting

Mount Type
Ribbed, curved or uneven vehicle roof panel adapter
Mounting Hole Size
25 mm (1.0 in)
Connector Pass-through
Slotted mounting bush for larger connectors including FAKRA-type terminations
Maximum Mounting Depth
20 mm (0.8 in), inclusive of panel and rib height
Compression Required TO Seal
3 mm (0.12 in) of inner foam pad, or until hard stop
Maximum Panel Variation OR Rib Height
10 mm (0.4 in)

Compatibility

Supported Antenna Series
LGMM/LPMM low-profile MIMO antenna series
Supported Antenna Families
Great White, Great White 5G, Mako and Mako 5G antennas

Package Information

UPC
5055416069832
Shipping Weight
0.35 lb

Materials And Finish

Colour
Black
Inner Pad Colour
White
Outer Pad Colour
Black
Outer Pad Material
Semi-closed-cell EPDM foam
Inner Sealing Pad Material
Closed-cell silicone foam

Questions buyers ask

What is Panorama LGMM-EXT-R-SLT used for?

LGMM-EXT-R-SLT is a roof-panel mounting adapter kit for compatible Panorama low-profile MIMO antennas. It helps install an antenna on ribbed, curved or uneven vehicle roof surfaces while sealing the 25 mm mounting hole with compressible foam pads.

What is included with LGMM-EXT-R-SLT?

The kit includes a mounting bush extender, slotted mounting bush, nut, washers, semi-closed-cell EPDM outer foam pad and closed-cell silicone inner foam pad. The slotted bush arrangement permits passage of larger connector bodies such as FAKRA-type terminations.

What roof-panel dimensions can this adapter accommodate?

The adapter requires a 25 mm mounting hole and supports a maximum 20 mm mounting depth, including the panel and rib height. Panel variation or rib height must not exceed 10 mm. Seal the installation by compressing the inner foam pad 3 mm or until its hard stop.

Which Panorama antennas work with this mounting adapter?

This adapter works with the LGMM and LPMM low-profile MIMO antenna series, including Great White, Great White 5G, Mako and Mako 5G antennas. It is intended for mobility installations such as SUVs and light commercial vehicles with contoured roof panels.
