Panorama Mako LGMPM4FKJ-6-60 4x4 MIMO 5G/4G Vehicle Antenna with 5x5 Wi-Fi, GPS/GNSS and FAKRA Leads, White

5GMPN LGMPM4FKJ-6-60
  • 4x4 MIMO
  • GNSS
  • Wi-Fi
  • 9 dBi and up
$260.32$360.00Save $99.68

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

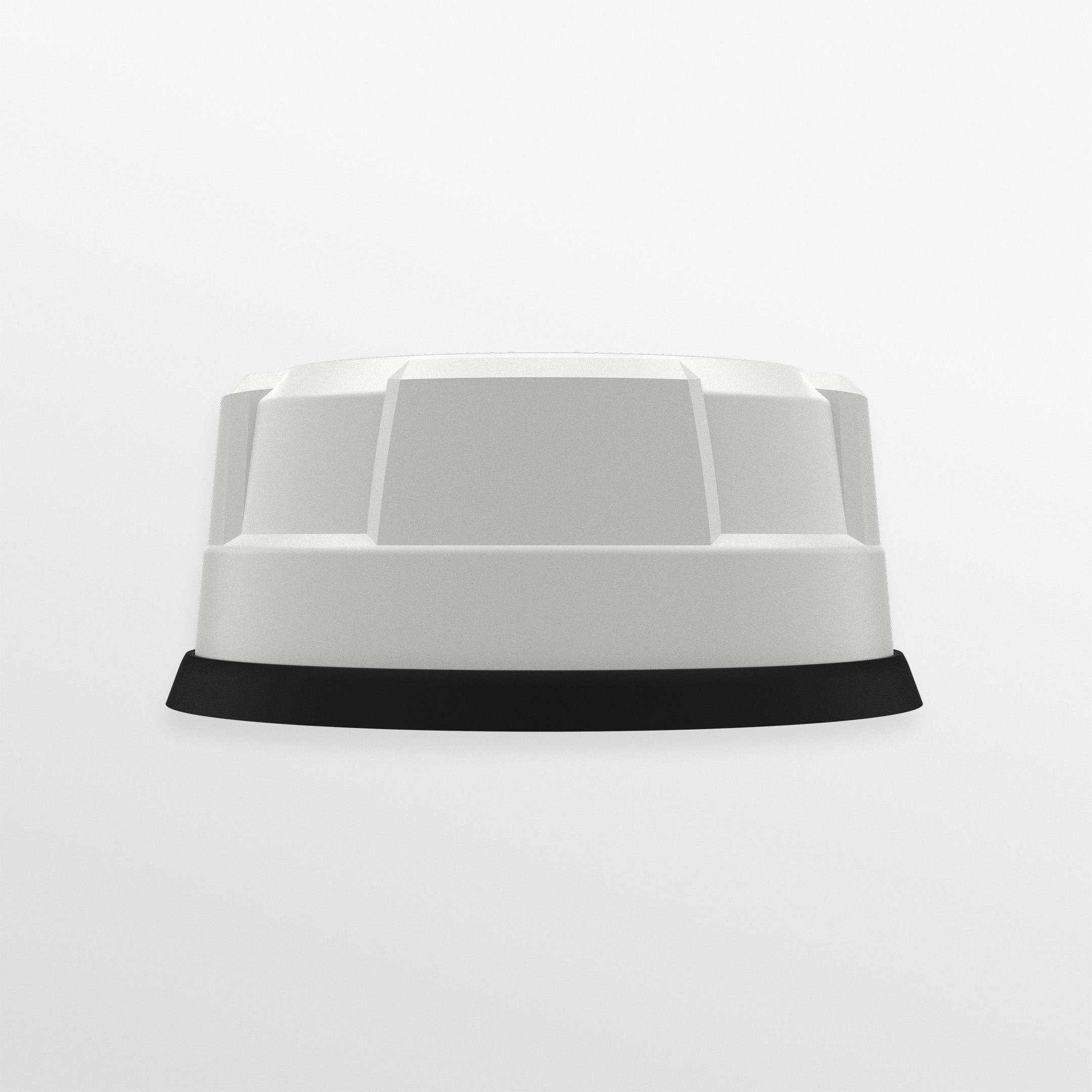

The Panorama Mako LGMPM4FKJ-6-60 is a white, low-profile vehicle dome antenna with ten functions in one housing: 4x4 MIMO 4G/5G cellular across 617–960 and 1710–6000 MHz, 5x5 MIMO dual-band Wi-Fi, and a GPS/GNSS module with a 26 dB LNA. Every lead is pre-terminated in FAKRA: D for cellular, C for GPS and I for Wi-Fi. The antenna is ground-plane independent and rated IP69K and IK10. It is built for police, ambulance, fire, transit and utility fleets running LTE Cat 18/20 and 5G routers.

  • Four isolated cellular elements for 4x4 MIMO 4G/5G across 617–960 MHz and 1710–6000 MHz, Band 71 600 MHz ready
  • Five dual-band Wi-Fi elements (5x5 MIMO) covering 2.4 GHz and 5.0/7.2 GHz
  • GPS/GNSS module, 1562–1612 MHz, with integrated 26 dB LNA
  • Gain of 4 dBi (617–960 MHz), 8 dBi (1710–3800 MHz) and 9 dBi (4900–6000 MHz), omnidirectional
  • 0.3 m flame-retardant leads pre-terminated in FAKRA D (cellular), FAKRA C (GPS) and FAKRA I (Wi-Fi)
  • IP69K and IK10 rated, -40 °C to +80 °C operating range
  • Ground plane independent, single-hole panel mount
  • Replaces separate cellular, Wi-Fi and GPS antennas with one 80 mm tall, 180 mm diameter dome, which keeps the vehicle roof clear

The Panorama Mako LGMPM4FKJ-6-60 is a low-profile, panel-mount dome antenna that combines ten antenna functions in one white housing. It has four isolated cellular elements for 4x4 MIMO 4G/5G, five dual-band Wi-Fi elements for 5x5 MIMO, and a GPS/GNSS module. It is designed for vehicles running the latest generation of LTE Cat 18/20 and 5G routers. Every lead is terminated in FAKRA on a 0.3 m pigtail: FAKRA D for cellular, FAKRA C for GPS and FAKRA I for Wi-Fi.

The cellular elements cover 617–960 MHz and 1710–6000 MHz, including Band 71 (600 MHz), in an omnidirectional pattern. Gain is 4 dBi at 617–960 MHz, 8 dBi at 1710–3800 MHz and 9 dBi at 4900–6000 MHz. Panorama rates the Mako as suitable for the FirstNet (USA) and ESN (UK) public safety networks. The GPS/GNSS module covers 1562–1612 MHz and includes an integrated 26 dB LNA with high-quality filtering. The Wi-Fi elements cover 2.4 GHz and 5.0/7.2 GHz.

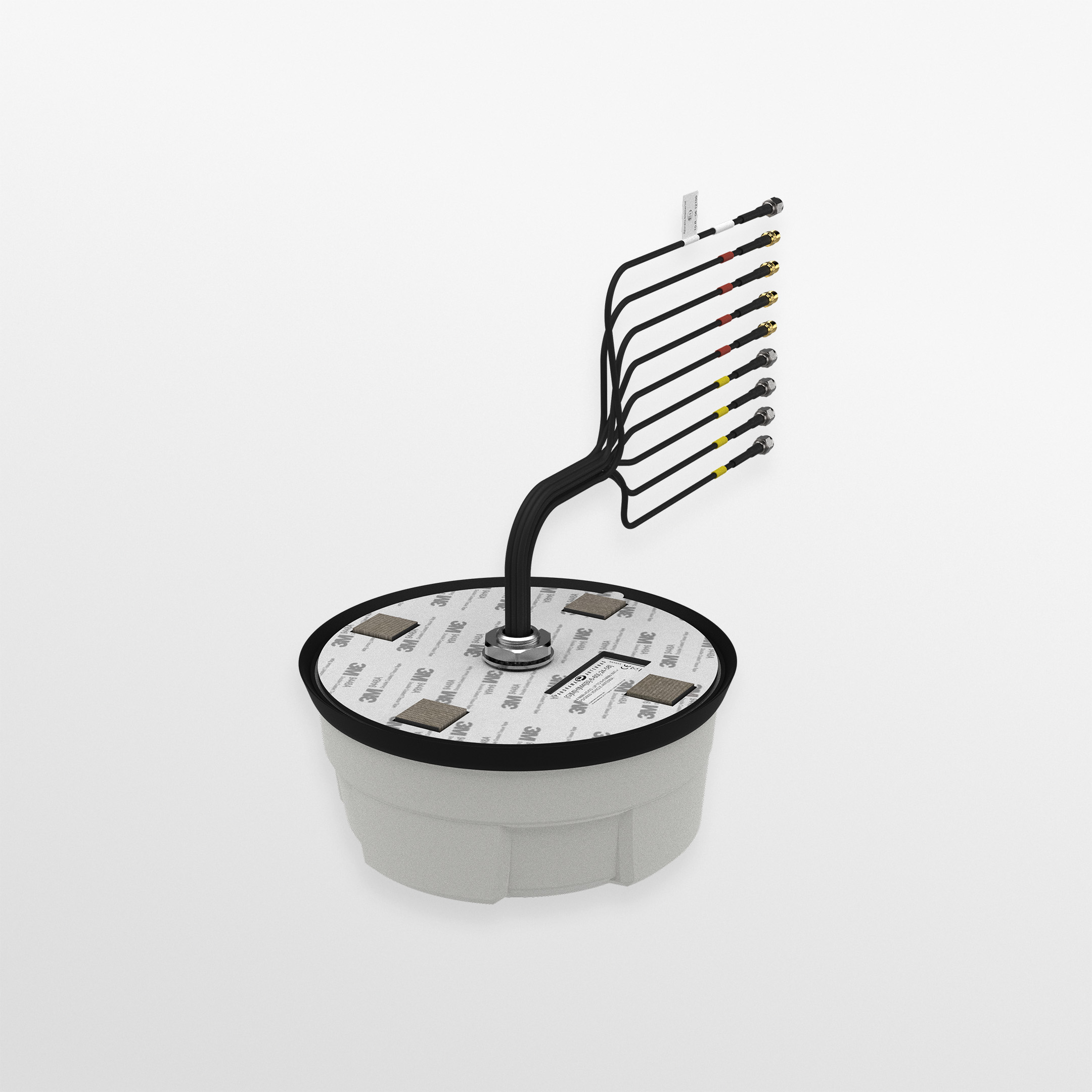

Installation is through a single hole in the vehicle panel, and a magnetic option is available for temporary fitting. The antenna needs no metallic ground plane, so it keeps its performance on non-conductive roofs. It is rated IP69K and IK10 and operates from -40 °C to +80 °C. The cables are flame retardant and compliant with UNECE R118, and each lead carries a flag for identification during installation.

The four LTE elements can also serve a dual-SIM router in failover as two 2x2 MIMO pairs, with only one SIM active at a time. The antenna is not intended for concurrent or aggregated dual-SIM operation. Panorama's installation instructions explain the correct LTE connections.

Ideal for

  • Police, ambulance and fire vehicles on FirstNet with 4x4 MIMO 5G routers
  • Public buses and transit vehicles offering onboard Wi-Fi with fleet GPS tracking
  • Utility service trucks that need cellular, Wi-Fi and positioning from one roof penetration
  • Vehicle builds that use FAKRA-terminated router harnesses

Specifications

GPS

Lna Gain
26 dB
GPS Frequency Range
1562–1612 MHz
Number OF GPS Elements
1 Module

Cable

Cable Type GPS
FR RG174
Cable Type LTE
FR RG174 / RG174
Cable Type Wi-Fi
FR RG174 / RG174
Cable Length GPS
0.3 m (0.98 ft)
Cable Length LTE
0.3 m (0.98 ft)
Cable Length Wi-Fi
0.3 m (0.98 ft)
Quantity OF Cell Cables
4
Quantity OF Wi-Fi Cables
5
Quantity OF GPS GNSS Cables
1

General

Brand
Panorama Antennas
Product Type
4x4 MIMO 4G/5G + Wi-Fi + GPS/GNSS vehicle dome antenna
Product Family
Mako (L[G]M[H]M4[B]-6-60[-24-58])
Antenna Functions
10 (4 cellular, 5 Wi-Fi, 1 GPS/GNSS)
Manufacturer Part Number
LGMPM4FKJ-6-60

Package

Shipping Weight
3.00 lb

Mounting

Ground Plane
Ground plane independent
Mounting Methods
Magnetic, Panel
Mounting Type Fixed
Panel (single hole)
Mounting Type Temporary
Magnetic

Approvals

IP IK Rating
IK10, IP69K
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722
Public Safety Networks
Suitable for FirstNet (USA) and ESN (UK)

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
5 x 5 MIMO (2.4 & 5.0/7.2 GHz)
Max Input Power
10 W
Gain 617 960 MHz
4 dBi
Gain 1710 3800 MHz
8 dBi
Gain 4900 6000 MHz
9 dBi
Cellular LTE Elements
4 x 4 MIMO

Mechanical

Colour
White
Height
80 mm (3.15 in)
Diameter
180 mm (7.09 in)
Operating Temperature
-40 °C to +80 °C (-40 °F to +176 °F)

Technology

Technology
GPS, GNSS, 2G/3G/4G/5G, Band 71 600 MHz ready, FirstNet, Wi-Fi MIMO

Termination

Connector GPS
FAKRA C
Connector LTE
FAKRA D
Connector Wi-Fi
FAKRA I

Questions buyers ask

What connectors does the LGMPM4FKJ-6-60 use?

All leads are 0.3 m pigtails terminated in FAKRA: FAKRA D on the four cellular cables, FAKRA C on the GPS cable and FAKRA I on the five Wi-Fi cables.

Which frequencies does the cellular section cover?

The cellular section covers 617–960 MHz and 1710–6000 MHz, and it is Band 71 600 MHz ready. Gain is 4 dBi at 617–960 MHz, 8 dBi at 1710–3800 MHz and 9 dBi at 4900–6000 MHz.

Can I use it with a dual-SIM router?

Yes, in failover mode, where only one SIM is active at a time. The four LTE elements can be used as two 2x2 MIMO pairs. Because each SIM then uses only two of the four elements, Panorama recommends assessing coverage for that configuration. The antenna is not intended for concurrent or aggregated dual-SIM operation.

Does it need a metal roof to work?

No. The antenna is ground-plane independent and keeps its performance on conductive or non-conductive surfaces.

Is it suitable for public safety networks?

Panorama rates the Mako as suitable for FirstNet in the USA and ESN in the UK.
