Panorama LPAM-6-60-1 2x2 MIMO 4G/5G Low-Profile IoT Antenna, 1 m SMA Cables

5GMPN LPAM-6-60-1
  • 2x2 MIMO
  • 9 dBi and up
  • Up to 1 m
$106.15$162.07Save $55.92

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

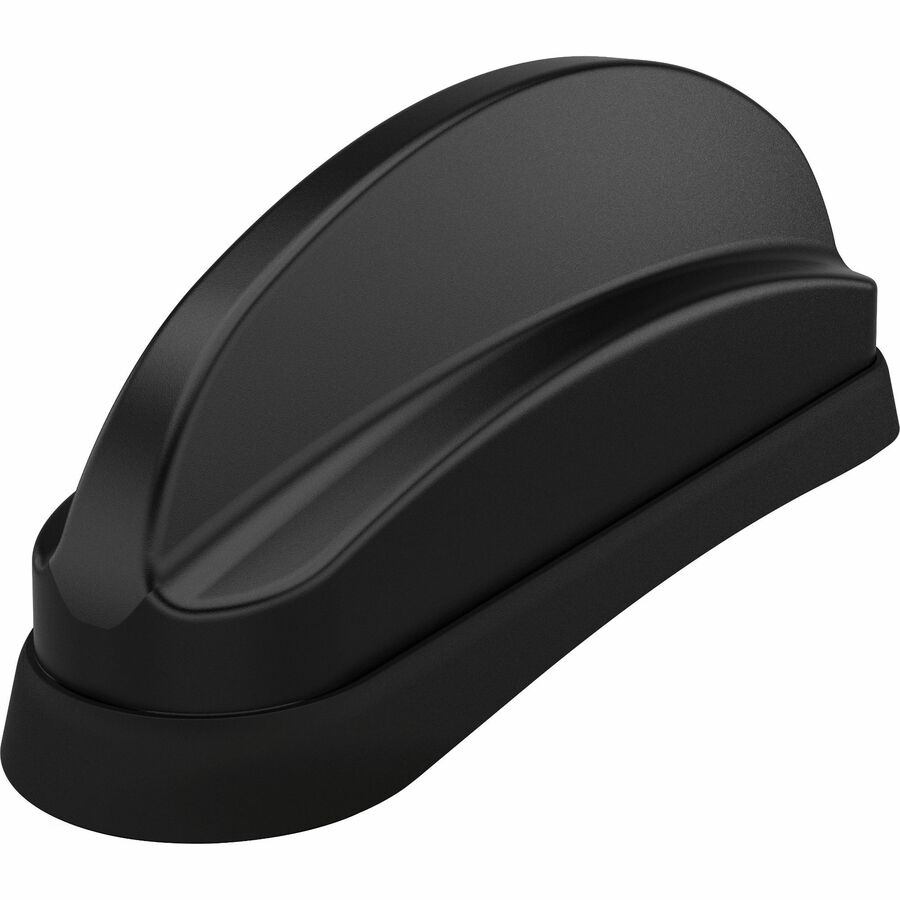

The Panorama LPAM-6-60-1 is the 1 m cable version of the LPAM-6-60 low-profile 2x2 MIMO 4G/5G IoT antenna. It covers 617-960 MHz, including Band 71, and 1427-6000 MHz, with gain of up to 9 dBi, in an IP69K-rated housing that installs through a single hole. Its short SMA (m) leads suit kiosks, vending machines and display screens where the modem sits close behind the mounting panel.

  • 2x2 MIMO 4G/5G antenna covering 617-960 MHz and 1427-6000 MHz
  • Gain of 5 dBi (617-960 MHz), 8 dBi (1427-3800 MHz) and 9 dBi (4900-6000 MHz)
  • Ready for 600 MHz Band 71
  • Two integrated 1 m FR RG174 cables with SMA (m) connectors
  • IP69K-rated low-profile housing with single-hole mounting
  • Panel, wall or mast mounting; operating temperature of -40°C to +80°C
  • Short 1 m leads keep compact enclosures tidy when the modem sits behind the panel
  • A single housing serves both ports of a 2x2 MIMO 4G/5G router or modem

The Panorama LPAM-6-60-1 is a low-profile 2x2 MIMO antenna for 4G and 5G IoT equipment, supplied with 1 m cables. It is part of Panorama's LP[G]AM[F]-6-60 platform and is the cellular-only configuration. There are no GNSS or Wi-Fi elements, just two 4G/5G elements covering 617-960 MHz and 1427-6000 MHz. Rated gain is 5 dBi across 617-960 MHz, 8 dBi across 1427-3800 MHz and 9 dBi across 4900-6000 MHz, and the antenna is ready for 600 MHz Band 71.

The 1 m flexible FR RG174 leads suit equipment where the router or modem mounts directly behind the antenna, which avoids excess coax coiled inside the enclosure. Each lead ends in an SMA (m) connector. The cables meet EN45545-2 HL3, UN ECE R118 and EN6722 flammability standards.

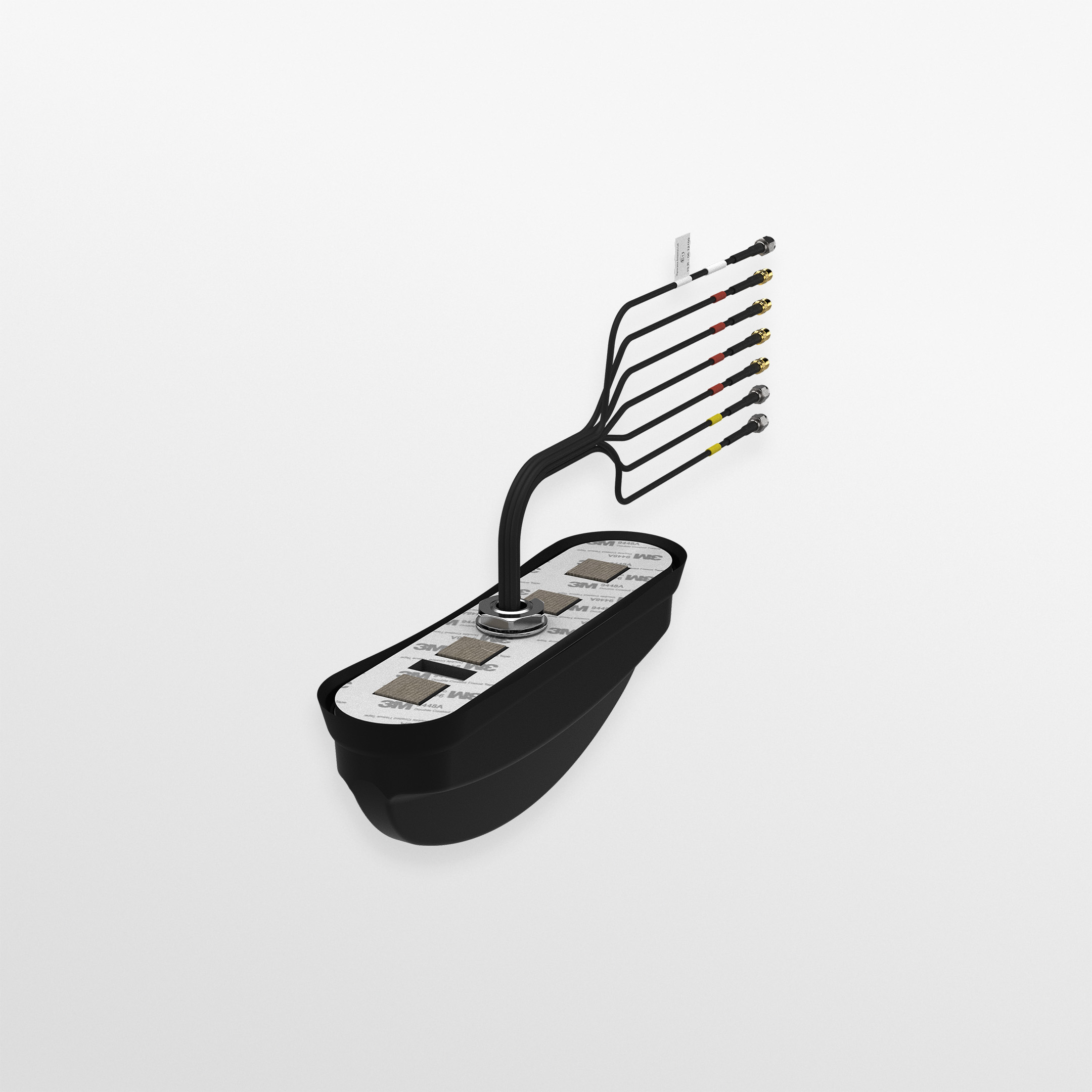

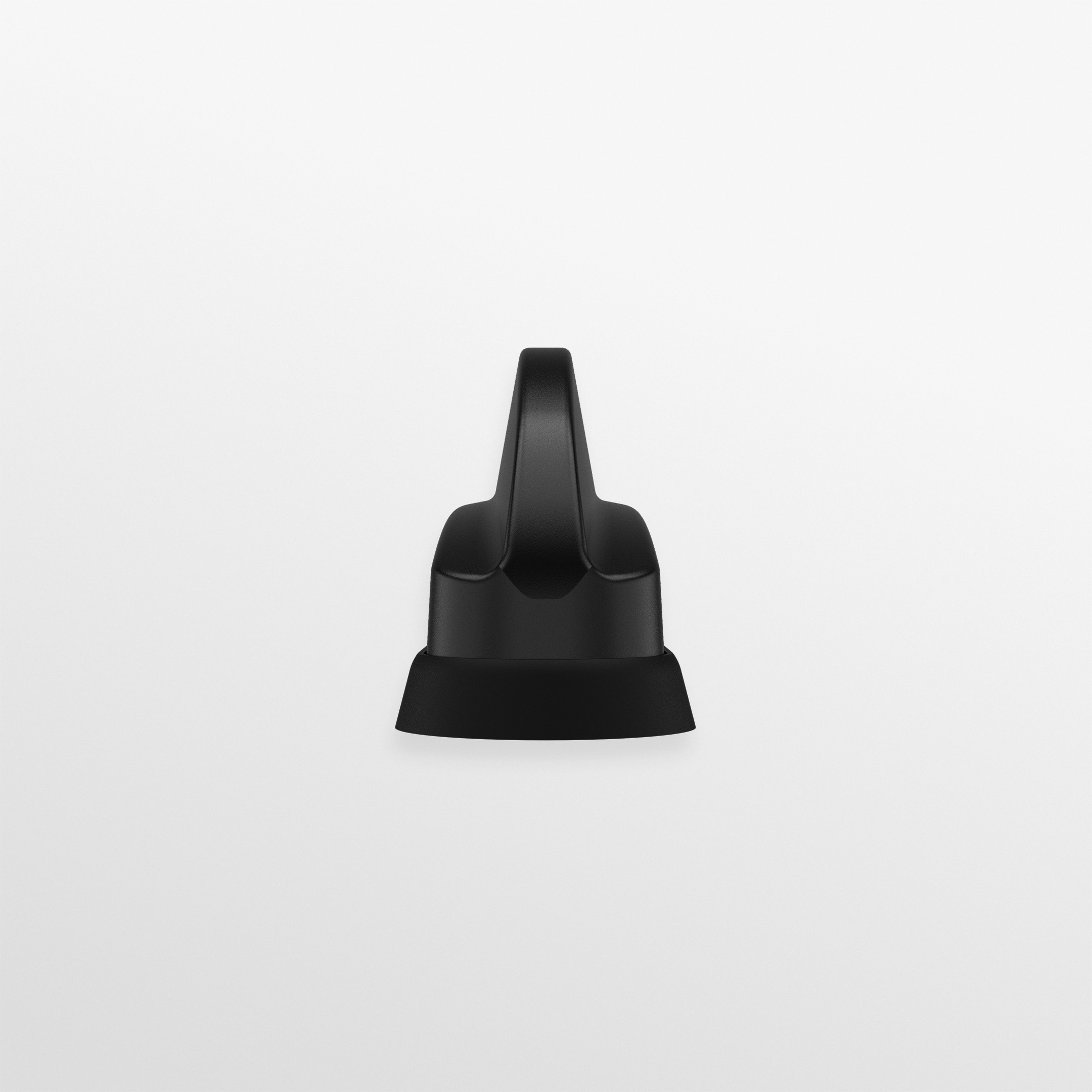

The housing measures 243 x 63 x 90 mm, is IP69K rated, and uses UL746C-F1 and UL94-V0 rated materials. It operates from -40°C to +80°C with 10 W maximum input power. The antenna is designed for conductive metal panels and can be used on non-conductive panels, with some reduction in performance at 600 MHz. It installs through a single hole and supports panel, wall and mast mounting. Panorama's datasheet and installation instructions (SW3-965) are available for this platform.

Ideal for

  • Compact kiosks with the modem mounted directly behind the antenna
  • Vending machines and payment terminals
  • Digital signage and display screens
  • M2M and IoT gateways with 2x2 MIMO 4G/5G modems

Specifications

GPS

GPS Elements
None on this model

Cable

Cable Type LTE
FR RG174
Cable Length LTE
1 m (3.28 ft)

General

MPN
LPAM-6-60-1
Brand
Panorama Antennas
Product Family
LP[G]AM[F]-6-60 4G/5G MiMo IoT Antenna

Package

Shipping Weight
1.00 lb

Mounting

Mounting Methods
Mast, panel, wall
Mounting Type Fixed
Mast, panel, wall

Approvals

IP Rating
IP69K
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722
Material Flammability
UL746C-F1, UL94-V0

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
None on this model
Max Input Power
10 W
Frequency Range Gain
617-960 MHz: 5 dBi; 1427-3800 MHz: 8 dBi; 4900-6000 MHz: 9 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
63 mm (2.48 in)
Colour
Black
Height
90 mm (3.54 in)
Length
243 mm (9.57 in)
Operating Temperature
-40°C to +80°C (-40°F to +176°F)

Technology

Technology
2G/3G/4G, 5G, Band 71 600 MHz ready

Termination

Connector LTE
SMA (m)

Questions buyers ask

What is the difference between the LPAM-6-60-1 and the LPAM-6-60?

Cable length. The -1 version has 1 m cables, while the LPAM-6-60 has 3 m cables. The antenna element and housing are the same.

Does it support 600 MHz Band 71?

Yes. Coverage starts at 617 MHz and Panorama lists the platform as Band 71 600 MHz ready.

What connectors does it use?

Two SMA (m) connectors on flexible flame-retardant RG174 cables.

Can it be mounted outdoors?

The housing is IP69K rated and operates from -40°C to +80°C, and it supports panel, wall and mast mounting.
