Panorama LPAM-6-60-D 2x2 MIMO 4G/5G + 2x2 Wi-Fi Low-Profile IoT Antenna, 3 m Cables

5GMPN LPAM-6-60-D
  • 2x2 MIMO
  • Wi-Fi
  • 1–3 m
$137.01$189.63Save $52.62

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Panorama LPAM-6-60-D is a 4-in-1 low-profile IoT antenna that combines 2x2 MIMO 4G/5G cellular with 2x2 MIMO dual-band Wi-Fi in one IP69K-rated housing. The cellular elements cover 617-960 MHz and 1427-6000 MHz with gain of up to 9 dBi. Integrated 3 m RG174 cables end in SMA (m) connectors for cellular and reverse-polarity SMA connectors for Wi-Fi, which suits routers in kiosks, vending machines and signage.

  • 4-in-1 antenna: 2x2 MIMO 4G/5G plus 2x2 MIMO dual-band Wi-Fi
  • Cellular coverage of 617-960 MHz and 1427-6000 MHz, ready for Band 71
  • Cellular gain of 5 dBi (617-960 MHz), 8 dBi (1427-3800 MHz) and 9 dBi (4900-6000 MHz)
  • Four integrated 3 m FR RG174 cables: SMA (m) for cellular, reverse-polarity SMA for Wi-Fi
  • IP69K-rated low-profile housing with single-hole mounting
  • Panel, wall or mast mounting; operating temperature of -40°C to +80°C
  • One housing replaces separate cellular and Wi-Fi antennas on a 4G/5G router
  • Different connector types for cellular and Wi-Fi make correct cabling straightforward

The Panorama LPAM-6-60-D is a 4-in-1 panel-mount antenna from Panorama's LP[G]AM[F]-6-60 IoT platform. It pairs two 4G/5G cellular elements in a 2x2 MIMO configuration with two dual-band Wi-Fi elements (the D option), and it has no GNSS element. One housing therefore serves both the WAN and Wi-Fi antenna ports of a cellular router or gateway. Panorama specifies the platform's Wi-Fi option as supporting Wi-Fi 6E.

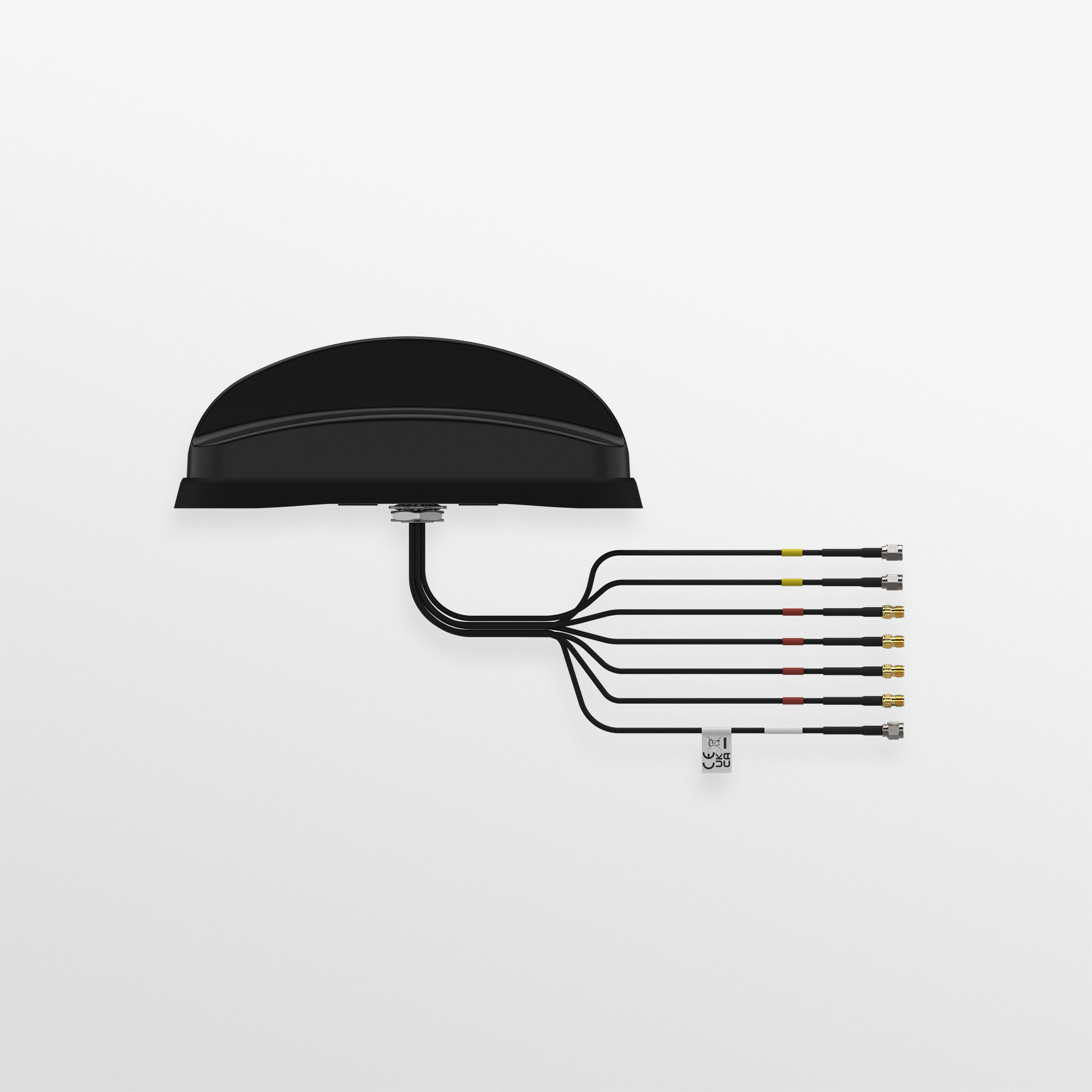

The cellular elements cover 617-960 MHz and 1427-6000 MHz, so the antenna is ready for 600 MHz Band 71. Rated gain is 5 dBi across 617-960 MHz, 8 dBi across 1427-3800 MHz and 9 dBi across 4900-6000 MHz, with an omnidirectional pattern and 10 W maximum input power. Four integrated 3 m flexible FR RG174 cables are fitted. The cellular leads end in SMA (m) connectors and the Wi-Fi leads in reverse-polarity SMA connectors, so each connection is easy to tell apart at the router. The cables meet EN45545-2 HL3, UN ECE R118 and EN6722 flammability standards.

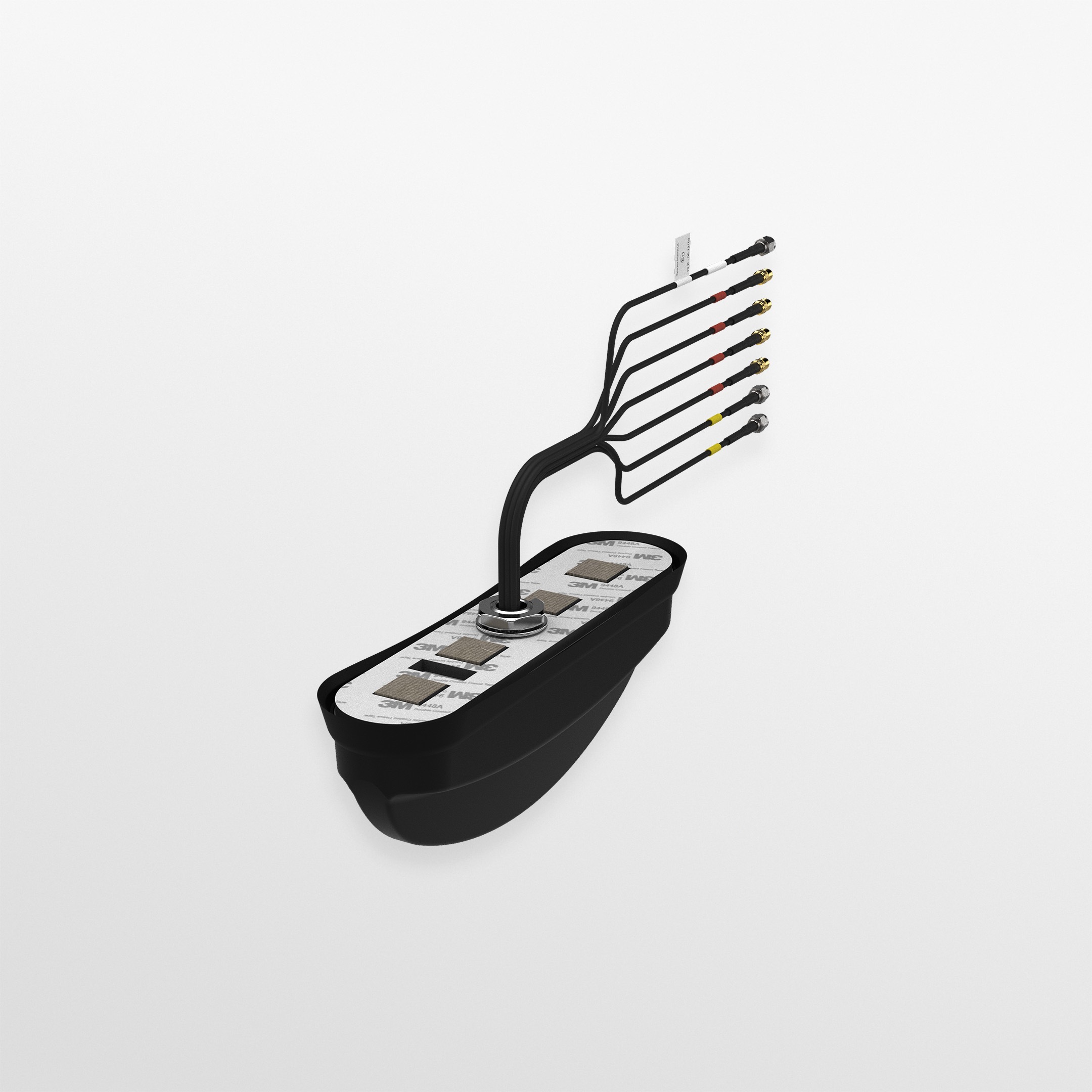

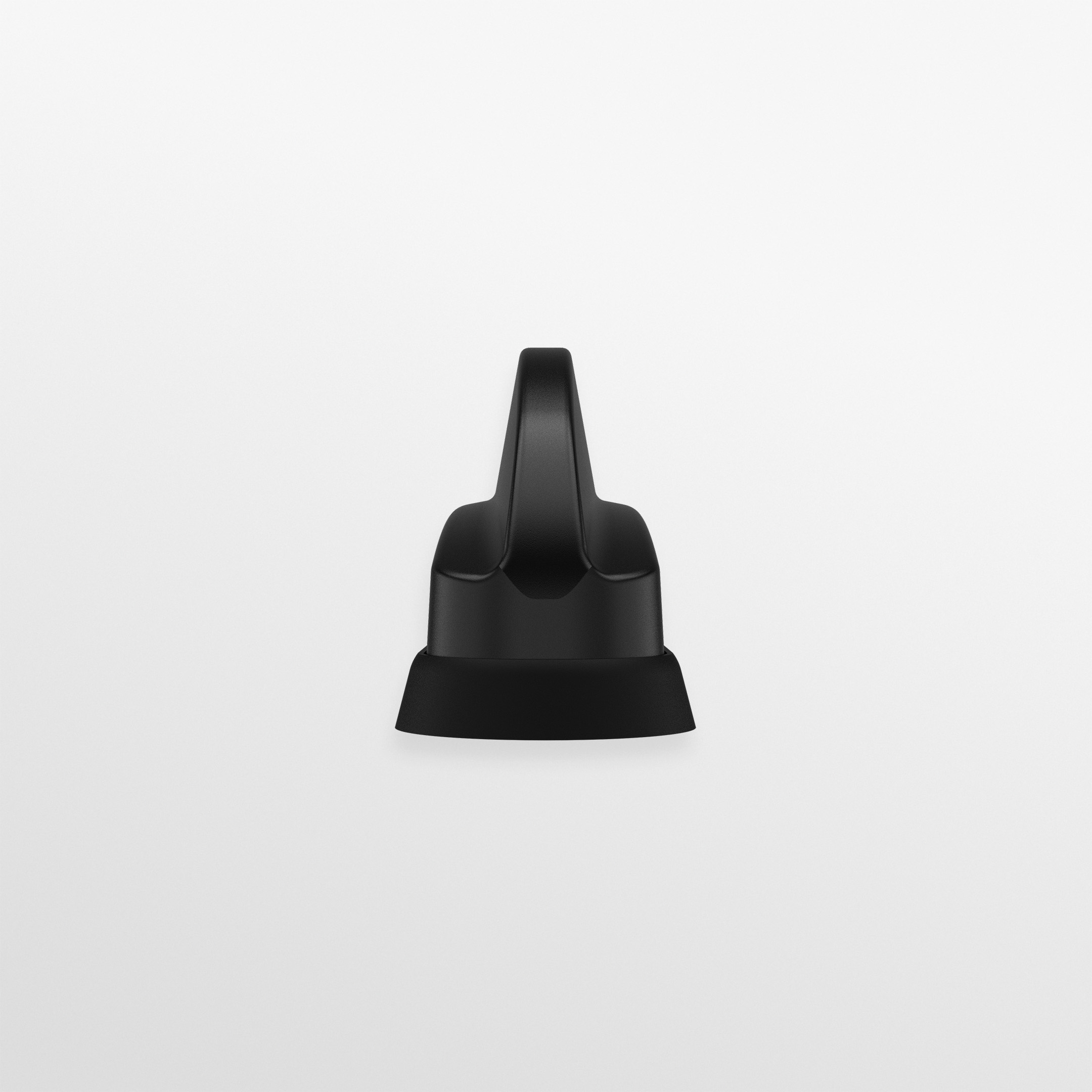

The black housing measures 243 x 63 x 90 mm, is IP69K rated, and uses UL746C-F1 and UL94-V0 rated materials. It operates from -40°C to +80°C. The antenna is designed for conductive metal panels and can be used on non-conductive panels, with some reduction in performance at 600 MHz. It installs through a single hole and supports panel, wall and mast mounting. Panorama's datasheet and installation instructions (SW3-965) are available for this platform.

Ideal for

  • Cellular routers in kiosks that also provide local Wi-Fi
  • Digital signage and display screens
  • Vending machines and payment terminals
  • M2M and IoT gateways with both cellular and Wi-Fi antenna ports

Specifications

GPS

GPS Elements
None on this model

Cable

Cable Type LTE
FR RG174
Cable Type Wi-Fi
FR RG174
Cable Length LTE
3 m (9.84 ft)
Cable Length Wi-Fi
3 m (9.84 ft)

General

MPN
LPAM-6-60-D
Brand
Panorama Antennas
Configuration
4-in-1: 2x2 MIMO 4G/5G + 2x2 MIMO Wi-Fi, no GNSS
Product Family
LP[G]AM[F]-6-60 4G/5G MiMo IoT Antenna

Package

UPC
5055416072047
Shipping Weight
1.40 lb

Mounting

Mounting Methods
Mast, panel, wall
Mounting Type Fixed
Mast, panel, wall

Approvals

IP Rating
IP69K
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722
Material Flammability
UL746C-F1, UL94-V0

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO dual-band Wi-Fi
Max Input Power
10 W
Frequency Range Gain
617-960 MHz: 5 dBi; 1427-3800 MHz: 8 dBi; 4900-6000 MHz: 9 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
63 mm (2.48 in)
Colour
Black
Height
90 mm (3.54 in)
Length
243 mm (9.57 in)
Operating Temperature
-40°C to +80°C (-40°F to +176°F)

Technology

Technology
2G/3G/4G, 5G, Band 71 600 MHz ready, Wi-Fi MIMO

Termination

Connector LTE
SMA (m)
Connector Wi-Fi
Reverse Polarity SMA

Questions buyers ask

What does the D in LPAM-6-60-D mean?

It indicates the dual Wi-Fi option: two Wi-Fi elements in a 2x2 MIMO configuration alongside the 2x2 MIMO 4G/5G cellular elements.

Does it include GPS/GNSS?

No. The LP prefix denotes the version without GNSS. The LGAM-6-60-D adds a GNSS module.

Which connectors are on the cables?

The two cellular leads use SMA (m) connectors and the two Wi-Fi leads use reverse-polarity SMA connectors, all on 3 m RG174 cables.

What cellular frequencies does it cover?

617-960 MHz and 1427-6000 MHz, with rated gain of 5 dBi, 8 dBi (1427-3800 MHz) and 9 dBi (4900-6000 MHz).

How is it mounted?

Through a single hole on a panel, or on a wall or mast. It is designed for conductive metal panels and can be used on non-conductive panels with some reduction in performance at 600 MHz.
