Panorama LPAM-6-60 2x2 MIMO 4G/5G Low-Profile IoT Antenna, 3 m SMA Cables

5GMPN LPAM-6-60
  • 2x2 MIMO
  • 9 dBi and up
  • 1–3 m
$117.20$162.07Save $44.87

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

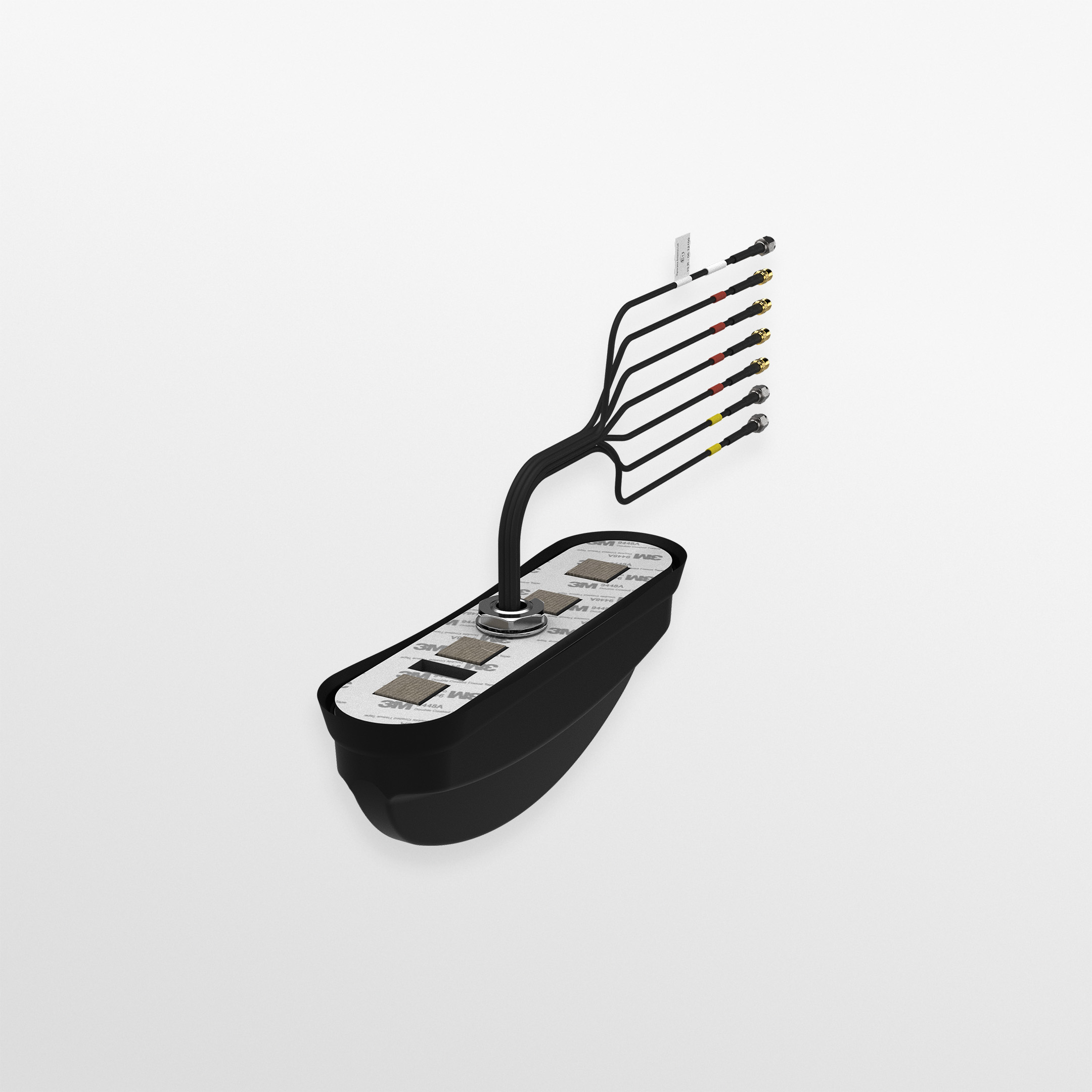

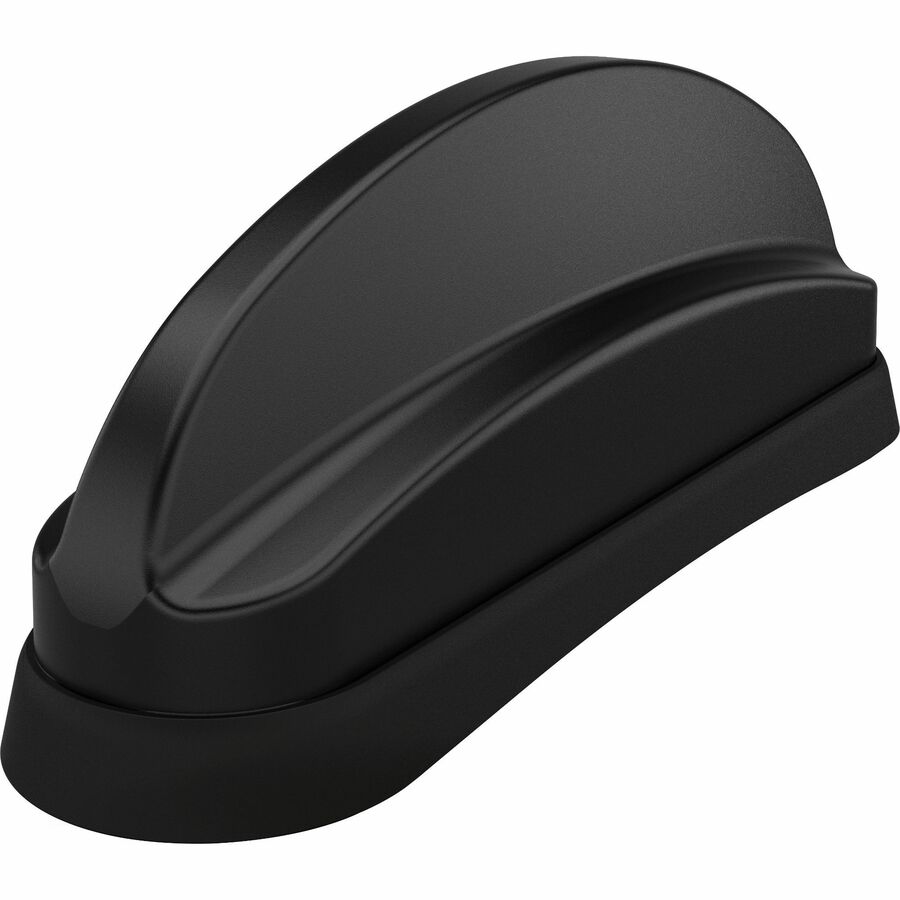

The Panorama LPAM-6-60 is a low-profile 2x2 MIMO 4G/5G antenna for IoT and M2M equipment. It covers 617-960 MHz, including 600 MHz Band 71, and 1427-6000 MHz, with gain of up to 9 dBi. The IP69K-rated housing installs through a single hole, and two integrated 3 m flame-retardant RG174 cables terminate in SMA (m) connectors. It is well suited to kiosks, vending machines, display screens and payment terminals.

  • 2x2 MIMO 4G/5G antenna covering 617-960 MHz and 1427-6000 MHz
  • Gain of 5 dBi (617-960 MHz), 8 dBi (1427-3800 MHz) and 9 dBi (4900-6000 MHz)
  • Ready for 600 MHz Band 71
  • IP69K-rated low-profile housing with single-hole mounting
  • Two integrated 3 m FR RG174 cables with SMA (m) connectors
  • Panel, wall or mast mounting; operating temperature of -40°C to +80°C
  • Covers every antenna port on a 2x2 MIMO 4G/5G router or modem with one housing
  • Band 71 through 6 GHz coverage supports low-band reach and mid-band capacity

The Panorama LPAM-6-60 is the cellular-only version of Panorama's LP[G]AM[F]-6-60 IoT antenna platform. It has two 4G/5G elements in a 2x2 MIMO configuration covering 617-960 MHz and 1427-6000 MHz, so it is ready for 600 MHz Band 71. Rated gain is 5 dBi across 617-960 MHz, 8 dBi across 1427-3800 MHz and 9 dBi across 4900-6000 MHz, with an omnidirectional pattern and 10 W maximum input power.

The antenna is designed for conductive metal panels. It can also be used on non-conductive panels, with some reduction in performance in the 600 MHz band. It installs through a single hole and supports panel, wall and mast mounting. The housing measures 243 x 63 x 90 mm, is IP69K rated, and meets UL746C-F1 and UL94-V0 material flammability standards. It operates from -40°C to +80°C.

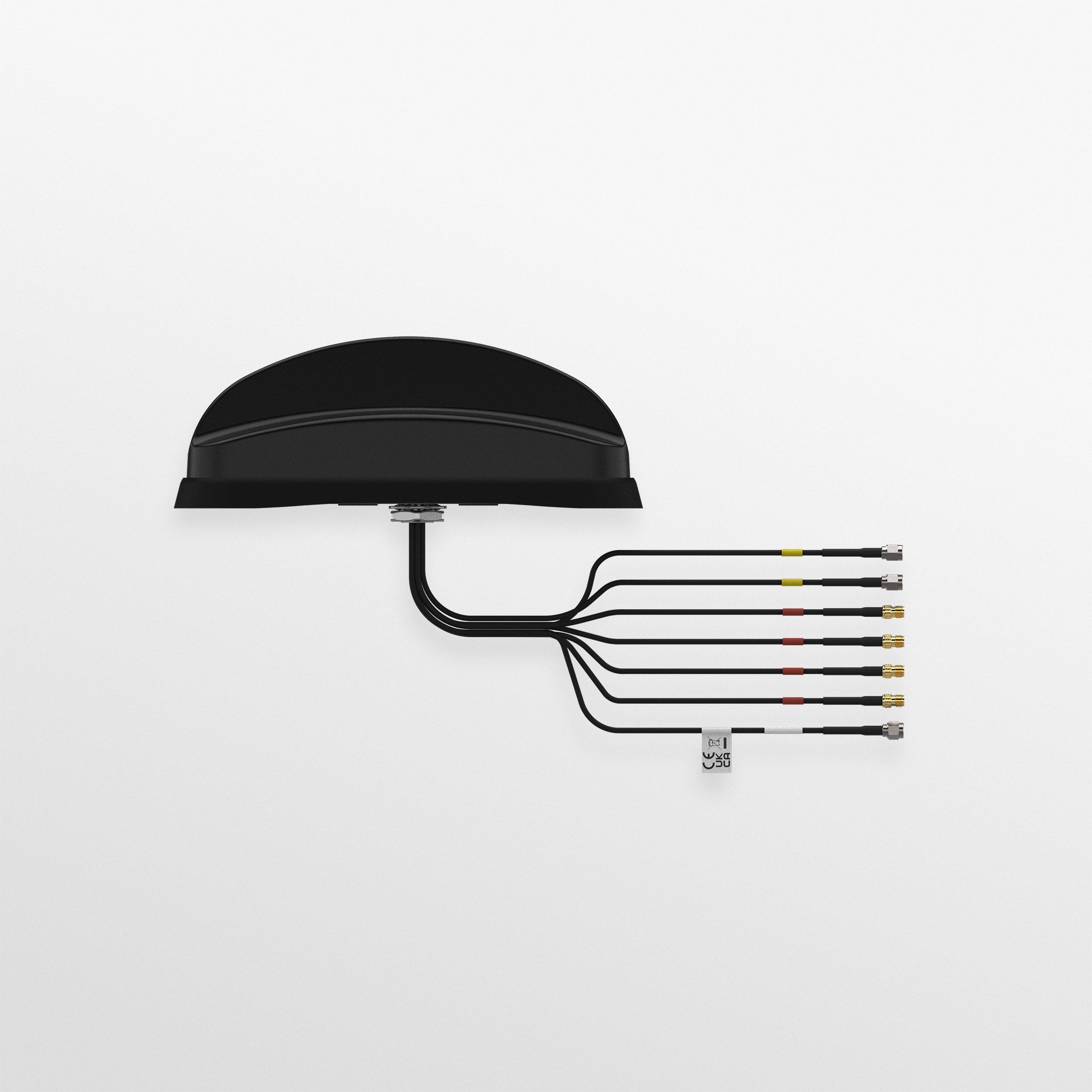

Two integrated 3 m flexible FR RG174 cables end in SMA (m) connectors for a direct connection to a 2x2 MIMO router, gateway or modem. The cables meet EN45545-2 HL3, UN ECE R118 and EN6722 flammability standards. This low-cost, robust antenna is intended for vending machines, kiosks, display screens, payment terminals and other M2M deployments. Panorama's datasheet and installation instructions (SW3-965) are available for this platform.

Ideal for

  • Vending machines and payment terminals
  • Self-service kiosks
  • Digital signage and display screens
  • M2M and IoT gateways using 2x2 MIMO 4G/5G modems

Specifications

GPS

GPS Elements
None on this model

Cable

Cable Type LTE
FR RG174
Cable Length LTE
3 m (9.84 ft)

General

MPN
LPAM-6-60
Brand
Panorama Antennas
Product Family
LP[G]AM[F]-6-60 4G/5G MiMo IoT Antenna

Package

Shipping Weight
1.35 lb

Mounting

Mounting Methods
Mast, panel, wall
Mounting Type Fixed
Mast, panel, wall

Approvals

IP Rating
IP69K
Cable Flammability
EN45545-2 HL3, UN ECE R118, EN6722
Material Flammability
UL746C-F1, UL94-V0

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
None on this model
Max Input Power
10 W
Frequency Range Gain
617-960 MHz: 5 dBi; 1427-3800 MHz: 8 dBi; 4900-6000 MHz: 9 dBi
Cellular LTE Elements
2 x 2 MIMO

Mechanical

Width
63 mm (2.48 in)
Colour
Black
Height
90 mm (3.54 in)
Length
243 mm (9.57 in)
Operating Temperature
-40°C to +80°C (-40°F to +176°F)

Technology

Technology
2G/3G/4G, 5G, Band 71 600 MHz ready

Termination

Connector LTE
SMA (m)

Questions buyers ask

What frequencies and gain does the LPAM-6-60 offer?

617-960 MHz at 5 dBi, 1427-3800 MHz at 8 dBi and 4900-6000 MHz at 9 dBi. The antenna is ready for 600 MHz Band 71.

Does it need a metal mounting surface?

It is designed for conductive metal panels but can be used on non-conductive panels, with some reduction in performance in the 600 MHz band.

How is it installed?

Through a single mounting hole. Panel, wall and mast mounting are supported.

What cables and connectors are fitted?

Two integrated 3 m flame-retardant RG174 cables, each with an SMA (m) connector.
