Panorama LPAM-7-27-24-58-1S 5G/4G 2x2 MIMO + 2x2 Wi-Fi Low-Profile Antenna, 1 m Cables

5GMPN LPAM-7-27-24-58-1S
  • 2x2 MIMO
  • Wi-Fi
  • 6–8 dBi
  • Up to 1 m
$54.01$74.87Save $20.86

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Panorama LPAM-7-27-24-58-1S is a compact, IP66 low-profile antenna that combines 2x2 MIMO cellular coverage from 698 to 3800 MHz (2G/3G/4G/5G) with 2x2 MIMO dual-band 2.4/5 GHz Wi-Fi. This non-GNSS version has 1 m integrated RG174 cables with SMA male plugs for cellular and reverse-polarity SMA plugs for Wi-Fi. It suits vending machines, payment terminals, kiosks and other fixed M2M and IoT installations.

  • 2x2 MIMO cellular elements covering 698–960 MHz (2 dBi) and 1710–3800 MHz (5 dBi) for 2G/3G/4G/5G
  • 2x2 MIMO dual-band 2.4/5 GHz Wi-Fi elements in the same housing
  • Omnidirectional pattern; performs on or off a conductive surface
  • 1 m integrated RG174 cables with SMA (m) cellular and RP-SMA Wi-Fi plugs
  • IP66 weatherproof housing rated -40°C to +80°C
  • Single-hole panel mount with a small footprint
  • One antenna serves both the cellular modem and the Wi-Fi radio of a router or gateway, reducing holes and clutter on the enclosure
  • MIMO on both cellular and Wi-Fi supports the multi-antenna ports modern LTE and 5G routers are designed for

The Panorama LPAM-7-27-24-58-1S is a compact, low-profile multifunction antenna that places 2x2 MIMO cellular and 2x2 MIMO dual-band Wi-Fi in one weatherproof housing. It belongs to Panorama's L[G]AM-7-27-[X]24-58 family and is built for fixed M2M and IoT installations such as vending machines, payment terminals, smart meters and remote monitoring cabinets, where one small antenna has to serve both the cellular modem and the Wi-Fi radio of a router or gateway.

The cellular elements cover 698–960 MHz at 2 dBi and 1710–3800 MHz at 5 dBi, spanning 2G, 3G, 4G LTE and 5G bands within that range. The Wi-Fi elements cover 2.4 and 5 GHz in a 2x2 MIMO configuration. The radiation pattern is omnidirectional, so there is nothing to aim, and Panorama rates the antenna to perform whether it is mounted on a conductive or a non-metallic surface.

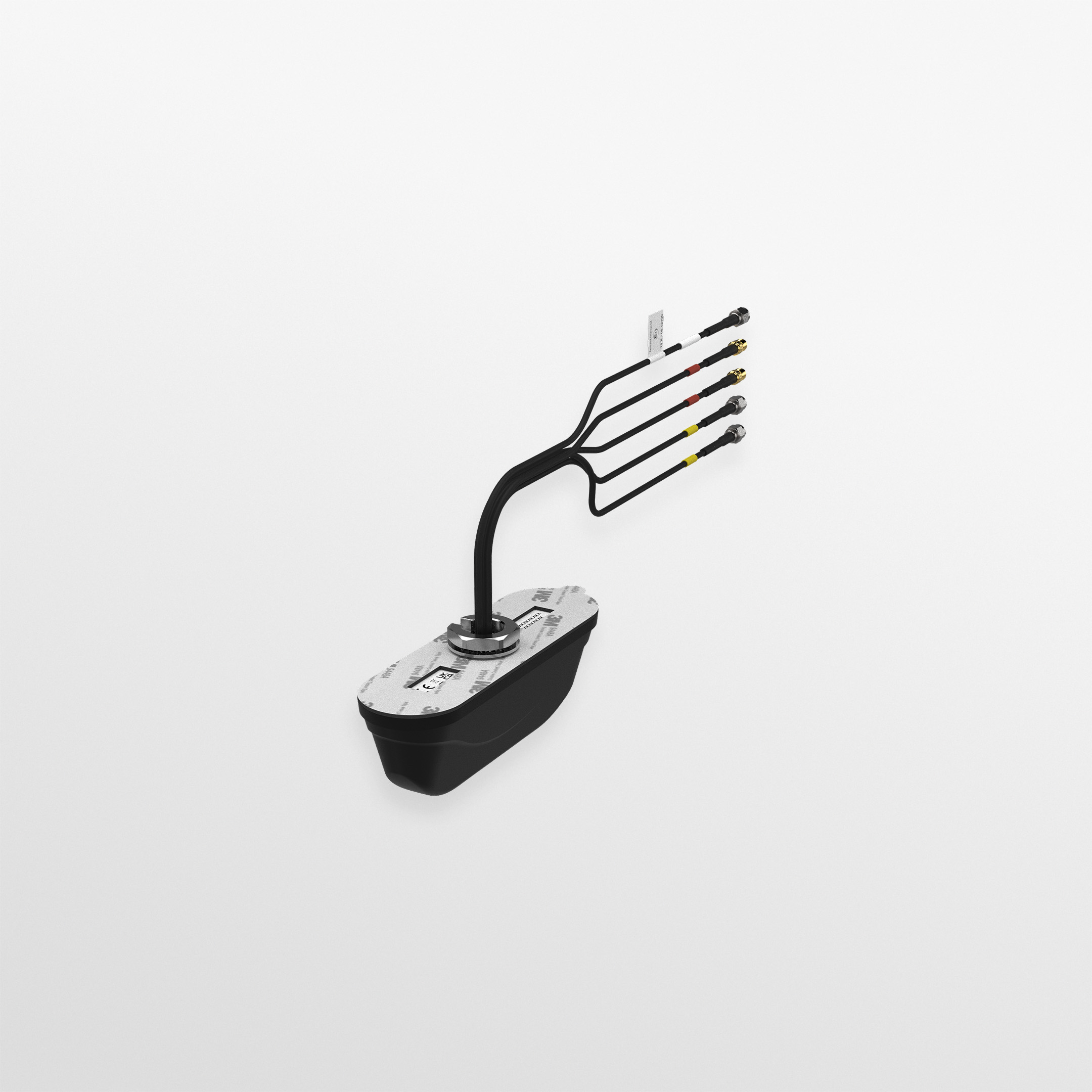

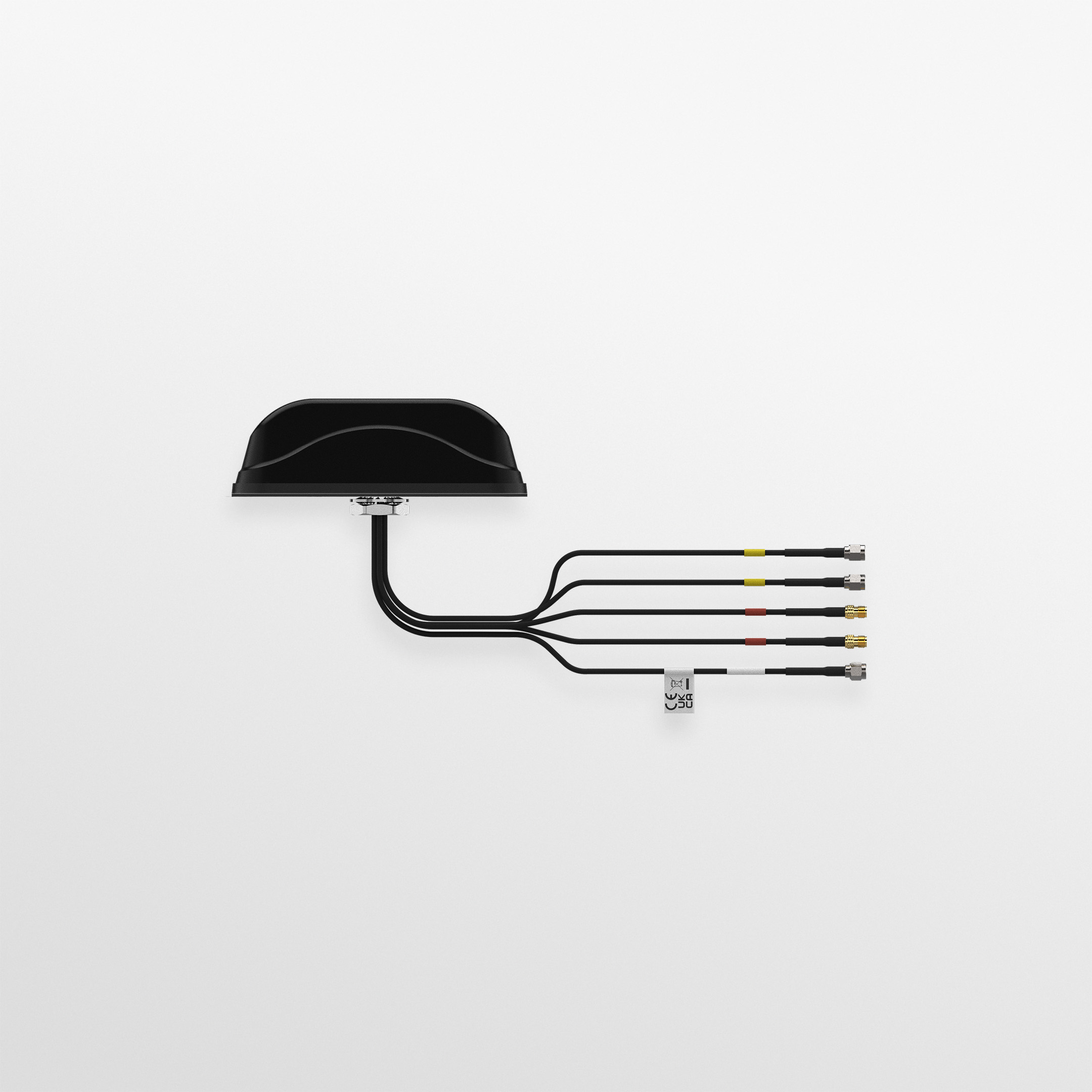

This is the non-GNSS model with 1 m integrated RG174 cables: two cellular leads terminated in SMA male plugs and two Wi-Fi leads terminated in reverse-polarity SMA plugs, a layout that suits routers and gateways with SMA cellular ports and RP-SMA Wi-Fi ports. The short leads keep cable loss low when the antenna sits on the enclosure that houses the equipment.

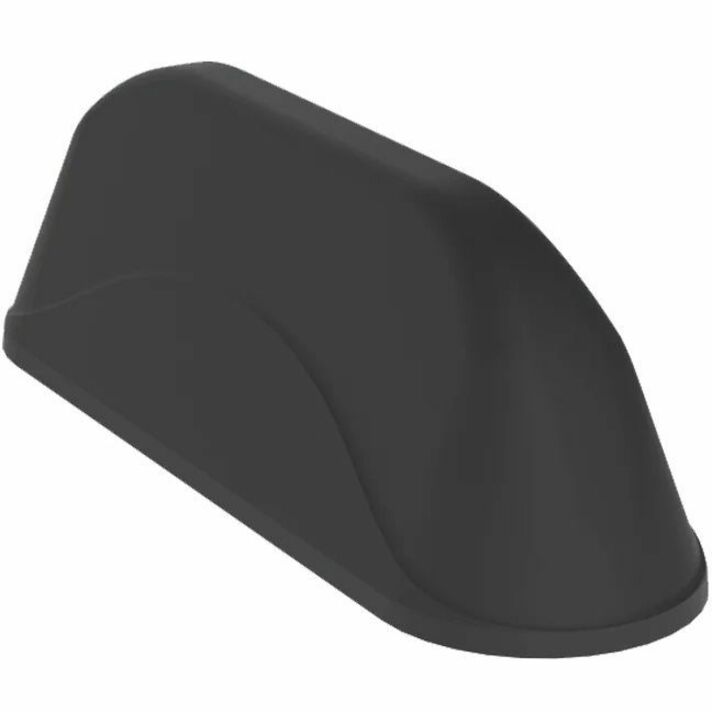

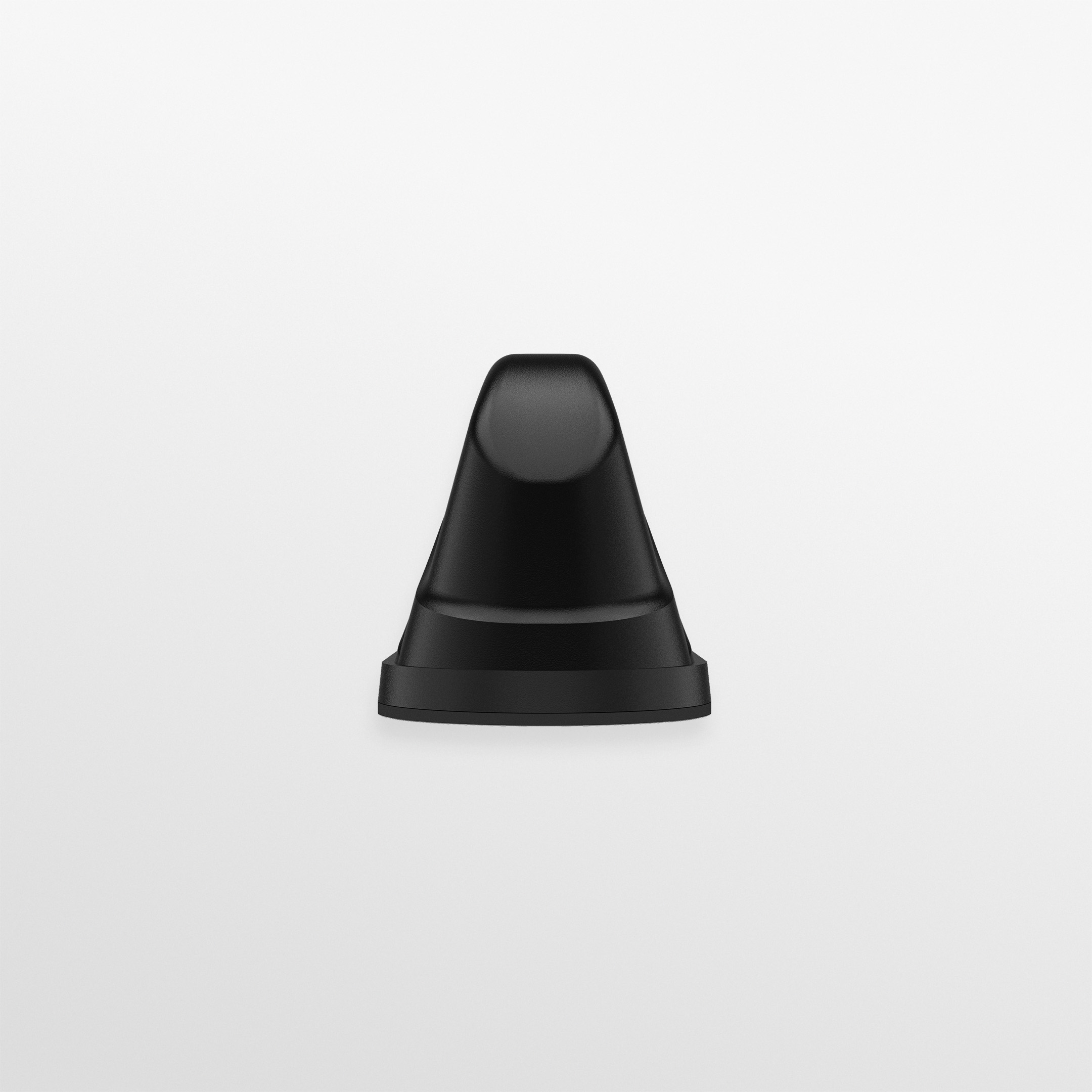

The black housing measures 150 x 44 x 50 mm, carries an IP66 rating and operates from -40°C to +80°C. It fits through a single mounting hole with a small footprint and handles up to 25 W input power. Panorama's family datasheet and SW3-704 installation instructions are available for this antenna.

Ideal for

  • Vending machines and unattended retail with a 5G or LTE router and Wi-Fi
  • Payment terminals and kiosks needing cellular backhaul plus local Wi-Fi
  • Smart metering and remote monitoring cabinets
  • Static M2M and IoT gateways mounted in enclosures

Specifications

GPS

Number OF GPS Elements
None (LPAM non-GNSS version)

Cable

Cable Type LTE
RG174
Cable Type Wi-Fi
RG174
Cable Length LTE
1 m
Cable Length Wi-Fi
1 m

General

MPN
LPAM-7-27-24-58-1S
UPC
5019738445545
Brand
Panorama Antennas
Variant
1 m cable variant of LPAM-7-27-24-58 (no GNSS, 2x2 MIMO Wi-Fi)
Product Family
L[G]AM-7-27-[X]24-58 Multifunction MIMO Antenna

Package

Documents
L[G]AM-7-27-[X]24-58 Datasheet; SW3-704 A5 Installation Instructions
Shipping Weight
0.42 lb

Mounting

Mounting Methods
Single-hole panel mount
Mounting Type Fixed
Panel

Approvals

IP Rating
IP66

Electrical

Pattern
Omnidirectional
Uhf Elements
No
Wi-Fi Elements
2 x 2 MIMO, dual-band 2.4/5 GHz
Max Input Power
25 W
Cellular LTE Elements
2 x 2 MIMO
Frequency Range Gain Low Band
698–960 MHz | 2 dBi
Frequency Range Gain High Band
1710–3800 MHz | 5 dBi

Mechanical

Width
44 mm (1.73 in)
Colour
Black
Height
50 mm (1.97 in)
Length
150 mm (5.91 in)
Operating Temperature
-40°C to +80°C (-40°F to +176°F)

Technology

Technology
2G/3G/4G/5G cellular; dual-band Wi-Fi MIMO

Termination

Connector LTE
SMA male plug
Connector Wi-Fi
Reverse-polarity SMA plug

Questions buyers ask

What cellular frequencies does the LPAM-7-27-24-58-1S cover?

It covers 698–960 MHz at 2 dBi and 1710–3800 MHz at 5 dBi, spanning 2G, 3G, 4G LTE and 5G bands within that range, through 2x2 MIMO elements.

How many cables and connectors does it have?

It has 2x2 MIMO cellular and 2x2 MIMO Wi-Fi, so two cellular leads with SMA male plugs and two Wi-Fi leads with reverse-polarity SMA plugs, each on 1 m of RG174 cable.

Does this model include GPS?

No. The LPAM version has no GNSS element. Panorama's LGAM versions of this family add an active GPS/GLONASS/Galileo/BeiDou antenna.

Can it be installed outdoors?

Yes. The housing is IP66 rated and operates from -40°C to +80°C, and it fits through a single hole in the mounting panel.

Does it need a metal mounting surface?

No. Panorama states the antenna maintains its performance on or off a conductive surface, including non-metallic panels.
