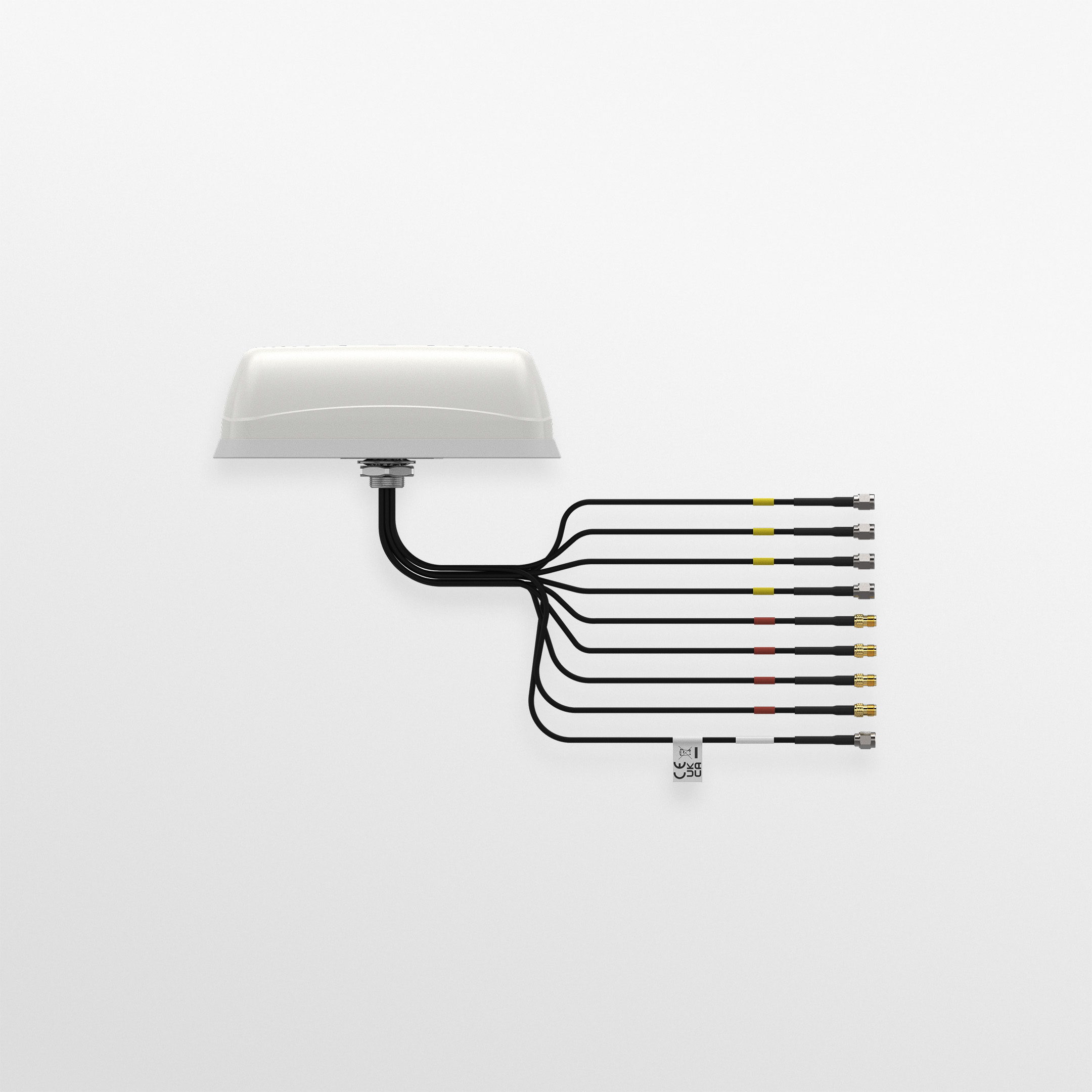

Panorama Clam LPAM4-7-42-1 4x4 MIMO 4G/5G Low-Profile IoT Antenna, 1 m Cables

5GMPN LPAM4-7-42-1
  • 4x4 MIMO
  • 6–8 dBi
  • Up to 1 m
$105.40$145.50Save $40.10

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Panorama LPAM4-7-42-1 is the 1 m cable version of the Clam LPAM4-7-42 4x4 MIMO IoT antenna. Four 4G LTE/5G NR elements cover 698-960 MHz and 1427-4200 MHz in a vandal-resistant, low-profile housing rated IK10 and IP69K. The shorter SMA (m) leads suit installations where the router sits close to the mounting panel, such as kiosks, vending machines and compact outdoor enclosures.

  • Four 4G LTE/5G NR elements in a 4x4 MIMO configuration
  • Cellular coverage of 698-960 MHz and 1427-4200 MHz
  • Four integrated 1 m cables with SMA (m) connectors
  • IK10 impact rating and IP69K ingress protection
  • Panel mount on conductive or non-conductive panels
  • Operating temperature of -40°C to +85°C
  • Short 1 m leads suit compact enclosures where the router sits behind the panel
  • A single housing covers all four ports on a 4x4 MIMO 4G/5G device

The Panorama LPAM4-7-42-1 is a low-profile 4x4 MIMO antenna for 4G and 5G IoT equipment. It is the 1 m cable variant of the Clam LPAM4-7-42, since the family's -X suffix indicates cable length. It has four 4G LTE/5G NR elements covering 698-960 MHz and 1427-4200 MHz, a range that includes the 3.5 GHz CBRS spectrum used by private networks. There are no GNSS or Wi-Fi elements, so all four leads serve a 4x4 MIMO cellular router, gateway or modem.

The 1 m leads suit enclosures where the device sits directly behind the antenna. Shorter runs keep installations tidy and avoid coiling excess coax inside a cabinet. The cables are low loss and flame retardant, and the Clam family's cables are approved to UN ECE R118. Each lead ends in an SMA (m) connector.

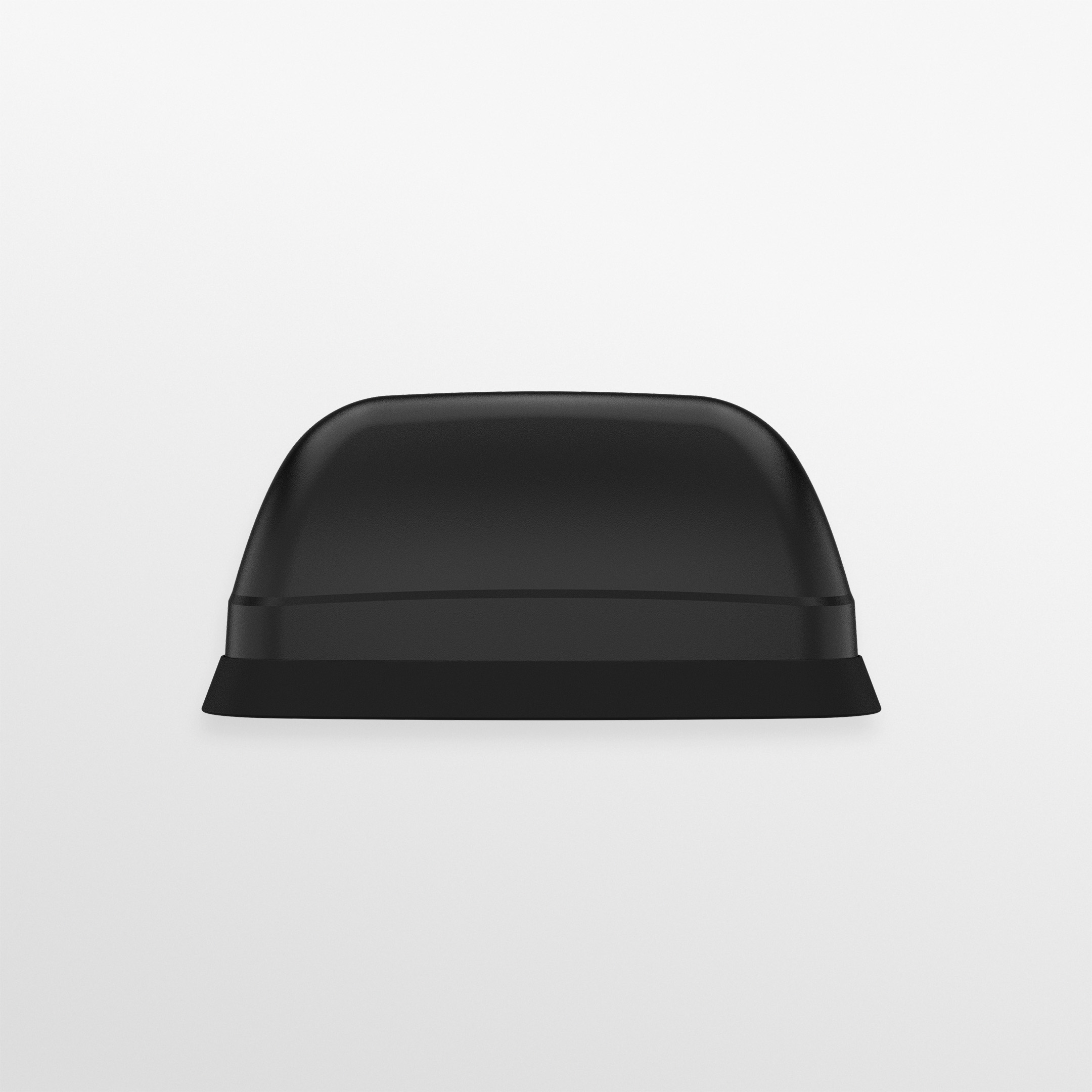

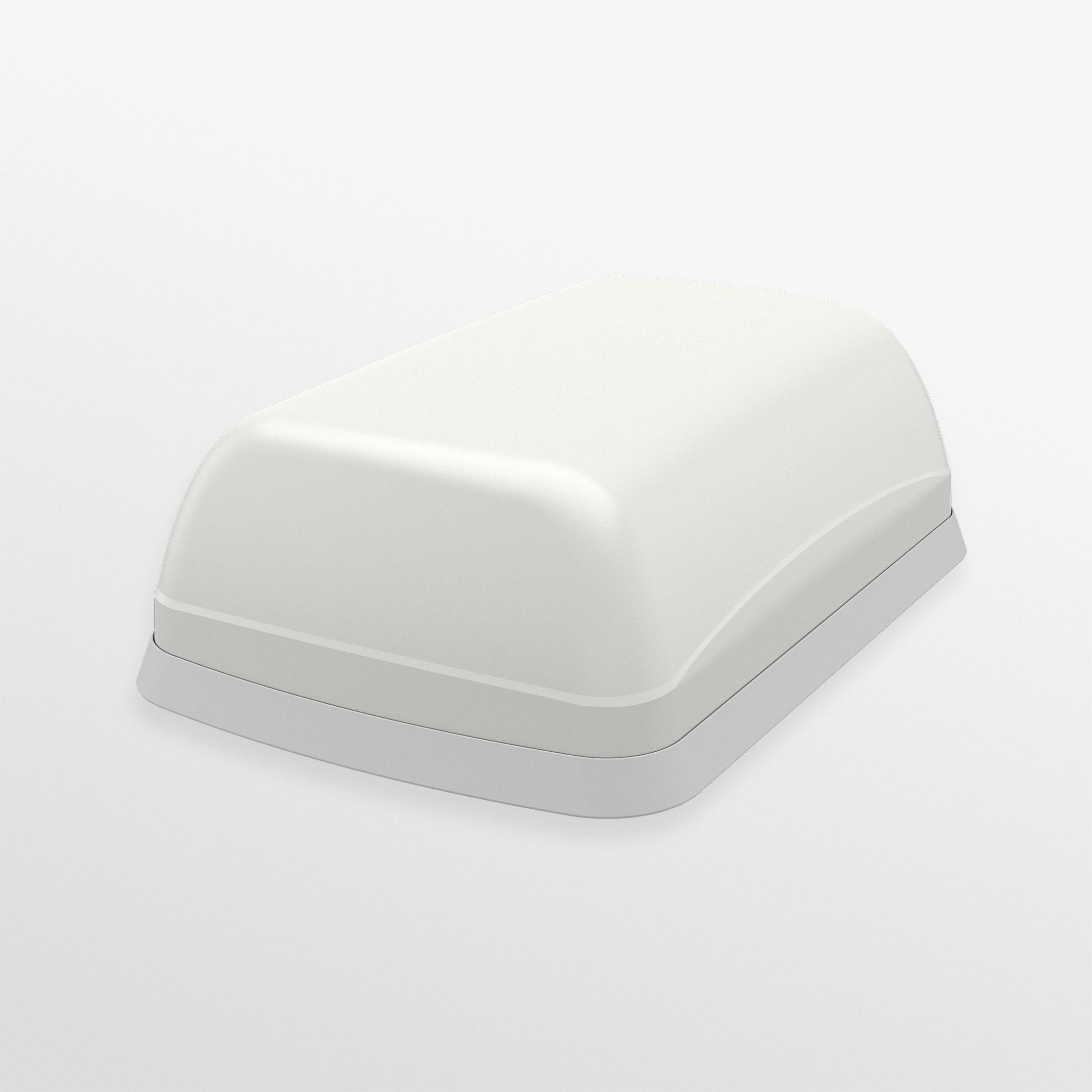

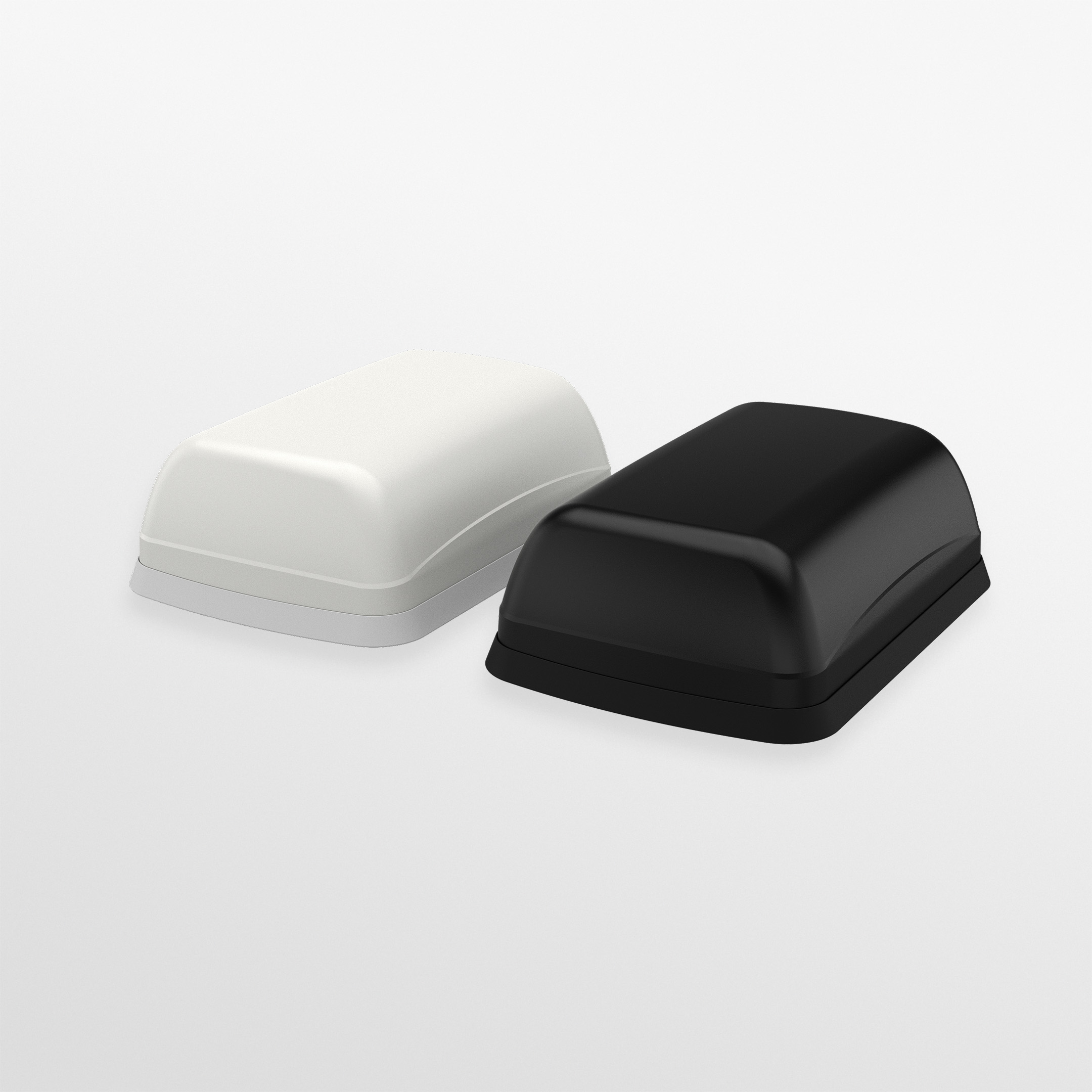

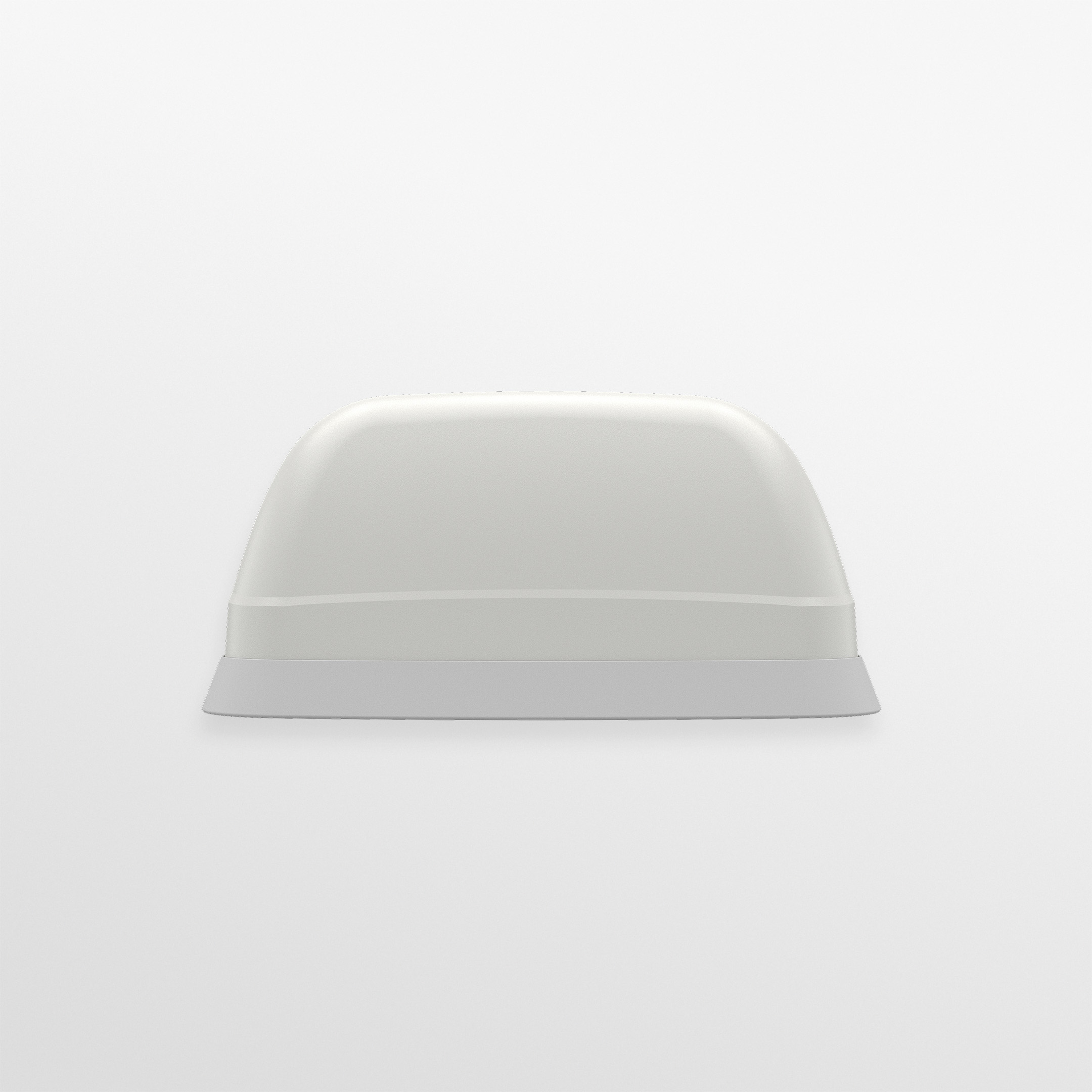

The housing is made from flame-retardant, impact-resistant, UV-stable plastic in a curved profile that is harder to vandalise. The IK10 impact rating and IP69K ingress protection suit public-area and harsh-environment installations. The operating range is -40°C to +85°C, and the housing measures 175 x 118 x 56.9 mm. The antenna panel-mounts and works on conductive or non-conductive panels without significant loss of performance. Panorama's datasheet and installation instructions (SW3-1078) cover the full family.

Ideal for

  • Compact kiosk and vending machine enclosures with the router mounted close to the antenna
  • Street furniture and public-area IoT equipment
  • Smart agriculture installations
  • Private 4G/5G and CBRS network endpoints

Specifications

GPS

GPS Elements
None on this model

Cable

Cable Length LTE
1 m (3.28 ft)

General

MPN
LPAM4-7-42-1
Brand
Panorama Antennas
Variant
1 m cable version of LPAM4-7-42
Product Family
Clam® L[X]A[X]M4-7-42[-X]

Package

UPC
5055416091949
Shipping Weight
3.00 lb

Mounting

Mounting Methods
Panel
Mounting Type Fixed
Panel

Approvals

Impact Rating
IK10
Ingress Rating
IP69K
Cable Flammability
UN ECE R118

Electrical

Pattern
Omnidirectional
Typical Vswr
<2.5:1
Uhf Elements
No
Wi-Fi Elements
None on this model
Frequency Range
698-960 MHz; 1427-4200 MHz
Max Input Power
5 W
Cellular LTE Elements
4 x 4 MIMO

Mechanical

Width
118 mm (4.65 in)
Height
56.9 mm (2.24 in)
Length
175 mm (6.89 in)
Operating Temperature
-40°C to +85°C (-40°F to +185°F)

Technology

Technology
2G/3G/4G, 5G, CBRS

Termination

Connector LTE
SMA (m)

Questions buyers ask

How does the LPAM4-7-42-1 differ from the LPAM4-7-42?

Only in cable length. The -1 version has 1 m cables, while the LPAM4-7-42 has 2 m cables.

How many cellular connections does it have?

Four, one per 4G LTE/5G NR element, each on an SMA (m) connector, for use with 4x4 MIMO devices.

Does it support CBRS?

Its 1427-4200 MHz range includes the 3.5 GHz CBRS band, and Panorama lists the Clam family among its CBRS antennas.

Is it rated for rugged locations?

Yes. It is rated IK10 for impact and IP69K for ingress, with a UV-stable housing and an operating range of -40°C to +85°C.
