Cisco Meraki MA-ANT-C1-B Cellular Patch Antenna for MG21E

4G LTEMPN MA-ANT-C1-B
  • 2x2 MIMO
  • Up to 1 m

Made for Cisco Meraki

$416.32$605.44Save $189.12

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

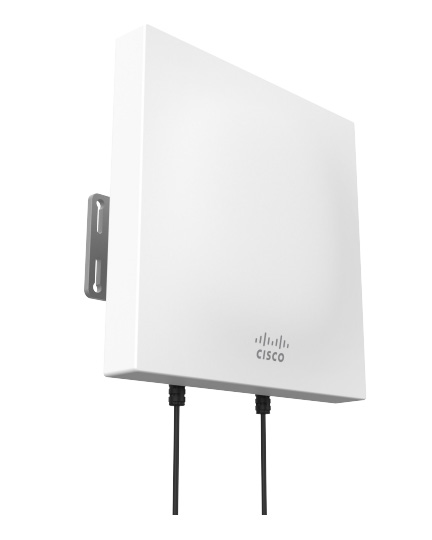

The Cisco Meraki MA-ANT-C1-B is a directional cellular patch antenna for the Meraki MG21E cellular gateway. Mounted high on a pole or wall and aimed toward the tower, it delivers up to 8 dBi of peak gain across four ranges from 698 to 2690 MHz for better signal quality and power. It includes a 100 cm cable with RP-SMA connectors and the mounting bracket.

  • Narrow patch directional antenna certified for the Meraki MG21E
  • Frequency ranges 698-791, 824-960, 1710-2170 and 2570-2690 MHz
  • Peak gain up to 8 dBi (4/4/8/7 dBi per range)
  • 60° horizontal and vertical beamwidth; linear horizontal and vertical polarization
  • 100 cm cable with RP-SMA connector; wall and pole mounting bracket included
  • -40°C to +85°C operating range, PC-ABS housing
  • Directional gain toward the tower raises MG21E signal quality and power at weak-coverage sites
  • Pole or wall mounting gets the antenna above obstructions for a clearer line of sight

The Cisco Meraki Cellular Patch Antenna (MA-ANT-C1-B) is for MG21E deployments where the built-in or omnidirectional antennas can't pull a strong enough signal. Meraki describes it as ideal when higher directional gain toward a cellular tower is needed. Mounted high on a pole with a clearer line of sight to the tower, it gives the MG21E higher signal quality and power.

The narrow patch design covers four frequency ranges: 698-791 MHz, 824-960 MHz, 1710-2170 MHz and 2570-2690 MHz. Peak gain is 4 dBi in both low-band ranges, 8 dBi at 1710-2170 MHz and 7 dBi at 2570-2690 MHz. Polarization is linear, horizontal and vertical, and beamwidth is 60° in both the horizontal and vertical planes. That is focused enough to add gain and wide enough to aim easily.

The antenna measures 220 x 220 x 46 mm and weighs 550 g in a PC-ABS housing. It operates from -40°C to +85°C and handles 95% humidity at 55°C. It connects to the gateway over a 100 cm cable with RP-SMA connectors. The mounting bracket is included, and no other accessories are needed to mount it to walls or poles. Meraki certifies it for use with the MG21E only, and it includes a 1-year hardware warranty.

Meraki publishes a datasheet for this antenna.

Ideal for

  • Meraki MG21E deployments at fringe-coverage branch or retail sites
  • Pole-mounted installs aimed at a distant cellular tower
  • Warehouses and industrial buildings where interior placement weakens signal
  • Improving primary or backup cellular WAN quality for an MG21E

Specifications

Cables

Length
100 cm

General

MPN
MA-ANT-C1-B
Brand
Cisco Meraki
Product Name
Cellular Patch Antenna
Country OF Origin
Taiwan

Mounting

Hardware
Bracket included; no other accessories required
Mounting
Mounts to walls and poles

Warranty

Hardware Warranty
1 year hardware warranty included

Electrical

Peak Gain
4 dBi (700); 4 dBi (960); 8 dBi (2170); 7 dBi (2690)
Antenna Type
Narrow Patch
Polarization
Linear, horizontal (left) and vertical (right)
Frequency Range
698-791 MHz; 824-960 MHz; 1710-2170 MHz; 2570-2690 MHz
Beamwidth Vertical
60°
Beamwidth Horizontal
60°

Compatibility

Regulatory
Certified for use with the MG21E
Ordering Information
Works with Meraki MG21E only

Physical Environmental

Weight
550 g
Humidity
95% at 55°C (131°F)
Material
PC-ABS
Connector
RP-SMA
Dimensions
220 x 220 x 46 mm
Temperature
-40°C to +85°C (-40°F to 185°F)
