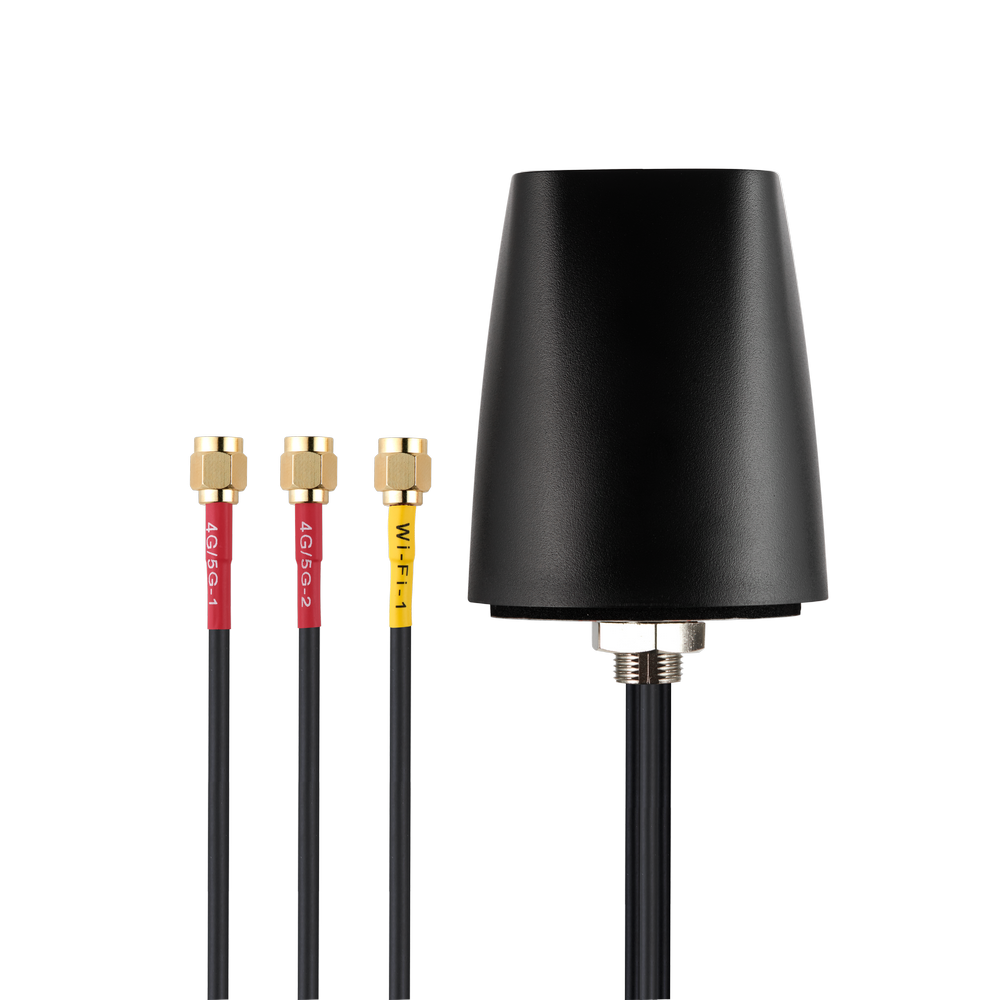

Taoglas Olympian III MA183.K.001 3-in-1 Screw Mount Antenna, 2x 5G/4G MIMO and Tri-Band Wi-Fi

5GMPN MA183.K.001
  • 2x2 MIMO
  • Wi-Fi
  • 1–3 m
$92.52$110.15Save $17.63

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Taoglas Olympian III MA183.K.001 is a compact 3-in-1 permanent-mount antenna with two 5G/4G MIMO elements covering 600-6000 MHz and a wideband Wi-Fi element for 2.4 GHz, 5 GHz and 5.925-7.125 GHz (Wi-Fi 6/7). The IP67 ASA housing stands 70 mm tall and 59.45 mm across and screw-mounts through a vehicle roof or enclosure wall. This ordering variant is configured with SMA(M) connectors on the cellular leads and an RP-SMA(M) connector on the Wi-Fi lead.

  • 2x 5G/4G MIMO elements covering 600-6000 MHz, including worldwide LTE, 5G FR1 bands and 3G/2G fallback
  • Wideband Wi-Fi element covering 2.4 GHz, 5 GHz and 5.925-7.125 GHz (Wi-Fi 6/7), plus Bluetooth frequencies
  • Designed to eliminate cable radiation so performance holds on metal boxes and plastic structures
  • IP67 ASA enclosure with integrated rubber O-ring, rated -40°C to +85°C
  • Compact Ø59.45 x 70 mm screw-mount housing, 130 g
  • SMA(M) connectors on the cellular leads and RP-SMA(M) on the Wi-Fi lead
  • One screw-mount penetration delivers 5G/4G MIMO and Wi-Fi, reducing roof holes and cable clutter
  • Covers low-band n71/Band 71 through n77/n78/n79, so one antenna fits deployments across carriers and regions

The Olympian III is Taoglas' low-profile combination antenna for vehicles, cabinets and outdoor assets that need 5G/4G MIMO and Wi-Fi from a single roof or wall penetration. Two cellular elements cover 600-6000 MHz, including worldwide LTE bands, sub-6 GHz 5G FR1 bands such as n71, n77, n78 and n79, and fallback to 3G and 2G where networks still use them. A third, wideband element handles Wi-Fi at 2.4 GHz, 5 GHz and the 5.925-7.125 GHz band used by Wi-Fi 6/7, along with Bluetooth frequencies.

Taoglas designed the cellular elements to suppress cable radiation, so performance holds when the antenna is installed on a metal box as well as on plastic structures. The datasheet publishes efficiency and gain for every band on a 30x30 cm ground plane, in free space and on a metal box, with peak gain up to 6.82 dBi. For metal-box installations Taoglas recommends using cellular element 2 as the primary antenna and element 1 as diversity.

The enclosure is IP67-rated ASA, chosen for vandal resistance, with an integrated rubber O-ring that keeps water from getting under the base. It installs from inside the host enclosure, and the small thread suits locations where space is tight. Operating range is -40°C to +85°C, and the antenna is RoHS and REACH compliant.

MA183.K.001 is a connector and cable ordering variant of the standard MA183.A.001: the two 5G/4G leads terminate in SMA(M) connectors and the tri-band Wi-Fi lead in RP-SMA(M), on 3 m cable runs. Taoglas recommends a minimum of 1 m of cable for stable antenna performance.

Ideal for

  • Vehicle roof installations for fleet telematics and transportation
  • Outdoor cabinets for smart metering and remote monitoring
  • Digital signage and kiosks needing 5G/4G backhaul plus Wi-Fi
  • Metal-enclosure IoT gateways and routers with MIMO cellular ports

Specifications

General

MPN
MA183.K.001
Rohs
Yes
Vswr
<2
Brand
Taoglas
Gain Max
6.82 dBi
Impedance
50 Ω
Technology
External Antennas, Combination
Polarization
Linear
Configuration
2x 5G/4G MIMO + 1x Wi-Fi Tri-Band
Mounting Style
Screw
Product Family
Olympian III
Standard Model
MA183.A.001
Frequency Range
600-7125 MHz

Package

Shipping Weight
0.29 lbs

Mechanical

Weight
130 g
Material
ASA
Dimensions
Ø59.45 x 70 mm
Cable Length
3 m
Wi-Fi Connector
RP-SMA(M)
Cellular Connectors
5G/4G Connectors: SMA(M)

Environmental

Waterproof Rating
IP67
Storage Temperature
-40°C to +85°C
Rohs Reach Compliant
Yes
Operating Temperature
-40°C to +85°C

Wi-Fi Electrical

Impedance
50 Ω
Polarization
Linear
Frequency Bands
Wi-Fi Bands: 2.4 GHz, 5.8 GHz, 5.925-7.125 GHz
Max Input Power
2 W
Radiation Pattern
Omni
Band 2400 2500 MHz
Wi-Fi 2400-2500 MHz: peak gain up to 6.47 dBi, efficiency up to 56.2%
Band 5150 5850 MHz
Wi-Fi 5150-5850 MHz: peak gain up to 6.26 dBi, efficiency up to 64.0%
Band 5925 7125 MHz
Wi-Fi 5925-7125 MHz: peak gain up to 6.82 dBi, efficiency up to 57.5%

Cellular Electrical

Elements
2 (MIMO)
Impedance
50 Ω
Polarization
Linear
Frequency Range
600-6000 MHz
Max Input Power
10 W
Band 617 698 MHz
617-698 MHz (Band 71): peak gain up to 6.79 dBi, efficiency up to 58.5% (ground plane)
Band 698 806 MHz
peak gain up to 5.10 dBi, efficiency up to 53.7%
Band 824 960 MHz
peak gain up to 5.48 dBi, efficiency up to 61.1%
Radiation Pattern
Omni
Band 1427 1518 MHz
peak gain up to 0.47 dBi, efficiency up to 23.1%
Band 1710 2200 MHz
peak gain up to 5.23 dBi, efficiency up to 70.4%
Band 2300 2690 MHz
peak gain up to 5.78 dBi, efficiency up to 67.6%
Band 3300 5000 MHz
peak gain up to 5.63 dBi, efficiency up to 54.9%
Band 5150 5925 MHz
peak gain up to 6.38 dBi, efficiency up to 55.6%
Metal Box Recommendation
Metal Box Setup: 4G-5G 2 Primary, 4G-5G 1 Diversity

Questions buyers ask

Does the MA183.K.001 support 5G?

Yes. Its two MIMO elements cover 600-6000 MHz, including sub-6 GHz 5G FR1 bands such as n71, n77, n78 and n79, along with worldwide LTE and 3G/2G fallback.

Which connectors does this variant use?

The two 5G/4G leads terminate in SMA(M) connectors and the tri-band Wi-Fi lead terminates in an RP-SMA(M) connector.

Can it be mounted on a metal enclosure?

Yes. Taoglas designed it to work on both metal and plastic structures and publishes metal-box performance. For metal boxes, use cellular element 2 as the primary antenna and element 1 as diversity.

Does it cover Wi-Fi 6 and Wi-Fi 7?

The Wi-Fi element covers 5.925-7.125 GHz in addition to 2.4 GHz and 5 GHz, the frequencies used by Wi-Fi 6/7.

How is it installed and sealed?

It screw-mounts from inside the host enclosure. An integrated rubber O-ring under the IP67 housing prevents water ingress beneath the antenna.
