Taoglas Genesis MA244.LBIC.003 4-in-1 GNSS, 2x 5G/4G MIMO and Wi-Fi Adhesive Mount Antenna

4G LTEMPN MA244.LBIC.003
  • 2x2 MIMO
  • GNSS
  • Wi-Fi
  • 1–3 m
$114.67$136.50Save $21.83

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

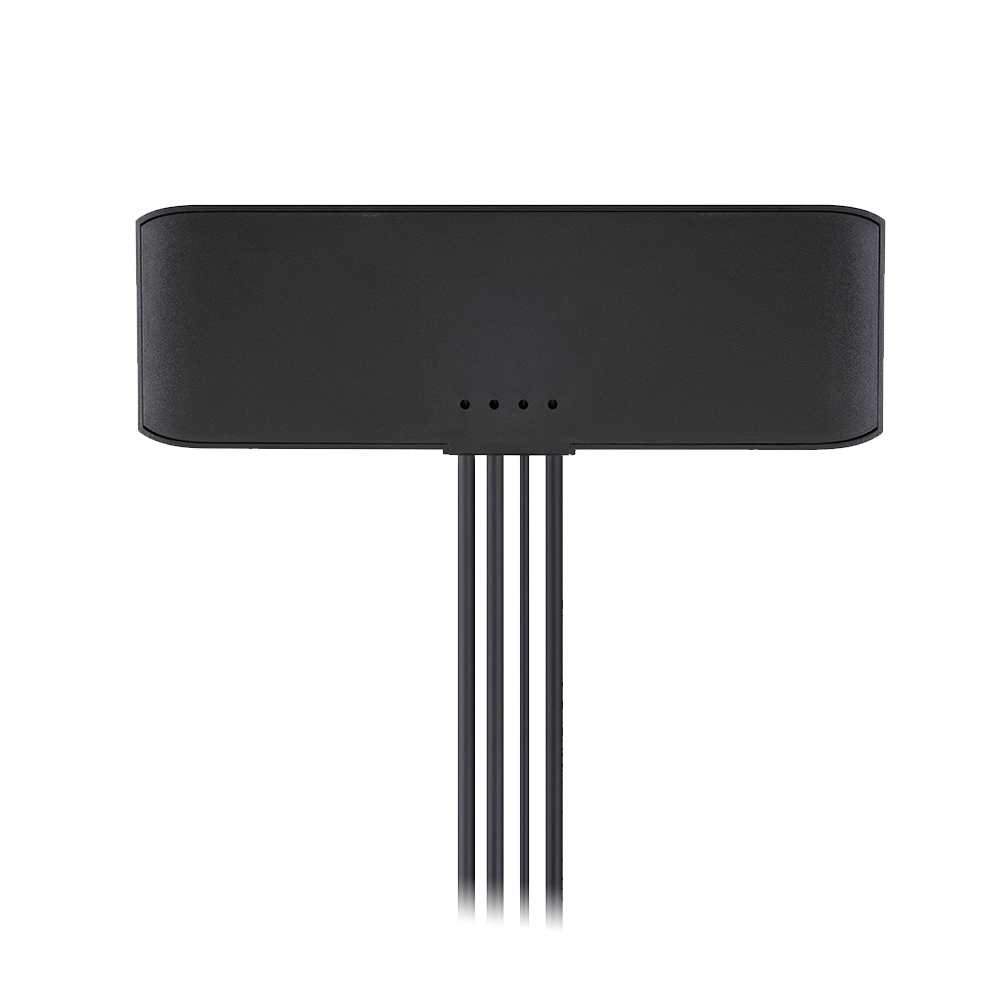

The Taoglas Genesis MA244.LBIC.003 is a high-temperature 4-in-1 adhesive mount antenna with an active GPS/GLONASS/Galileo element, two 5G/4G MIMO cellular elements and a dual-band Wi-Fi element in one 12.4 mm-high PC+ABS housing. Rated IP65 and -40°C to +85°C, it suits fleet telematics, transportation and robotics. This variant ships with 3 m leads: RG174 with SMA(M) for GNSS and TGC-200 with SMA(M) for both cellular MIMO elements.

  • 4-in-1: active GNSS, 2x 5G/4G MIMO cellular and dual-band Wi-Fi in one housing
  • 5G/4G MIMO across 698-3800 MHz, including 5G FR1 n77/n78 and worldwide LTE bands
  • Active GPS/GLONASS/Galileo element with 30 dB LNA gain and 1.7 dB noise figure at 3.3 V
  • Dual-band Wi-Fi 2.4/5 GHz with peak gain above 4 dBi
  • IP65 PC+ABS enclosure rated -40°C to +85°C for high-temperature vehicle use
  • 3 m leads: RG174/SMA(M) GNSS, TGC-200/SMA(M) for both cellular MIMO elements
  • One adhesive-mounted unit replaces four antennas for GNSS, MIMO cellular and Wi-Fi
  • Two cellular elements with low envelope correlation support MIMO throughput on 4G and 5G routers

The Genesis MA244 packs four antennas into a single low-profile adhesive mount housing measuring 205.8 x 68 x 12.4 mm. Two omnidirectional cellular elements provide MIMO across 698-3800 MHz, covering worldwide LTE and 5G FR1 bands including n77/n78 (3300-3800 MHz), with efficiency of up to 72% depending on band and envelope correlation below 0.3 from 1700-3500 MHz. The band table lists coverage above 20% efficiency for LTE Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 20, 25, 26, 28, 29, 30, 38, 41, 42, 43, 48 and 66, among others.

The GNSS element receives GPS L1, GLONASS L1, Galileo E1 and SBAS (WAAS/EGNOS), and was designed to perform equally well on the GPS/Galileo and GLONASS bands for steadier tracking in urban areas. It is an active antenna: the LNA and filter stage adds 30 dB of gain with a 1.7 dB noise figure, drawing 15 mA at 3.3 V from the receiver. The Wi-Fi element covers 2400-2500 and 4900-5850 MHz with peak gain above 4 dBi and efficiency up to 64.4%.

The PC+ABS enclosure is IP65 rated and built for the heat found in vehicles and transport equipment, operating from -40°C to +85°C and storing up to +90°C. Adhesive mounting avoids drilling.

MA244.LBIC.003 is a cable variant of the standard MA244.LBIC.002 with 3 m leads throughout: 3 m RG174 with SMA(M) for GNSS, 3 m TGC-200 with SMA(M) for cellular MIMO 1 and 2, and a 3 m Wi-Fi lead, giving room to route cables from a roof or dash position to a router or telematics unit.

Ideal for

  • Fleet management and telematics units with MIMO cellular, GNSS and Wi-Fi ports
  • 5G/4G vehicle routers in buses, trucks and emergency vehicles
  • Autonomous robotics platforms needing positioning and high-throughput uplink
  • Transportation and remote monitoring equipment exposed to high temperatures

Specifications

Wi-Fi

Vswr
<5.8
Frequency
2400-2500 / 4900-5850 MHz
Impedance
50 Ω
Peak Gain
4.06 / 4.03 dBi
Efficiency
64.4% / 52.81%
Average Gain
-1.91 / -2.77 dB
Cable Length
3 m
Polarization
Linear

General

MPN
MA244.LBIC.003
Rohs
Yes
Vswr
2:1
Brand
Taoglas
Weight
330 g
Gain Max
2.78 dBi
Impedance
50 Ω
IP Rating
IP65
Technology
External Antennas, Combination
Polarization
Linear, RHCP
Mounting Style
Adhesive
Product Family
Genesis MA244 High Temperature
Standard Model
MA244.LBIC.002
Frequency Range
698-3800 MHz
Dimensions Attribute
Dimensions (L x W x H): 205.8 x 68 x 12.7 mm

Package

Shipping Weight
1.43 lbs

GNSS Bands

Sbas
WAAS/EGNOS (1575.42 MHz)
Galileo
L1/E1 (1575.42 MHz)
Glonass
L1 (1602 MHz)
GPS Qzss
L1 (1575.42 MHz)

Mechanical

Casing
PC+ABS
Weight
330 g
Dimension
205.8 x 68 x 12.4 mm

Cellular MIMO

Vswr
<5.8
Cable
3 m TGC-200 (MIMO 1 & 2)
Elements
2 (MIMO)
Impedance
50 Ω
Connectors
SMA(M)
Technology
5G NR FR1, LTE, LTE-A, WCDMA, HSPA/HSPA+, TD-SCDMA
Polarization
Linear
Covered Bands
1, 2, 3, 4, 5, 7, 8, 9, 11, 12, 13, 14, 17, 18, 19, 20, 22, 23, 24, 25, 26, 27, 28, 29, 30, 35, 38, 39, 40, 41, 42, 43, 48, 66, 78
Measurement Cable
Measured With: 1 m Cable
Radiation Pattern
Omni-Directional
Range 698 806 MHz
698-806 MHz (LTE700): up to 63.96%, 4.45 dBi peak
Range 824 960 MHz
824-960 MHz (GSM850/900): up to 65.29%, 2.76 dBi peak
Listed Not Covered
Listed, Below 20% Efficiency: 21, 31, 32, 71, 74/75/76, 79
Range 1427 1518 MHz
1427-1518 MHz (5G Bands 74/75/76): up to 18.72%, -2.77 dBi peak
Range 1710 1880 MHz
1710-1880 MHz (DCS): up to 51.02%, 3.39 dBi peak
Range 1850 1990 MHz
1850-1990 MHz (PCS): up to 71.45%, 5 dBi peak
Range 1920 2170 MHz
1920-2170 MHz (UMTS1): up to 71.03%, 5 dBi peak
Range 2300 2690 MHz
2300-2690 MHz (LTE2600): up to 72.65%, 5.02 dBi peak
Range 3300 3500 MHz
3300-3500 MHz (5G Bands 77/78/79): up to 46.06%, 3.03 dBi peak
Range 3400 3800 MHz
3400-3800 MHz (5G Bands 42/43): up to 42.27%, 1.81 dBi peak
Envelope Correlation Coefficient
<0.5 (696-960 MHz), <0.3 (1700-3500 MHz)

Environmental

Humidity
Non-condensing, 65°C 95% RH
Protection
IP65
Storage Temperature
-40°C to 90°C
Rohs Reach Compliant
Yes
Operating Temperature
-40°C to 85°C

Lna And Filter

Gain
30 dB
Vswr
<1.5:1
Frequency
1575.42 / 1602 MHz
Impedance
50 Ω
Return Loss
10 dB Min.
Noise Figure
1.7 dB
Input Voltage
3.3 V
Current Consumption
15 mA

GNSS Electrical

Vswr
2.0:1
Cable
3 m RG174
Connector
SMA(M)
Frequency
1575.42 / 1602 MHz
Impedance
50 Ω
Polarization
RHCP
Passive Peak Gain
2.14 / 2.24 dBi
Passive Efficiency
63.14% / 67.16%
Passive Average Gain
-2 / -1.73 dB

Questions buyers ask

Does the MA244.LBIC.003 work with 5G routers?

Yes. Its two MIMO elements cover 698-3800 MHz, including 5G FR1 n77/n78 and worldwide LTE bands. Band 71 and n79 are listed below the 20% efficiency threshold.

Is the GNSS element active, and what power does it need?

Yes. The LNA provides 30 dB gain with a 1.7 dB noise figure and draws 15 mA at 3.3 V supplied over the GNSS cable by the receiver.

What cables and connectors are fitted?

GNSS uses 3 m RG174 with SMA(M); both cellular MIMO elements use 3 m TGC-200 with SMA(M); the Wi-Fi element has a 3 m lead.

Which satellite systems are supported?

GPS L1, GLONASS L1, Galileo E1 and SBAS (WAAS/EGNOS). BeiDou is not covered.

How does it handle heat and weather?

The PC+ABS enclosure is IP65 rated, operates from -40°C to 85°C and can be stored up to 90°C.
