Cradlepoint RX30-MC Managed Accessory for R1900 with Modular Modem Slot and 4-Port GbE Switch

MPN MB-RX30-MC

Made for Cradlepoint

$228.75$249.99Save $21.24

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

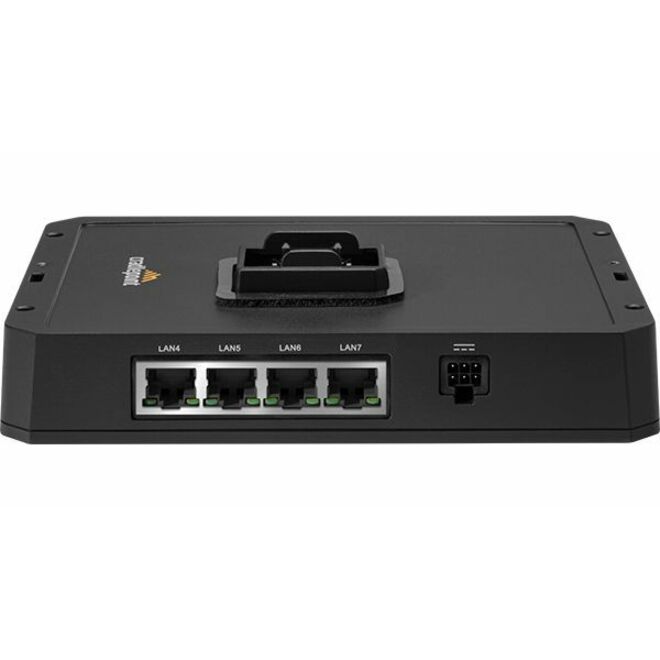

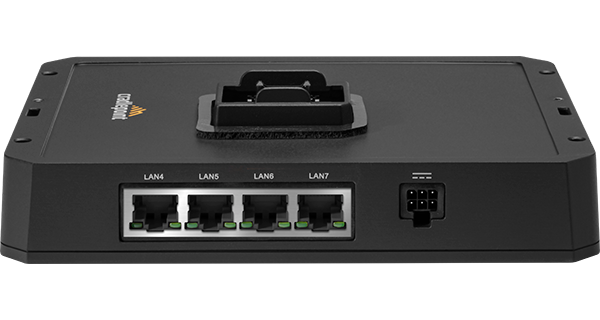

The Ericsson Cradlepoint RX30-MC (MB-RX30-MC) is a compact, ruggedized managed accessory for the R1900 5G ruggedized router. It adds an MC400 modular modem slot for a second modem and carrier diversity, plus four GbE RJ45 ports that are LAN/WAN switchable. It accepts 9–36 VDC input, is IP64 rated, and carries E-Mark vehicle and EN 50155 rail certifications. The MC400 modem is sold separately.

  • MC400 modular modem slot (peak throughput 300 Mbps) for a second modem, sold separately
  • 4 x GbE RJ45 ports, LAN/WAN switchable
  • 1 x 6-pin GPIO connector (2x3 Molex Micro-Fit, 3 mm locking type)
  • 9–36 VDC input with reverse polarity and ISO 7637-2 transient protection
  • IP64 rated with a -30 °C to 70 °C operating range
  • E-Mark, EN 50155 Class S1 and EN 50121-3-2 rail certifications, plus MIL STD 810G and SAE J1455
  • Carrier diversity: a second MC400 modem keeps R1900 vehicles online across two networks
  • Four extra Gigabit ports connect cameras, laptops, terminals and other onboard devices without a separate switch

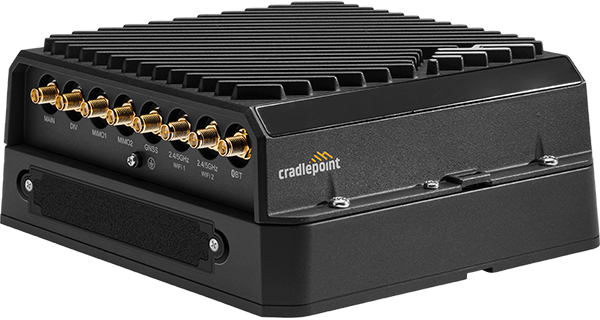

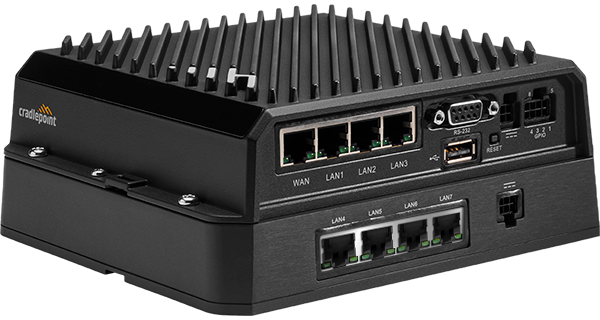

The Ericsson Cradlepoint RX30-MC is built for R1900 deployments that need carrier diversity and more wired connections in the same vehicle, train or remote enclosure. It attaches to the R1900 5G ruggedized router and adds one MC400 modular modem slot, rated for 300 Mbps peak throughput. An MC400 modem, sold separately, installs in this slot as a second WAN path. The accessory also adds four GbE RJ45 ports that can be set as LAN or WAN, along with a 6-pin GPIO connector (2x3 Molex Micro-Fit, 3 mm locking type).

Power comes through a 6-pin (2x3) Molex Micro-Fit external connector across a 9–36 VDC input range. Reverse polarity and transient voltage protection meet ISO 7637-2. Vehicle installations require an in-line fuse: 10 A for 9–24 VDC or 5 A above 24 VDC. With an R1900-5GB at 12 V input, the combined system draws 21 W at idle, 27 W typical and 31 W under heavy load. The IP64 housing operates from -30 °C to 70 °C, and the calculated MTBF is 2,697,409 hours.

Certifications cover UL/cUL, CB Scheme, EN 60950-1 and EN 62368-1, E-Mark for vehicles, and EN 50155 Class S1 and EN 50121-3-2 for rail. It also meets MIL STD 810G and SAE J1455, plus WEEE, RoHS, REACH and California Prop 65 compliance. The box includes a 3-meter 2x3 GPIO and power cable, a small accessories kit and a mounting template. Activation requires an R1900 licensed to an Ericsson NetCloud Service plan. Cradlepoint hardware carries a limited lifetime warranty while that subscription remains active. A data sheet is available for this product.

Ideal for

  • Adding a second carrier modem to R1900-equipped public safety, transit and fleet vehicles
  • Connecting onboard cameras, mobile data terminals and laptops through four extra GbE ports
  • Rail and bus deployments that require EN 50155 and EN 50121-3-2 certified equipment
  • Adding a wired WAN link alongside cellular through a LAN/WAN switchable port

Specifications

Power

Idle
21 W
Heavy
31 W
Sleep
0.07 W
Typical
27 W
Connector
6-pin (2x3) Molex Micro-Fit external power connector
Protection
Reverse polarity and transient voltage protection per ISO 7637-2
Fuse 9 24 Vdc
10 A fuse for 9–24 VDC installations
Input Voltage
9–36 VDC steady state (requires in-line fuse for vehicle installations)
Fuse Over 24 Vdc
5 A fuse for > 24 VDC installations
Consumption Conditions
R1900-5GB + RX30, 12 V input, 25 °C (77 °F) ambient

General

MPN
MB-RX30-MC
UPC
810007806839
Brand
Ericsson Cradlepoint
Model
RX30-MC Managed Accessory — Modem & Switch
Regions
North America, Europe, Asia-Pacific
Accessory Family
Modular

Network

Ethernet
4 x GbE RJ45 (LAN/WAN switchable)

Package

Contents
RX30-MC managed accessory, GPIO & power cable 2x3 3 m 18AWG (170858-000), small accessories kit, mounting template
Warranty
Limited lifetime warranty while licensed to an active NetCloud Service plan
Optional Rail Cable
Rail Safe GPIO Cable, Small 2x3, Black, 3 meters, 18AWG, part 170872-000
Optional Power Supply
Power Supply, 12V, Small, 2x3, -30 °C to 70 °C (C13 line cord not included), part 170870-000

Physical

Size
173 x 152 x 30 mm (6.81 x 5.98 x 1.18 in)
Weight
0.84 kg (1 lb 13.5 oz)

Expansion

Gpio
1 x 6-pin GPIO connector, 2x3 Molex Micro-Fit (3 mm locking type)
Modem Slot
1 x MC400 Modular Modem slot (peak throughput: 300 Mbps)
Modem Slot Peak Throughput
300 Mbps

Reliability

Calculated MTBF
2,697,409 hours (Telcordia SR332 at 25 °C)

Compatibility

Licensing
Requires an R1900 licensed to an Ericsson NetCloud Service plan
Compatible Modem
MC400 modular modem (sold separately)
Supported Routers
Ericsson Cradlepoint R1900 5G ruggedized router

Environmental

Storage Humidity
5% to 95%
Ingress Protection
IP64 (dust tight and splashing water)
Operating Humidity
10% to 90%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Rail
EN 50121-3-2 (Power Surge 0.5 & 1 kV Criteria A; 1.5 kV Criteria C), EN 50155 Class S1
Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1
Vehicle
E-Mark
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
Shock Vibration Humidity
MIL STD 810G, SAE J1455

Questions buyers ask

Does the RX30-MC include a modem?

No. It provides one MC400 modular modem slot, and the modem is sold separately. Cradlepoint lists the MC400 5G modem (MB-MC400-5GB) and the MC400 LTE Advanced Pro modem (MA-MC400-1200M-B) as R1900 upgrades for use with the RX30-MC.

Which router does it work with?

It is designed for the Ericsson Cradlepoint R1900 5G ruggedized router. Activation requires an R1900 licensed to an Ericsson NetCloud Service plan.

Are the Ethernet ports PoE?

No. The RX30-MC provides four standard GbE RJ45 ports that are LAN/WAN switchable. For powered ports, Cradlepoint offers the separate RX30-PoE.

What power does it need?

It accepts 9–36 VDC through a 6-pin (2x3) Molex Micro-Fit connector. Vehicle installs need an in-line fuse: 10 A for 9–24 VDC or 5 A above 24 VDC. A 3-meter GPIO and power cable is included.

Is it certified for rail use?

Yes. It meets EN 50155 Class S1 and EN 50121-3-2, and it also carries E-Mark vehicle certification.
